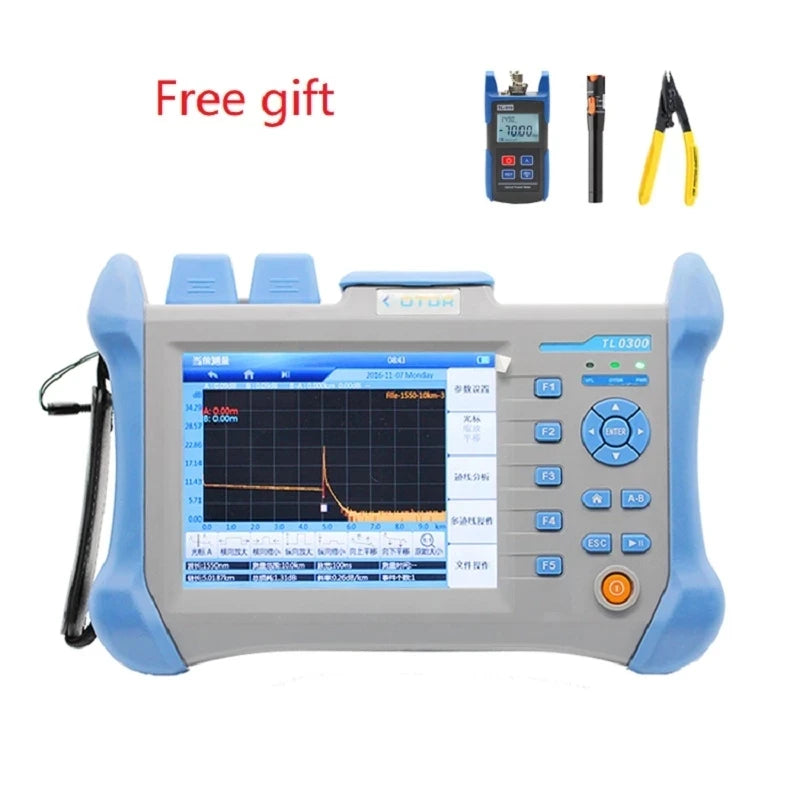

Custom HandheldOTDR TLO-300 OTDR 60-120KM 1310/1550nm,Integrated VFL,TLO300 Touch Screen Optical Time Domain Reflectometer English menu Manufacturer
Custom HandheldOTDR TLO-300 OTDR 60-120KM 1310/1550nm,Integrated VFL,TLO300 Touch Screen Optical Time Domain Reflectometer English menu Manufacturer
Regular price
$645.00 USD
Regular price
$645.00 USD
Sale price
$645.00 USD
Unit price
per
Couldn't load pickup availability
Handheld OTDR TLO-300 60-120KM OTDR 1310/1550nm,Integrated VFL, Touch Screen Optical Time Domain Reflectometer
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most
secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems,
please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory
answer! Happy shopping, thank you very much
Product Attributes
5.6-Inch outdoor-enhanced touchscreen， 7.4V/4.4Ah Lithium battery
Event Dead zone as lower as 1.5meter
Combined multi dynamic range and wavelengths

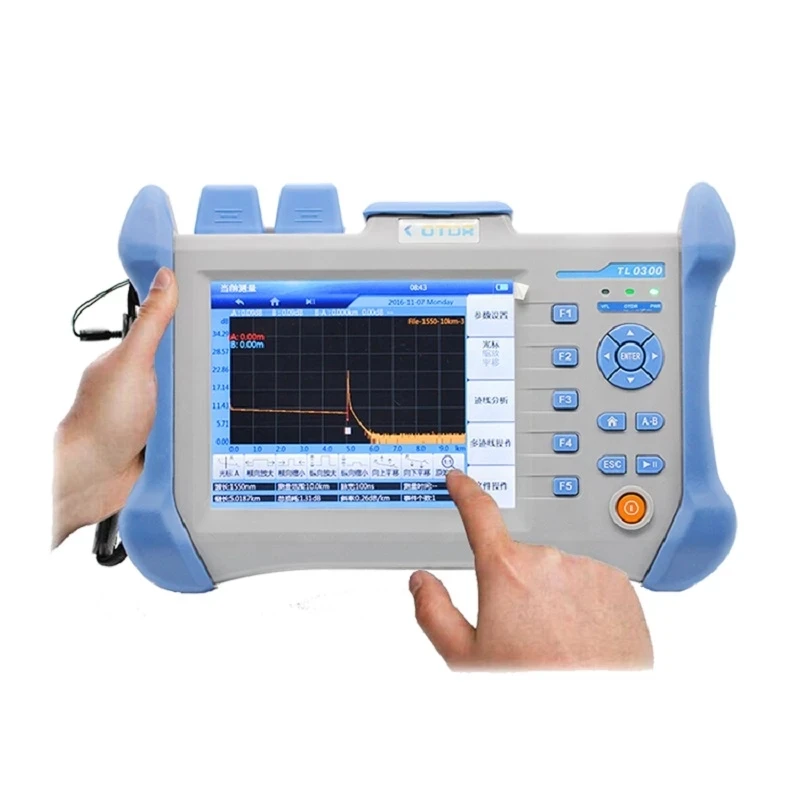

Muti measurement mode, support Touching LCD and pressing keys
Warning function could prevent OTDR module from being damaged by optical signal in fiber.
Realtime measuring function, convenient to monitor the splicing process
Integrated 10mw Visual Fault Locator
Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input ,
Integrated with 8GB internal memory, more than 80,000 groups curve storage
PC remote access and control function is available , which support the printing work of the measurement report
Specifications:
Pulse Width
(SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs :
(MM 850/1300NM) 5ns，10ns，20ns，50ns，100ns，500ns，1us
Distance Range
(SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 60km, 80KM,120KM
(MM 850/1300NM):100m，400m，1.3km，2.5km，5km，10km，20km，40km，80km
Sampling Resolution
Minimum 0.05m
Sampling Point
128,000
Linearity
≤0.05dB/dB
Loss Threshold
0.01dB
Loss Resolution
0.001dB
Distance Resolution
0.01m
Distance Accuracy
±（1m+measuring distance×3×10 +sampling resolution）
Data Storage
20000 groups of curve
VFL
10mW，CW/2Hz
Interface

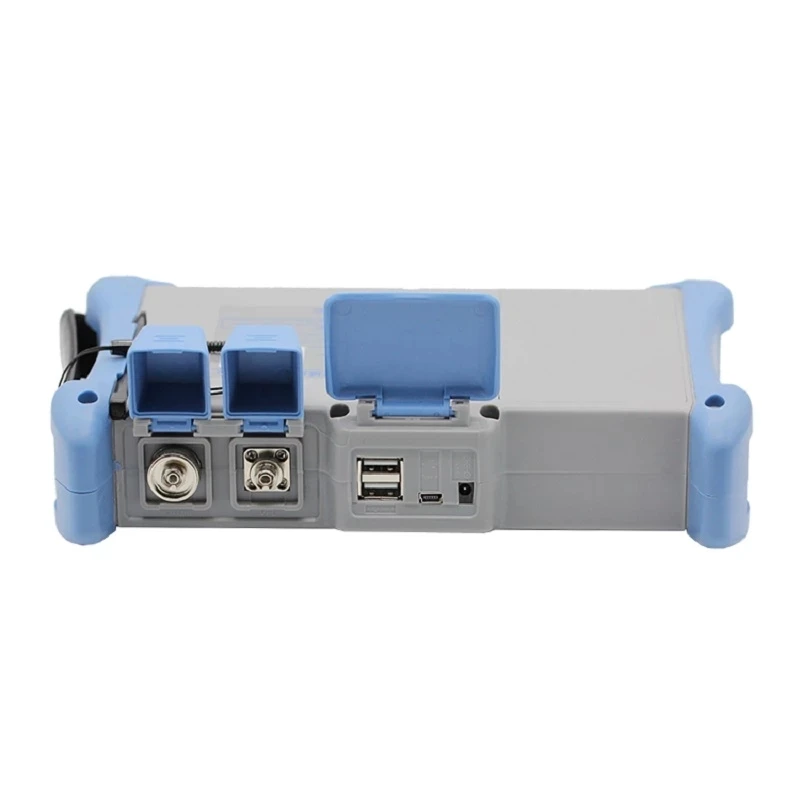

3 USB ports（Type A×2，Type B×1）
Display
5.6 inch TFT-LCD, Touching screen
Battery
7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions
Working Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃；Humitity ：≤95%（non-dew）
Dimensions/Weight
253×168×73.5mm / 1.5kg（include battery）
Packing list
Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton
