Custom GY-95T nine-axis sensor, three-axis acceleration, gyroscope, attitude angle module Manufacturer

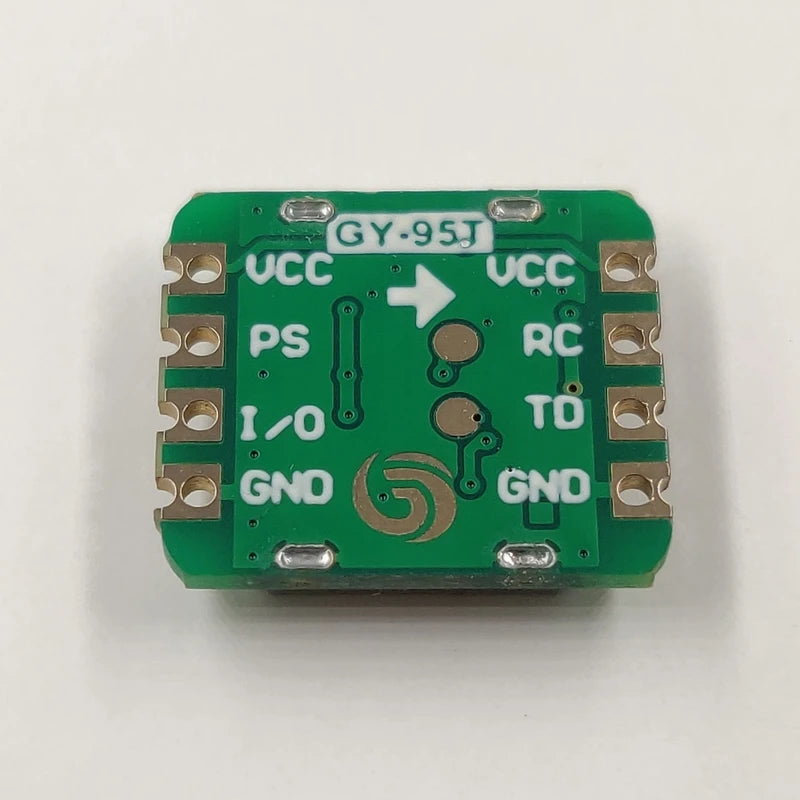

GY-95T AHRS nine-axis module electronic compass with tilt compensation module

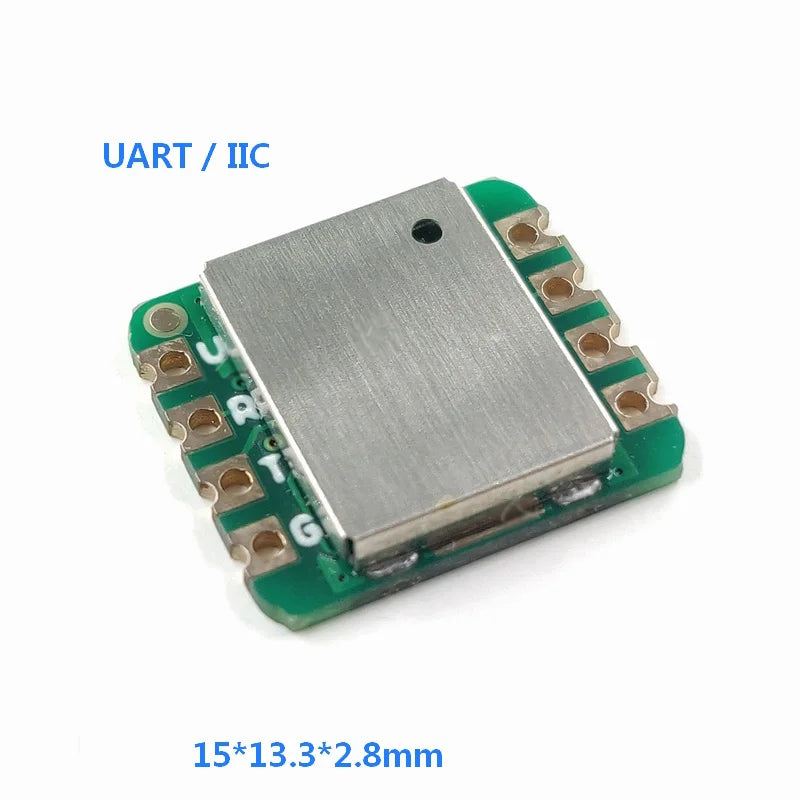

Module size: 15mm*13.3*2.8mm

Communication method, serial port / IIC

Power supply: 3v-5v 15ma

The fastest output update frequency is 200HZ

Resolution 0.01 degree



Direct output:

1. Euler angle, (YAW ROLL PITCH) that is commonly used xyz angle

2. Nine-axis sensor raw data (three-axis acceleration, three-axis gyroscope, three-axis magnetometer)

3. Four element output



Features:

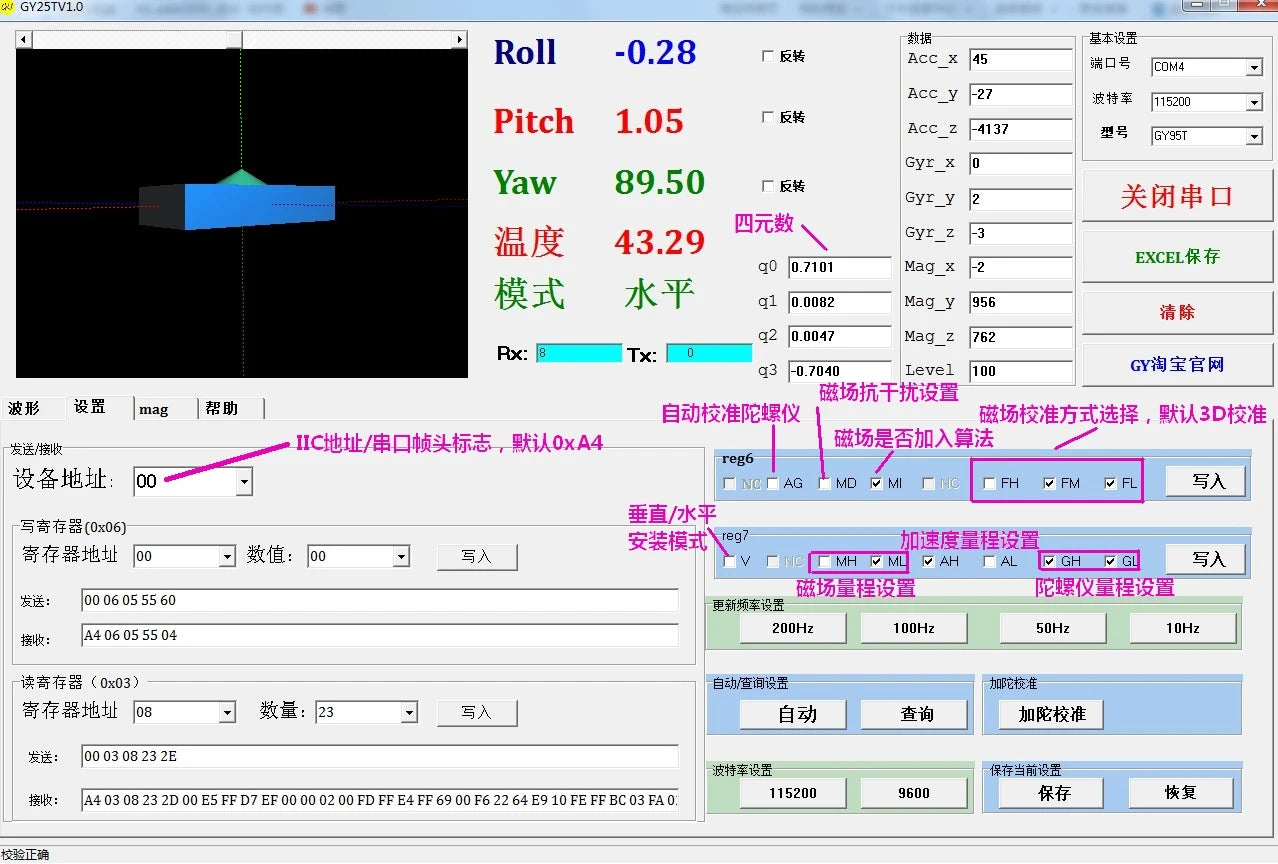

Can set automatic output and query output mode, save power off

Can communicate with iic, bus connect multiple modules

There is a magnetometer, the heading angle does not drift

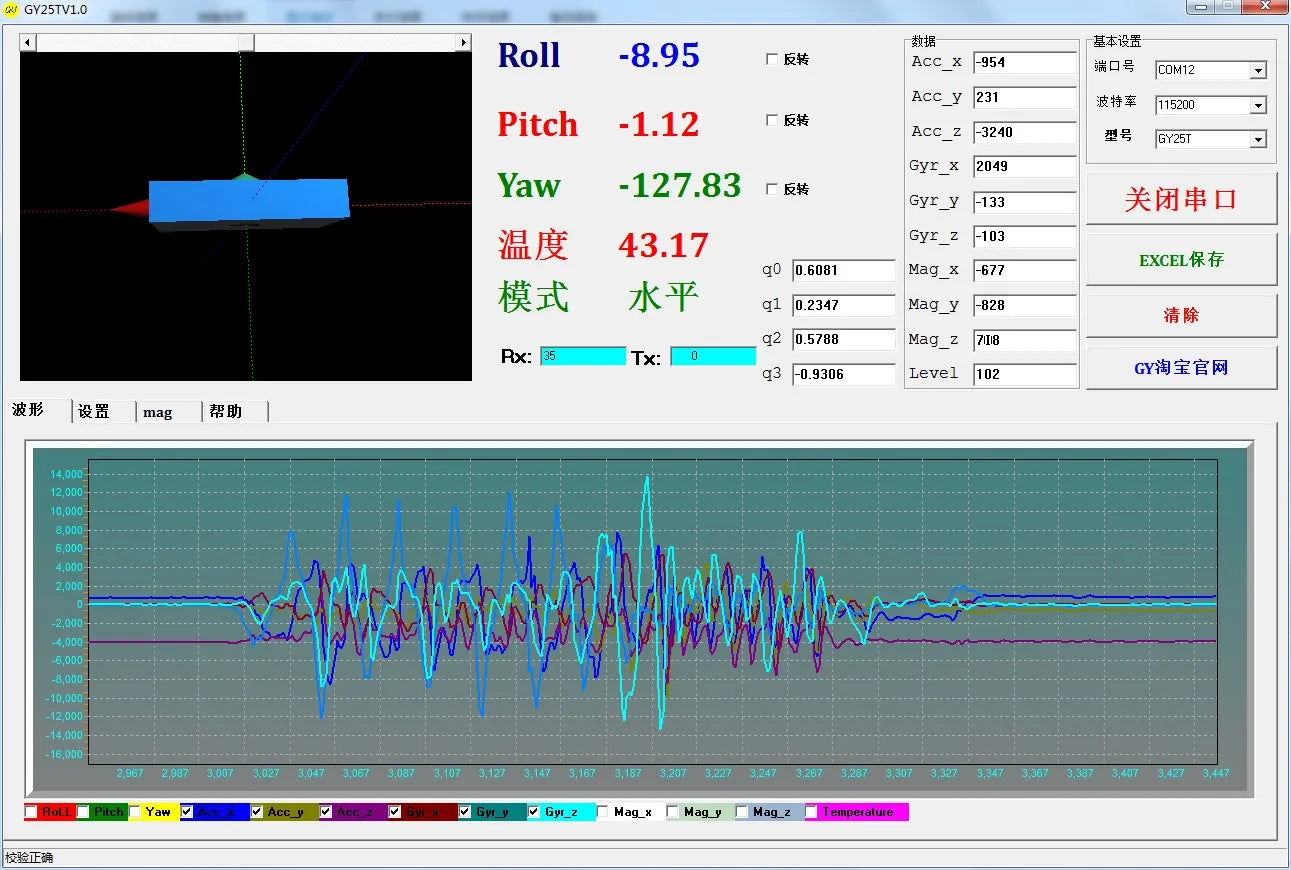

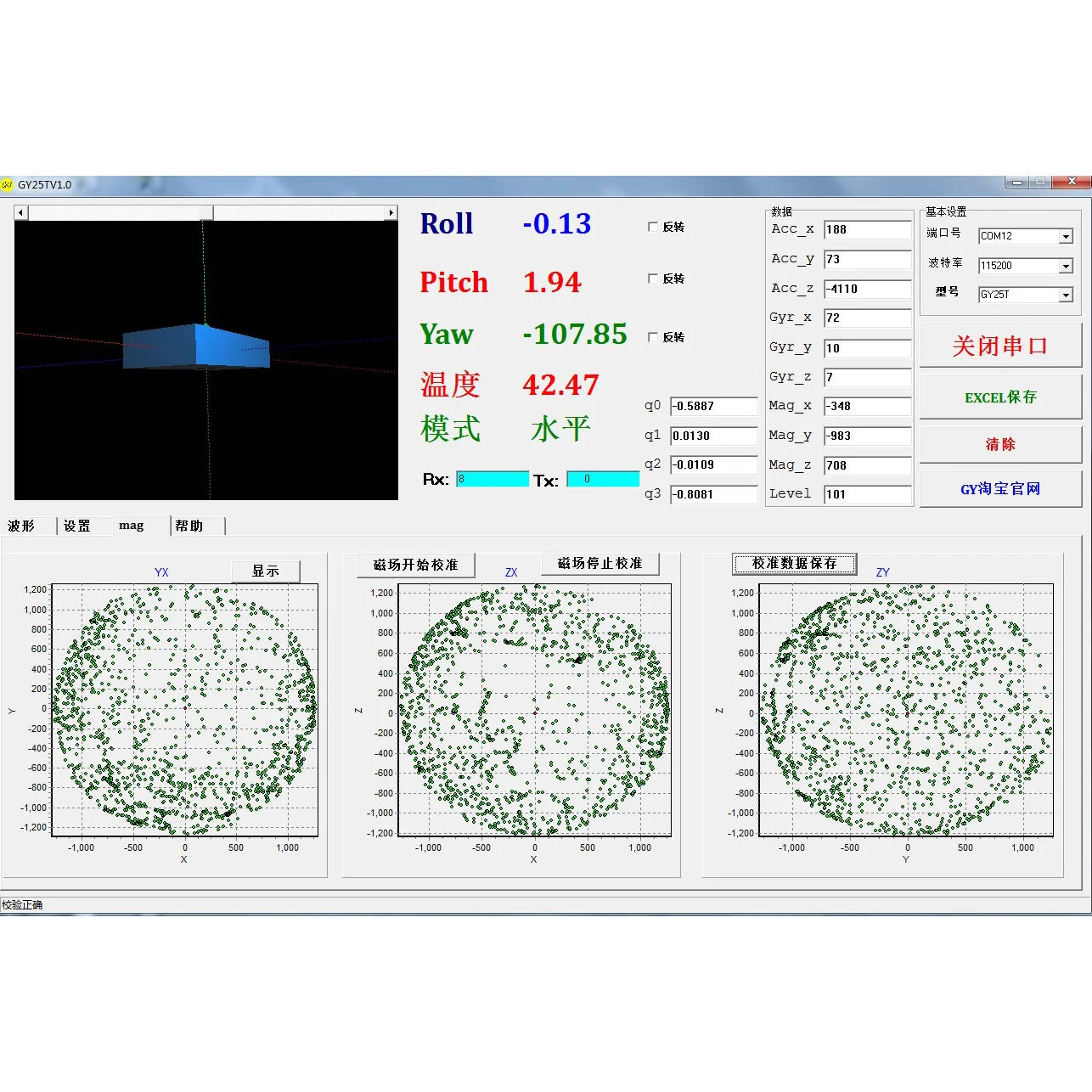

Have PC software

Existing data reading program: 51 single-chip microcomputer, STM32, ARDUIN0
