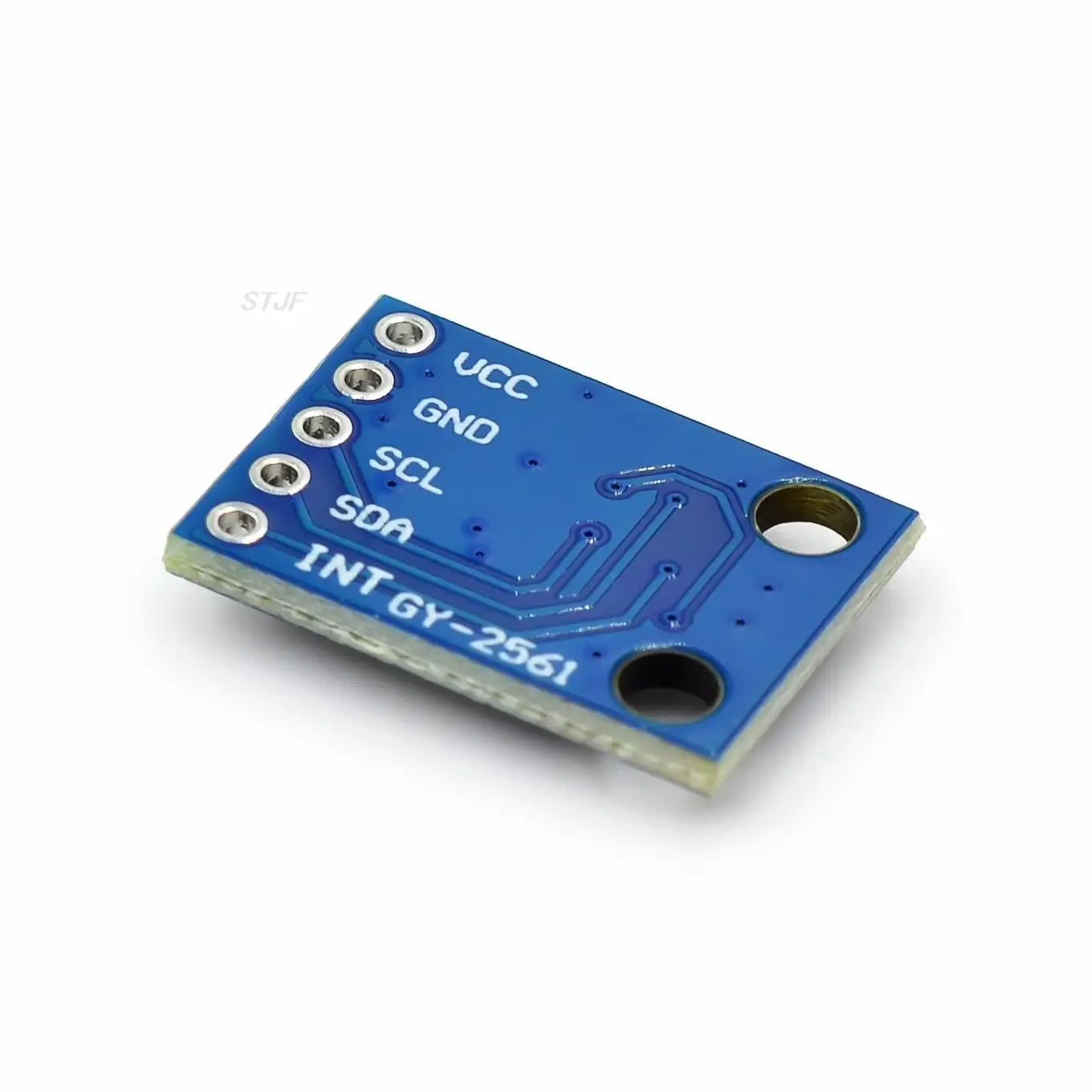

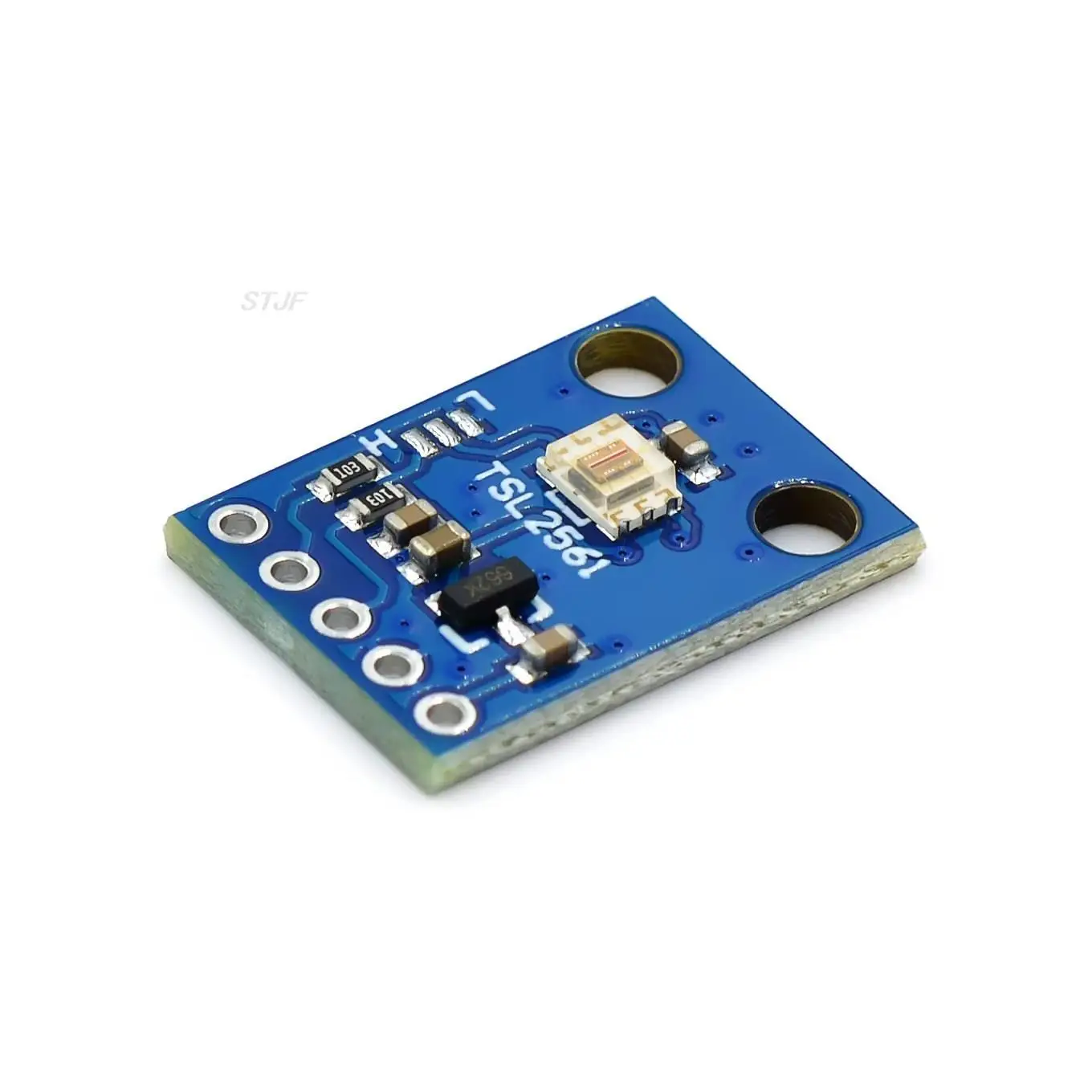

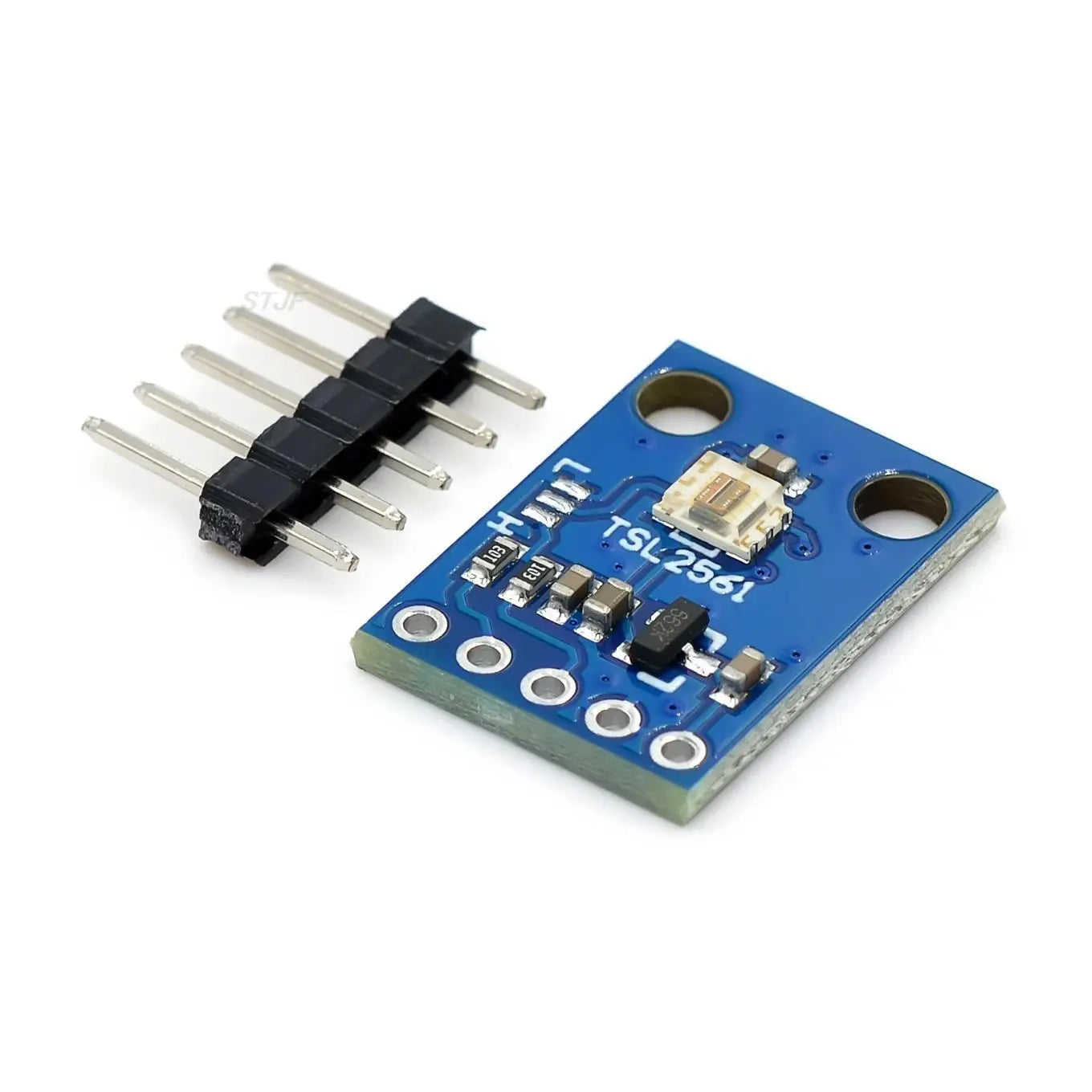

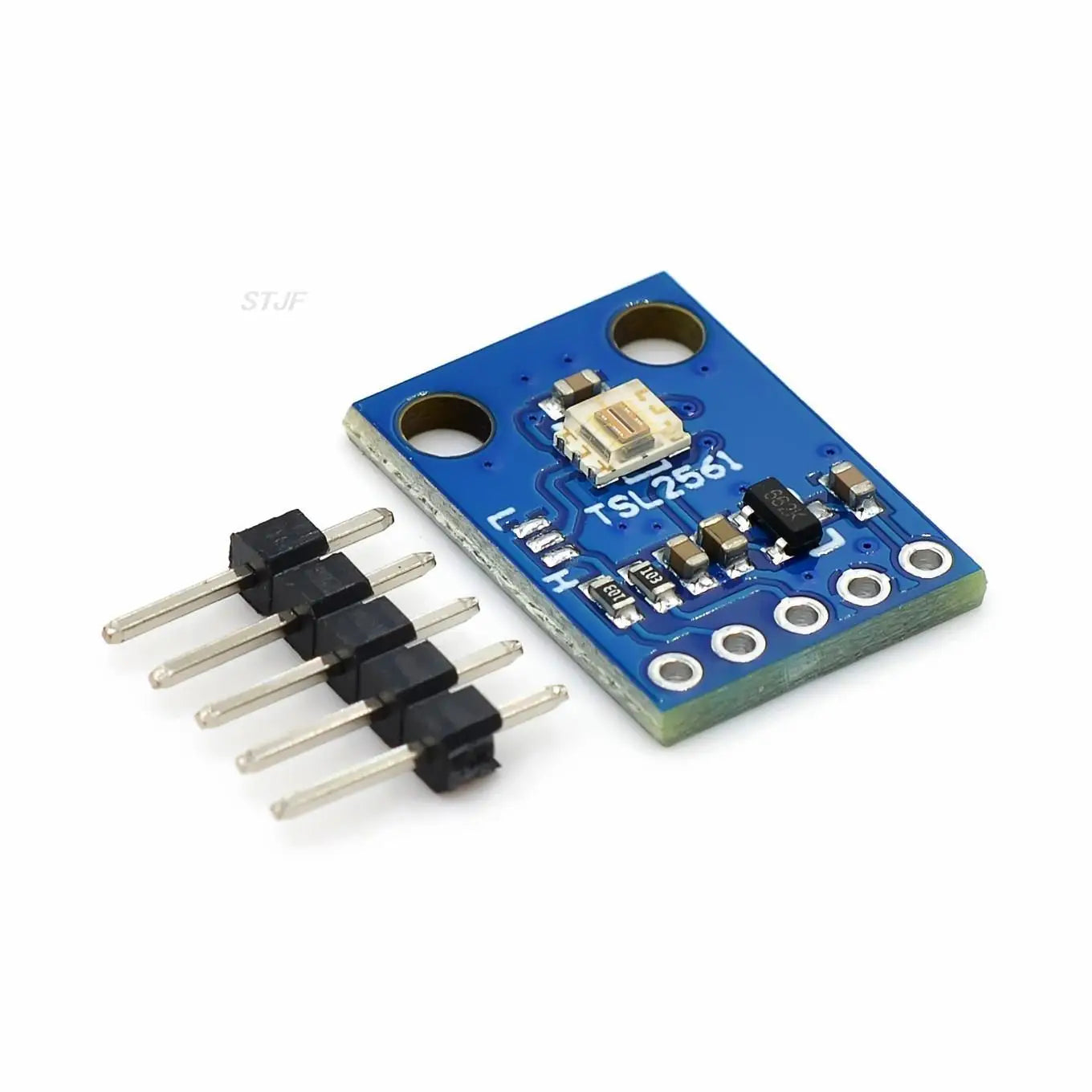

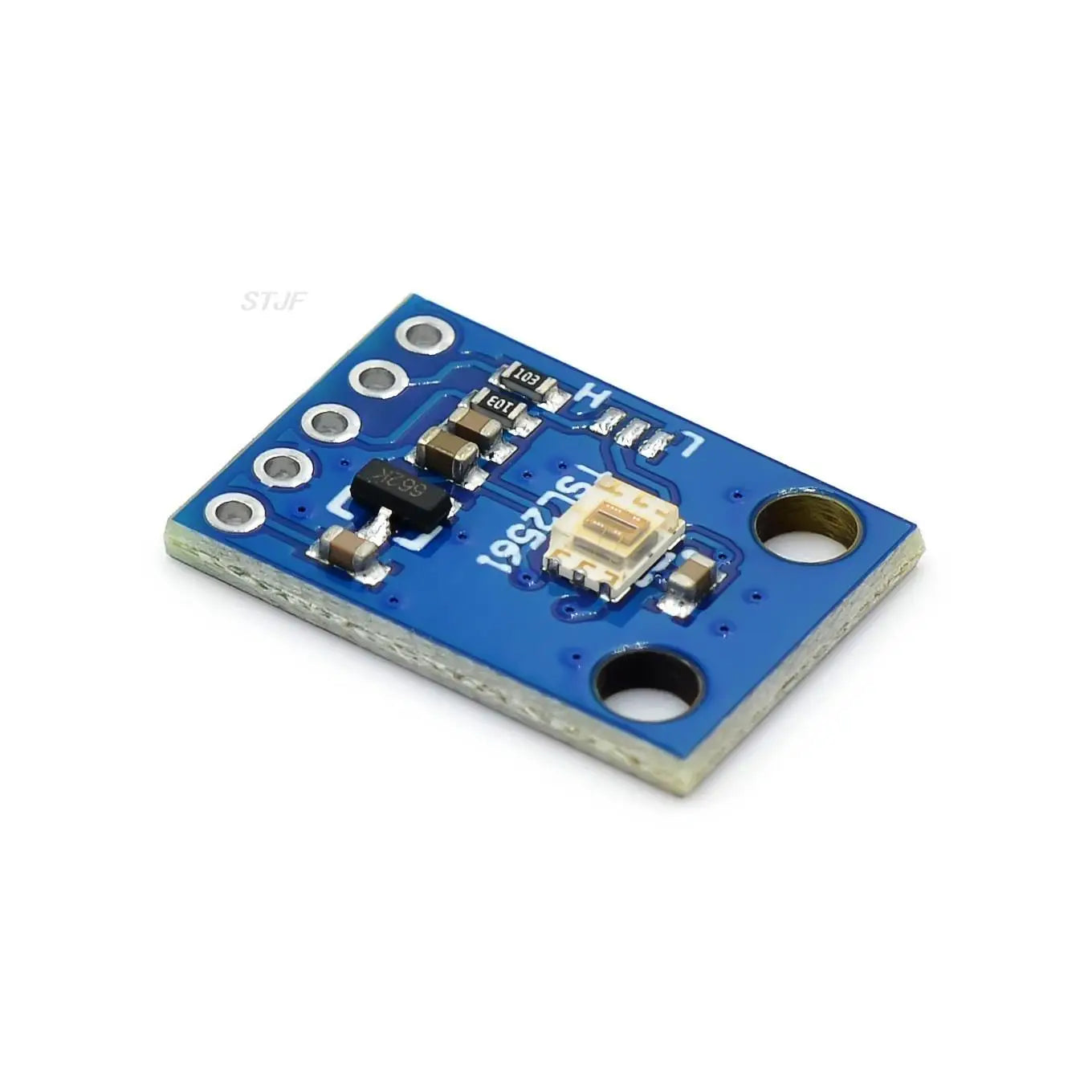

Custom GY-2561 TSL2561 Luminosity Sensor Breakout infrared Light Sensor module integrating sensor
Custom GY-2561 TSL2561 Luminosity Sensor Breakout infrared Light Sensor module integrating sensor
Regular price
$2.61 USD
Regular price
$8.61 USD
Sale price
$2.61 USD
Unit price
per
Couldn't load pickup availability
Description
- The TSL2561 Luminosity Sensor Breakout is a sophisticated light sensor which has a flat response across most of the visible spectrum. Unlike simpler sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye. And because the TSL2561 is an integrating sensor (it soaks up light for a predetermined amount of time), it is capable of measuring both small and large amounts of light by changing the integration time.
- The TSL2561 is capable of direct I2C communication and is able to conduct specific light ranges from 0.1 - 40k+ Lux easily. Additionally, the TSL12561 contains two integrating analog-to-digital converters (ADC) that integrate currents from two photodiodes, simultaneously. Each breakout requires a supply voltage of 3V and a low supply current max of 0.6mA.
