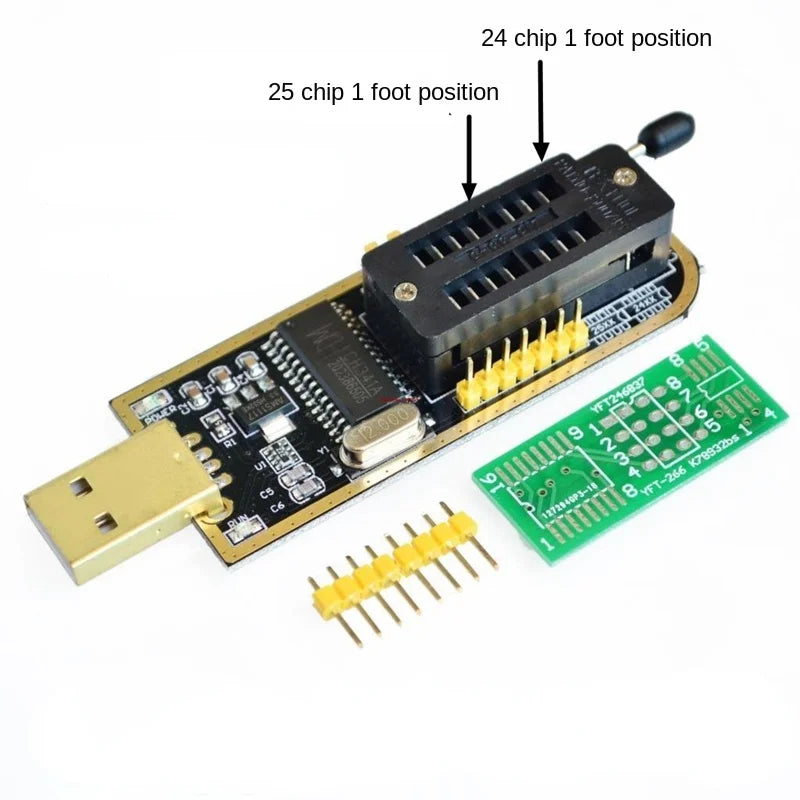

Custom Gree E square burner 24CXX/24LCXX programmer EEPROM data memory reader Manufacturer

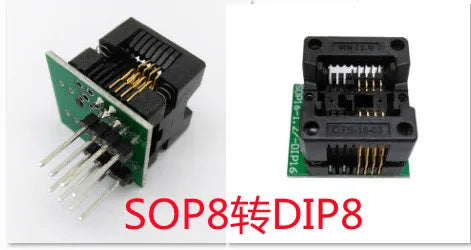

Note: SOP8 programming socket => SOP8 to DIP8 programming socket (narrow body)

1, support 24 25 chip models (to be in the list of supported models)

2. Support USB to TTL online flashing (if you need DuPont cable to buy separately)

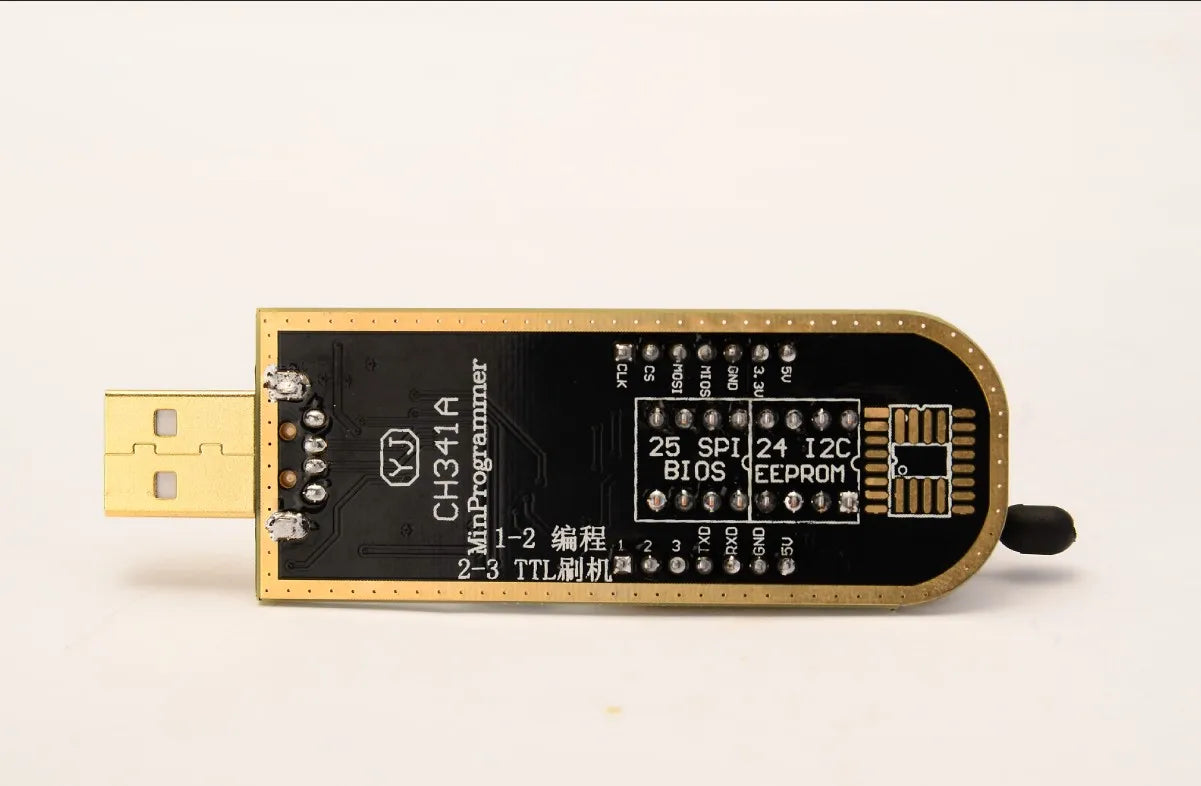

3. The board leads out the SPI pin corresponding to the MSI JSP11 interface, which is convenient for customers to directly connect to the MSI motherboard for flashing (if you need a special cable, buy it separately)

4. Support STC MCU online program download (if you need DuPont line to buy separately)

====================2526 Series Device Support Matrix=====================

ATMEL
AT25F512          AT25F512B          AT25F512A          AT25FS010          AT25F1024
AT25F1024A          AT25F2048          AT25DF021          AT25F4096          AT25FS040
AT25DF041A          AT26F004          AT26DF081A          AT25DF161          AT26DF161
AT26DF161A          AT25DF321A          AT26DF321          AT25DF321          AT25DF641

ESMT
F25L04UA          F25L004A          F25L08PA          F25L008A          F25L016A
F25L16PA          F25L32QA          F25L32PA

GIGADEVICE
GD25Q512          GD25Q10          GD25Q20          GD25F40          GD25D40
GD25Q80          GD25D80          GD25T80          GD25F80          GD25Q16
GD25Q32          GD25Q64          GD25Q128

KH
KH25L8036D

WINBOND
W25X10          W25X10L          W25P10          W25X10AL          W25X10A
W25P20          W25X20AL          W25X20A          W25X20          W25X20L
W25X40A          W25P40          W25Q40BV          W25X40L          W25X40
W25X40AL          W25Q80BV          W25Q80V          W25X80          W25P80
W25X80A          W25X80L          W25X80AL          W25P16          W25Q16BV
W25Q16V          W25X16          W25Q32BV          W25Q32V          W25X32
W25P32          W25Q64BV          W25X64          W25Q128BV
=====================2526 Series Device Support Matrix=====================

=====================24 series device support list=====================
ATMEL
AT24C01B          AT24C01          AT24C01A          AT24C02          AT24C02A
AT24C02B          AT24C04B          AT24C04          AT24C04A          AT24C08A
AT24C08B          AT24C08          AT24C16          AT24C16A          AT24C16B
AT24C32B          AT24C32A          AT24C32          AT24C64          AT24C64A
AT24C64B          AT24C128          AT24C128A          AT24C128B          AT24C256B
AT24C256          AT24C256A          AT24C512B          AT24C512A          AT24C512
AT24C1024          AT24C1024A          AT24C1024B

CATALYST
CAT24C01          CAT24WC01          CAT24WC02          CAT24C02          CAT24C04
CAT24WC04          CAT24WC08          CAT24C08          CAT24WC16          CAT24C16
CAT24WC32          CAT24C32          CAT24WC64          CAT24C64          CAT24WC128
CAT24C128          CAT24WC256          CAT24C256          CAT24C512          CAT24WC512
CAT24C1024          CAT24WC1024

COMMON
24C01 3V          24C01 5V          24C02 3V          24C02 5V          24C04 5V
24C04 3V          24C08 3V          24C08 5V          24C16 5V          24C16 3V
24C32 5V          24C32 3V          24C64 5V          24C64 3V          24C128 5V
24C128 3V          24C256 5V          24C256 3V          24C512 5V          24C512 3V
24C1024 3V          24C1024 5V          24C2048 5V          24C2048 3V          24C4096 5V
24C4096 3V

FAIRCHILD
FM24C01L          FM24C02L          FM24C03L          FM24C04L          FM24C05L
FM24C08L          FM24C09L          FM24C17L          FM24C16L          FM24C32L
FM24C64L          FM24C128L          FM24C256L          FM24C512L          FM

HOLTEK
HT24C01          HT24LC01          HT24C02          HT24LC02          HT24C04
HT24LC04          HT24C08          HT24LC08          HT24C16          HT24LC16
HT24LC32          HT24C32          HT24LC64          HT24C64          HT24C128
HT24LC128          HT24C256          HT24LC256          HT24LC512          HT24C512
HT24C1024          HT24LC1024

ISSI
IS24C01          IS24C02          IS24C04          IS24C08          IS24C16
IS24C32          IS24C64          IS24C128          IS24C256          IS24C512
IS24C1024

MICROCHIP
MIC24LC014          MIC24AA01          MIC24AA014          MIC24LC01B          MIC24LC02B
MIC24AA02          MIC24C02C          MIC24AA025          MIC24AA04          MIC24LC04B
MIC24LC024          MIC24AA024          MIC24LC025          MIC24LC08B          MIC24AA08
MIC24LC16B          MIC24AA16          MIC24LC32          MIC24AA32          MIC24LC64
MIC24FC64          MIC24AA64          MIC24FC128          MIC24AA128          MIC24LC128
MIC24AA256          MIC24LC256          MIC24FC256          MIC24AA512          MIC24LC512
MIC24FC512          MIC24AA1024

NSC
NSC24C02L          NSC24C02          NSC24C64

RAMTRON
FM24CL04          FM24C04A          FM24CL16          FM24C16A          FM24CL64
FM24C64          FM24C256          FM24CL256          FM24C512

ROHM
BR24L01          BR24C01          BR24L02          BR24C02          BR24L04
BR24C04          BR24L08          BR24C08          BR24L16          BR24C16
BR24L32          BR24C32          BR24C64          BR24L64

ST
ST24C01          ST24C02          ST24C04          ST24C08          ST24C16
ST24C32          ST24C64

XICOR
X24C01          X24C02          X24C04          X24C08          X24C16
