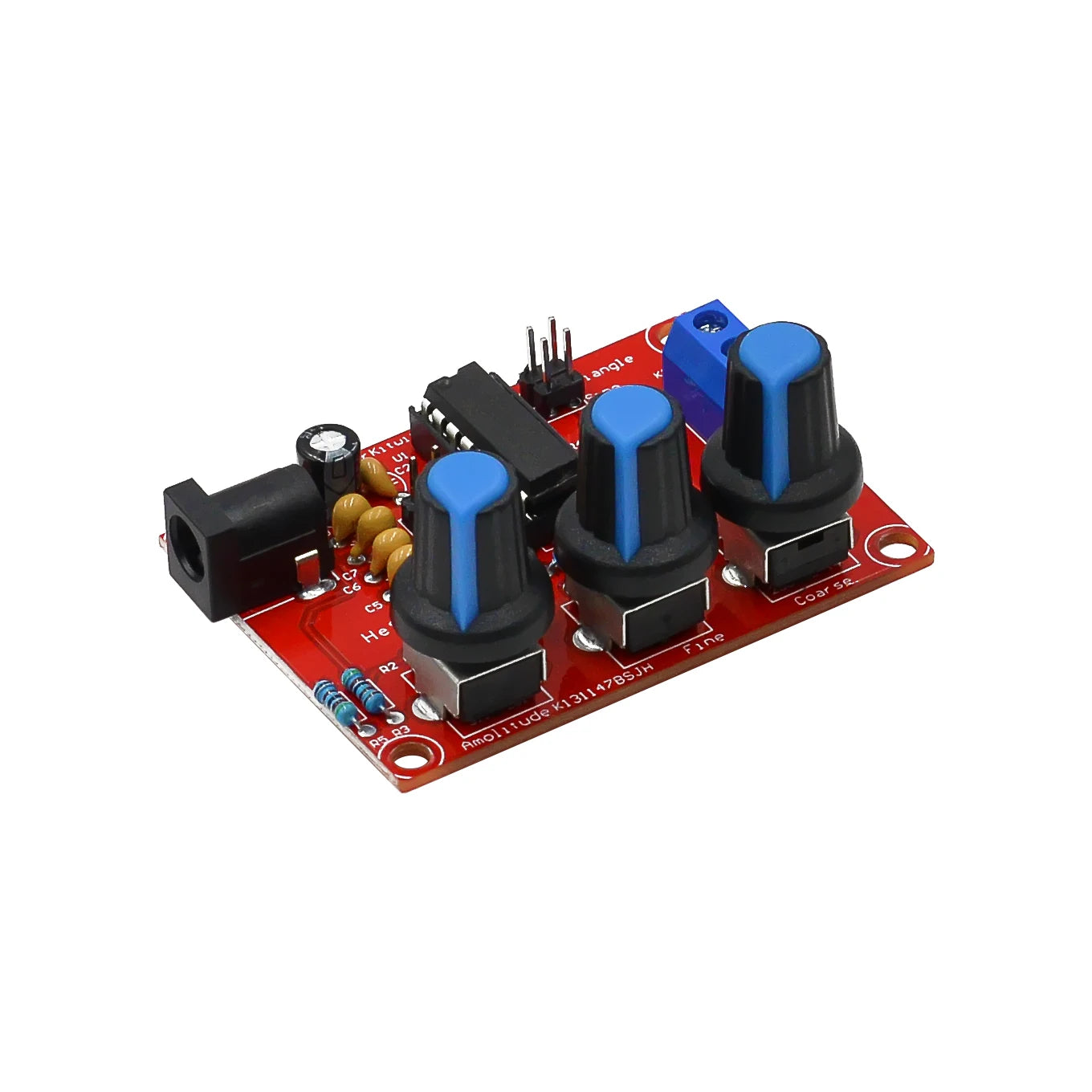

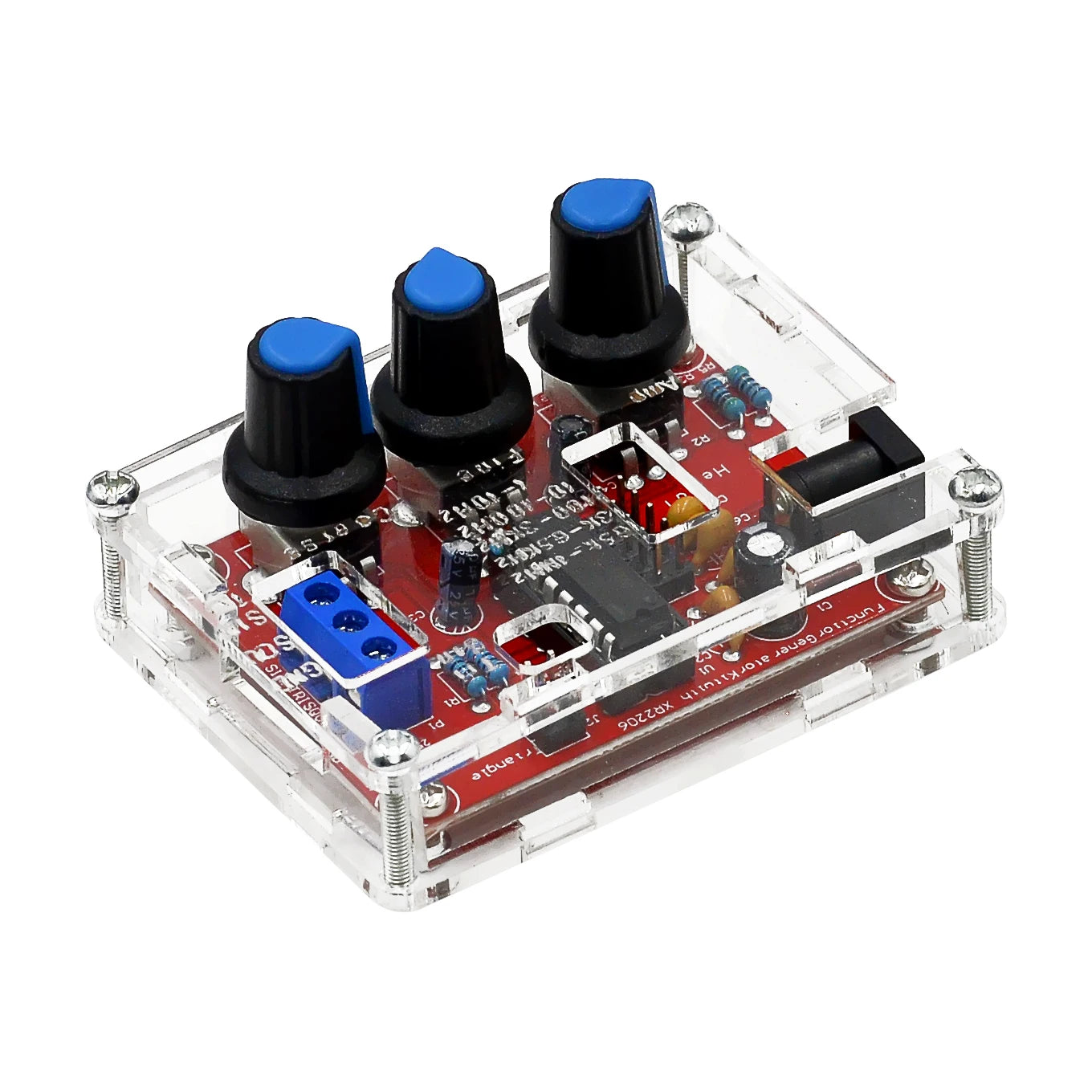

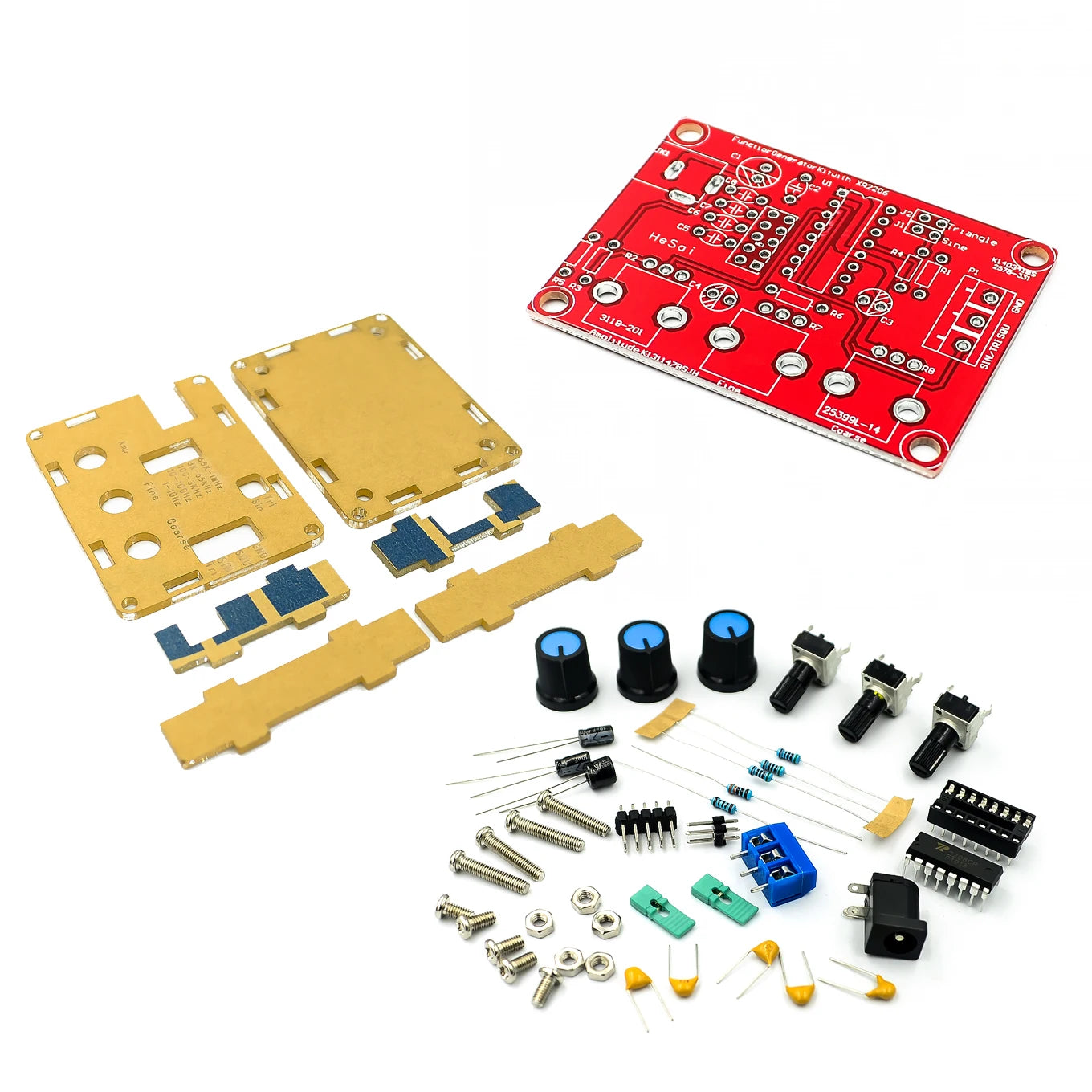

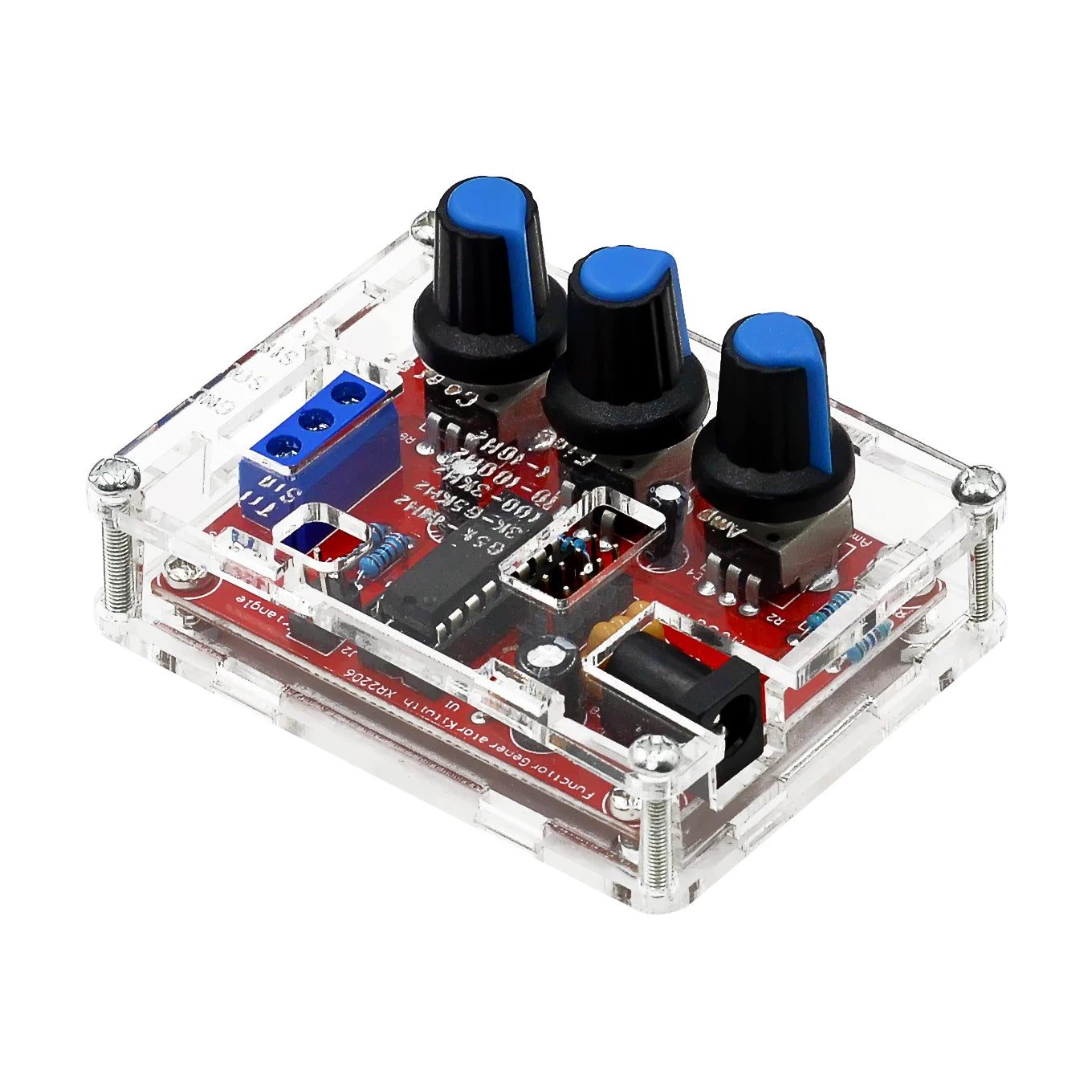

Custom Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Signal Generator Adjustable Frequency Amplitude XR2206

Custom Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Signal Generator Adjustable Frequency Amplitude XR2206

Regular price $4.87 USD
Regular price $4.87 USD Sale price $4.87 USD
Sale Sold out
color

Purchase Notes

1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!

Voltage Supply: 9-12V DC Input

   Waveforms: Square, Sine & Triangle

   Impedance: 600 Ohm + 10%

   Frequency: 1Hz - 1MHz

   SINE WAVE

   Amplitude: 0 - 3V at 9V DC input

   Distortion: Less than 1% (at 1kHz)

   Flatness: +0.05dB 1Hz - 100kHz

   SQUARE WAVE

   Amplitude: 8V (no load) at 9V DC input

   Rise Time: Less than 50ns (at 1kHz)

   Fall Time: Less than 30ns (at 1kHz)

   Symmetry: Less than 5% (at 1kHz)

   TRIANGLE WAVE

   Amplitude: 0 - 3V at 9V DC input

   Linearity: Less than 1% (up to 100kHz) 10mA
