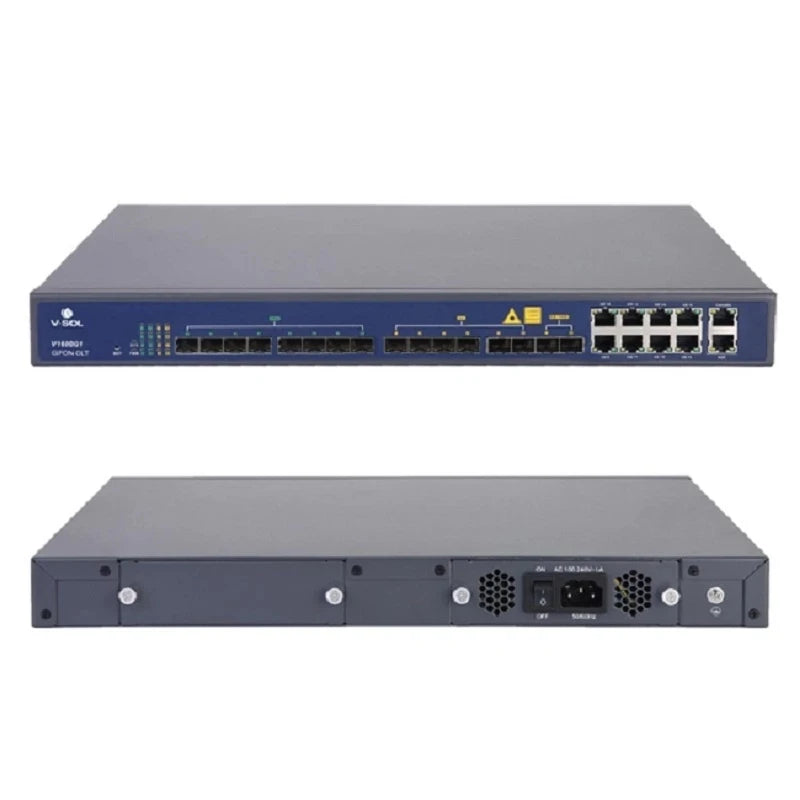

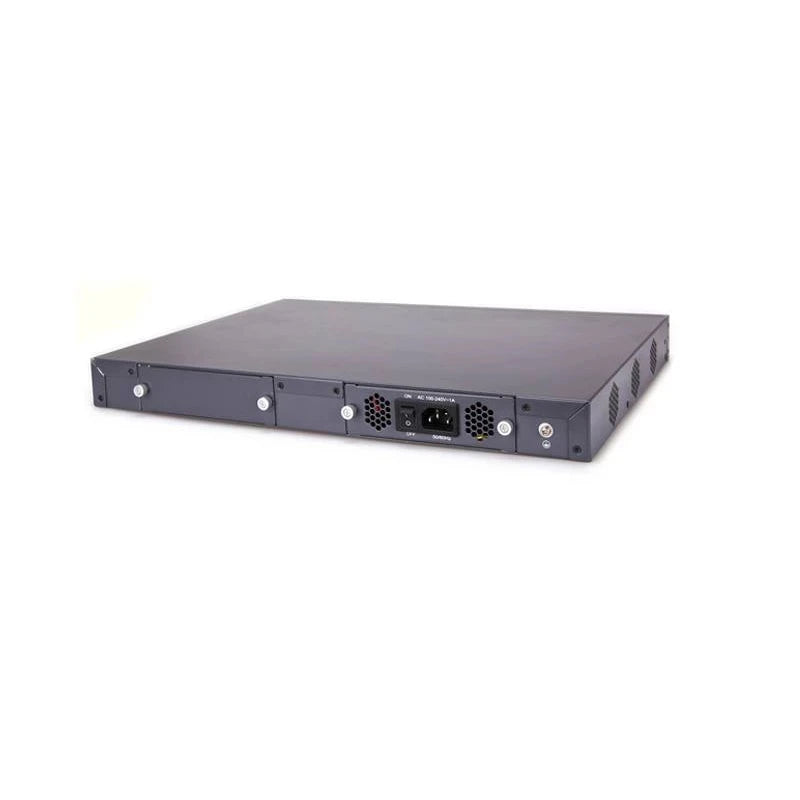

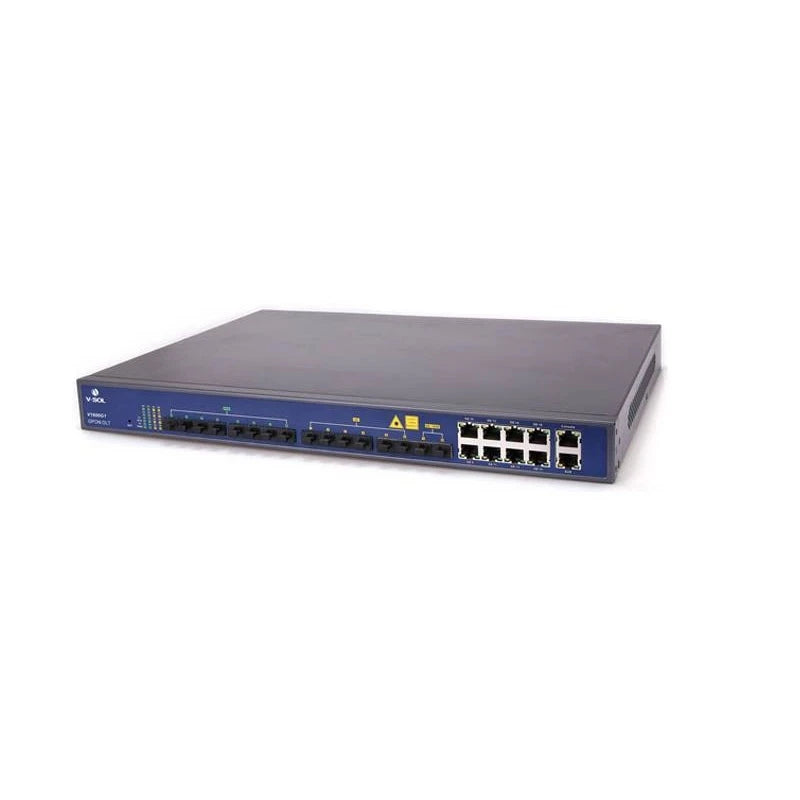

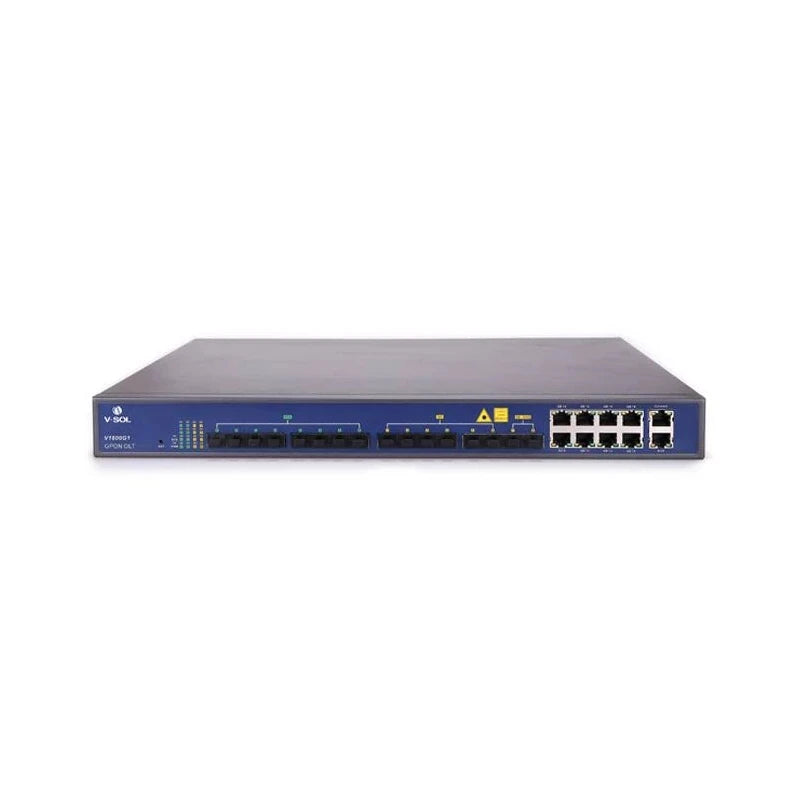

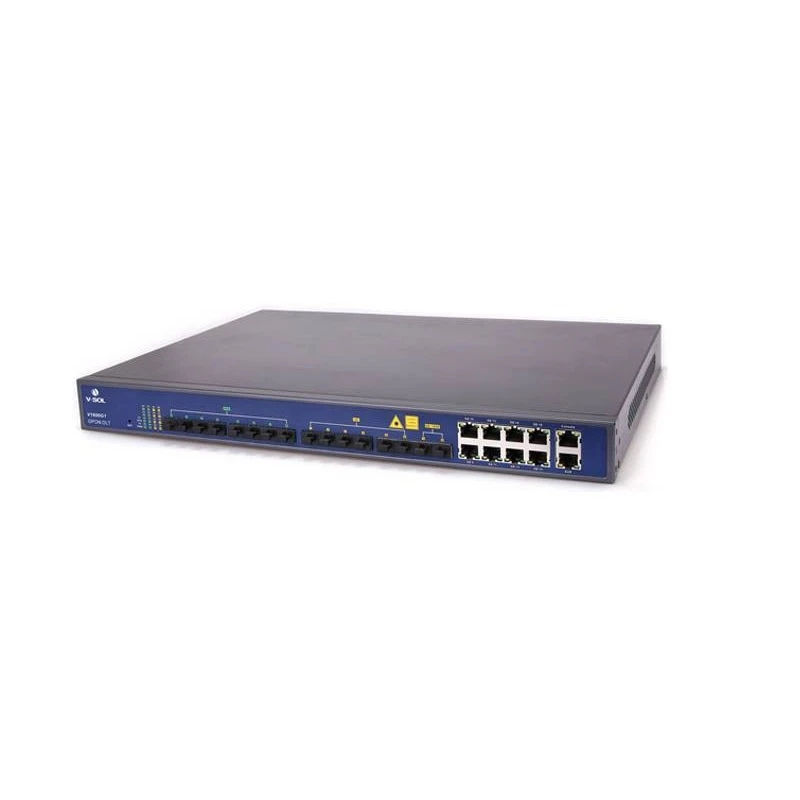

Custom FTTH Line Terminal V-SOL V1600G1 GPON OLT 8 PON 10GE uplink first vendor supports WEB management Manufacturer
Custom FTTH Line Terminal V-SOL V1600G1 GPON OLT 8 PON 10GE uplink first vendor supports WEB management Manufacturer
Regular price
$1,370.00 USD
Regular price
$1,370.00 USD
Sale price
$1,370.00 USD
Unit price
per
Couldn't load pickup availability
Title goes here.

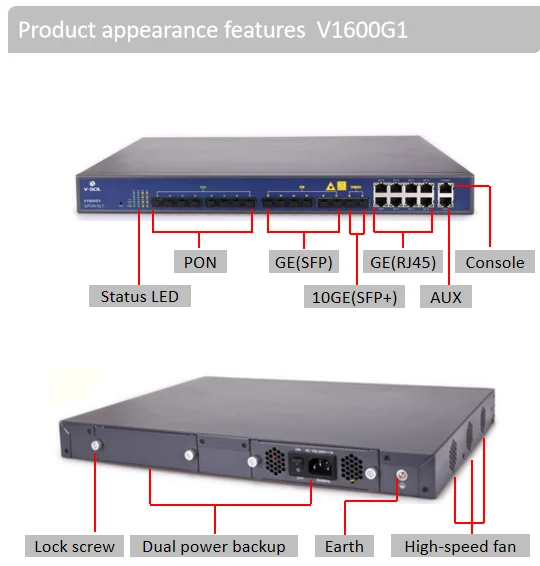

Chassis
Rack
1U 19 inch standard box
1000M
Uplink Port
QTY
16
Copper
10/100/1000M auto-negotiation
8
SFP
1000M,Duplex
(independent)
6
SFP+
SFP+ is 10GE
(independent)
2
GPON Port
QTY
8
Physical Interface
SFP Slot
Connector Type
Class B+/C+
Max splitting ratio
1:128
Management Ports
1*10/100BASE-T out-band port, 1*CONSOLE port
PON Port Specification
Transmission Distance
20KM
GPON port speed
Upstream 1.244G, Downstream 2.488G
Wavelength
TX 1490nm, RX 1310nm
Connector
SC/PC
Fiber Type
9/125μm SMF
TX Power
+1~+5dBm
Rx Sensitivity
-28dBm
Saturation Optical Power
-8dBm

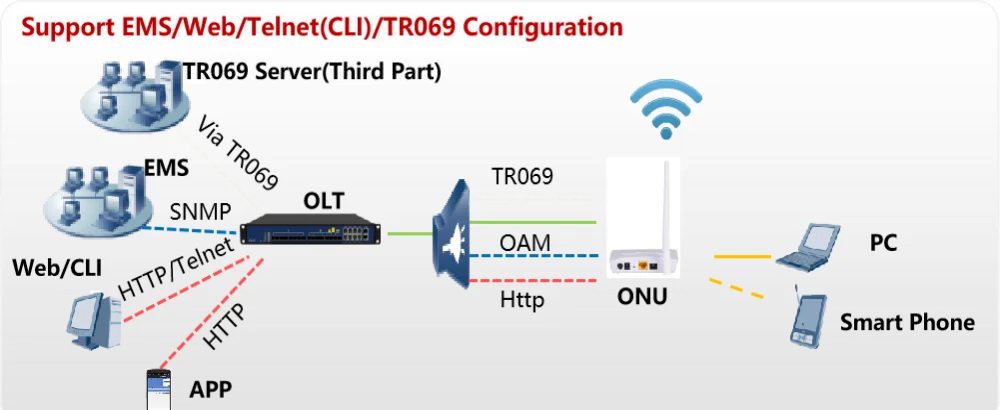

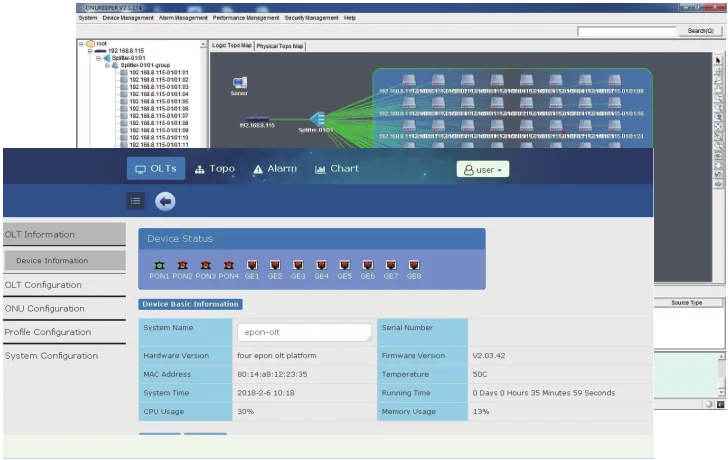

Management Mode
SNMP, Telnet ,CLI,WEB
Management Function
Fan Group Detecting;
Port Status monitoring and configuration management;
Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc;
GPON management function: DBA,ONU authorization, ACL, QOS, etc;
Online ONU configuration and management;
User management;
Alarm management.
Layer2 Switch
16K Mac address
Support 4096 VLANs;
Support port VLAN and protocol VLAN;
Support VLAN tag/Un-tag ,VLAN transparent transmission;
Support VLAN translation and QinQ;
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W;
Support static LACP;
QOS based on port, VID, TOS and MAC address;
Access control list;
IEEE802.x flow control;
Port stability statistic and monitoring.
Multicast
IGMP snooping
256 IP Multicast Groups;
DHCP
DHCP server
DHCP relay
DHCP snooping
Layer 3 Route
Arp proxy
Static route
1024 hardware Host Routes;
512 hardware Subnet Routes;
GPON Function
Tcont dba;
Gemport traffic
In compliant with ITUT984.x standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
Support ONU auto-discovery/link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support power-off alarm function, easy for link problem detection;
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain stable system;
Support RSTP,IGMP Proxy.
Dimension(L*W*H)
442mm*200mm*43.6mm
Weight
3.1kg
Power Supply
220VAC
AC:90~264V, 47/63Hz
Double Power Module
Hot Backup
Power Consumption
25W
Operating Environment
Working Temperature
-10~+55℃
Storage Temperature
-40~+85℃
Relative Humidity
5~90%(non-conditioning)
