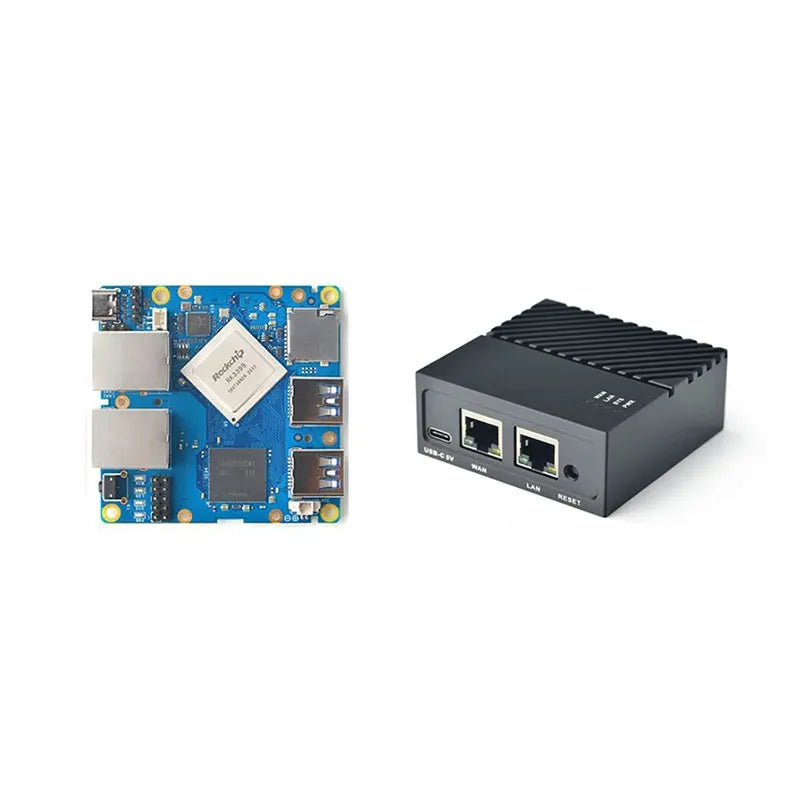

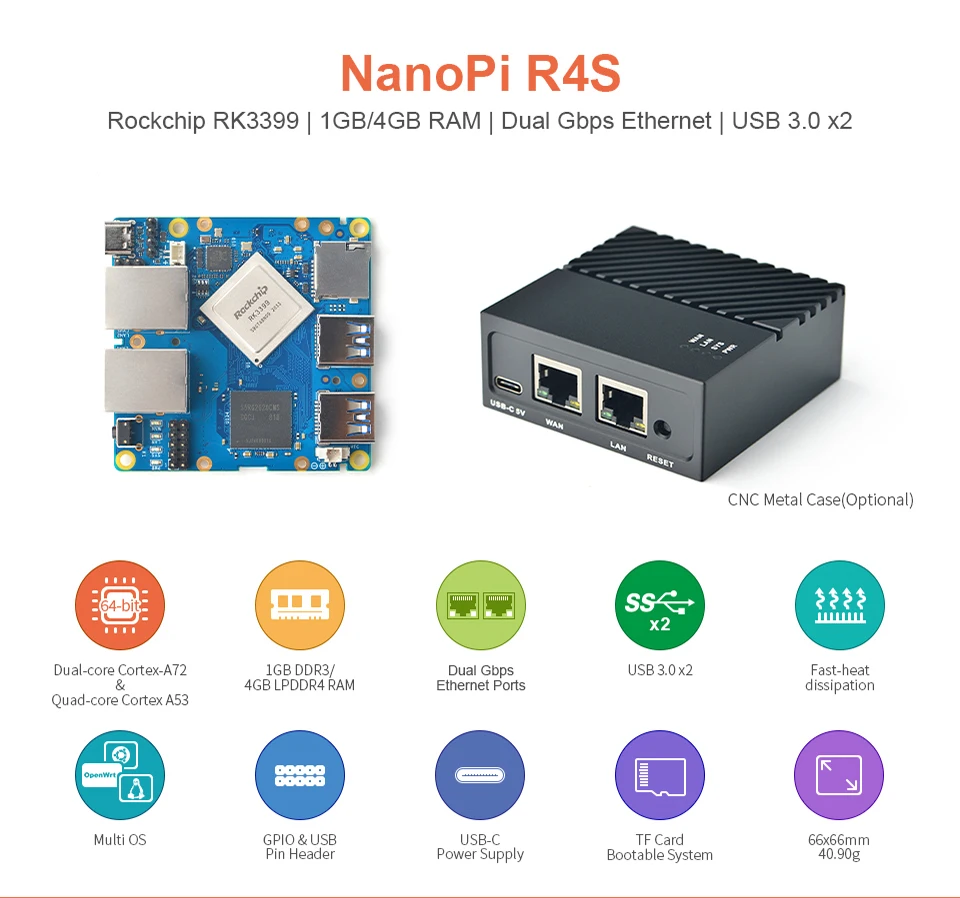

Custom FriendlyElec Nanopi R4S Mini Portable Travel Router OpenWRT with Dual-Gbps Ethernet Ports 4GB LPDDR4 Based in RK3399 Soc for IOT Manufacturer
Custom FriendlyElec Nanopi R4S Mini Portable Travel Router OpenWRT with Dual-Gbps Ethernet Ports 4GB LPDDR4 Based in RK3399 Soc for IOT Manufacturer
Regular price
$104.00 USD
Regular price
$104.00 USD
Sale price
$104.00 USD
Unit price
per
Couldn't load pickup availability

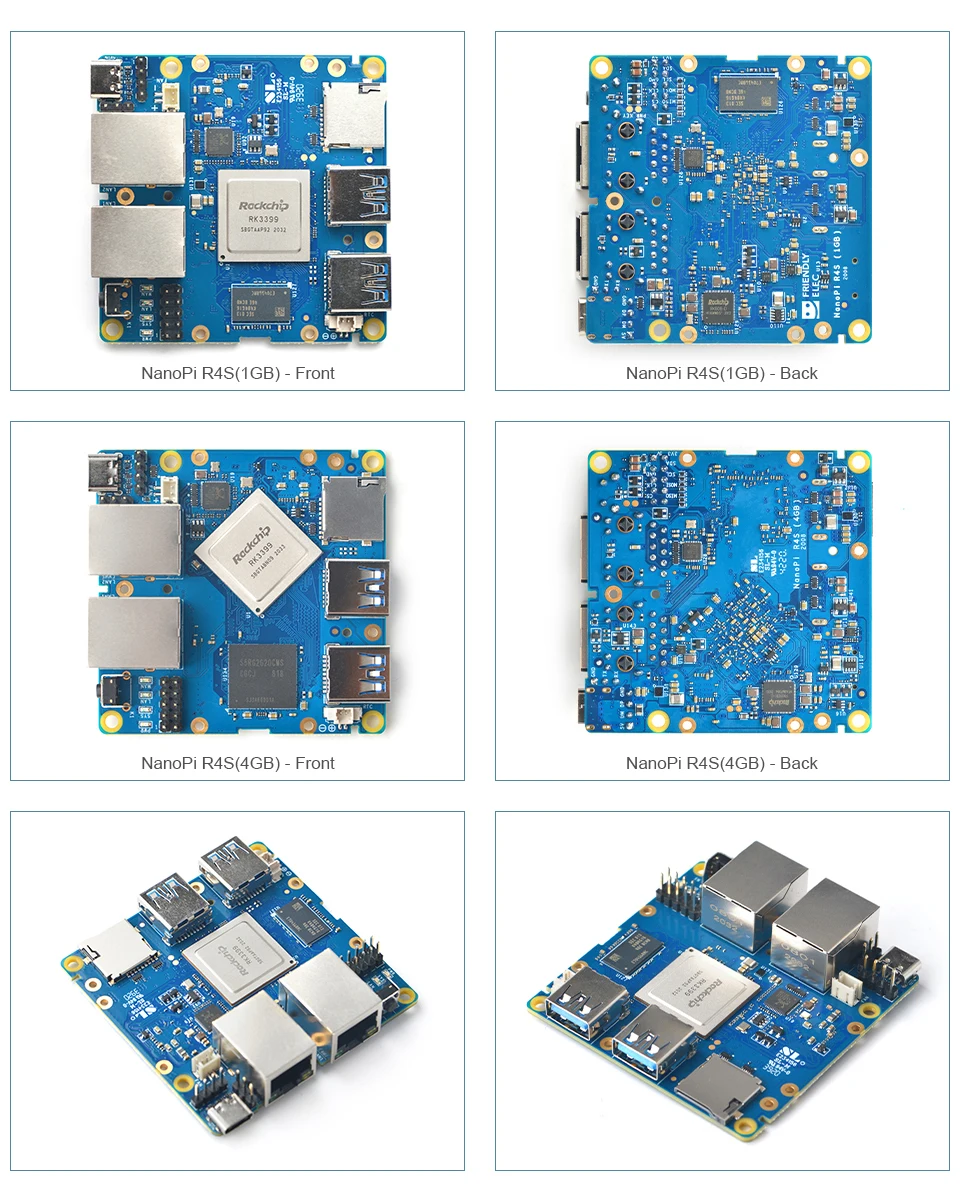

Bundle1:Nanopi R4S 1GB Board
Bundle2:Nanopi R4S 4GB Board

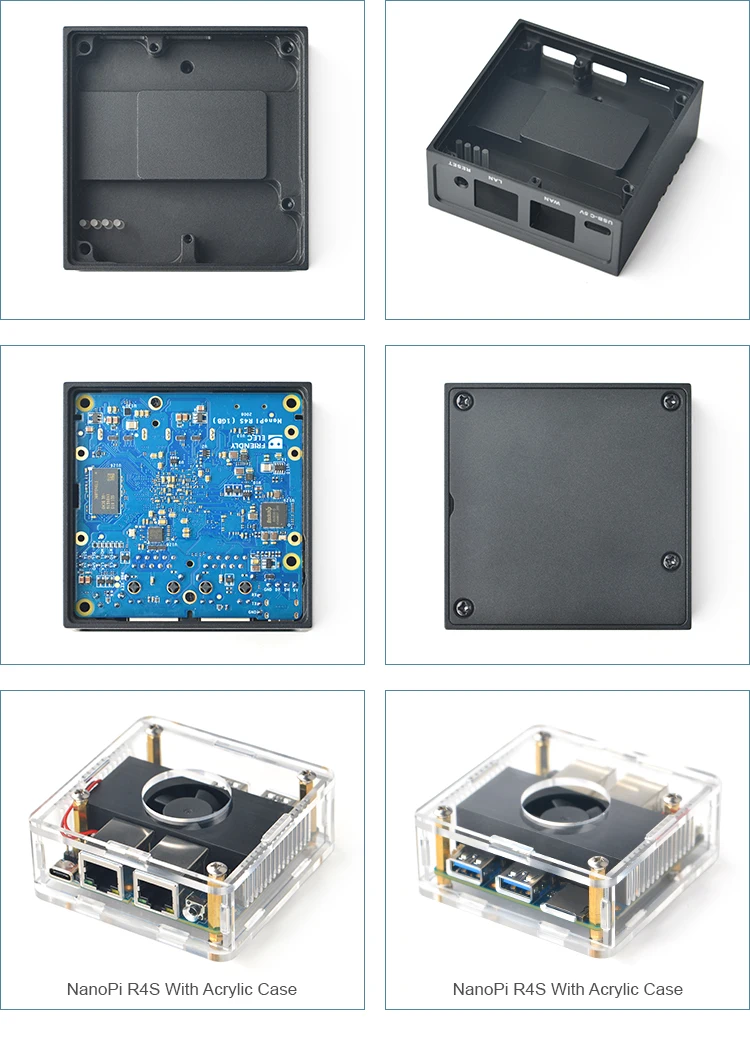

Bundle3:Nanopi R4S 1GB Board with Metal Case
Bundle4:Nanopi R4S 4GB Board with Metal Case

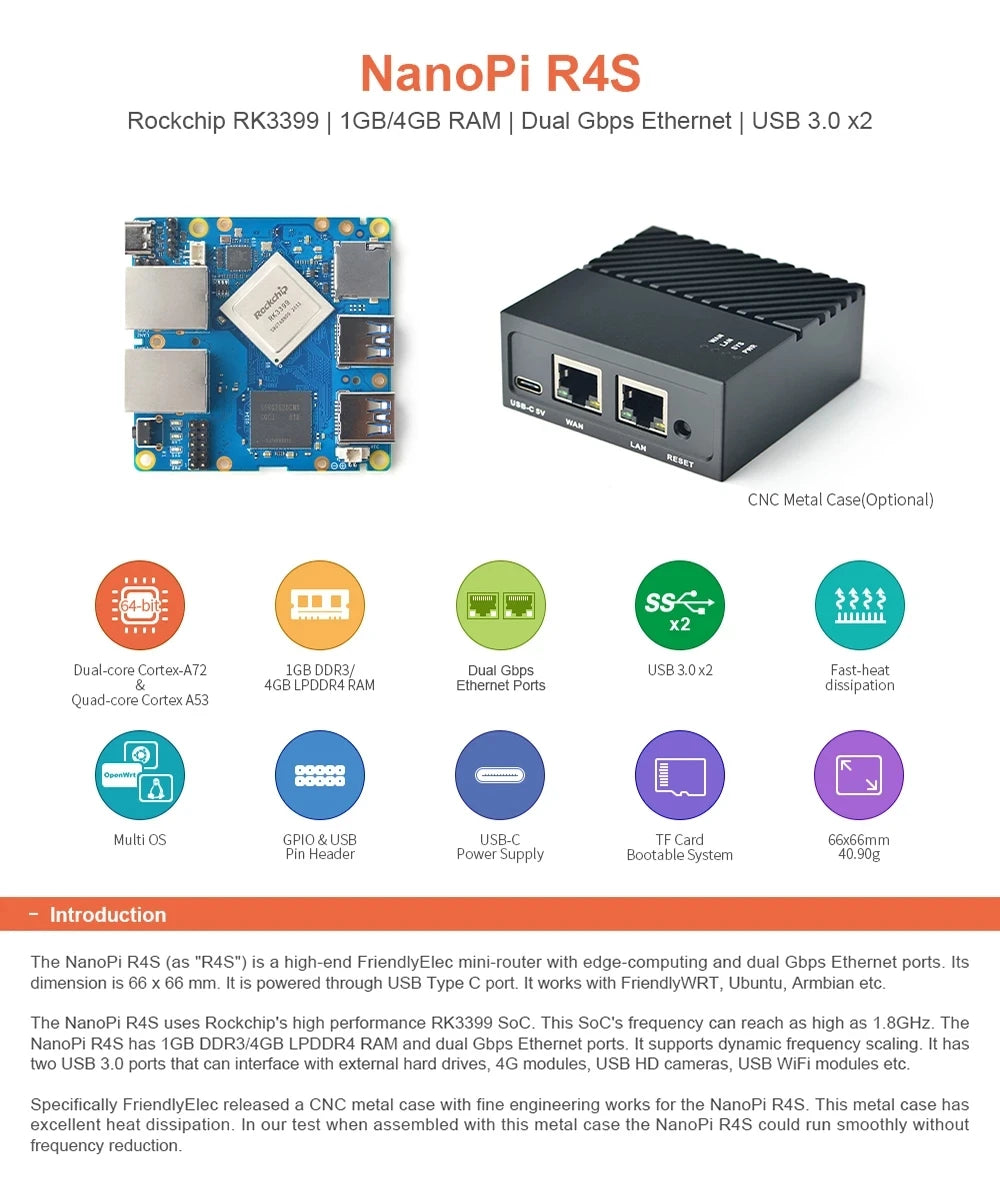

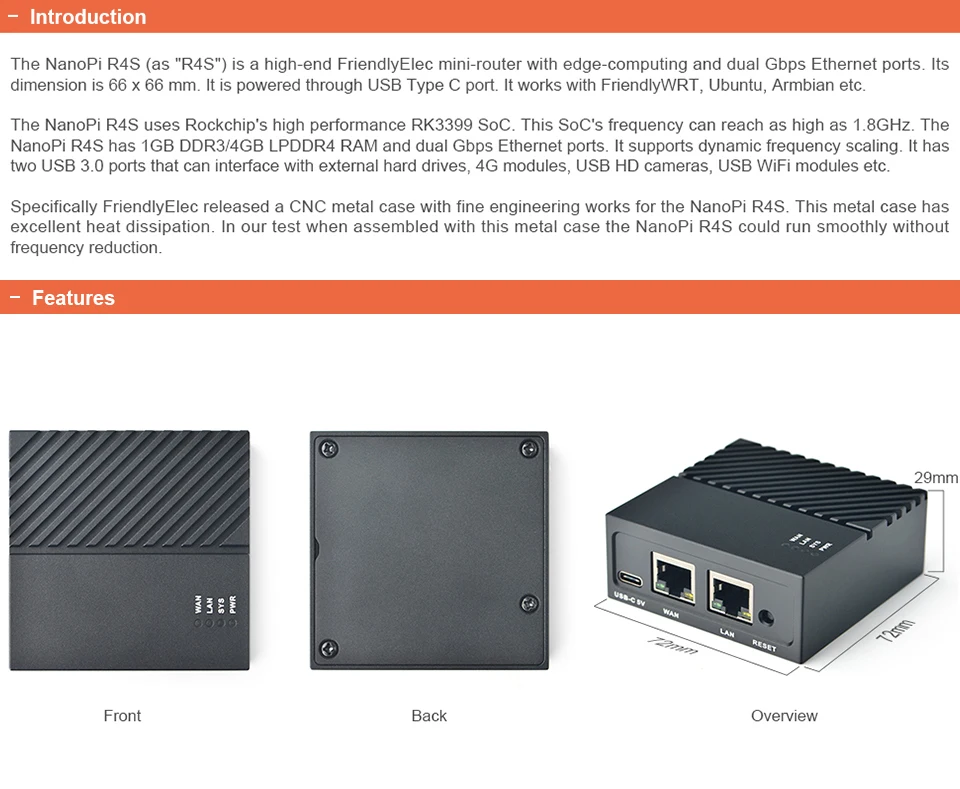

Introduction
The NanoPi R4S(as "R4S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for
IoT applications.
The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. FriendlyElec ported an OpenWrt system
for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways
etc.

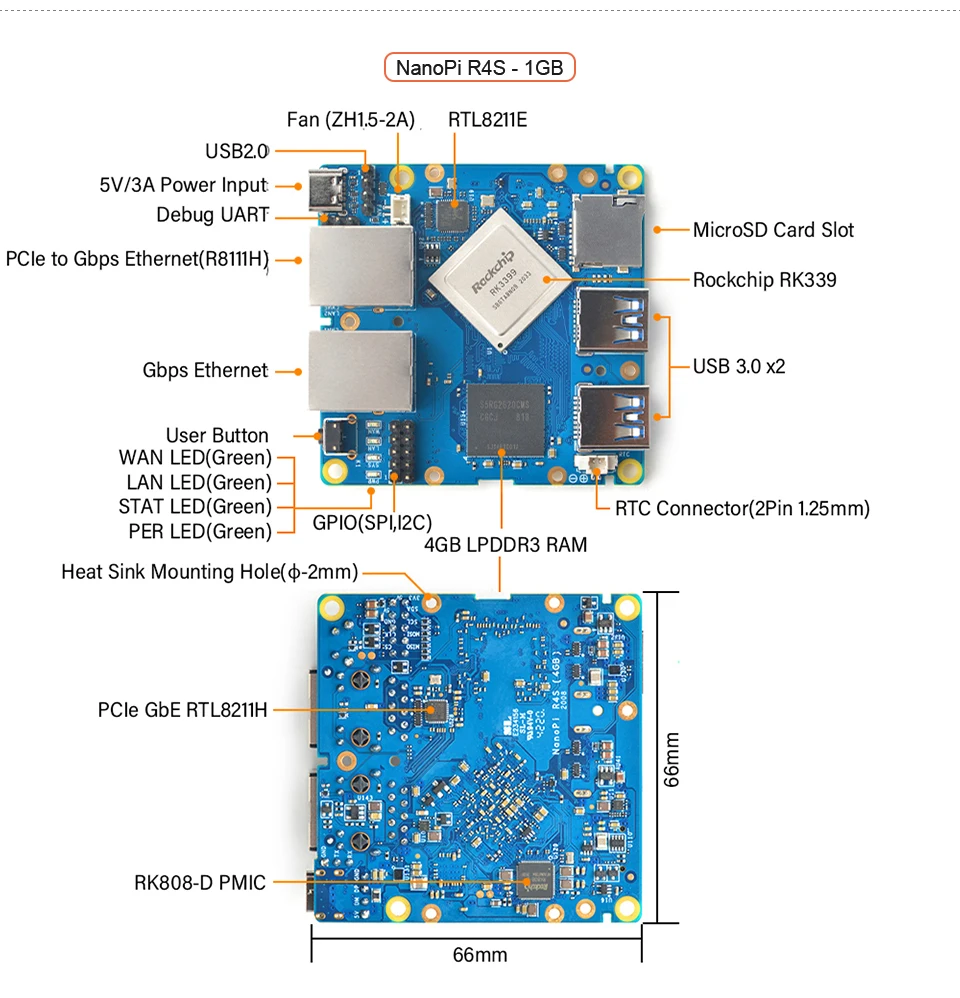

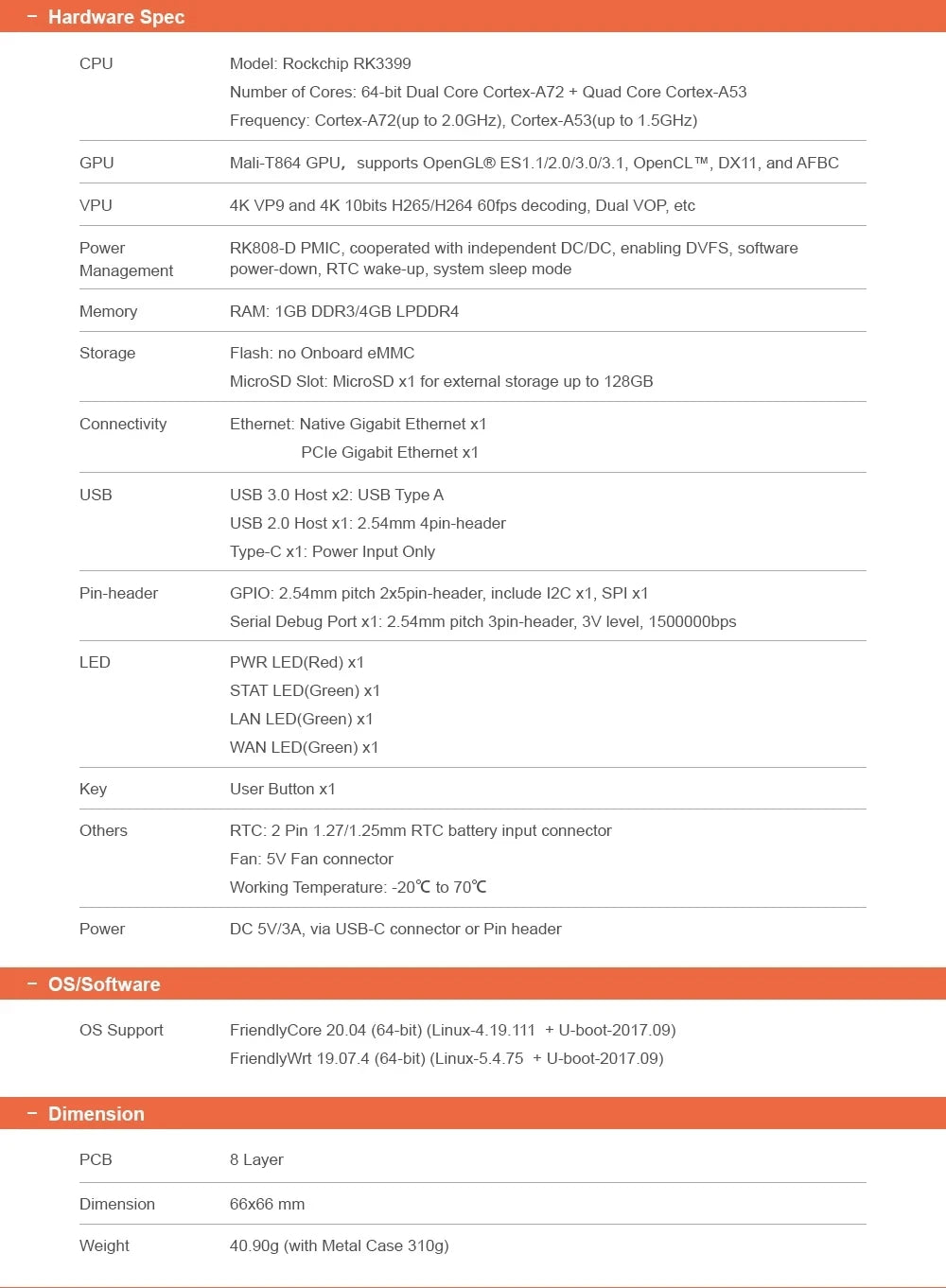

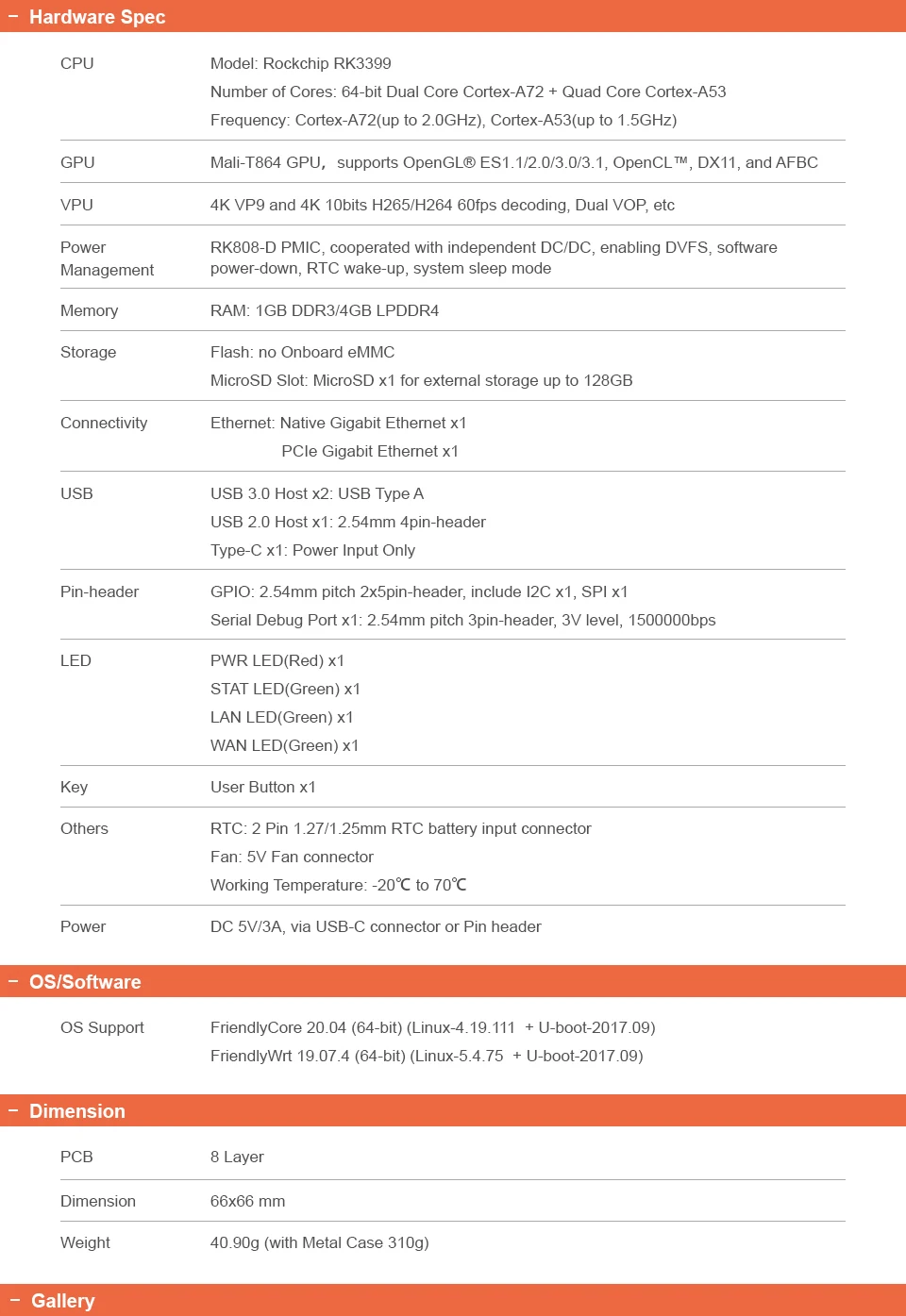

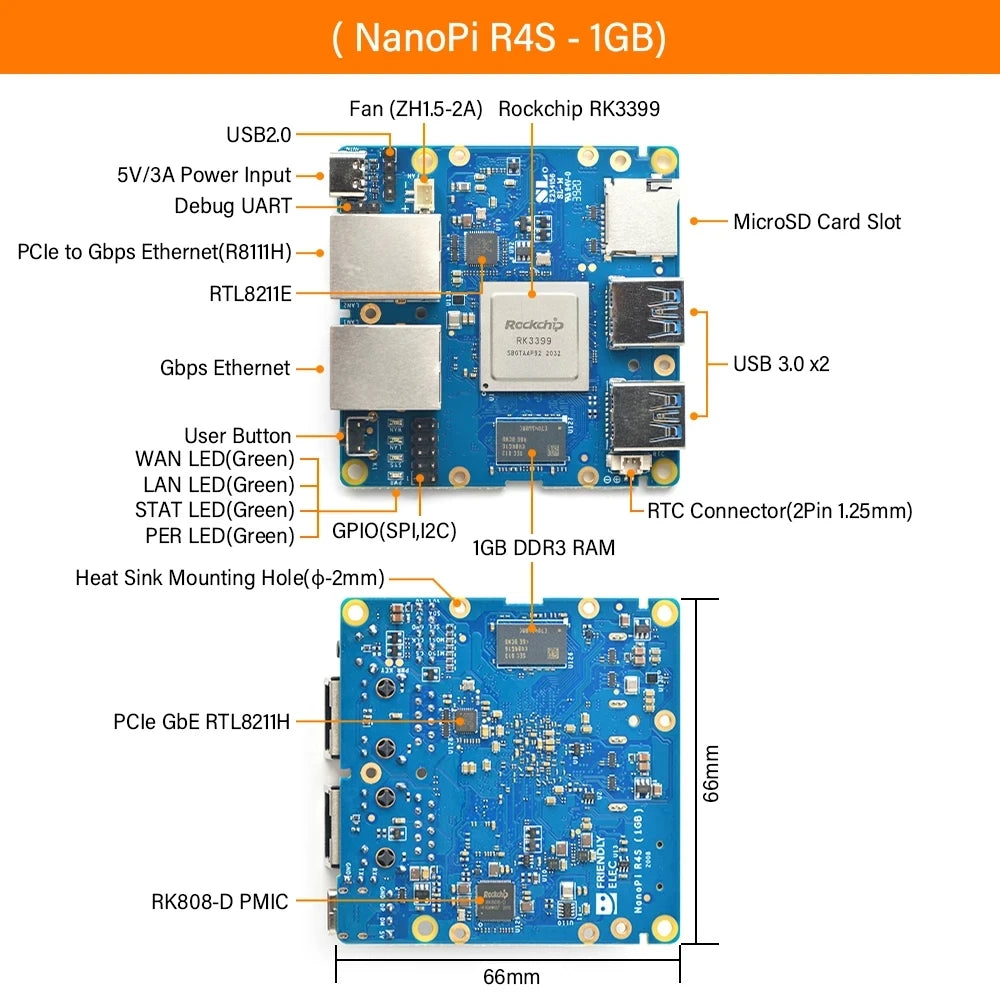

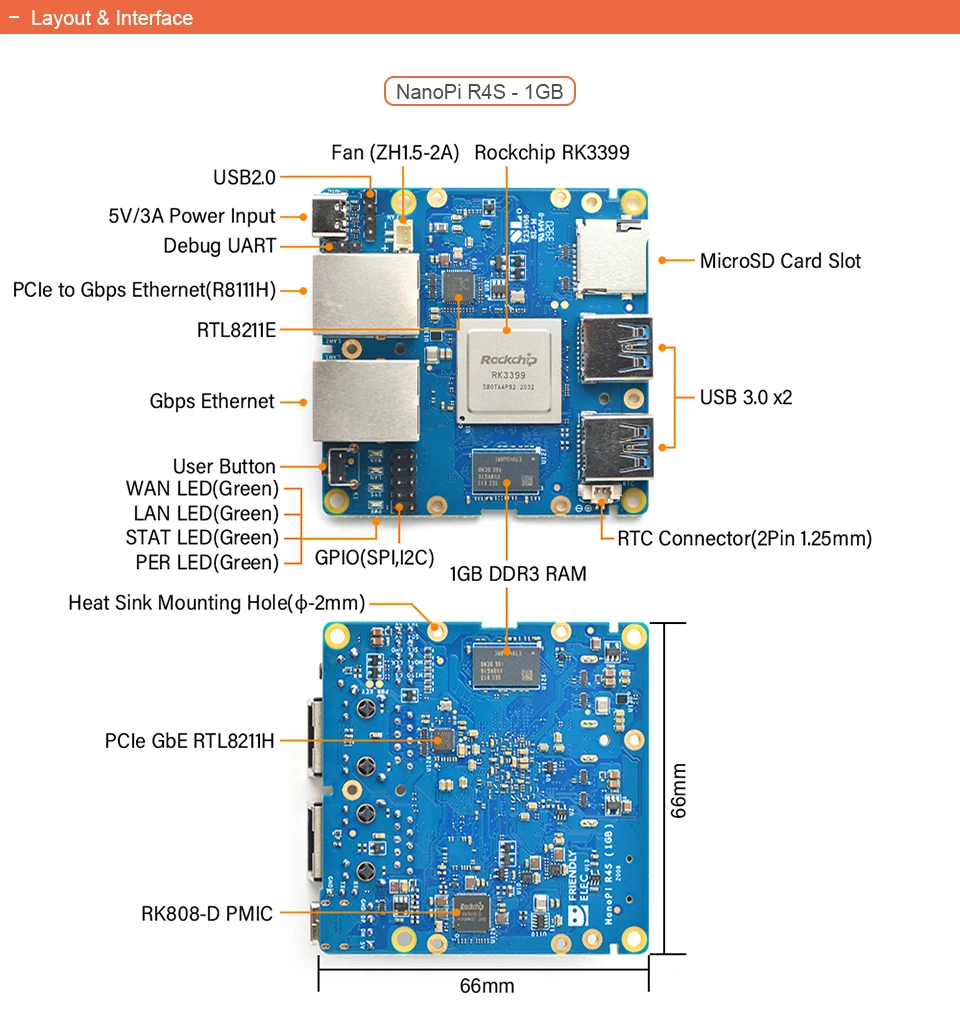

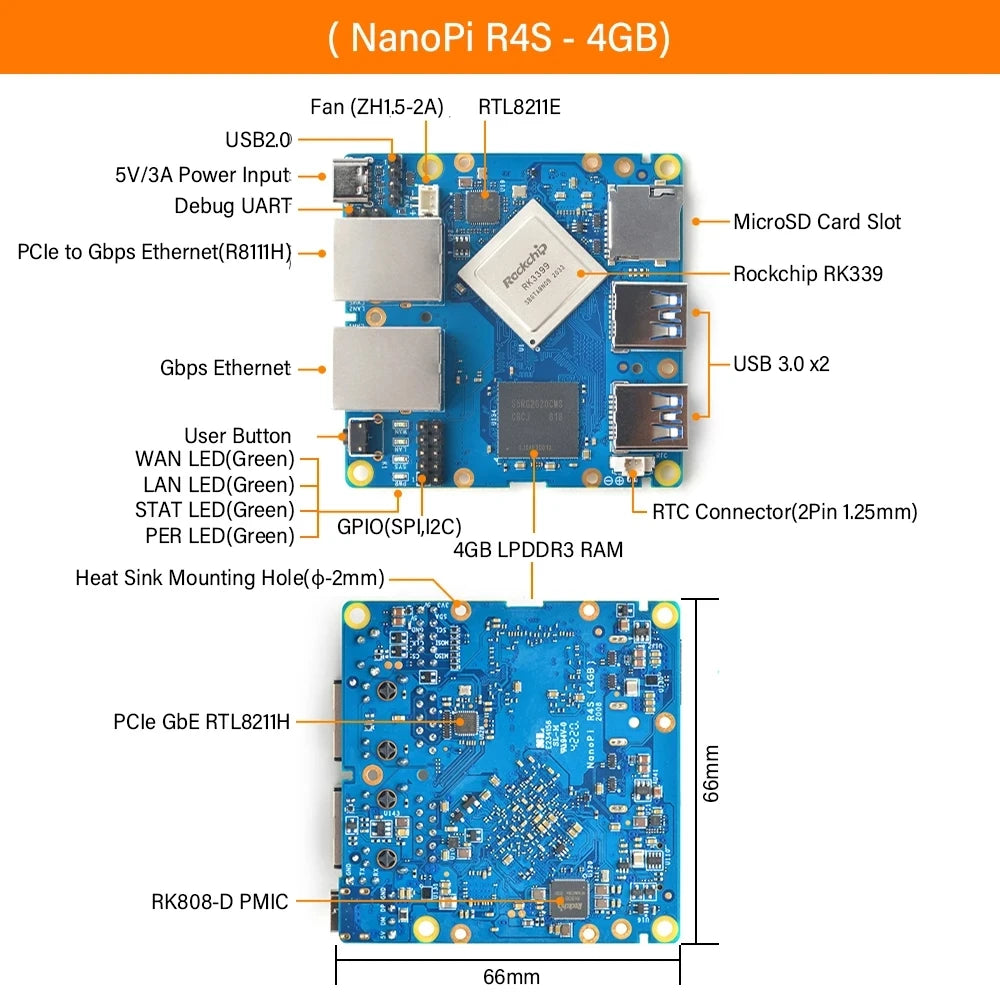

Hardware Spec
SoC: Rockchip RK3399
CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM: 1GB DDR3/4GB LPDDR4
Flash: no Onboard eMMC

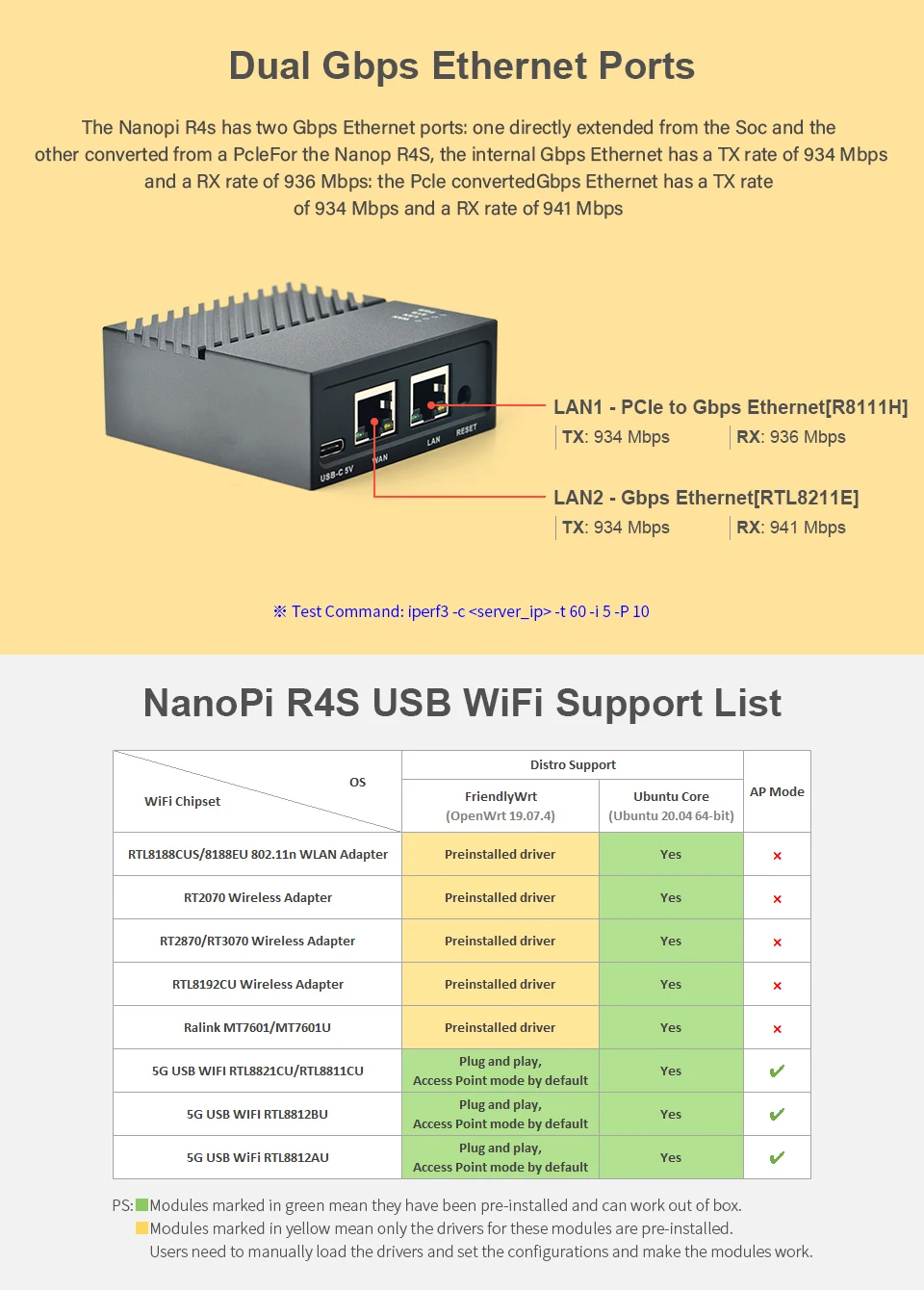

Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
USB: two USB 3.0 Type-A ports
Pin header extension interface
2x5-pin header: SPI x 1, I2C x 1
4-pin header: USB 2.0
microSD Slot x 1
Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
others:
2 Pin 1.27/1.25mm RTC battery input connector
one User Button
one 5V Fan connector
Power supply: DC 5V/3A, via USB-C connector or Pin header
PCB: 8 Layer, 66 mm x 66 mm
Temperature measuring range: 0℃ to 80℃
The NanoPi R4S(as "R4S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for
IoT applications.
The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. FriendlyElec ported an OpenWrt system
for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways
etc.
Hardware Spec
SoC: Rockchip RK3399
CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM: 1GB DDR3/4GB LPDDR4
Flash: no Onboard eMMC
Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
USB: two USB 3.0 Type-A ports
Pin header extension interface
2x5-pin header: SPI x 1, I2C x 1
4-pin header: USB 2.0
microSD Slot x 1
Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
others:
2 Pin 1.27/1.25mm RTC battery input connector
one User Button
one 5V Fan connector
Power supply: DC 5V/3A, via USB-C connector or Pin header
PCB: 8 Layer, 66 mm x 66 mm
Temperature measuring range: 0℃ to 80℃
