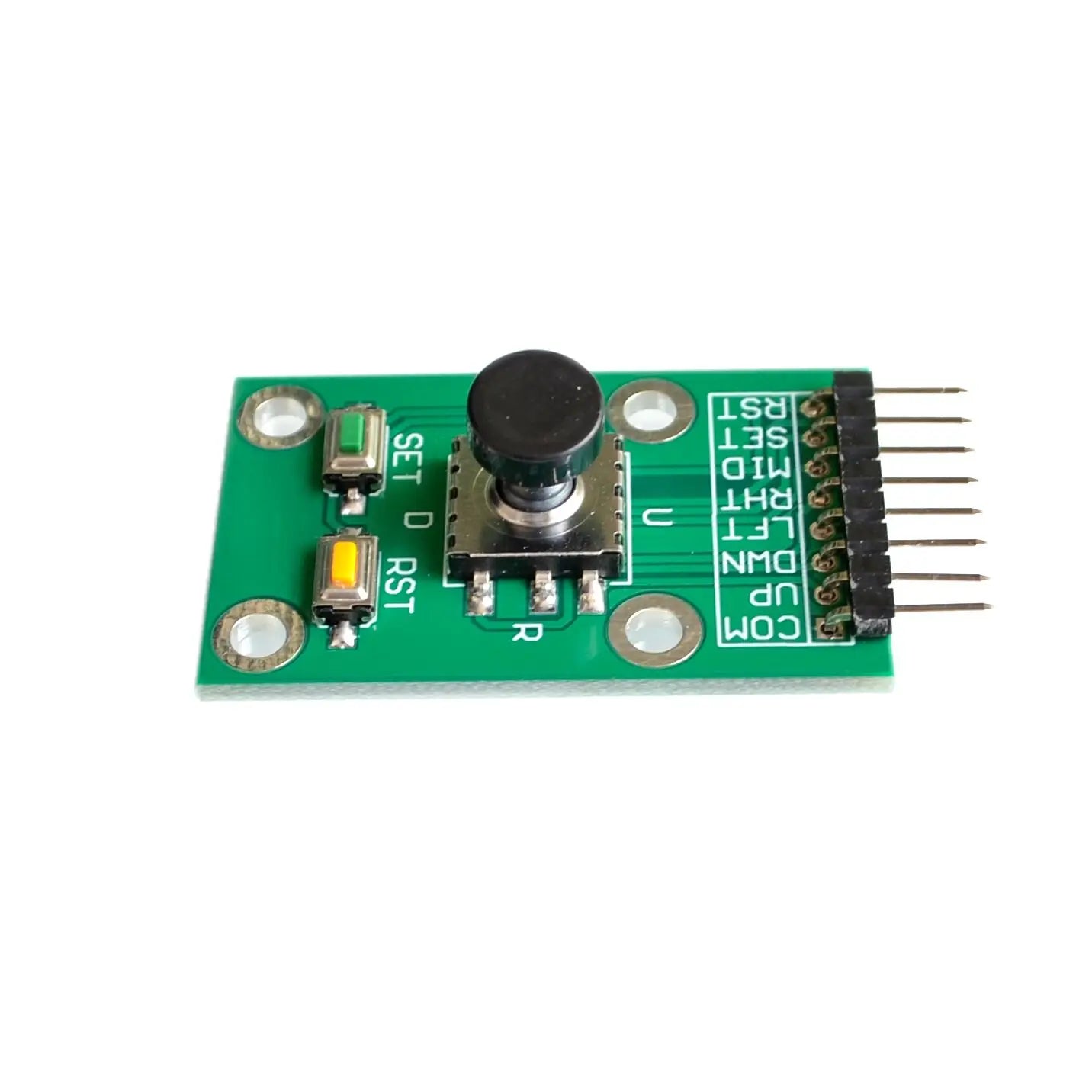

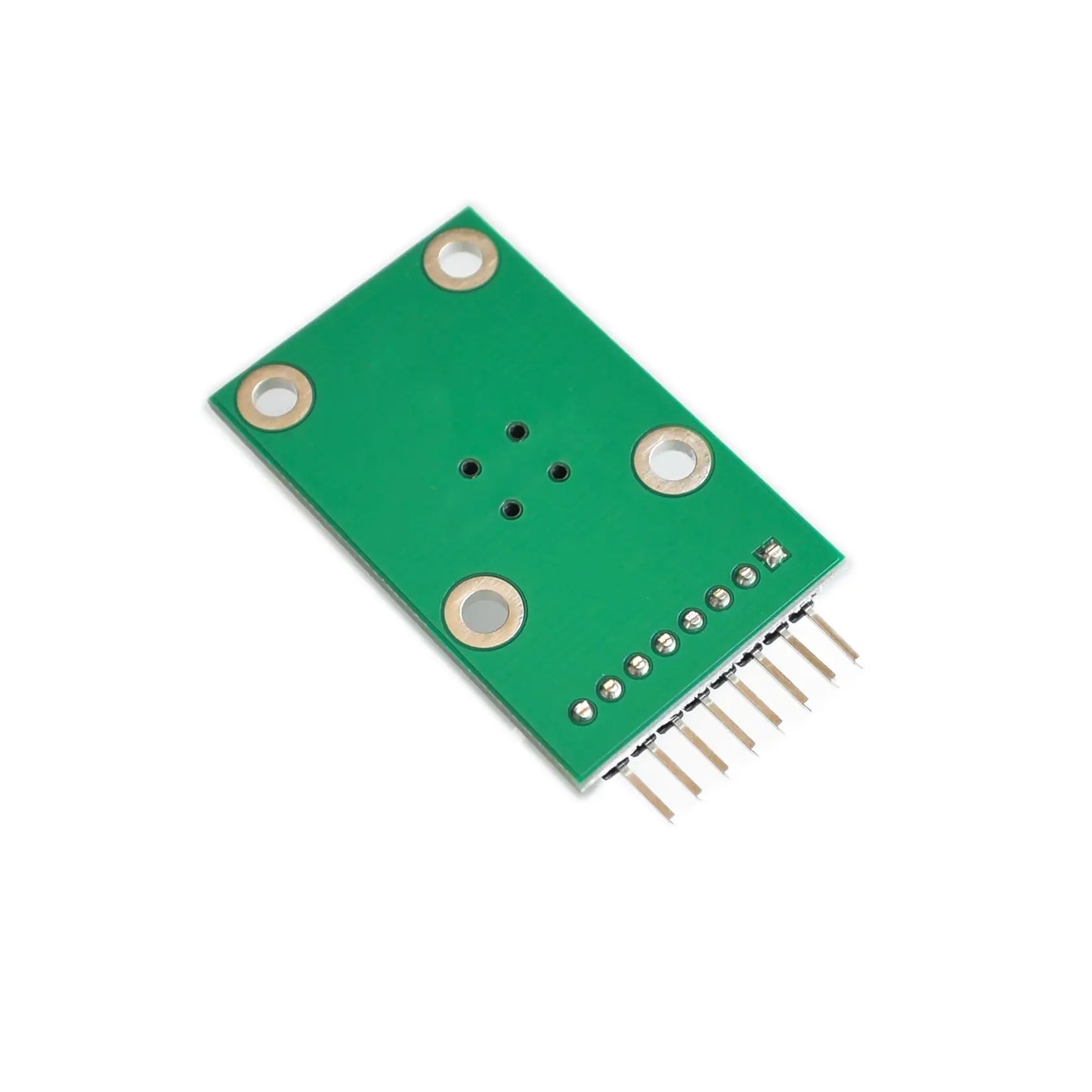

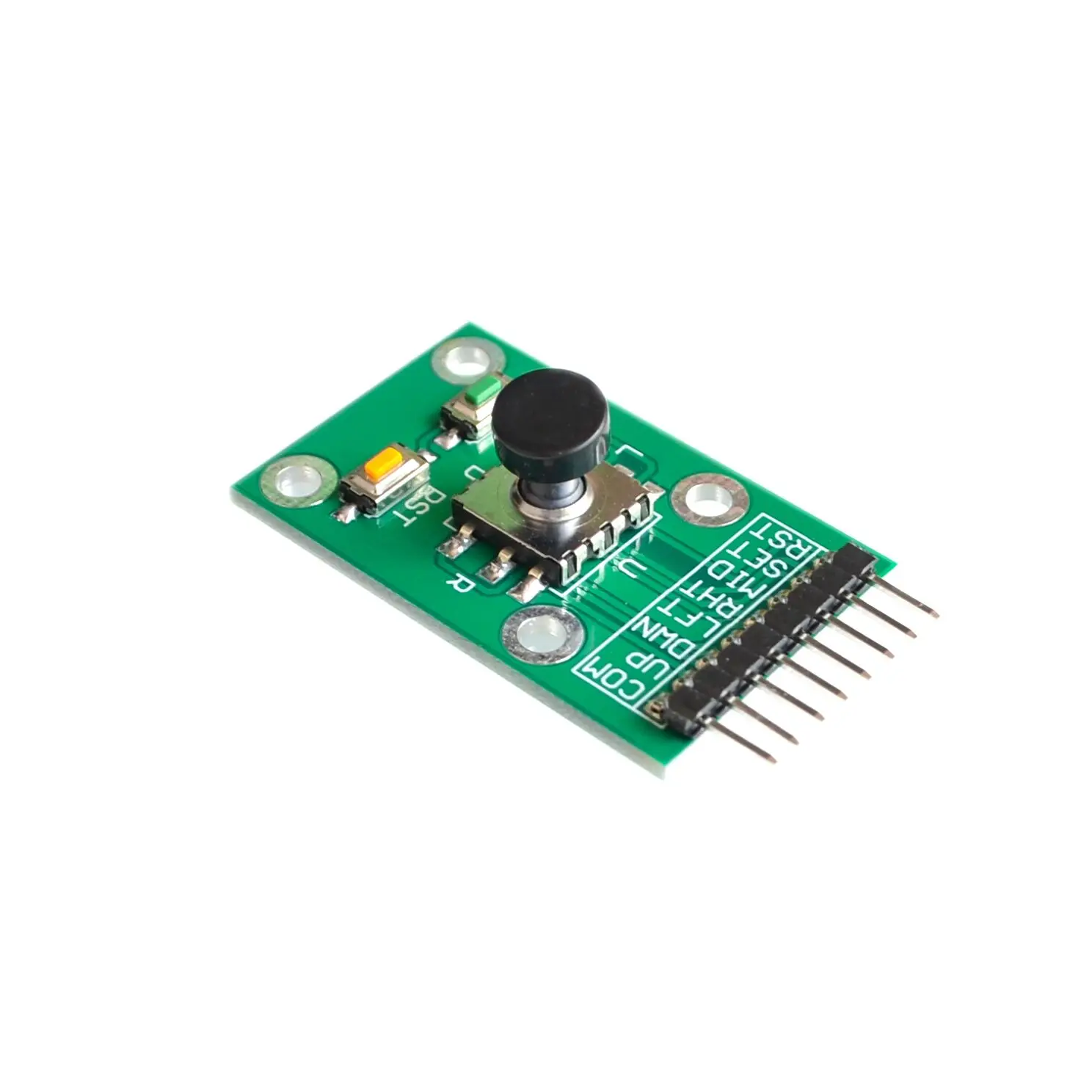

Custom Five Direction Navigation Button Module for MCU AVR Game 5D Rocker Joystick Independent Keyboard for Arduino Joystick Module
Custom Five Direction Navigation Button Module for MCU AVR Game 5D Rocker Joystick Independent Keyboard for Arduino Joystick Module
Regular price
$0.87 USD
Regular price
$6.87 USD
Sale price
$0.87 USD
Unit price
per
Couldn't load pickup availability
1. Parameters:
No. |
Parameter |
Value |
1 |
Name |
Five direction navigation button module |
2 |
The number of IO |
7 |
3 |
Operating voltage |
2.0V-9.0V |
4 |
Size |
25mmx41mm |
5 |
Operating temperature |
-40 Celsius -85 Celsius |
2. Pin description:
No. |
Pin |
Function |
Remark |
1 |
COM |
Common end |
VCC or GND connected to the MCU development board |
2 |
UP |
Up direction button |
Connect to IO pin of the MCU |
3 |
DWN |
Down direction button |
Connect to IO pin of the MCU |
4 |
LFT |
Left direction button |
Connect to IO pin of the MCU |
5 |
RHT |
Right direction button |
Connect to IO pin of the MCU |
6 |
MID |
Middle direction button |
Connect to IO pin of the MCU |
7 |
SET |
Set button |
Connect to IO pin of the MCU |
8 |
RST |
Reset button |
Connect to IO pin of the MCU |
