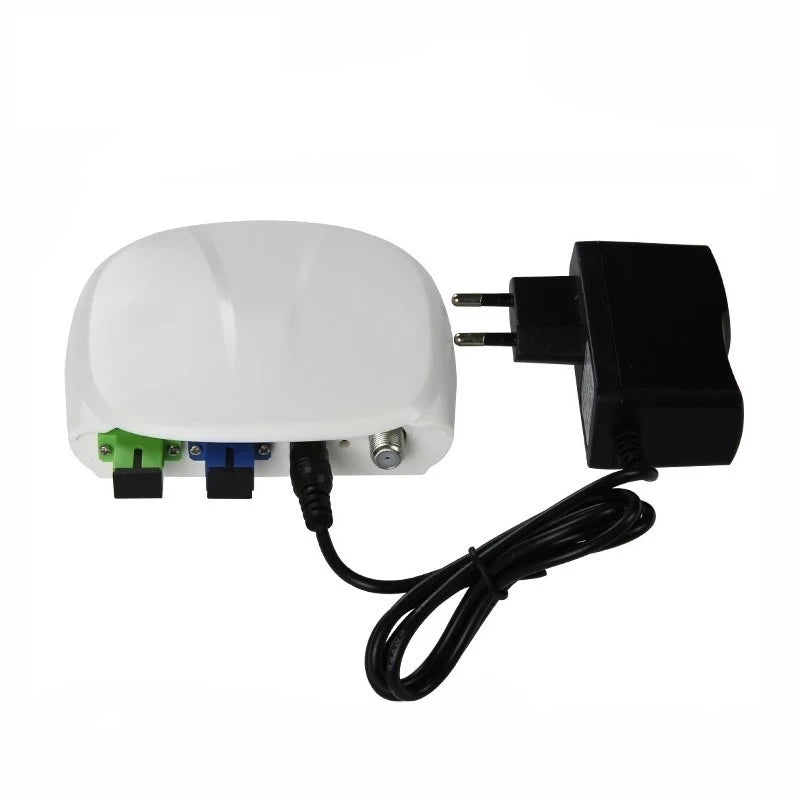

Custom Fiber Optical FTTH optical receiver SC/APC-SC/UPC with WDM and AGC Mini Node Indoor Optical Receiver with white plastic case Manufacturer
Custom Fiber Optical FTTH optical receiver SC/APC-SC/UPC with WDM and AGC Mini Node Indoor Optical Receiver with white plastic case Manufacturer
Regular price
$12.88 USD
Regular price
$12.88 USD
Sale price
$12.88 USD
Unit price
per
Couldn't load pickup availability
I.Applications
The FTTH-OR19 optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH
(Fiber to the Home) network optical fiber subscriber access terminals, enabling analog or digital signals to enter the home. The
machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. Among

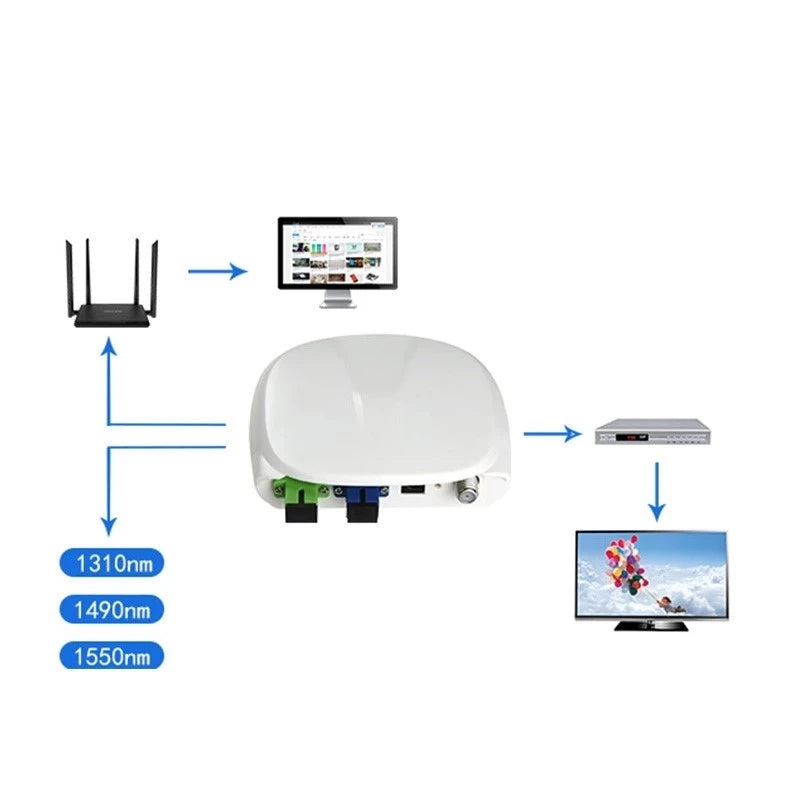

them FTTH-OR19 is based on WDM as the main push product, and it is a home-based equipment tailored to realize triple play.
II.the performance characteristics

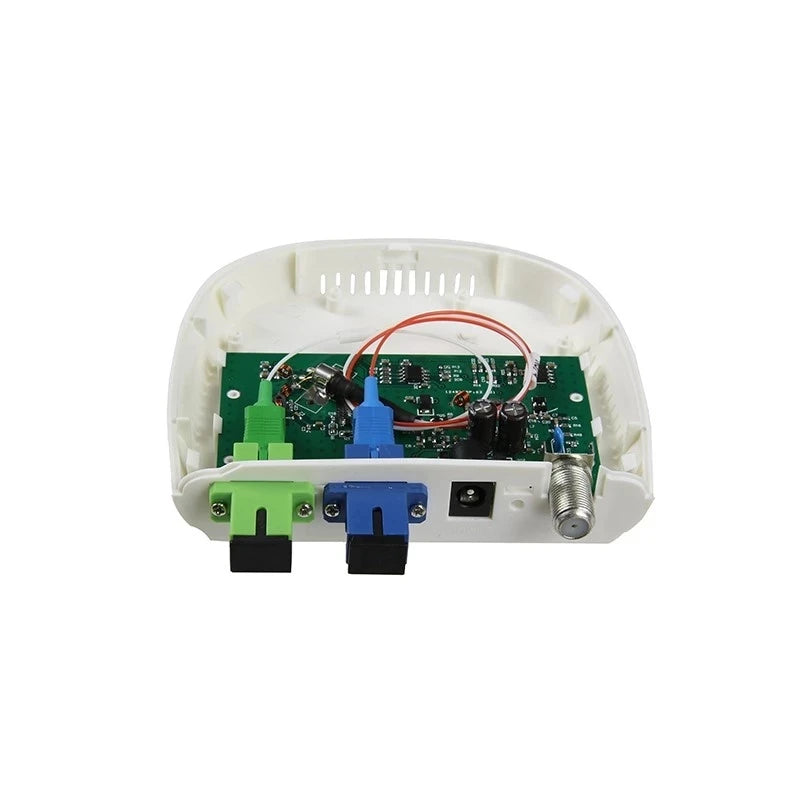

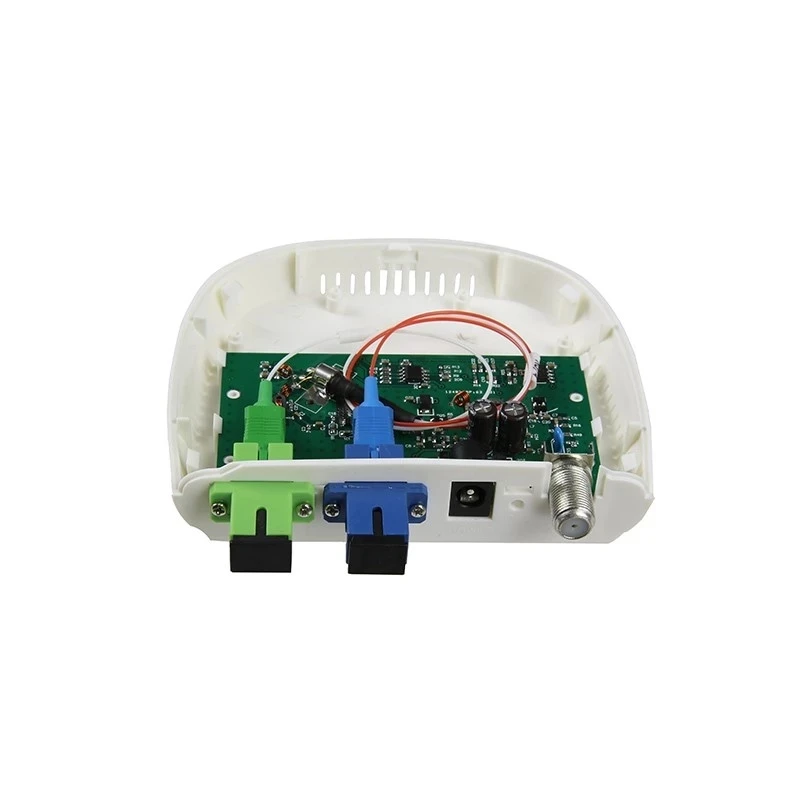

■ RF channel full GaAs low noise amplifier circuit. Digital signal can satisfy -18dBm reception, analog signal minimum meet -10dBm
reception;
■ With light input AGC (AGC range can be customized according to the user);
■ Anti-high frequency surge device protection, GaAs amplification chip;
■ Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the power
supply. The overall power consumption is less than 2W, with a light detection circuit;

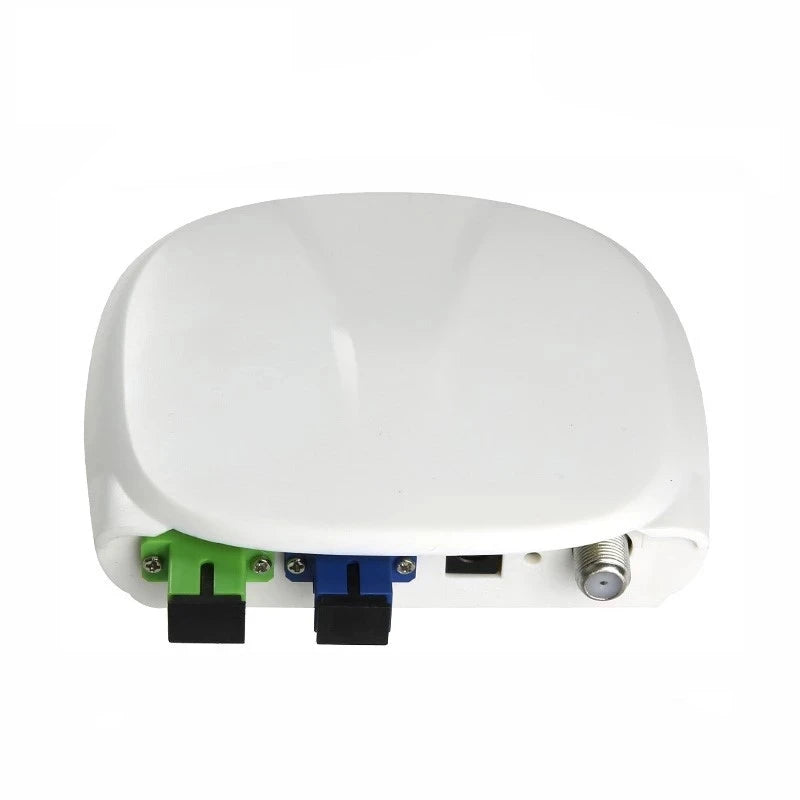

■ FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface (customizable according to customer requirements);
■Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, to ensure the
safe operation of the equipment;
■ It can realize the power supply mode of output feed.
VII. product maintenance
The warranty period for our company's equipment is one year. The company is responsible for the maintenance of the product for
life. The equipment outside the warranty period will be charged with certain materials, maintenance and transportation costs.
