Custom EPON 8 port OLT optical fiber network security monitoring broadband is suitable for ZTE Huawei ONU optical cat equipment Manufacturer
Custom EPON 8 port OLT optical fiber network security monitoring broadband is suitable for ZTE Huawei ONU optical cat equipment Manufacturer
Regular price
$983.70 USD
Regular price
$983.70 USD
Sale price
$983.70 USD
Unit price
per
Couldn't load pickup availability
8-port OLT equipment can cooperate with ONU and passive optical distribution network (ODN) to form a passive optical network to
realize the performance management, fault management and configuration management of the equipment. It adopts 1U rack-mount
design, supports 8 SFP EPON systems, supports 4 Gigabit optical ports and 4 Gigabit Combo ports (ie 1000M SFP optical port and
1000M adaptive RJ45 electrical port interchange) uplink, at 1: 8 PON ports under 64 splitting can support up to 512 ONU device
access. In the case of high bandwidth, a transmission distance of 20km is guaranteed, can provide full-line-speed L2 layer
forwarding capabilities, and supports SNMP graphical interface management.
It is mainly suitable for a small number of users such as town and village-level optical fiber network access. It provides high
bandwidth and high integration guarantee for bandwidth access while reducing network construction costs. It can also be applied to
FTTx projects to achieve fiber to the home and complete IP Access to services such as telephone, broadband data, and IPTV.
Product Information:
model type:
8 OLT 1 power module=8port OLT + 1 power module+without SFP
8 OLT 2 power module=8port OLT + dual power module+without SFP
8OLT 1power 8px20ppp=8port OLT + 1 power module+8 SFP px20+++
8OLT 2power 8px20ppp=8port OLT + dual power module+8 SFP px20+++
Working wavelength: 1310 (RX)/1490 (TX)
Optical power: +3~ +7dBm
Receiving sensitivity: -27dBm
Maximum transmission distance: 20km

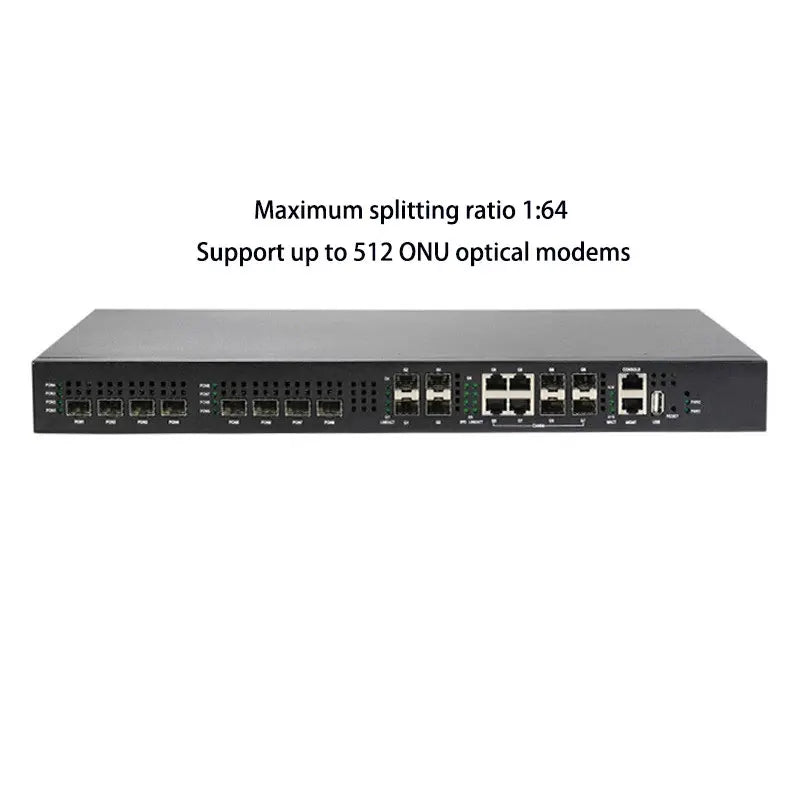

Maximum splitting ratio: 1:64
Machine capacity: support up to 512 ONU optical modems
Backplane bandwidth: 128G
MAC address table: 32K

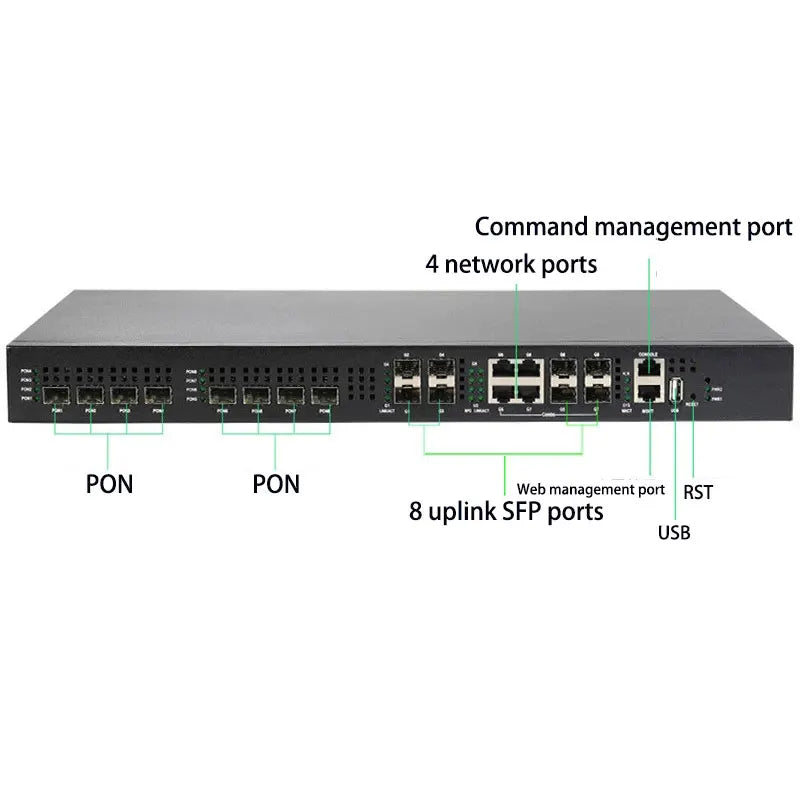

Uplink interface: 4 gigabit SFP optical ports uplink + 4 gigabit photoelectric multiplexing Combo ports uplink
PON interface: 8 SC PON interfaces
Management interface: SNMP, TELNET, in-band management, out-of-band management
MTBF: 100,000 hours
EPON features
IEEE802.3ah
Support link bandwidth monitoring and loop detection
Support upstream and downstream symmetrical 1.25Gbps bandwidth
Support AES-128 encryption for each logical link
Powerful OAM function, realize the remote management, protection and upgrade of ONU, support remote restart of ONU, restore
factory settings, etc.
Support ONU automatic discovery and registration (plug and play)
Support PON port luminous power, accept optical power detection
supporting agreement
Support IEEE802.3, IEEE802.3u, IEEE802.3ab,
Support IEEE802.1Q VLAN
network management
WEB English graphical interface, simple and clear, practical and easy-to-operate network management
With switch network management function
Support link aggregation function
Support 4KVLAN
Support port-based VLAN
Support QINQ
Support loop detection
Support command line interface (CLI) CONSOLE port, TELNET configuration
Can intuitively check whether the ONU optical cat is online
other functions:
Support IGMPv1/v2 protocol
Support IGMP Snooping
Support ONU batch configuration

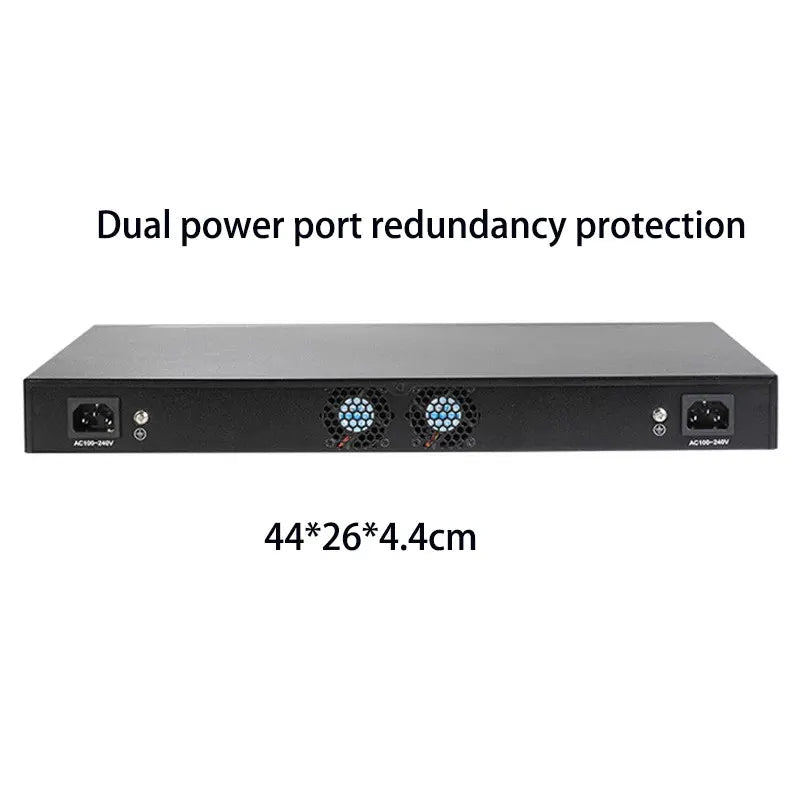

Power supply: AC110-240V built-in power supply (optional single and double power supply)
Power consumption: 38W
Working temperature: -10~55℃
Storage temperature: -40~70℃
Size: 44*26*4.4cm (length*width*height)
