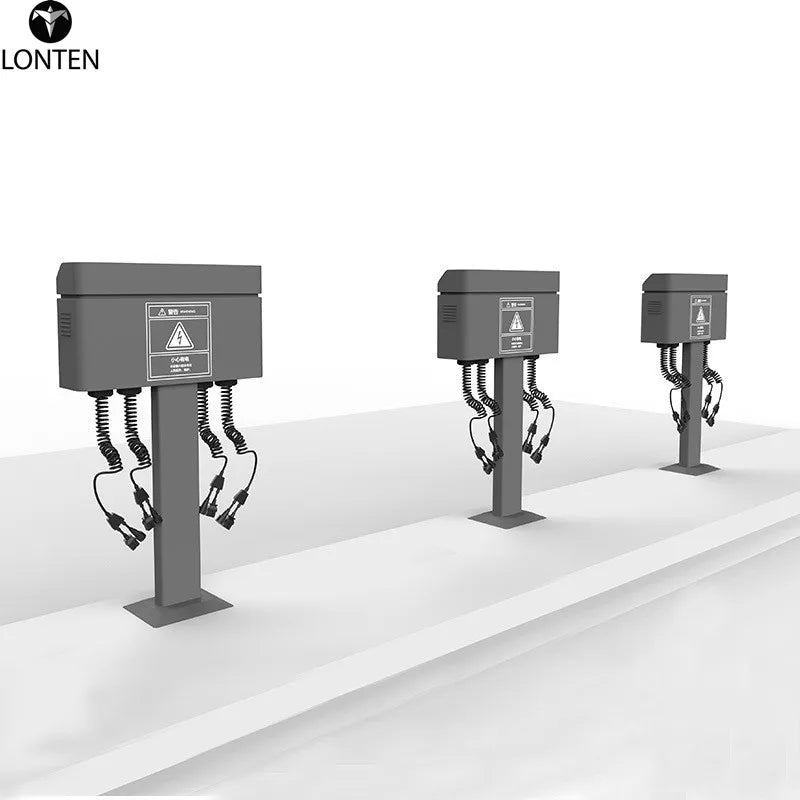

Custom Electric Tricycle Intelligent Charging Pile Charging Station Lonten Factory Outlet Custom accepted Manufacturer

Lonten produce electronic component power supply module,welcome OEM ,ODM,for more please contact.

Electric bicycle tricycle intelligent charging pile power factory direct sales

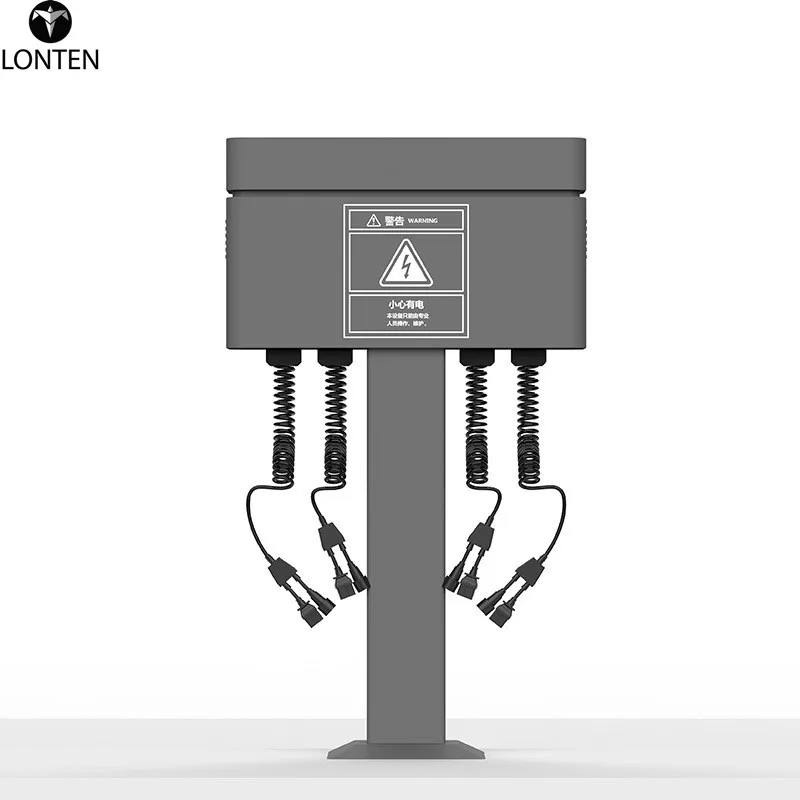

Product name: Intelligent charging pile for electric bicycle

Product number:1400C-4L

Networking mode: single or multi-machine networking

communication method:3G

Payment method: QR code payment

Applicable battery types: lead-acid batteries, lithium batteries, iron batteries

Enter:AC 180V-264V 4A 50Hz

Input current: in180Vac full load maximum 4A, 264Vac full load maximum 3A

The output voltage:22-88V DC (automatic recognition of battery type, battery voltage)

Output current:0.1-4.1A

Number of output loads:4 groups

Work efficiency:Input voltage180~264Vac, average efficiency of 100% load, 75% load, 50% load, 25% load 88%, (30 minutes warm-up)
Standby power consumption:inWhen 220Vac input, no load, standby power consumption 3W
Inrush current: in180Vac cold t maximum 30A, 264Vac cold t maximum 40A
Output characteristics:

The safety of power supply should meet:GB4706.18-2014
Electromagnetic compatibilityEMC Electromagnetic Interference EMI: GB9254
Radiated interference:GB9254

Operating temperature: -20 to +40
Storage temperature: -20 to +70
Operating humidity:From 10% to 90% relative humidity (Non-condensing).
Storage humidity:From 5% to 95% relative humidity (Non-condensing).
Cooling method: ventilation cooling
Connector foot definition:

weight:14KG

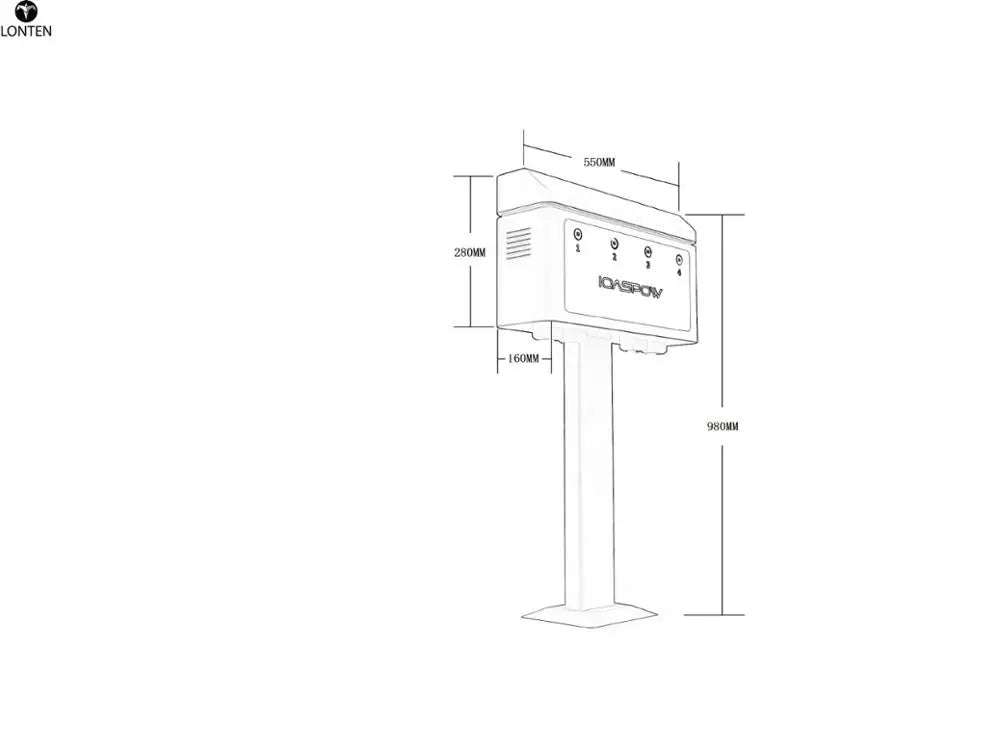

structure size:980*550*160MM

 Welcome Customize Order!
