Custom Electric Motor 895 DC 12V/24V 6000RPM 18000RPM Electric Power Tool With Bracket Support Fixed Base Manufacturer

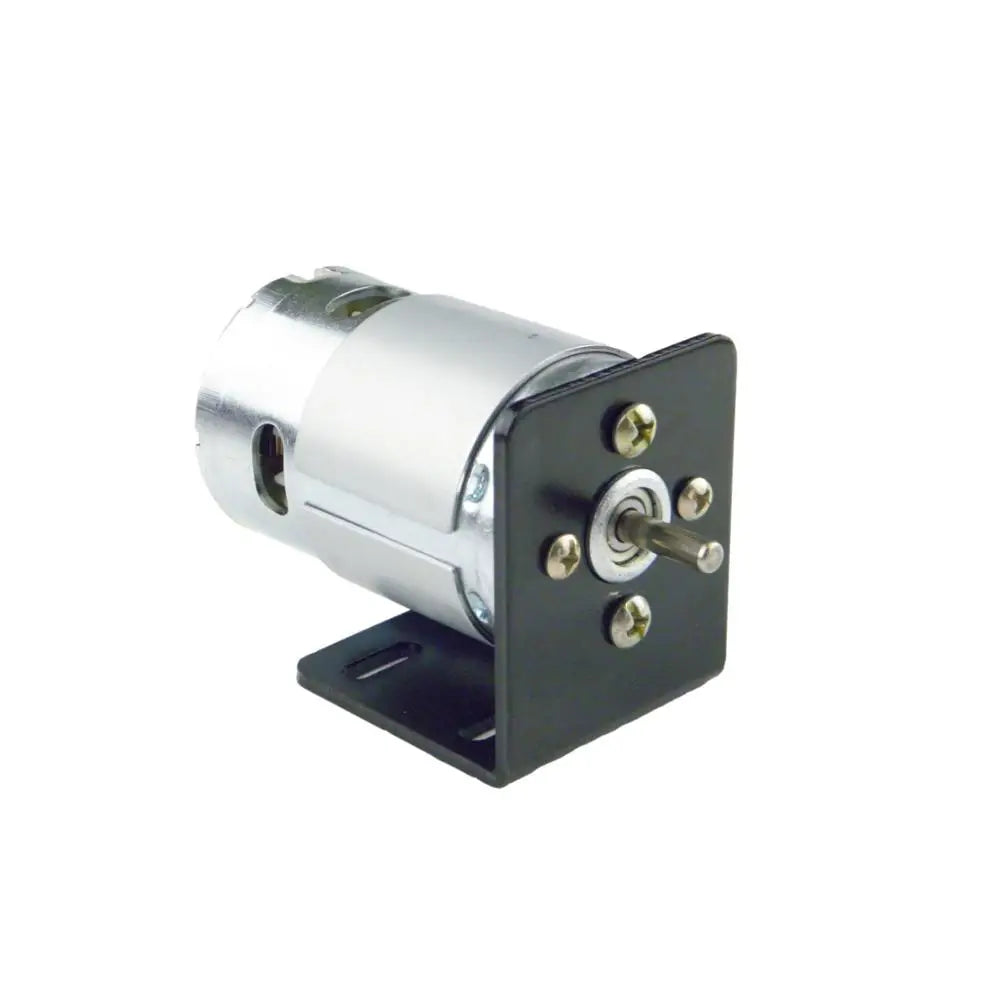

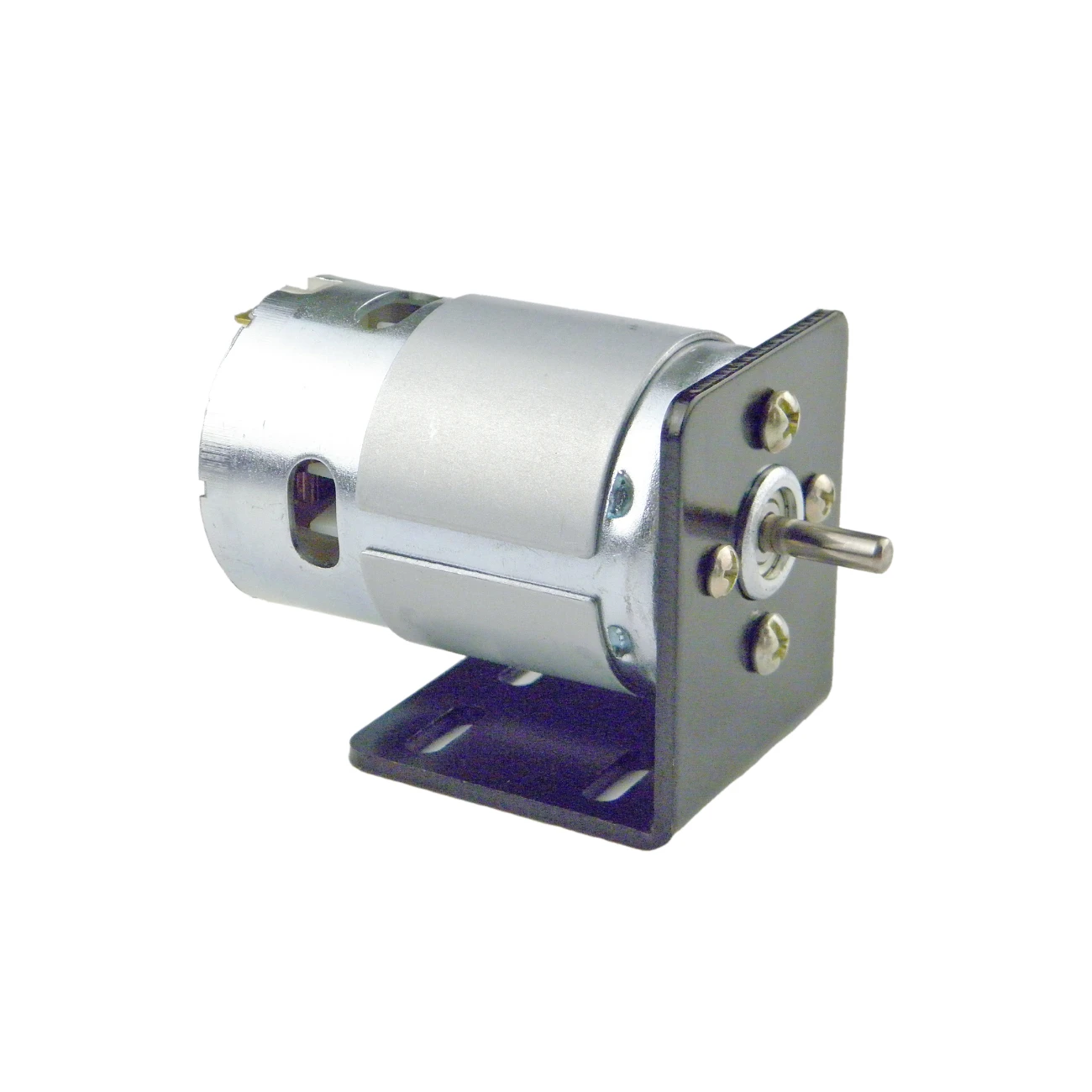

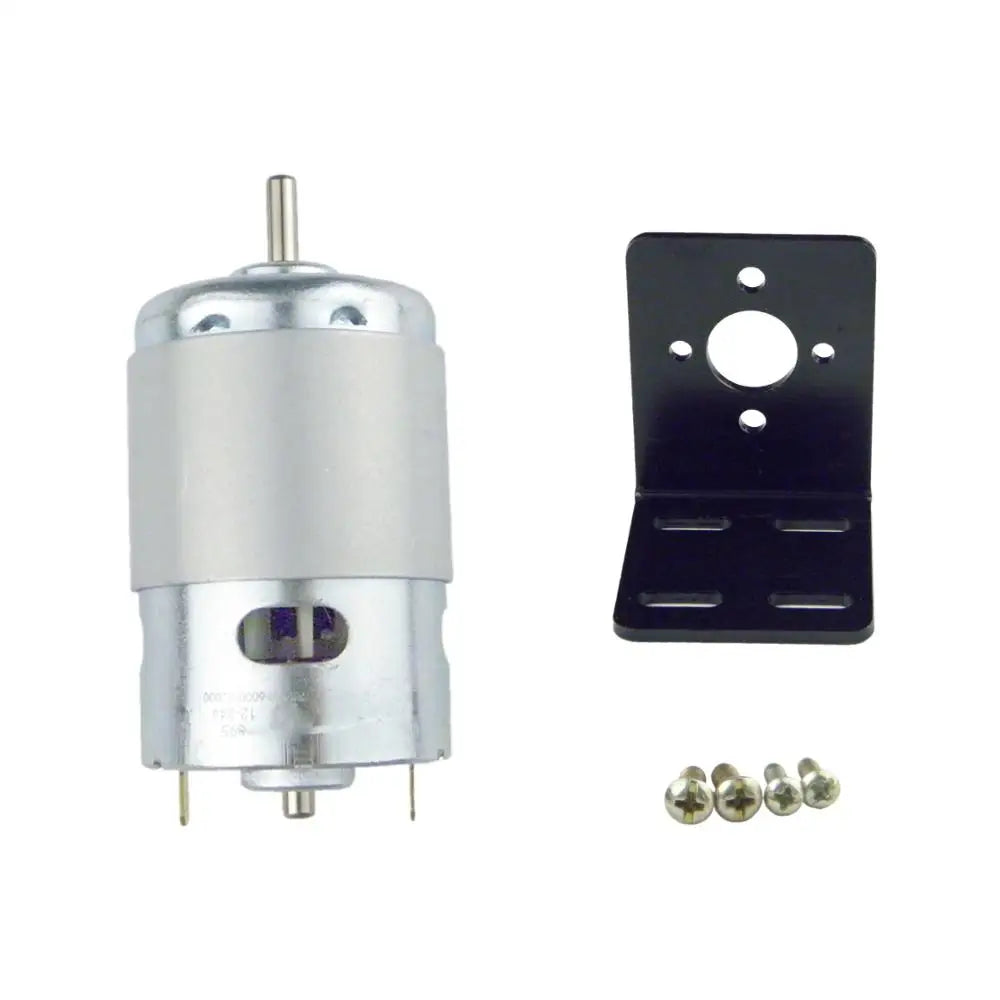

-It's a DC 12V-24V 895 motor and bracket combo.The motor uses pure copper coils inside for longer life and less jitter, and has a built-in cooling fan.Easy to wire and install. Durable construction for long-lasting performance.

-The 895 motor mount is made of high hardness carbon steel.It adopts advanced anti-rust paint technique, which makes the bracket be used for a long-term.

-Application:
Wide applied to electric tools, electric fans, electric cleaners, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.

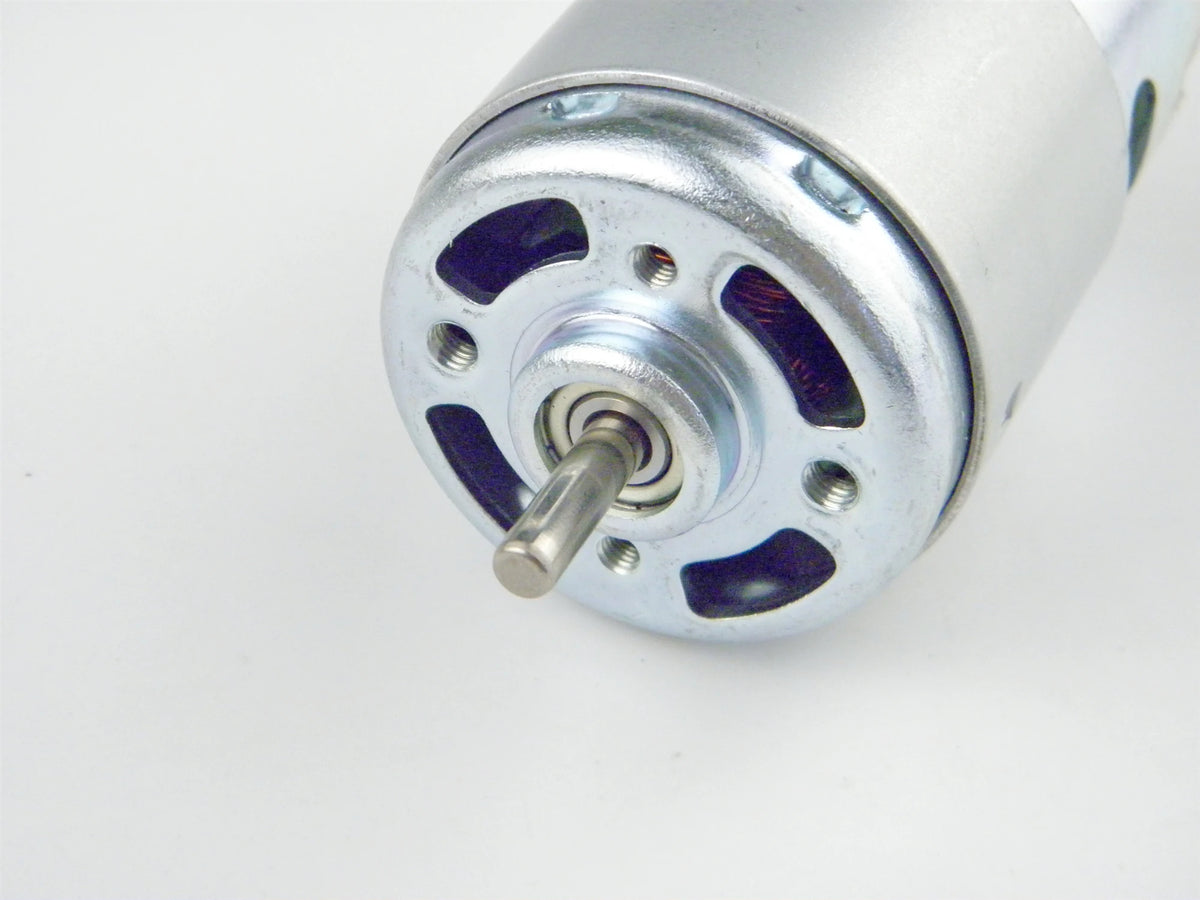

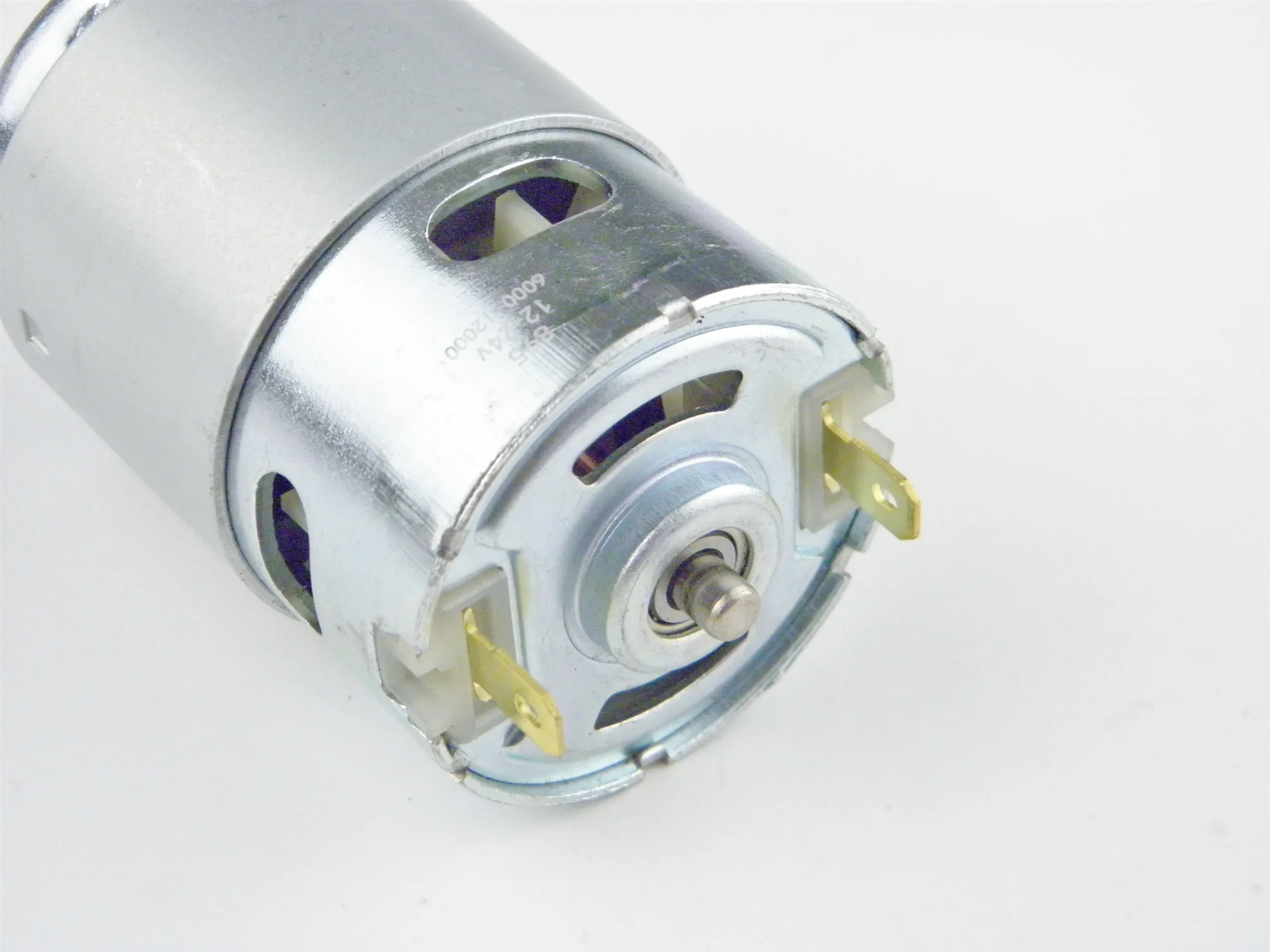

Specification of motor

*DC 12V Single Shaft

Rated voltage: 12V, No-Load Speed: 12000 RPM;
(This motor is only suitable for DC 12V voltage)

Torque:≤4.5Kg.cm;
No-load current: 0.9A;
Power:150W

*DC 12V/24V Single Shaft

Rated voltage: 12V, No-Load Speed: 3000/6000/9000RPM;
Rated voltage: 24V, No-Load Speed: 6000/12000 /18000RPM;
(This motor is suitable for both DC 12V and DC 24V voltages)

No-load current: 1.6A;
Power:150W

*DC 12V/24V Double Shaft

Rated voltage: 12V, No-Load Speed: 3000/6000/9000RPM;
Rated voltage: 24V, No-Load Speed: 6000/12000 /18000RPM;
(This motor is suitable for both DC 12V and DC 24V voltages)

No-load current: 1.6A;
Power:150W

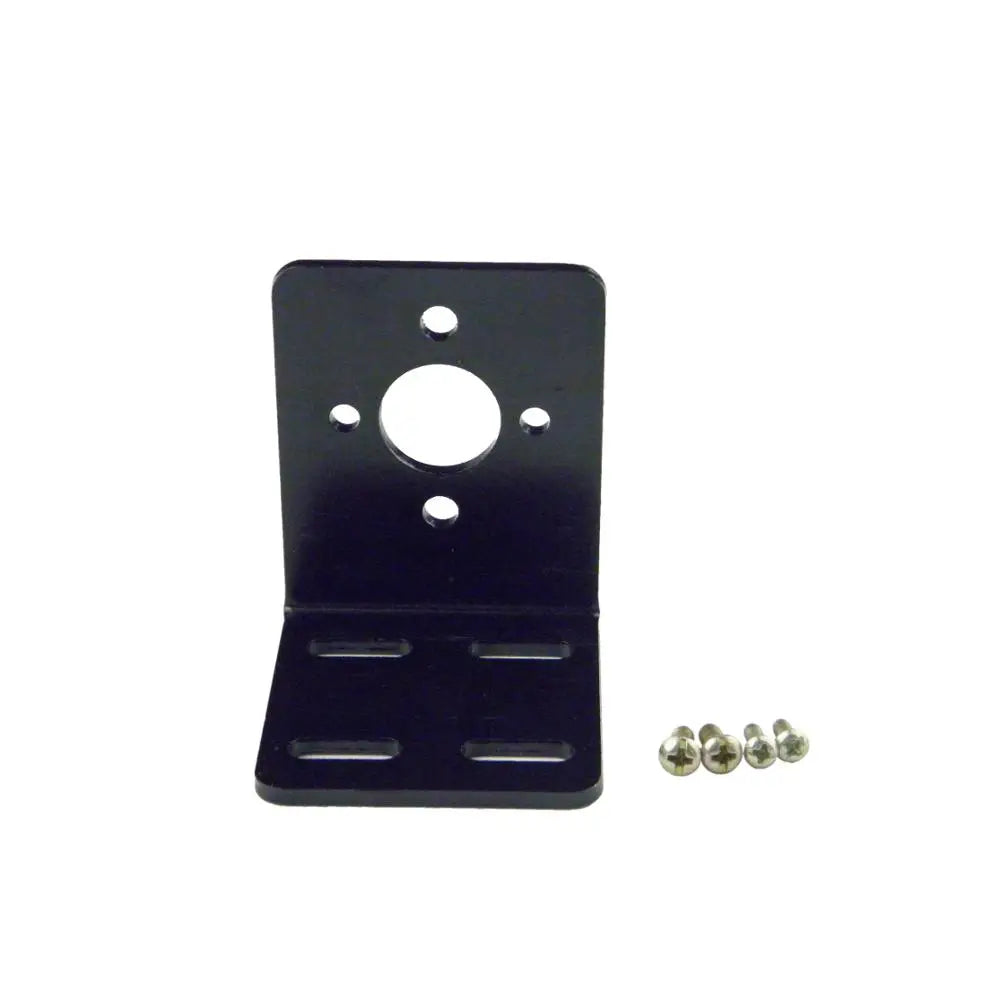

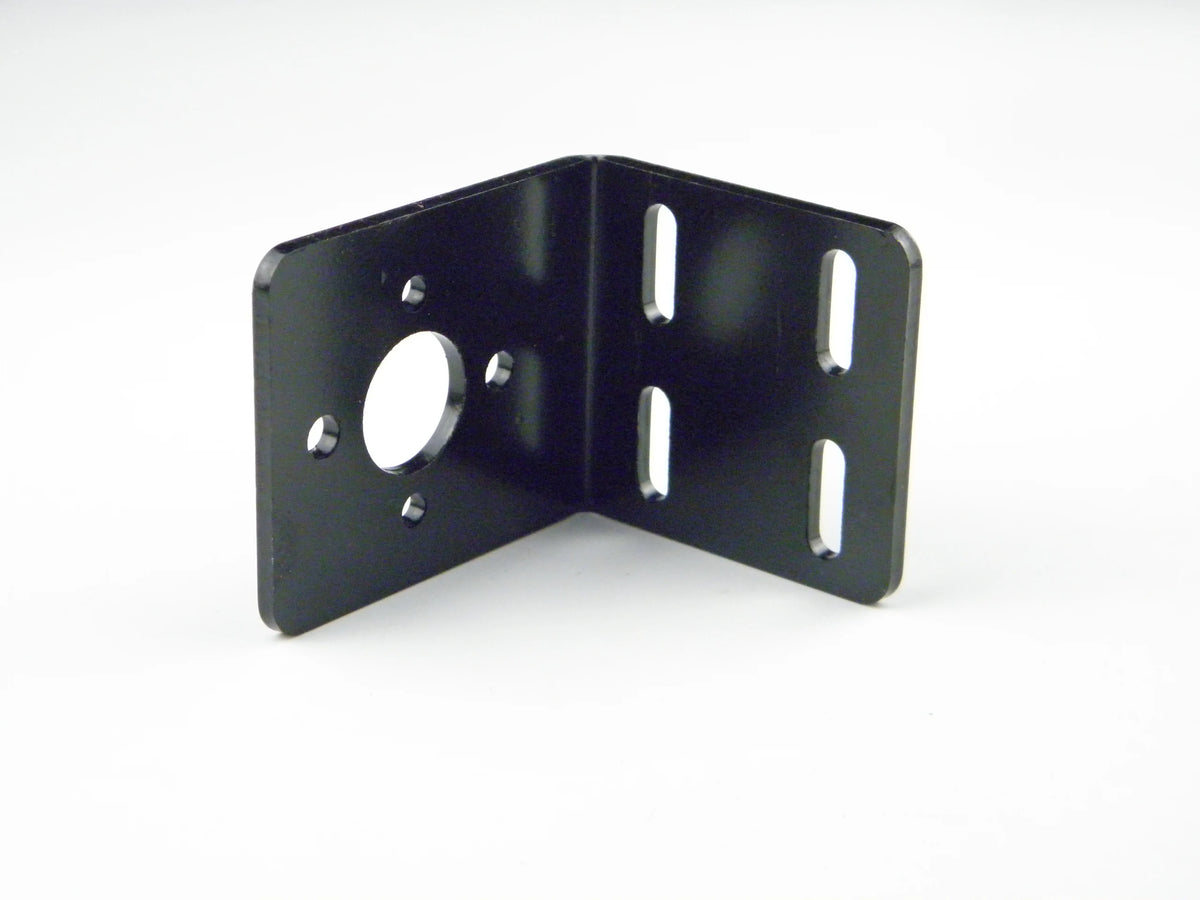

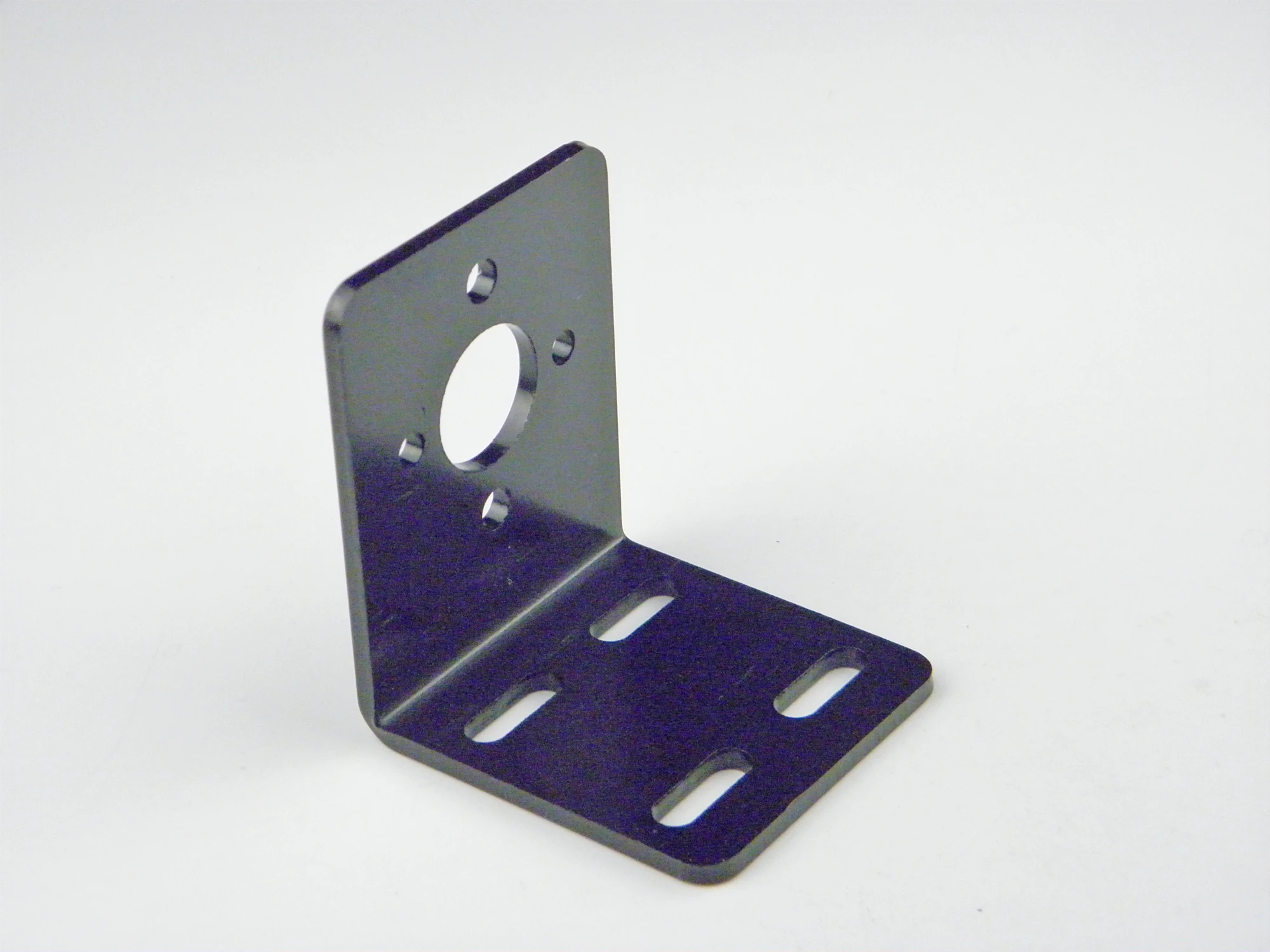

Specification of bracket:

Bracket material:steel;
Thickness of bracket: 2.8-3mm;
Length: 50mm ;
Width: 53mm ;
Height: 62mm ;
Mounting hole diameter: 5.2mm/4.2mm ;
