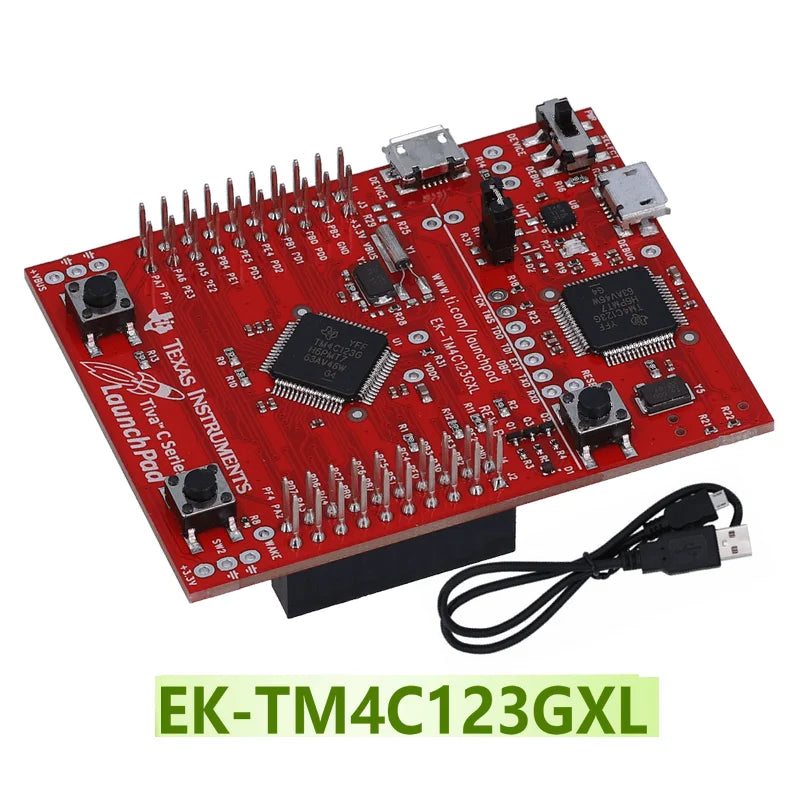

EK-TM4C123GXL

Tiva™ C Series LaunchPad Evaluation Kit
The TM4C123G LaunchPad Evaluation Kit is a low-cost evaluation platform for Arm Cortex-M4 based microcontrollers. The TM4C123GH6PM MCU features an 80MHz Arm Cortex-M4F CPU, 256kB Flash and 32kB SRAM, with integrated USB 2.0 support for USB host/device/OTG and two 12-bit ADC modules. The TM4C123GH6PM also includes multiple serial communication channels such as UART, SPI, I2C and CAN. The highlight of the TM4C123G LaunchPad design is the TM4C123GH6PM USB 2.0 device interface and other device features such as sleep and PWM modules.

The EK-TM4C123GXL features programmable user buttons and RGB LEDs for custom applications. Stackable headers provide an interface to BoosterPack™ plug-in modules, allowing you to easily expand the functionality of the TM4C123G LaunchPad through Texas Instruments' BoosterPack ecosystem. The TivaWare SDK developed by TI provides drivers for all peripherals and sample code for dozens of applications for the TM4C123G LaunchPad.


characteristic
The ARM Cortex-M4F based MCU TM4C123GLaunchPad Evaluation Kit (EK-TM4C123GXL) has the following features:

High-performance TM4C123GH6PM MCU:
80MHz 32-bit ARM Cortex-M4 based microcontroller CPU
256KB Flash, 256KB SRAM, 2KB EEPROM
Two enhanced controller area network (CAN) modules (requires CAN transceiver)
USB 2.0 Host/Device/OTG + PHY
Two 12-bit 2MSPS ADCs, Motion Control PWM
8 UART, 6 I2C, 4 SPI
Onboard In-Circuit Debug Interface (ICDI)

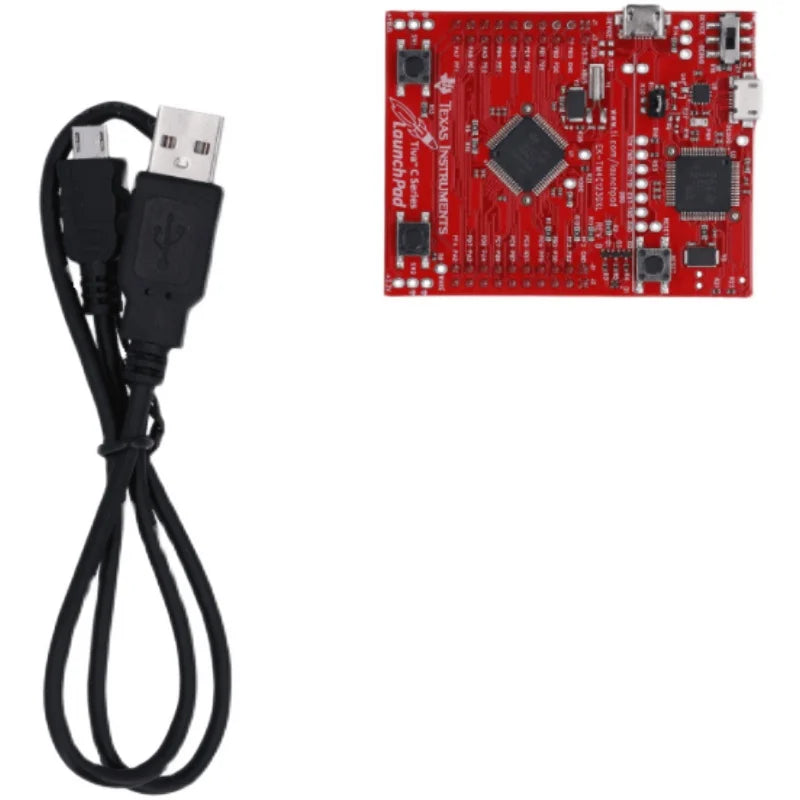

USB Micro-B Plug to USB-A Plug Cable
Preset RGB Quick Launch App
Readme Quick Start Guide
