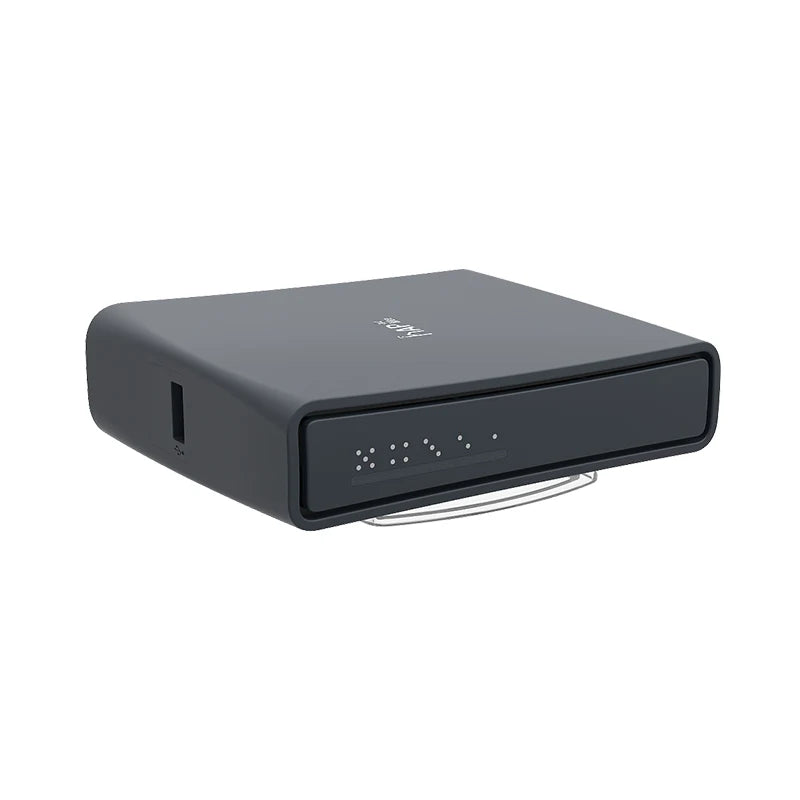

Custom Dual-concurrent 2.4/5GHz Access Point MikroTik WiFi AP hAP ac lite TC Home Access Point RB952Ui-5ac2nD-TC Router ROS Manufacturer
Custom Dual-concurrent 2.4/5GHz Access Point MikroTik WiFi AP hAP ac lite TC Home Access Point RB952Ui-5ac2nD-TC Router ROS Manufacturer
Regular price
$56.25 USD
Regular price
$56.25 USD
Sale price
$56.25 USD
Unit price
/
per
Couldn't load pickup availability
MikroTik Indoor Wireless System
hAP ac lite TC/ RB952Ui-5ac2nD-TC
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD-TC |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Operating System | |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 8 W |
Wireless
| Details | |
|---|---|
| AC speed | AC750 |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| 5 GHz |
|---|
