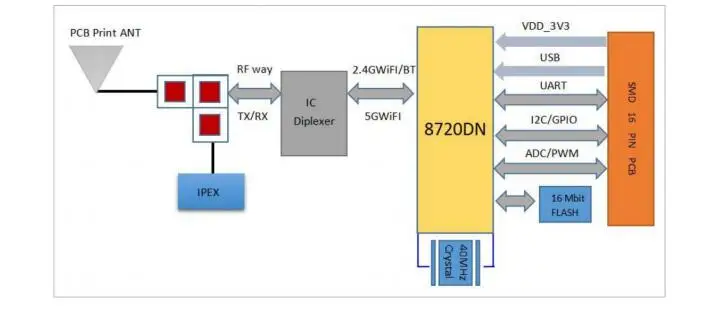

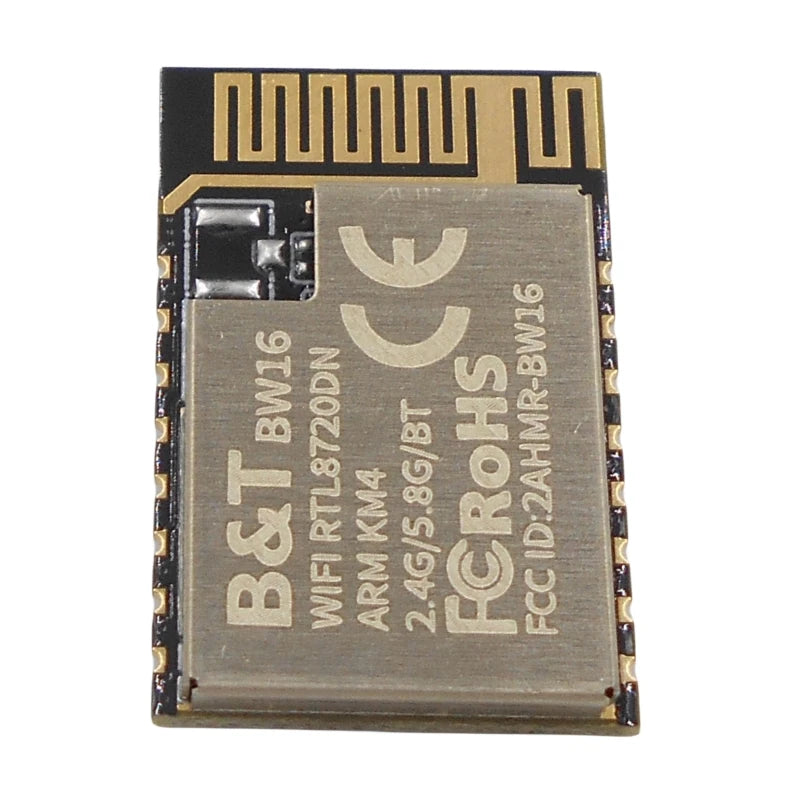

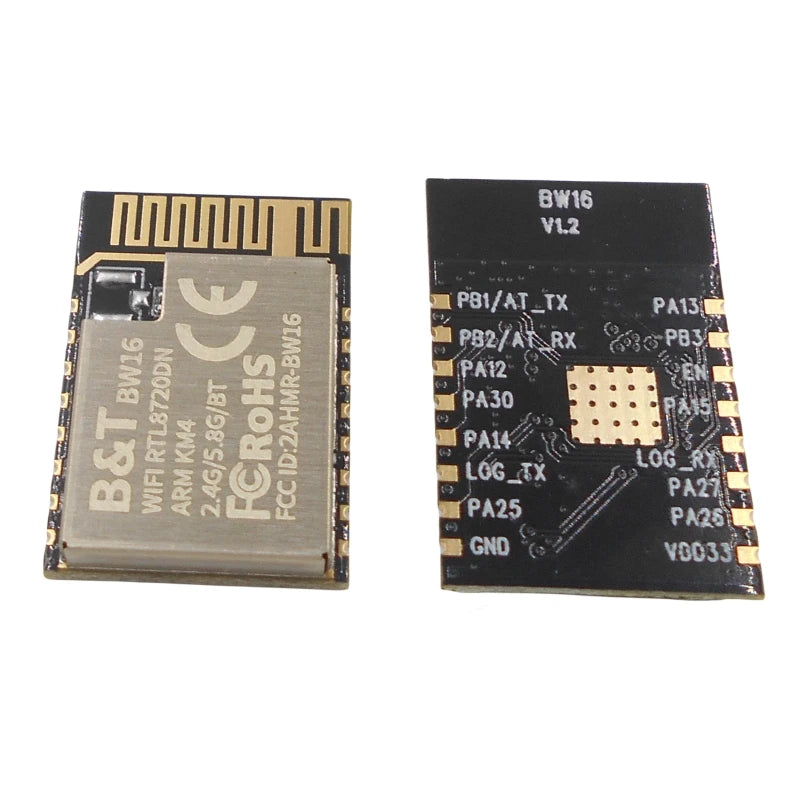

Product Overview
BW16 is a dual-band Wi-Fi + Bluetooth SoC module based on RTL8720DN. BW16 supports dual frequency (2.4GHz or
5GHz) WLAN and Bluetooth Low Energy 5.0; it integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M
(Cortex-M0 compatible) Low-power MCU, WLAN (802.11 a / b / g / n), MAC, Bluetooth baseband and RF
Baseband, and provides a set of configurable GPIO ports for control of different peripheral devices.
BW16 also integrates internal memory to support simple application development, enabling complete Wi-Fi and BT
5.0 Protocol Features.
characteristic
Support 802.11a / b / g / n 1x1, 2.4GHz or 5GHz
Support HT20 / HT40 mode
Support low-power beacon monitoring mode, low-power receive mode, low-power suspend mode
Built-in AES / DES / SHA hardware engine
Support TrustZone-M, support secure boot
Support SWD debug port access protection and disable mode
Supports BLE and BT5.0
Bluetooth supports high power mode (7dBm, sharing the same PA with Wi-Fi)
Wi-Fi and BT share the same antenna
Support STA / AP / STA + AP working mode
Smart Config (APP) / AirKiss (WeChat) one-click distribution network supporting Android and IOS
Support local serial port upgrade and remote firmware upgrade (FOTA)
The main parameters
Main parameter description
Module model: BW16

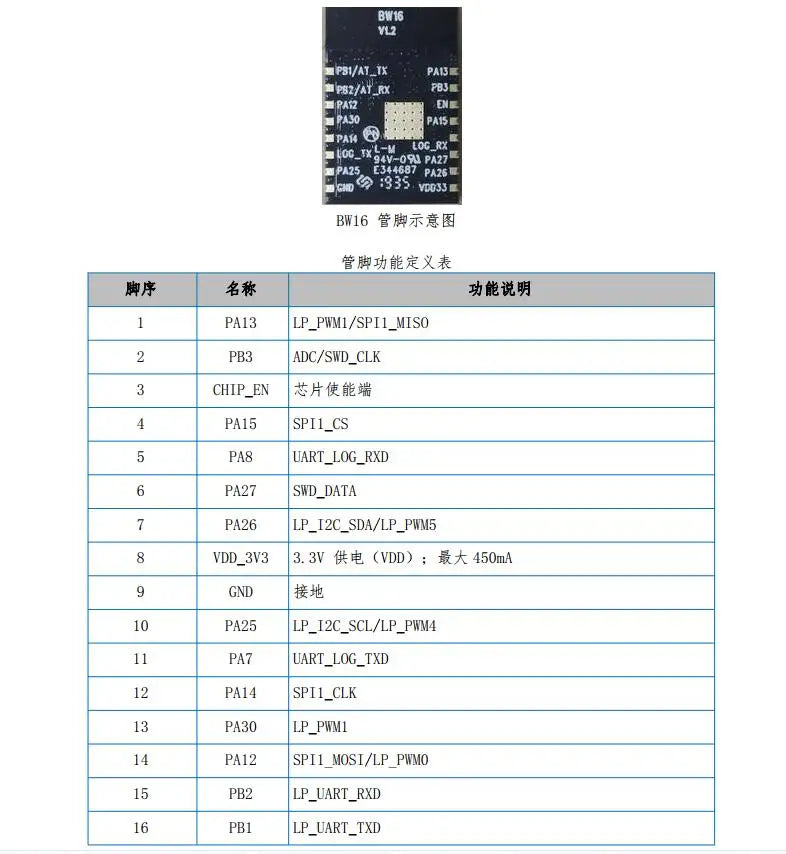

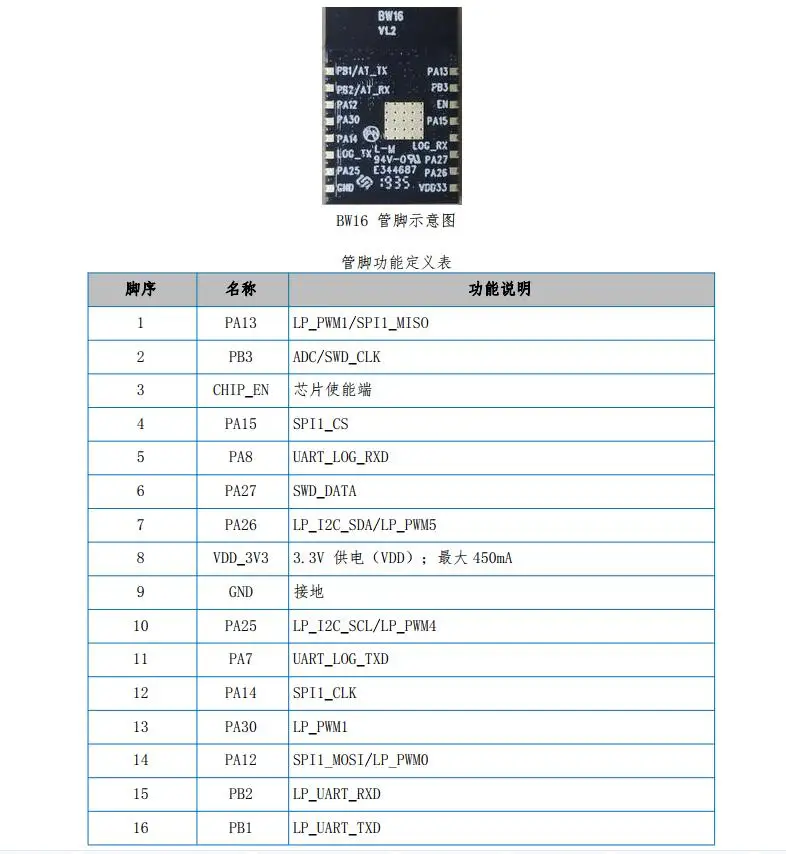

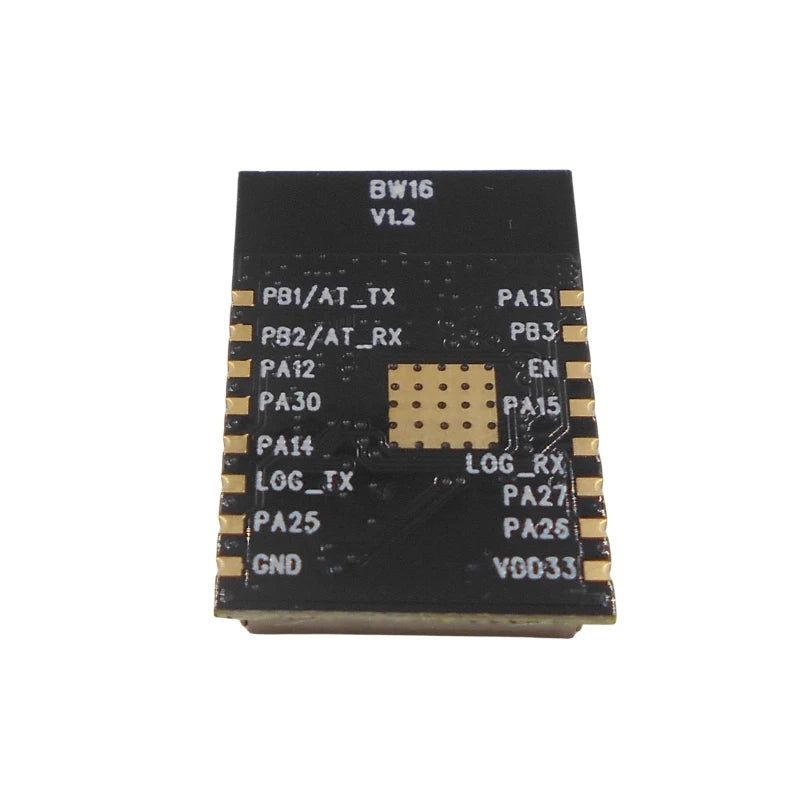

Package: SMD-16

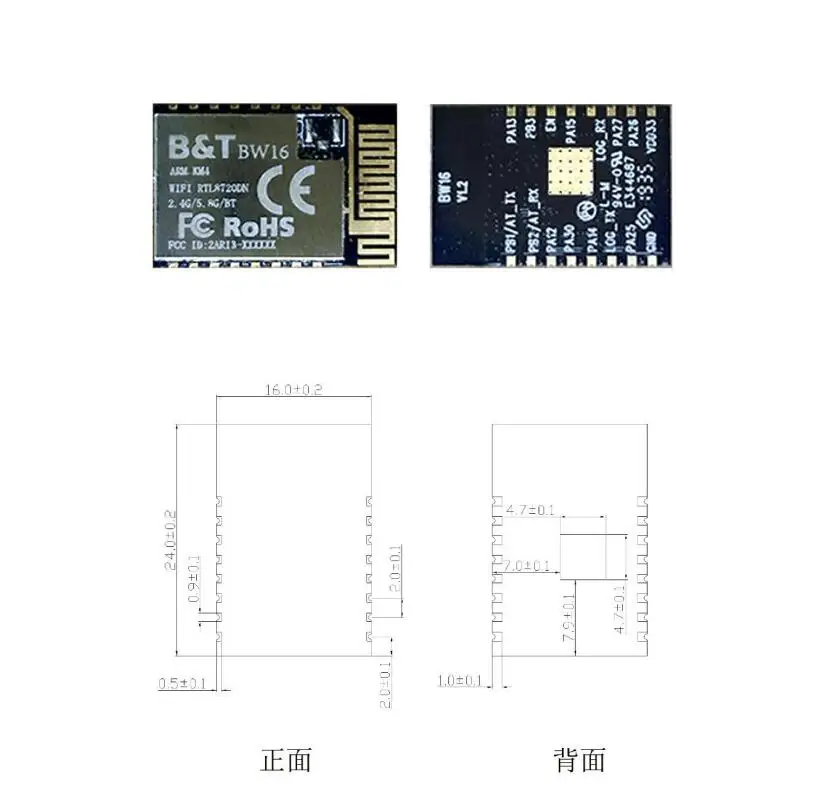

Size: 24 * 16 * 3 (± 0.2) MM

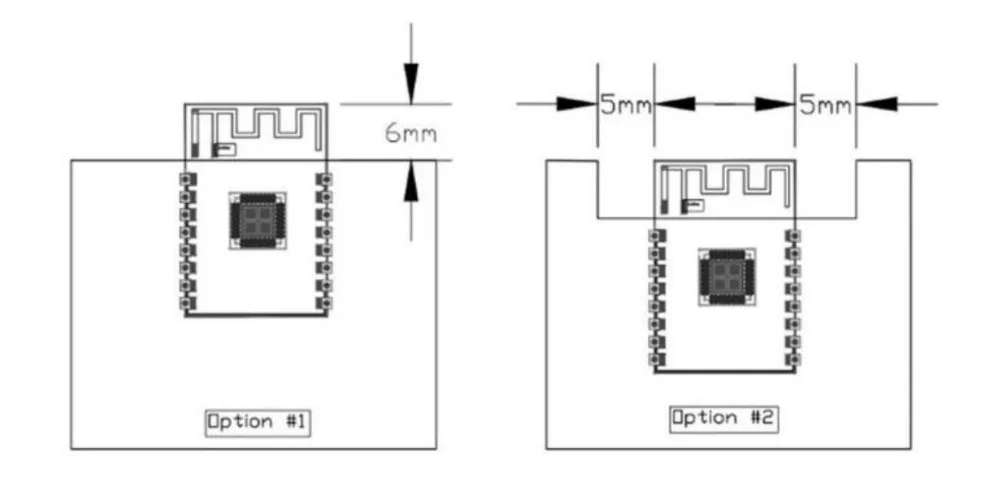

Antenna form: PCB antenna or IPEX antenna
Spectrum range: 2400-2483.5MHz or 5180-5825MHz
Bluetooth: BT5.0
Bluetooth frequency range: 2.402GHz-2.480GHz
Working temperature: -20 ℃ ~ 70 ℃
Storage environment: -40 ℃ ~ 125 ℃, <90% RH
Power supply range: Power supply voltage 3.0V ~ 3.6V, typical value 3.3V, power supply current> 450mA
Support interface: UART / GPIO / ADC / PWM / IIC / SPI / SWD
Certification: RoHS, FCC, CE, SRRC

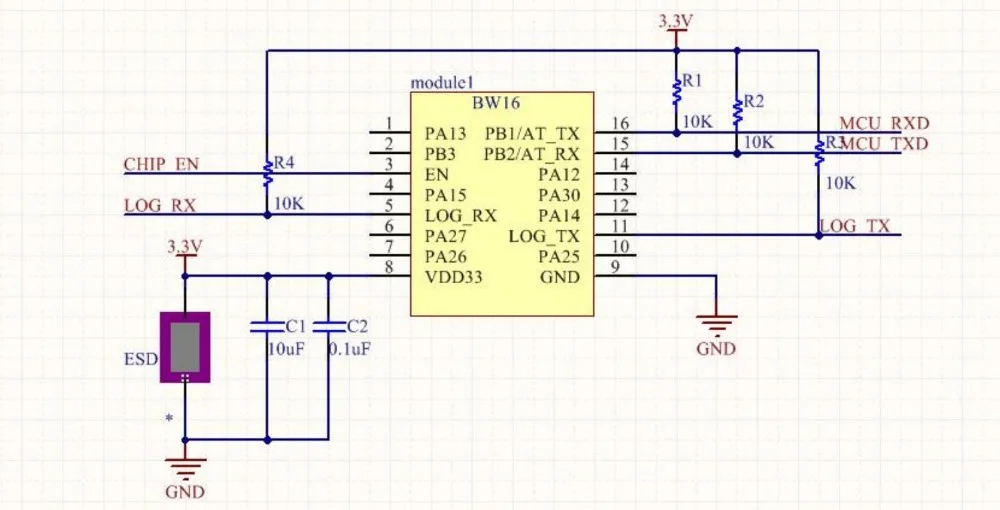

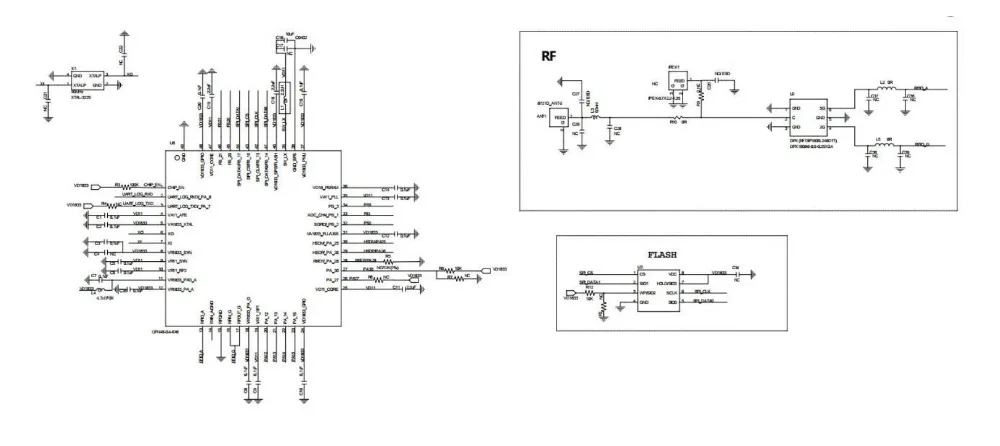

powered by(1) Recommended 3.3V voltage, peak current above 500mA
(2) It is recommended to use LDO power supply; if using DC-DC, it is recommended to control the ripple within 30mV.

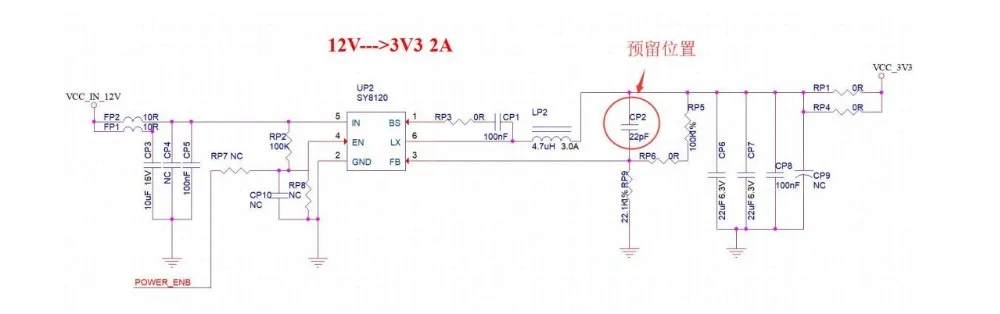

(3) The DC-DC power supply circuit is recommended to reserve the position of the dynamic response capacitor, which can optimize the output when the load changes greatly.
Ripple.
(4) It is recommended to add an ESD device to the 3.3V power interface.
Use of GPIO port
(1) Some GPIO ports are led out of the module. If you need to use, it is recommended to connect a 10-100 ohm resistor in series with the IO port.
This can suppress the overshoot, and the level on both sides is more stable. Helps both EMI and ESD.
(2) The special IO port is pulled up and down, please refer to the instruction manual of the specification. This will affect the startup configuration of the module.

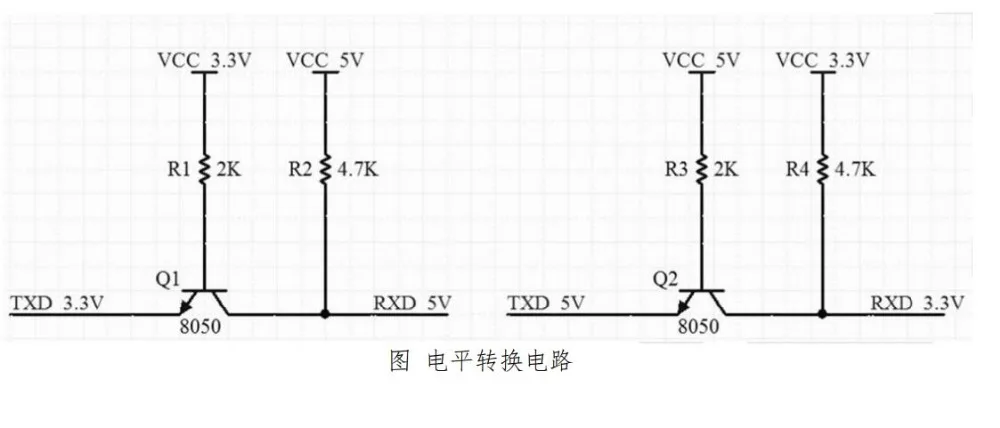

(3). The IO port of the module is 3.3V. If the IO level of the main control and the module does not match, a level conversion circuit needs to be added.
(4) If the IO port is directly connected to a peripheral interface, or a pin or other terminal, it is recommended to reserve ESD near the terminal of the IO cable
Device.
