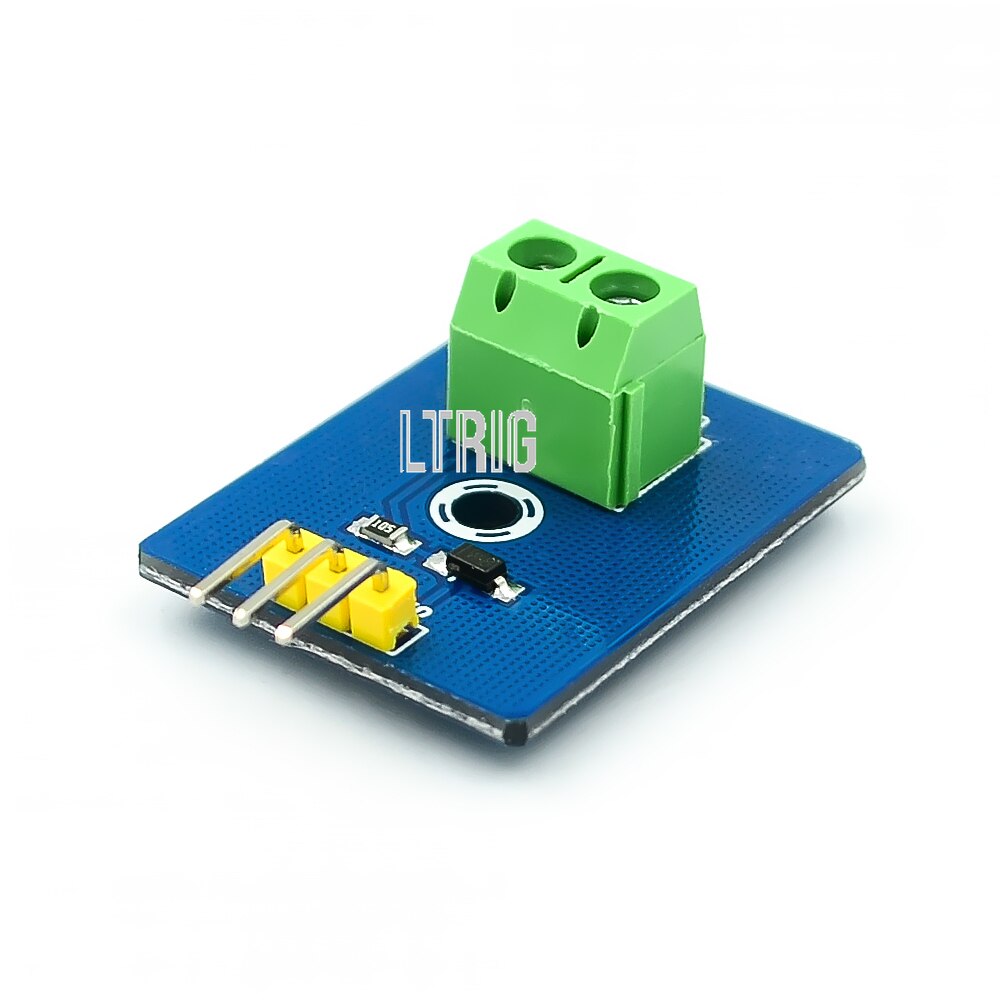

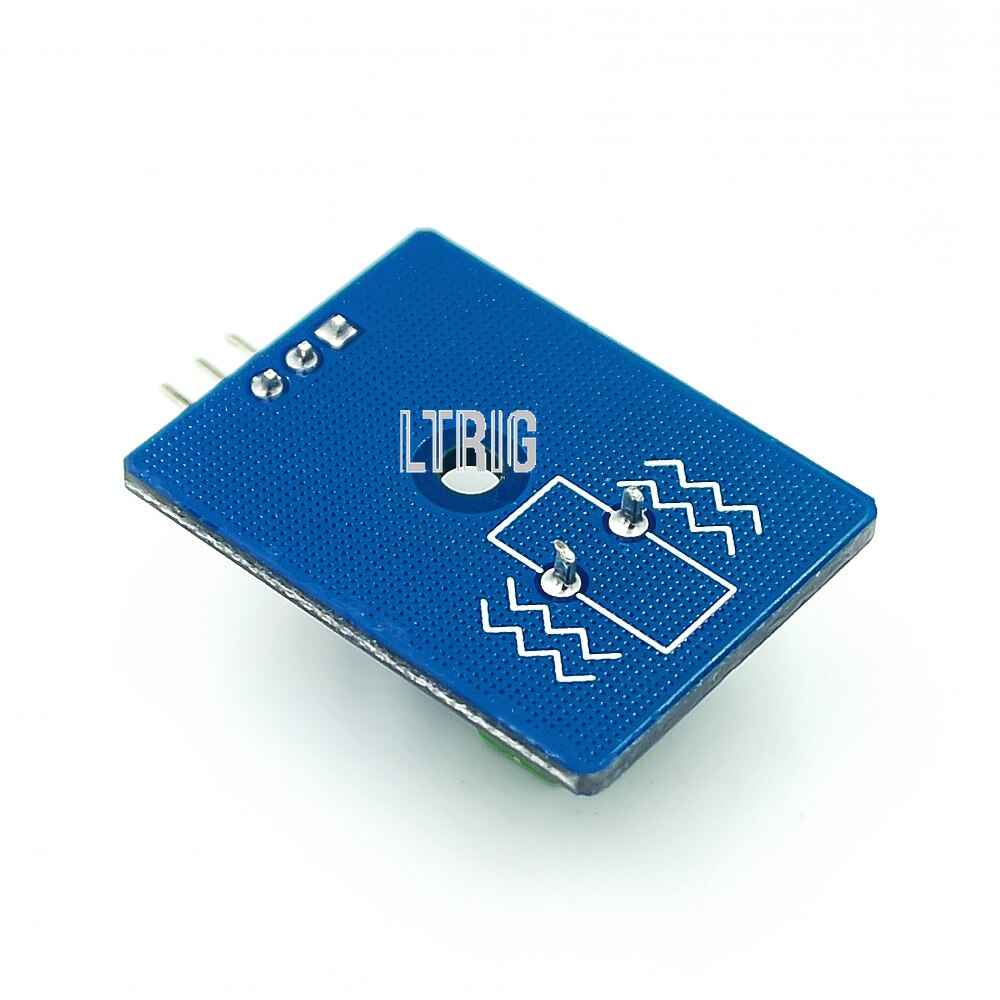

custom Drum Simulate Piezoelectric Sensor Analog Ceramic Vibration Sensor Module Piezoelectricity For Arduino DIY KIT

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Product Introduction:
1. Working voltage: 3.3V or 5V
2. Operating current: <1mA
3. Operating temperature range: -10℃ ~ +70℃
4. Interface type: analog signal output
5. Size: Circuit board: 30mm x 23mm; Ceramic chip: diameter: 27mm.
6. Weight: 5g
7. Pin definition: S signal output, + power supply (VCC), -ground (GND)
8.Input: The positive pole of a piezoelectric ceramic plate
9.Gnd: The negative pole of piezoelectric ceramic plates

Port S is connected to the controller's analog input pin. 5V and GND are respectively connected to +5V and GND of the power supply. Connect the positive and negative poles of the piezoceramics when purchasing the Input and Gnd
