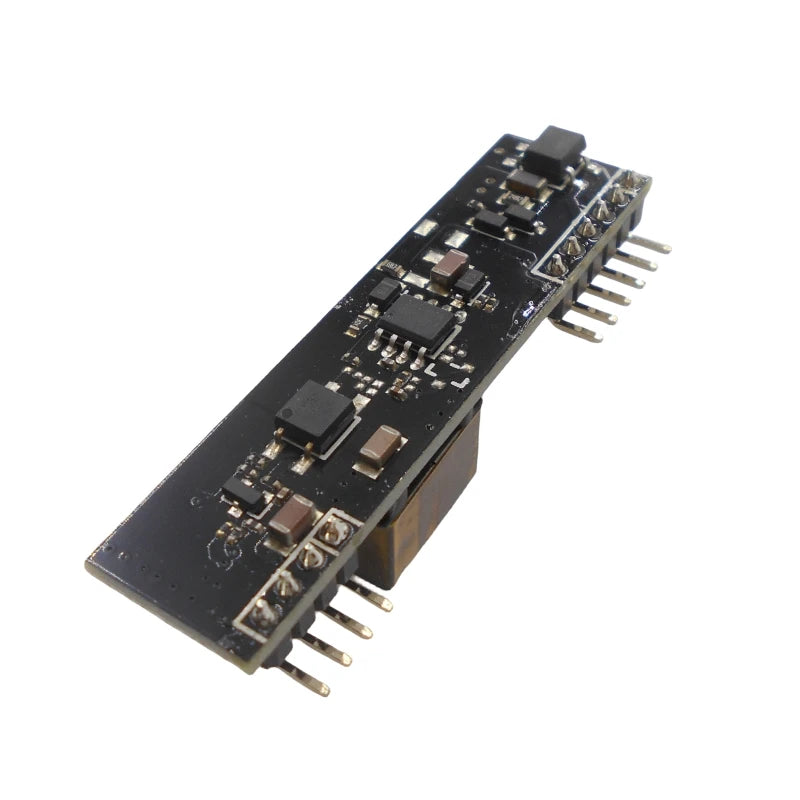

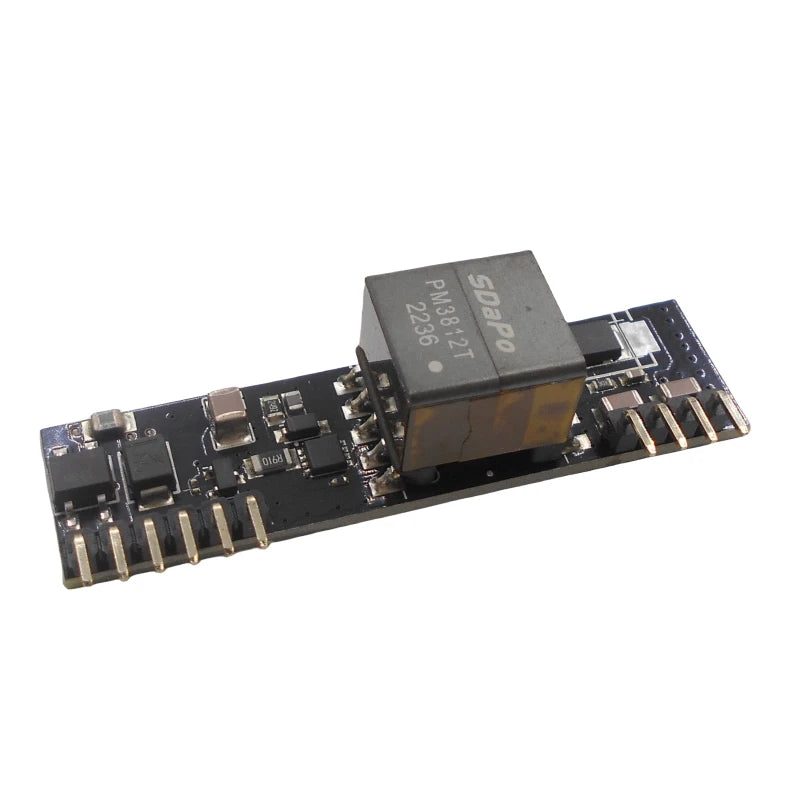

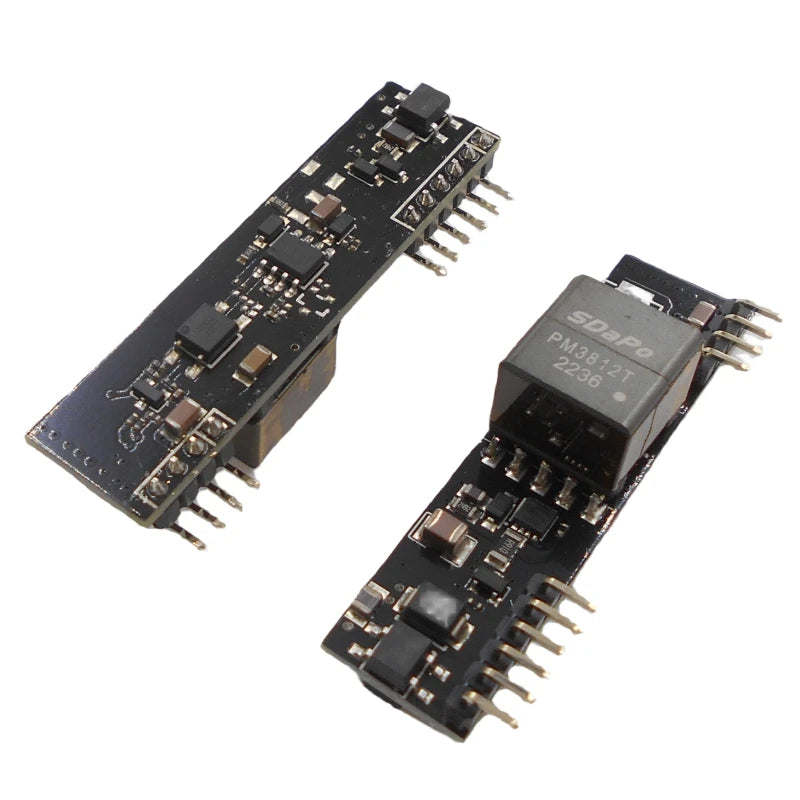

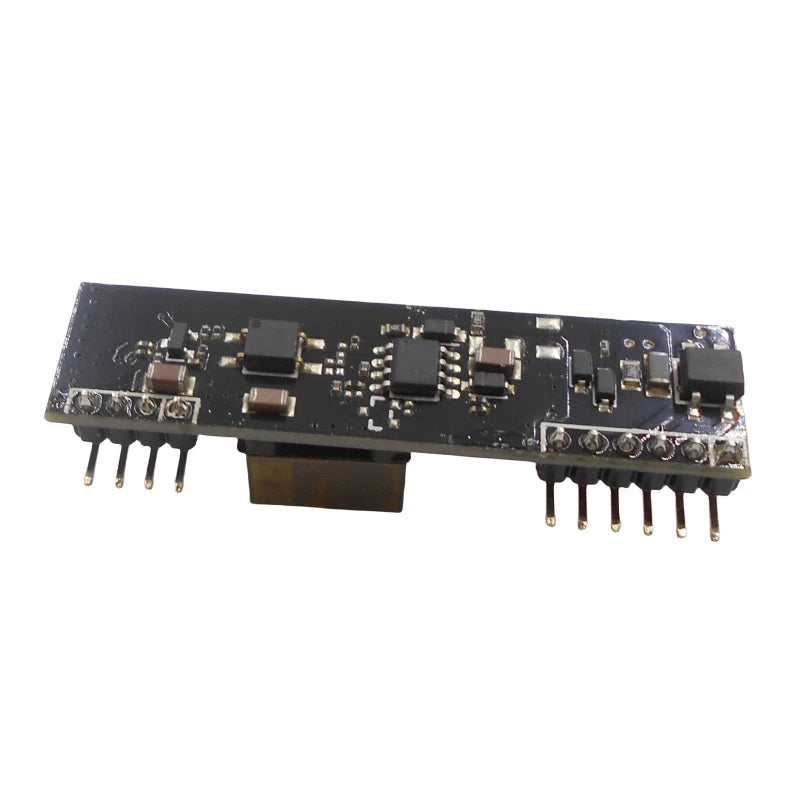

Custom DP9700 capacitor free version docking AG9700 POE module module national standard pin embedded

Non capacitive version PIN TO PIN docking AG9700 POE module with national standard pin embedded

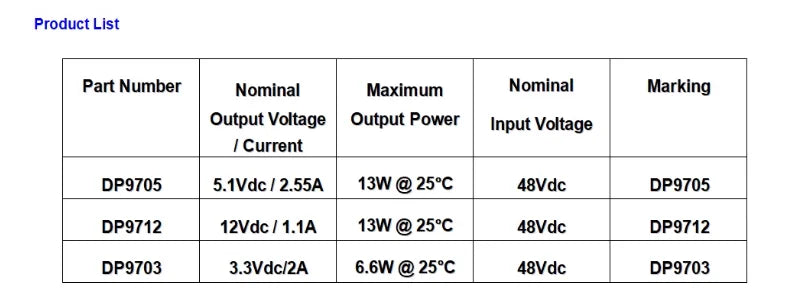

Available in 12V1A/5V2.4A/3.3V2A options.

DESCRIPTION

13W  PD(Powered Device)      (  Type)

FEATURES

EEE802.3af compliant.

Low cost.

Support PoE applications in both of Fast / Gigabit Ethernet environments.

Support wide input voltage range  37Vdc to 57Vdc.

Thermal cut off.

Short circuit protection.

Over current protection

High DC/DC converting efficiency.

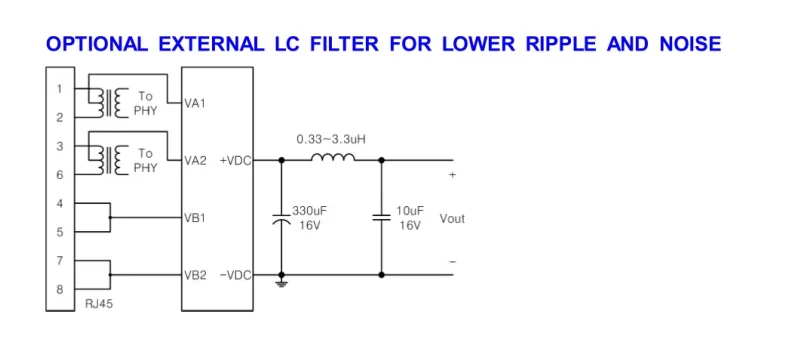

Less external component one output decoupling capacitor.

level 1.5KVrms.

Enhanced surge protection

Internal build in 2 channel bridge rectifiers
