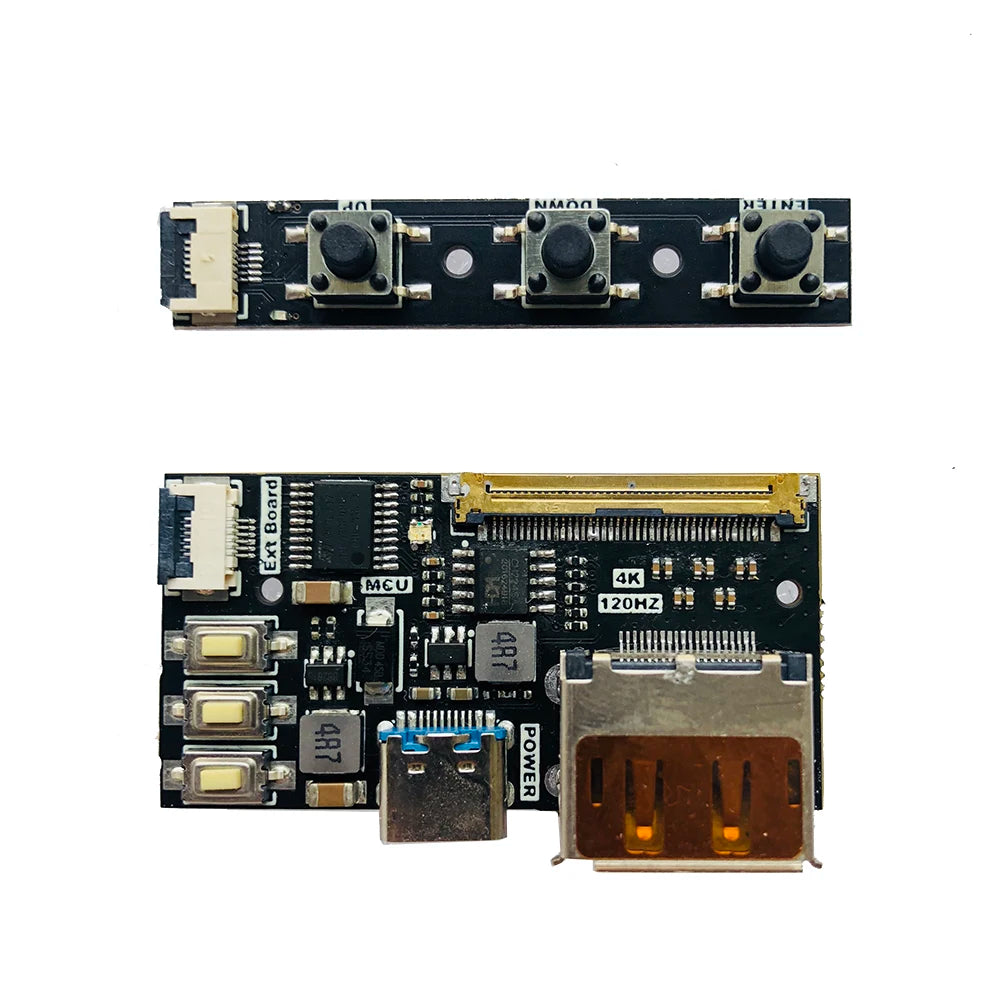

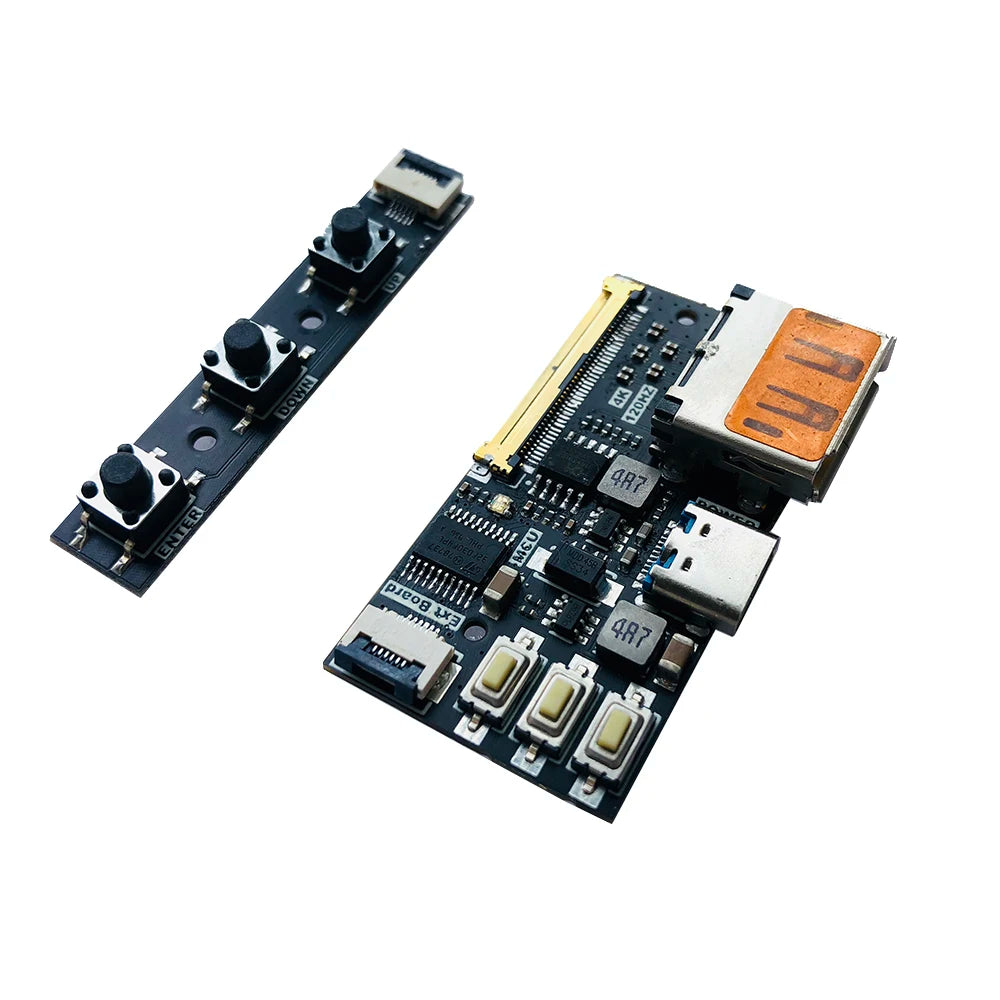

Custom dp edp 4k 120hz PD DIY driver board For portable display screen Manufacturer
Custom dp edp 4k 120hz PD DIY driver board For portable display screen Manufacturer
Regular price
$25.00 USD
Regular price
$25.00 USD
Sale price
$25.00 USD
Unit price
per
Couldn't load pickup availability

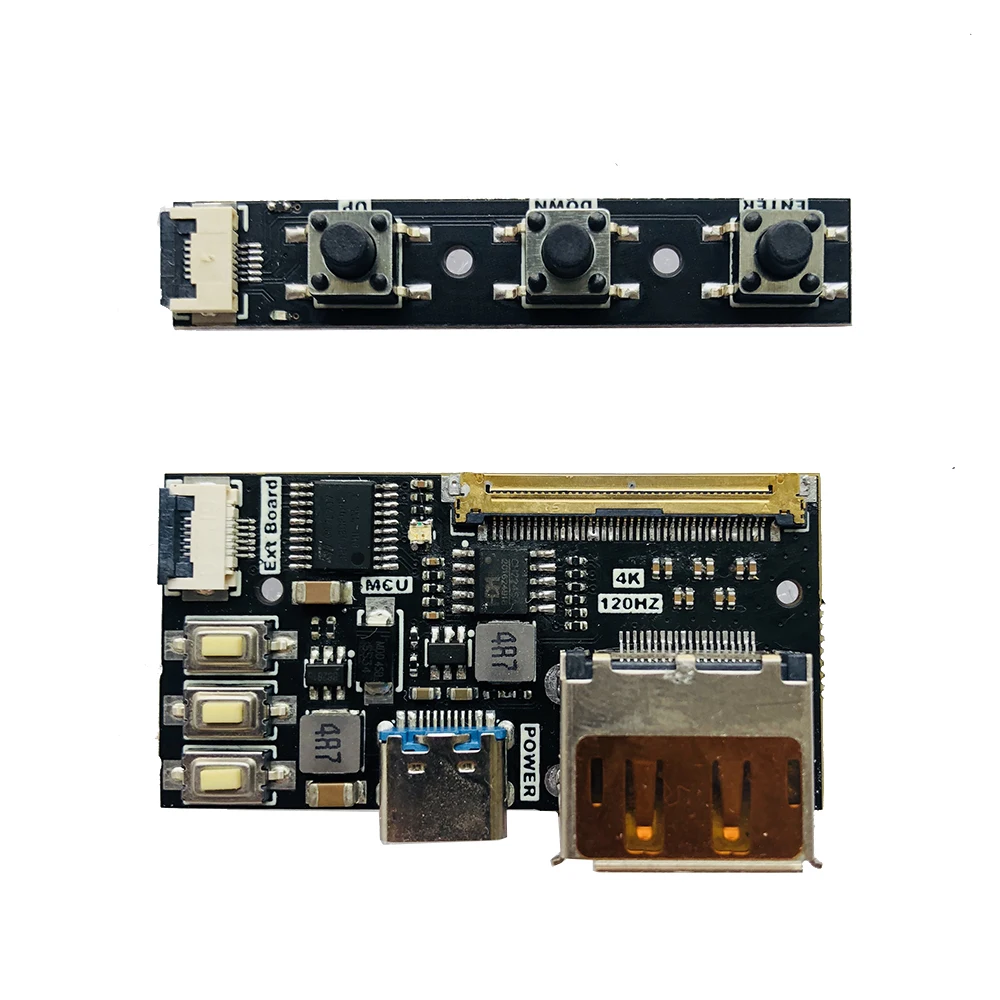

With key board, compatible with 60hz
This is the driver board, the screen needs to be equipped by yourself
New upgraded version, support pd fast charge 5v 9v 12v, reduce heat generation and improve stability
Tested on the market, Green Alliance, Xiaomi Anker, Best and other PD fast charging heads are compatible
Support dimming and turning off the screen
Hand-made, think about it before shooting.
-------------------------------------------------- -------------------
In theory, all edp interface screens can be used in this way.
But some N cards are not supported, but A cards are no problem.
The following are the tested output devices, which are only for reference. The specific situation is still judged based on the actual device.
nvidia Jetson nano/AGX/TX1/TX2
nvidia GTX950/1650/1080Ti
nvidia RTX2080Ti
AMD HD7970
AMD R9 390X
AMD RX460/RX470/RX480/RX580
AMD RX Vega11/56/64
AMD Radeon VII
MacBook Pro 2018/2017/2016
Intel nuc8i7hvk/nuc8ibeh
The following is the tested screen, x represents any number
TV101QUM
B133ZANxx.x
B156ZANxx.x
NE156QUM-xxx
LQ156M1JWxx
B156HANxx.x
LTN156FLxx
B173ZANxx.x
LQ173D1JWxx
Personally feel that the display effect is stronger than the Retina screen that comes with MacBook Pro
Theoretically support all Apple devices with Thunderbolt 3 interface iMac Mac Mini MacBook Air (I can't confirm if there are not so many devices on hand)
The driver board can realize backlight adjustment and turn off the display backlight with one button
The list price is the price of the driver board. In addition, a screen cable, pd power supply, DP cable and a screen are also required. Theoretically support all 13, 14, 15, 17-inch 4K edp interface screens.
If you are not sure, you can buy the following models. They are all 100% SRGB color gamut screens, and the effect is better than the original screen.
B173ZAN01.0 (17 inch)
B156ZAN03.1, B156ZAN03.2 (15 inches)
I have only tested these types at present, and I will continue to update other models in the future.
To
Such a set of 4k monitors can be done in their early 400s, and it is very flexible to upgrade at any time if they are not satisfied.
To
This is also the dp-to-edp driver board, edp-to-dp driver board. In theory, any dp interface with 4 lanes can be used.
This is the driver board, the screen needs to be equipped by yourself
New upgraded version, support pd fast charge 5v 9v 12v, reduce heat generation and improve stability
Tested on the market, Green Alliance, Xiaomi Anker, Best and other PD fast charging heads are compatible
Support dimming and turning off the screen
Hand-made, think about it before shooting.
-------------------------------------------------- -------------------
In theory, all edp interface screens can be used in this way.
But some N cards are not supported, but A cards are no problem.
The following are the tested output devices, which are only for reference. The specific situation is still judged based on the actual device.
nvidia Jetson nano/AGX/TX1/TX2
nvidia GTX950/1650/1080Ti
nvidia RTX2080Ti
AMD HD7970
AMD R9 390X
AMD RX460/RX470/RX480/RX580
AMD RX Vega11/56/64
AMD Radeon VII
MacBook Pro 2018/2017/2016
Intel nuc8i7hvk/nuc8ibeh
The following is the tested screen, x represents any number
TV101QUM
B133ZANxx.x
B156ZANxx.x
NE156QUM-xxx
LQ156M1JWxx
B156HANxx.x
LTN156FLxx
B173ZANxx.x
LQ173D1JWxx
Personally feel that the display effect is stronger than the Retina screen that comes with MacBook Pro
Theoretically support all Apple devices with Thunderbolt 3 interface iMac Mac Mini MacBook Air (I can't confirm if there are not so many devices on hand)
The driver board can realize backlight adjustment and turn off the display backlight with one button
The list price is the price of the driver board. In addition, a screen cable, pd power supply, DP cable and a screen are also required. Theoretically support all 13, 14, 15, 17-inch 4K edp interface screens.
If you are not sure, you can buy the following models. They are all 100% SRGB color gamut screens, and the effect is better than the original screen.
B173ZAN01.0 (17 inch)
B156ZAN03.1, B156ZAN03.2 (15 inches)
I have only tested these types at present, and I will continue to update other models in the future.
To
Such a set of 4k monitors can be done in their early 400s, and it is very flexible to upgrade at any time if they are not satisfied.
To
This is also the dp-to-edp driver board, edp-to-dp driver board. In theory, any dp interface with 4 lanes can be used.
