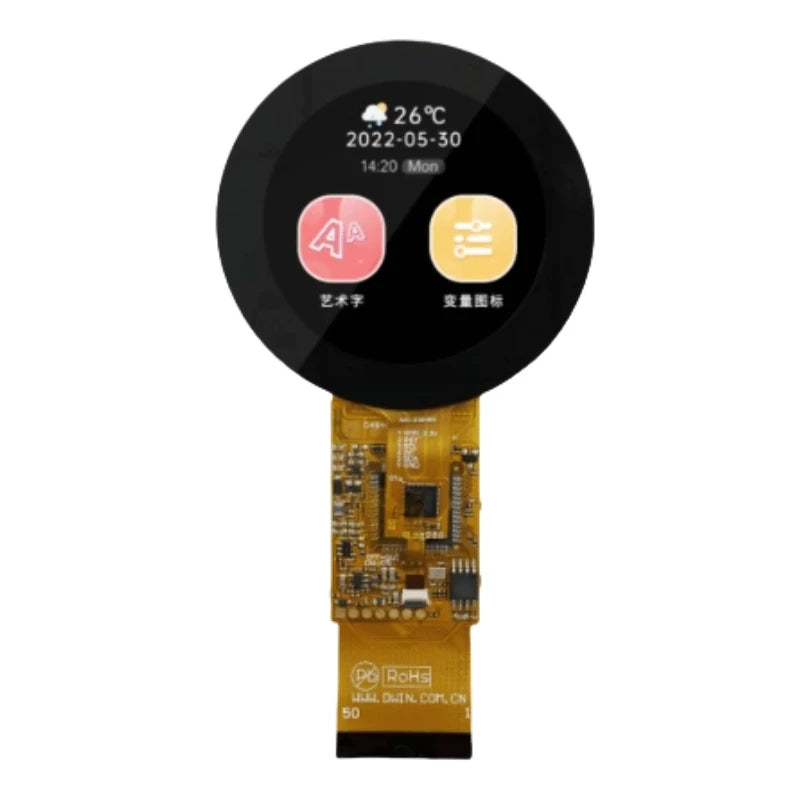

Custom DMG48480F021_01W 2.1-inch COF ultra-thin circular intelligent serial port screen touch LCD

model

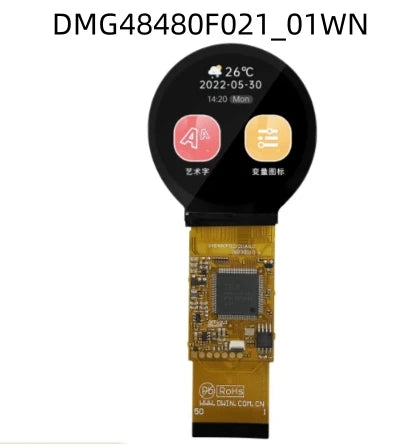

DMG48480F021_01WN

DMG48480F021_01WTC

Touch type

No touch

Capacitive Touch Screen

Backlight brightness

400nit

350nit

model

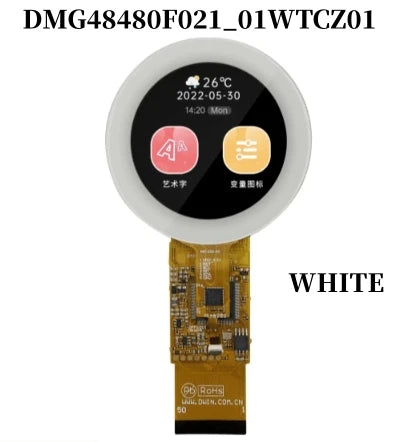

DMG48480F021_01WTCZ01

DMG48480F021_01WTCZ02

Touch type

Fully bonded white capacitive touch screen

Fully laminated black capacitive touch screen

Backlight brightness

350nit

50nit

chip type

T5L0

display scale

1:1

resolution ratio

480 × 480 (supports 0 °/90 °/180 °/270 ° display modes)

colour

262K color

angle of view

Wide viewing angle, typical values of 85 °/85 °/85 °/85 ° (L/R/U/D)

Touch frequency

>1,000,000次

rated power

<2W

working voltage

3.6~5.5V

Working current

110mA~180mA

operation temperature

-10℃~60℃

user interface

50Pin_0.5mm

Serial port mode

UART2: TTL

UART4: TTL（OS Can only be used after configuration）

UART5: TTL（OS Can only be used after configuration）

Serial Port Baud Rate

3150~3225600bps，Typical values:115200bps

RTC

not have

SD card interface

not have

AA area

53.28mm (W)×53.28mm (H)

VA area

-

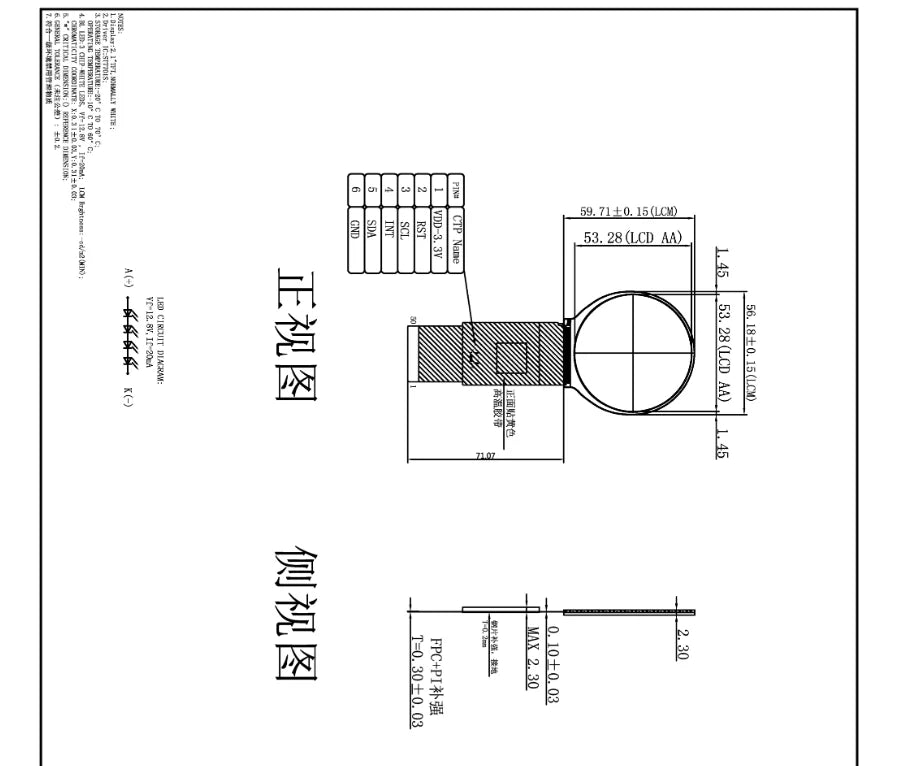

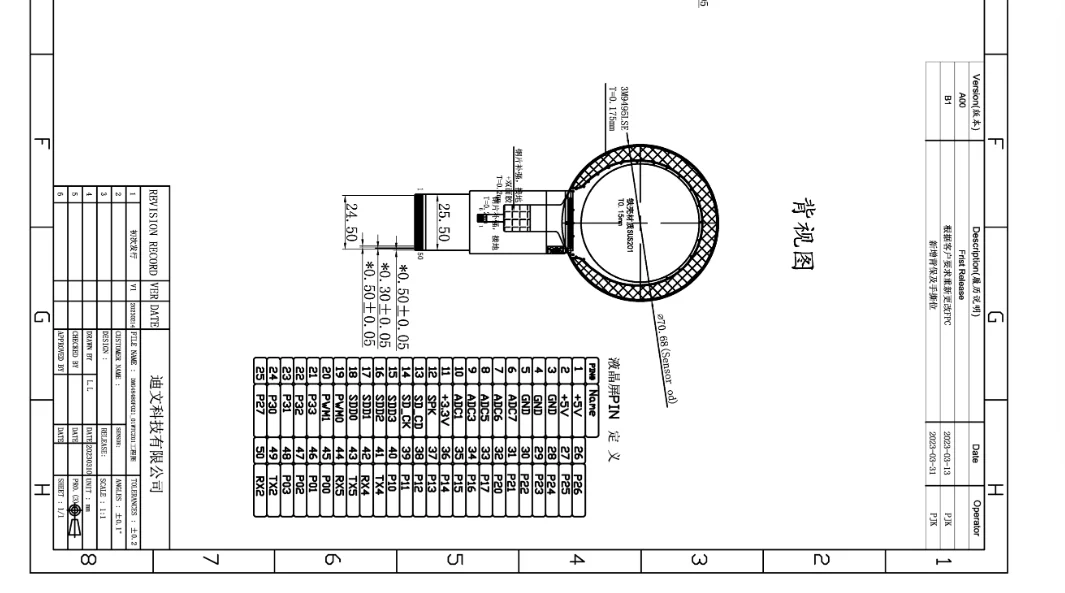

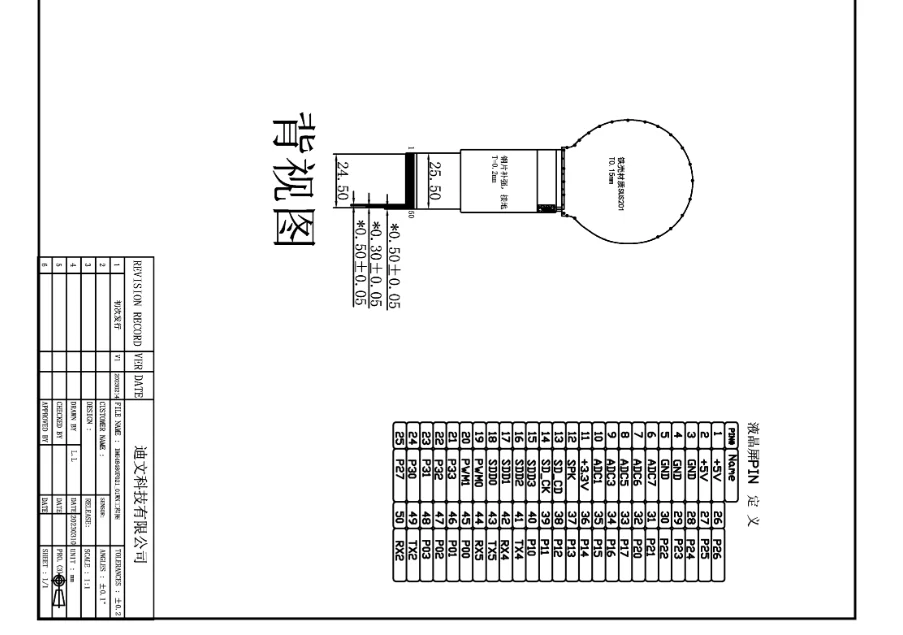

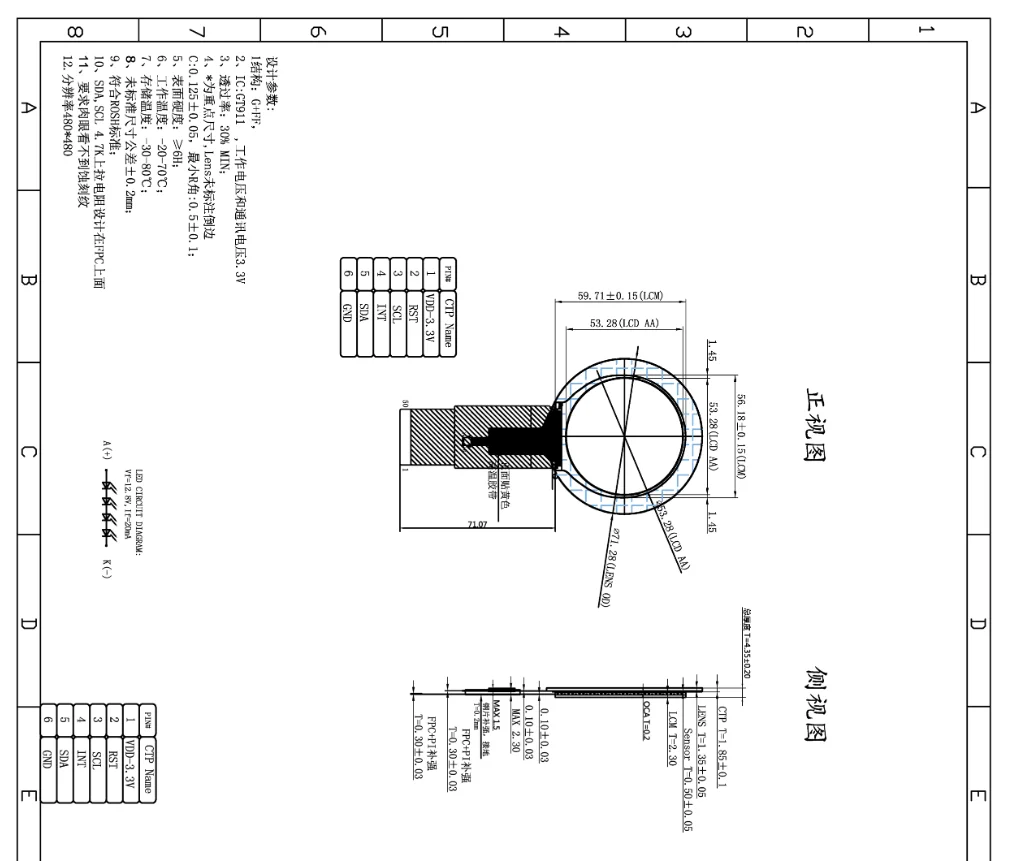

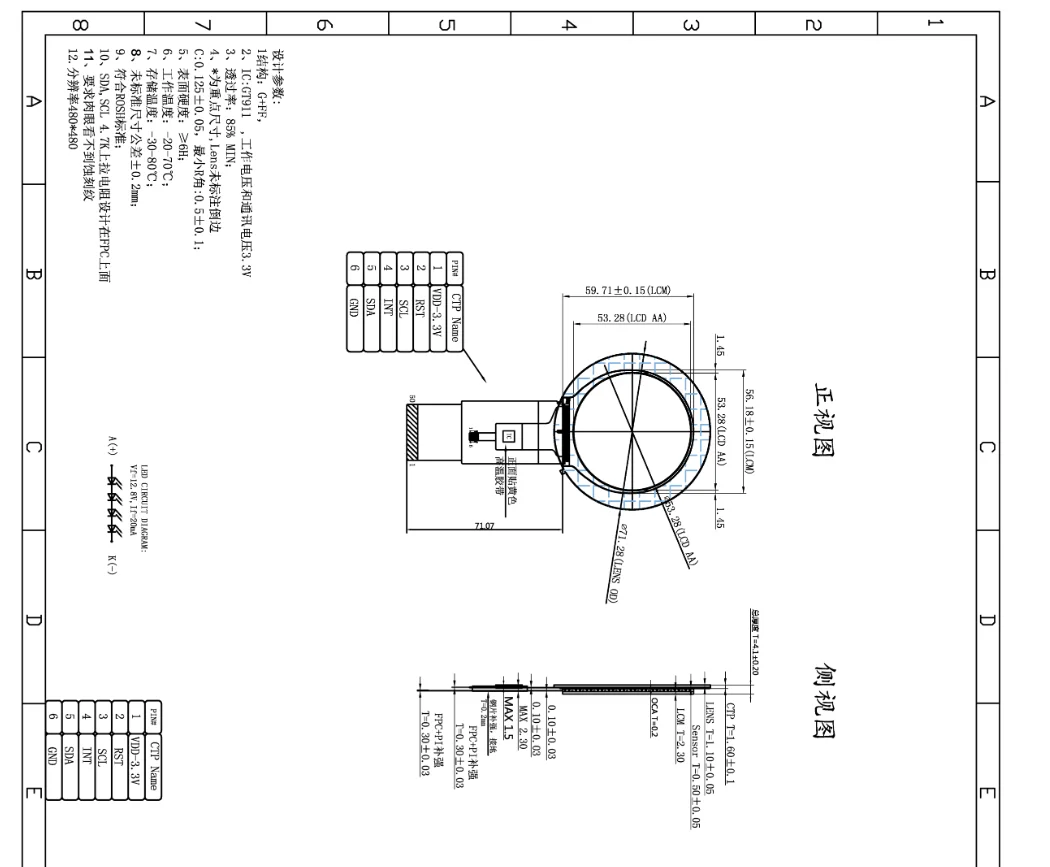

External dimensions

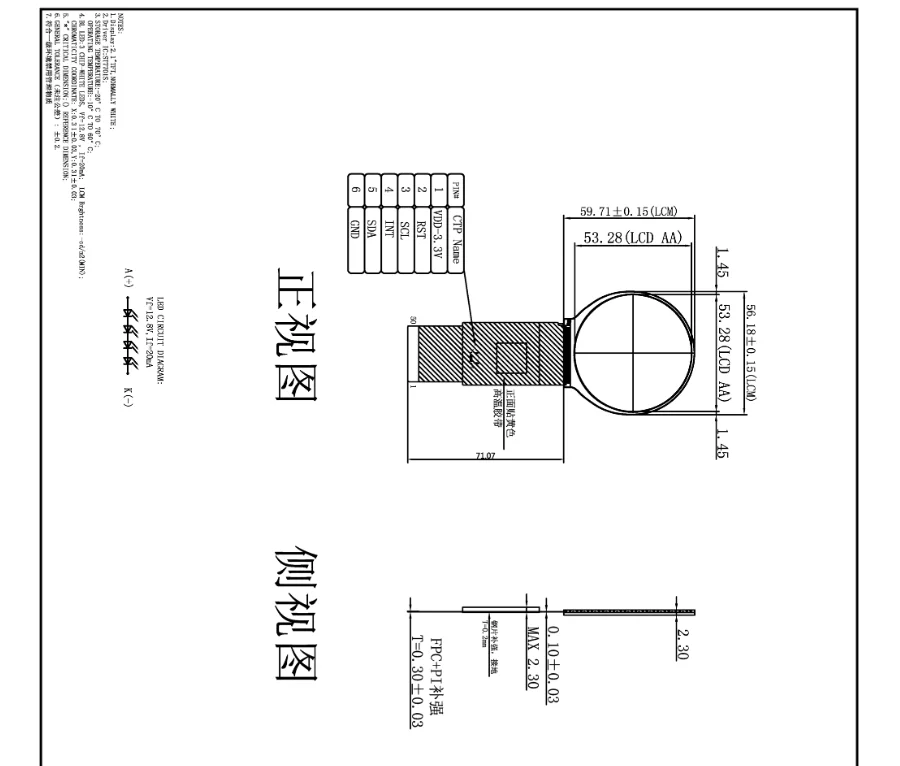

DMG48480F021_01WN：56.18(W) ×59.71 (H) × 2.3(T) mm

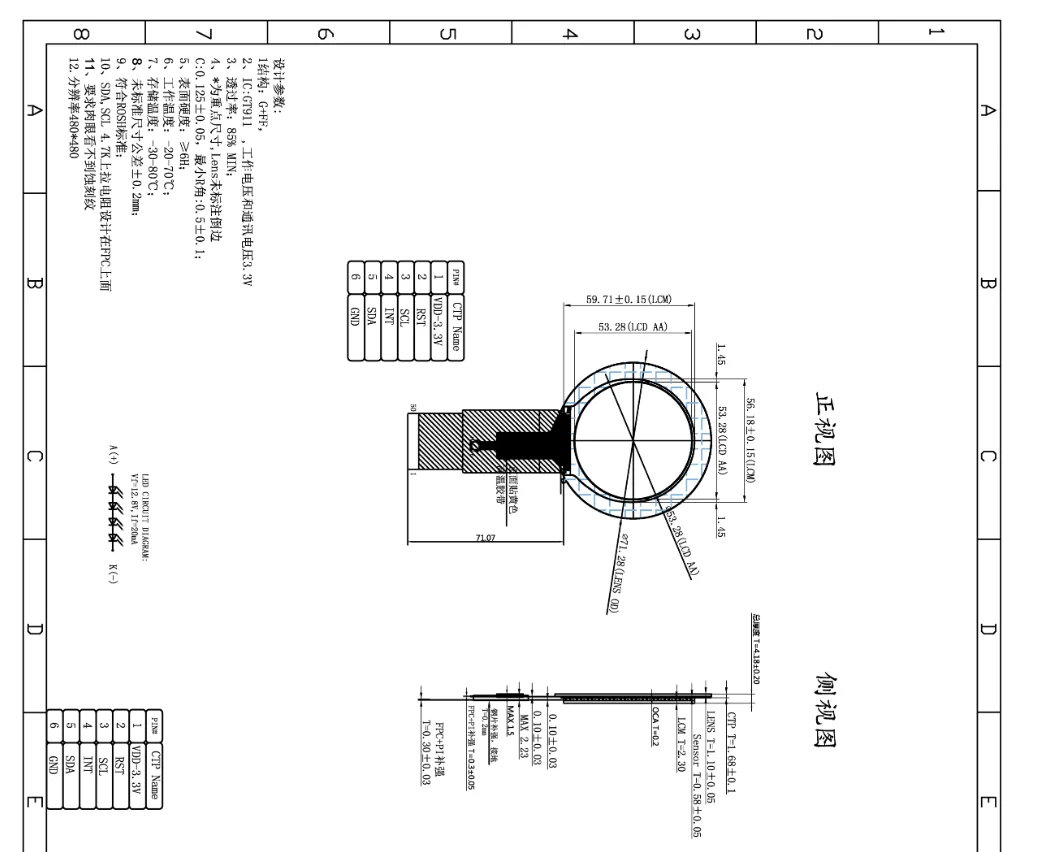

DMG48480F021_01WTC：71.28(W) ×71.28 (H) × 4.1(T) mm

DMG48480F021_01WTCZ01：71.28(W) ×71.28 (H) × 4.18(T) mm

DMG48480F021_01WTCZ02：71.28(W) ×71.28 (H) × 4.35(T) mm
