Custom DIY Spot Welder Handheld Portable Mini Spot Welding Machine With Quick Release Pen Nickel Plate 18650 Battery Spot Welder Manufacturer

Note:

Please full charging before using!

The two needles of the spot welding pen cannot be touched together, the power will increase a lot when touched together, which will cause a short circuit and burn the machine.

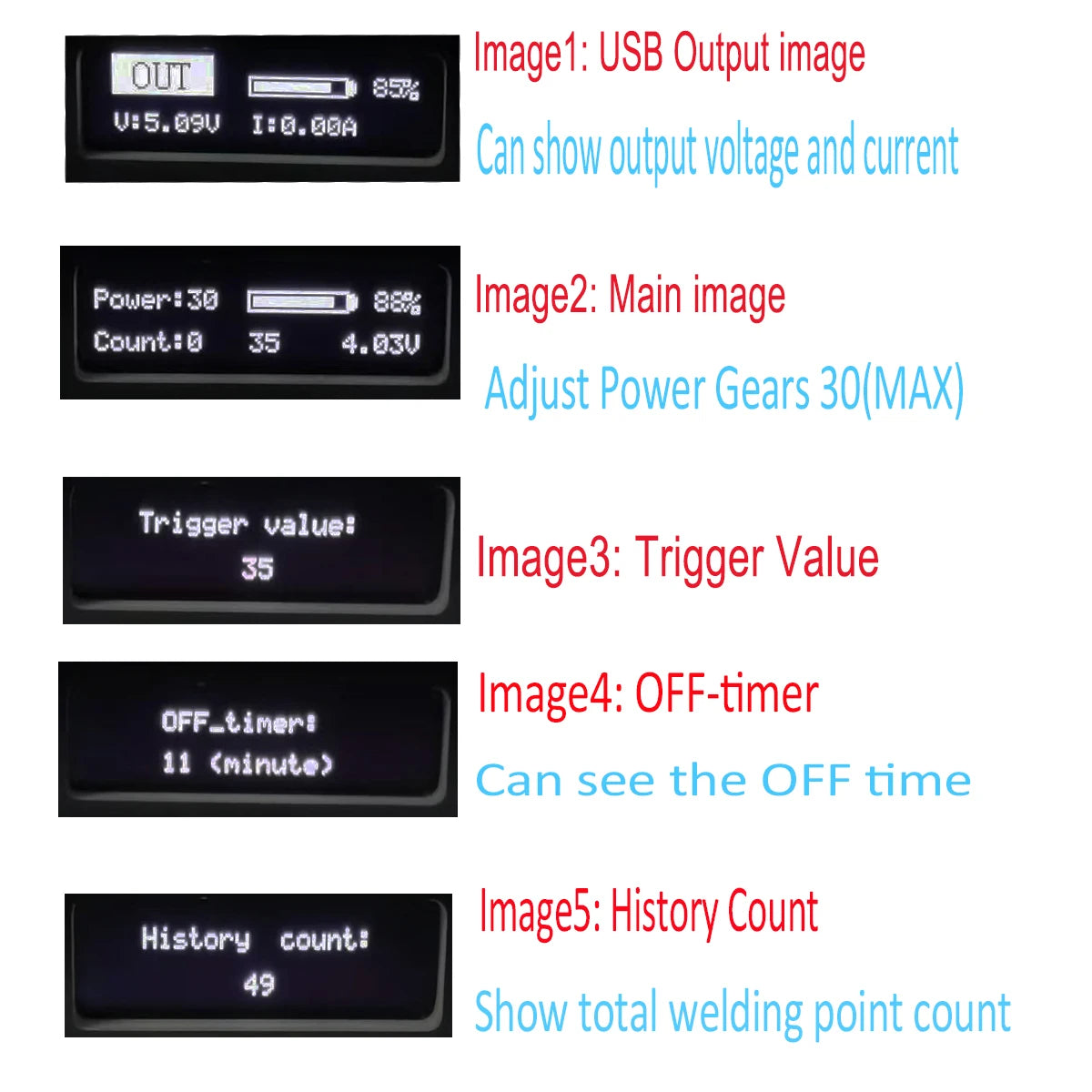

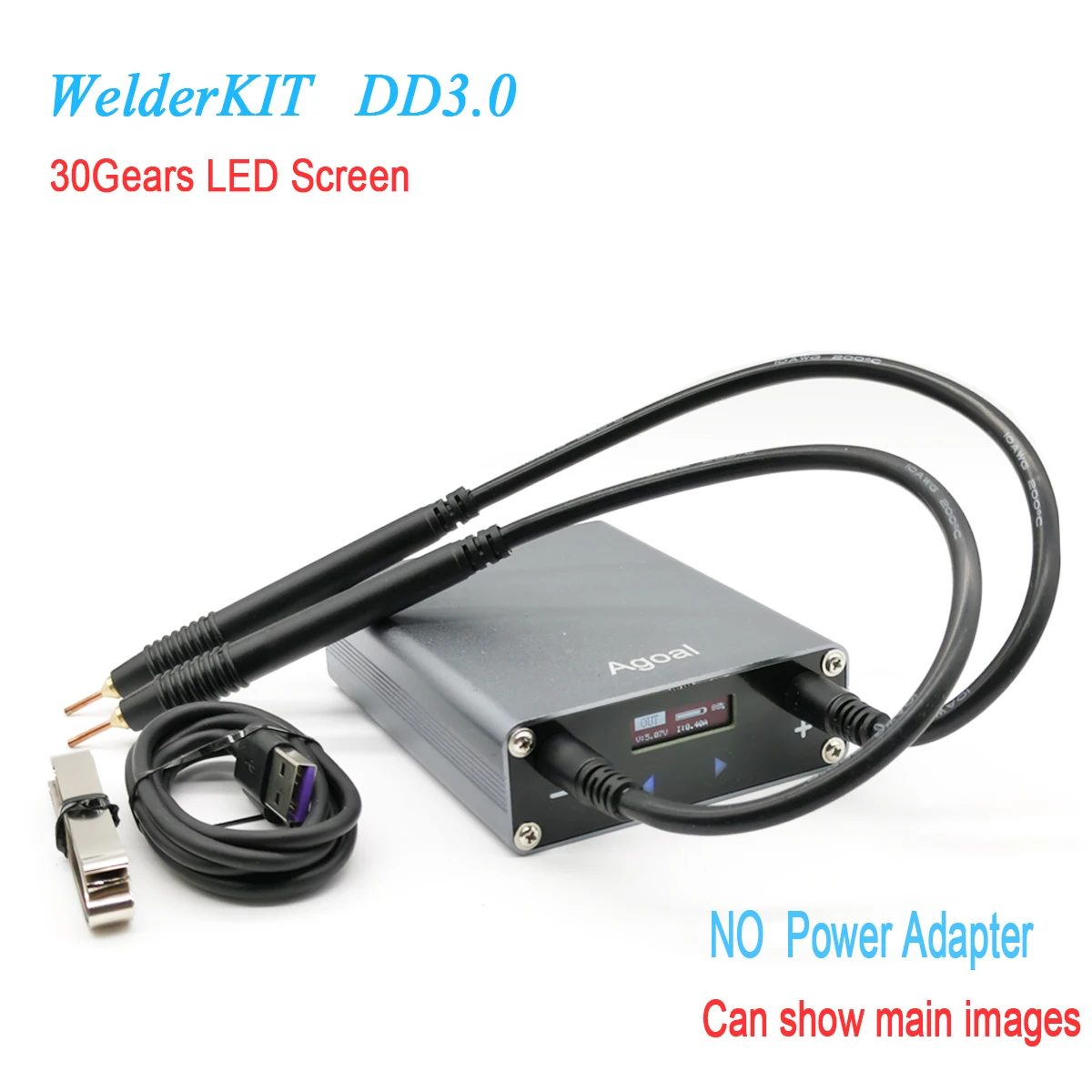

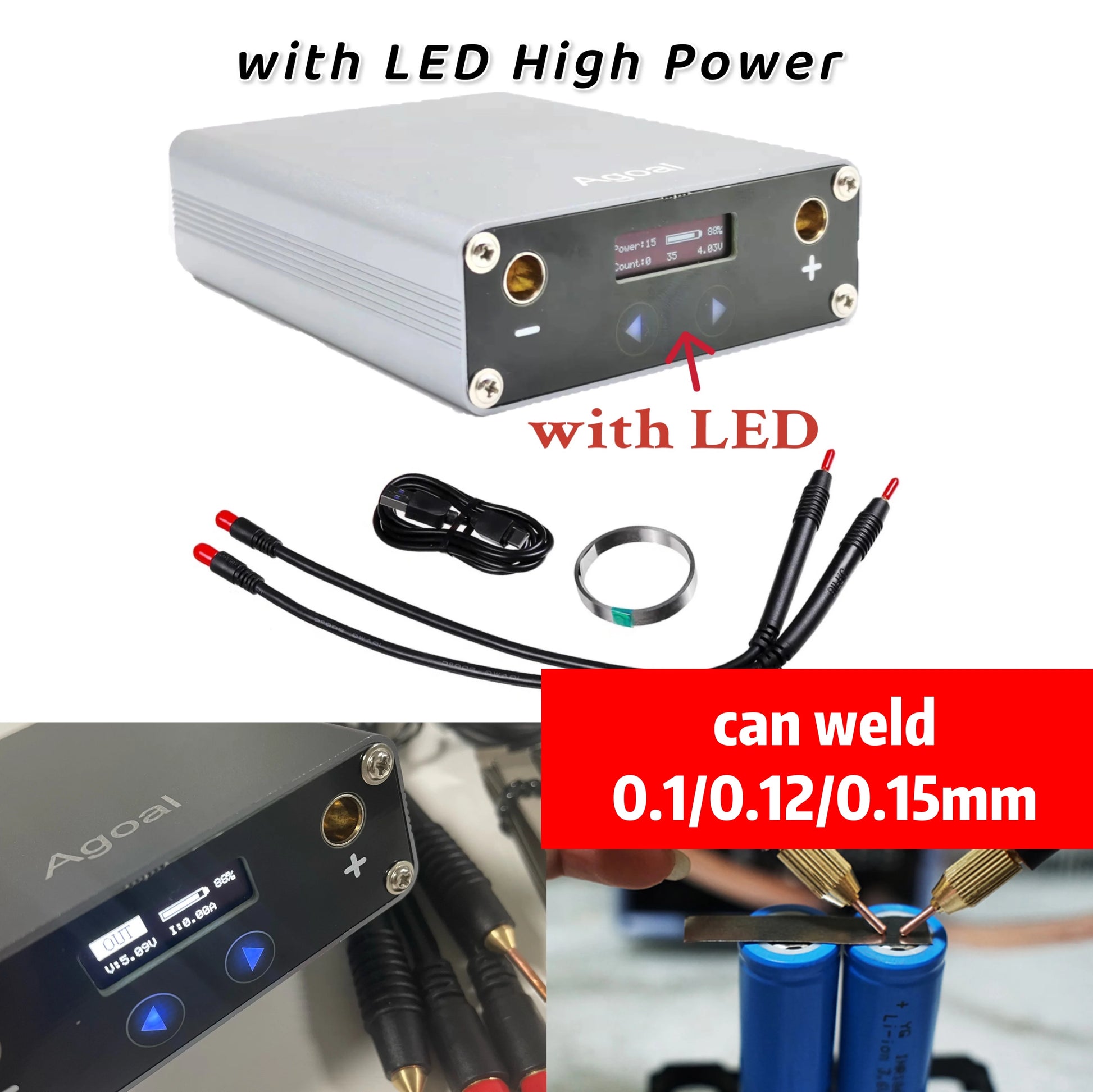

The DD3.0 is new to the market, the response to the DD2.0 was not very good, so a mini spot welder that can weld 0.1-0.15mm nickel pieces in up to 30(MAX) positions was introduced. It has a 0.91" screen, which makes it very easy to visualise the power level etc. It is very convenient and quick

DD3.0 Specifications:

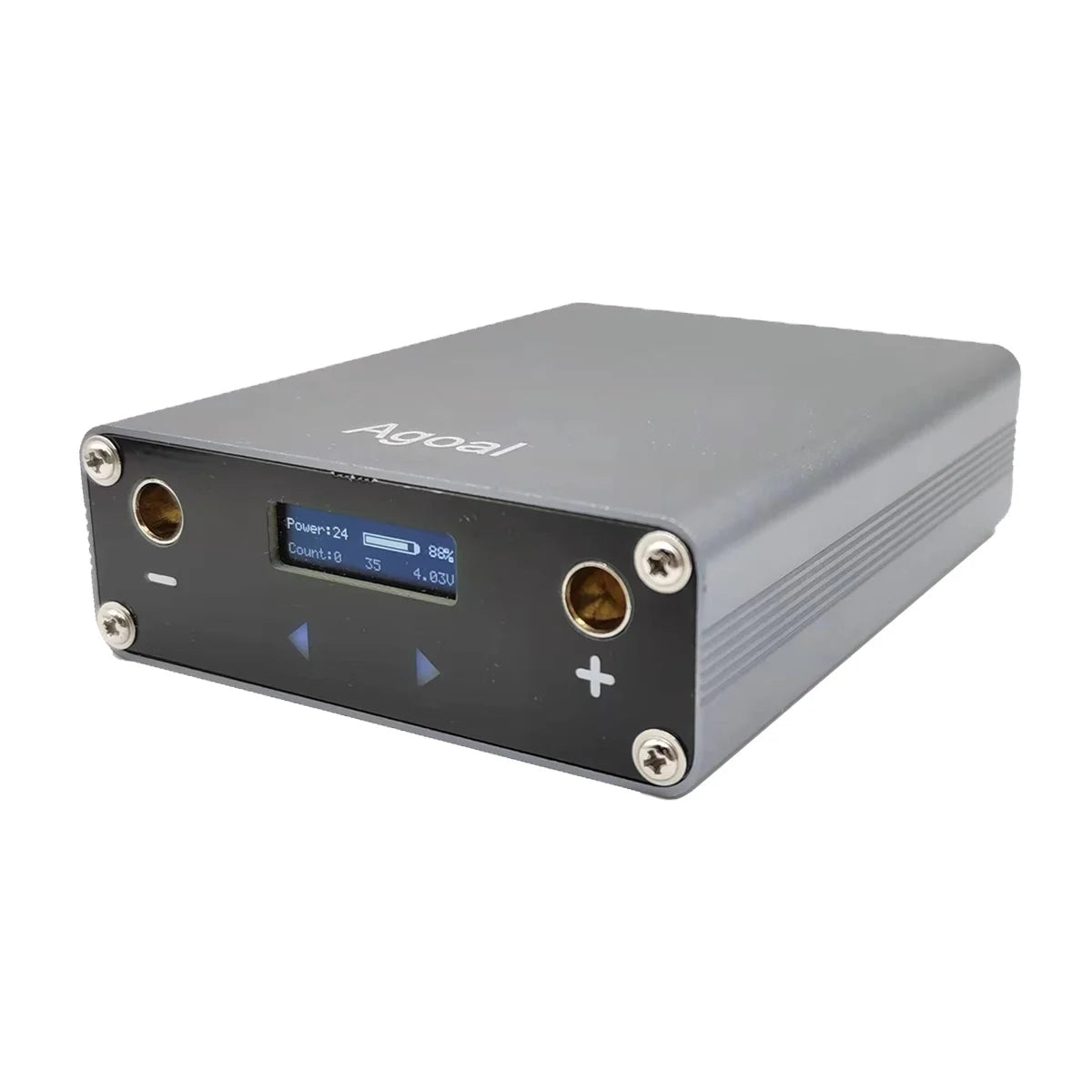

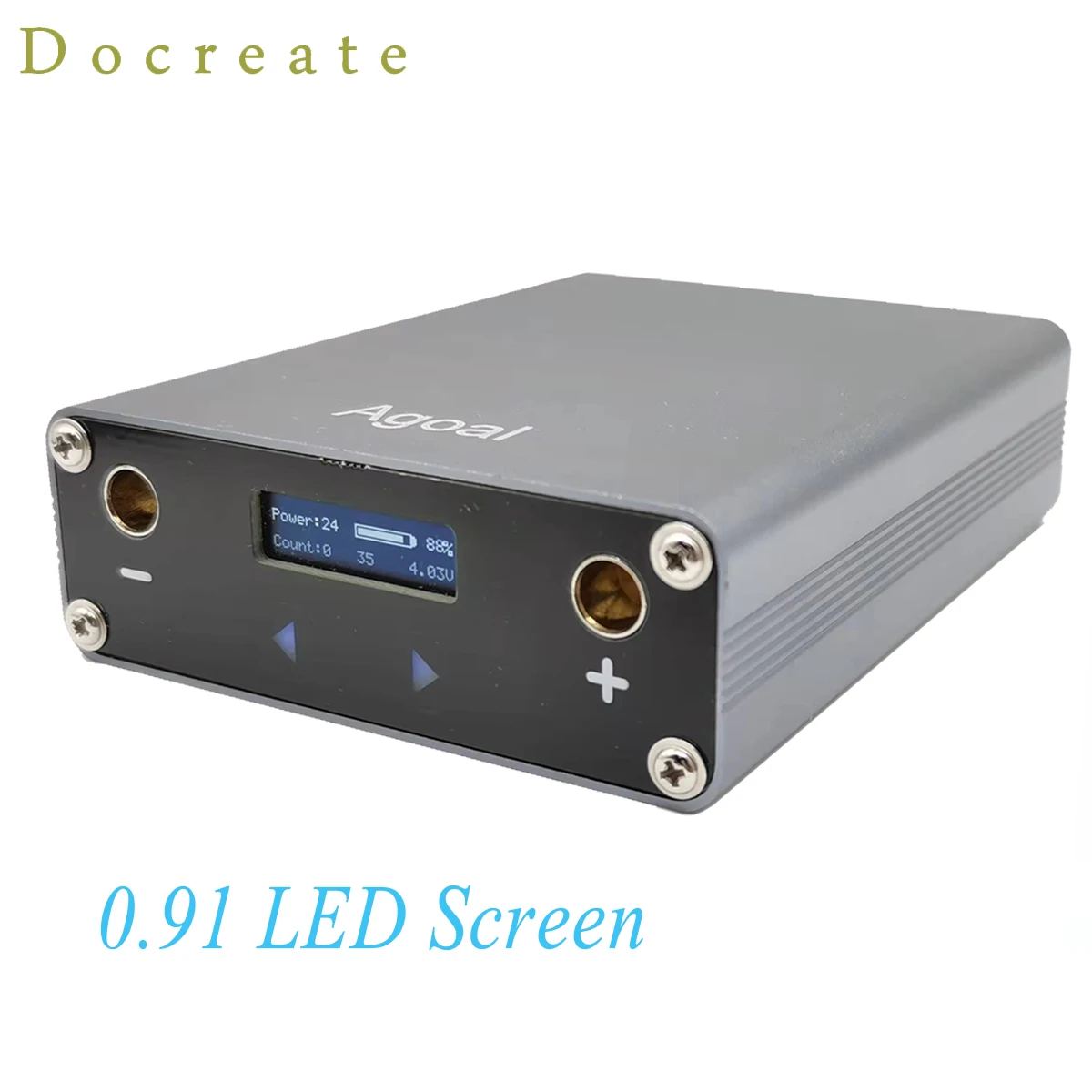

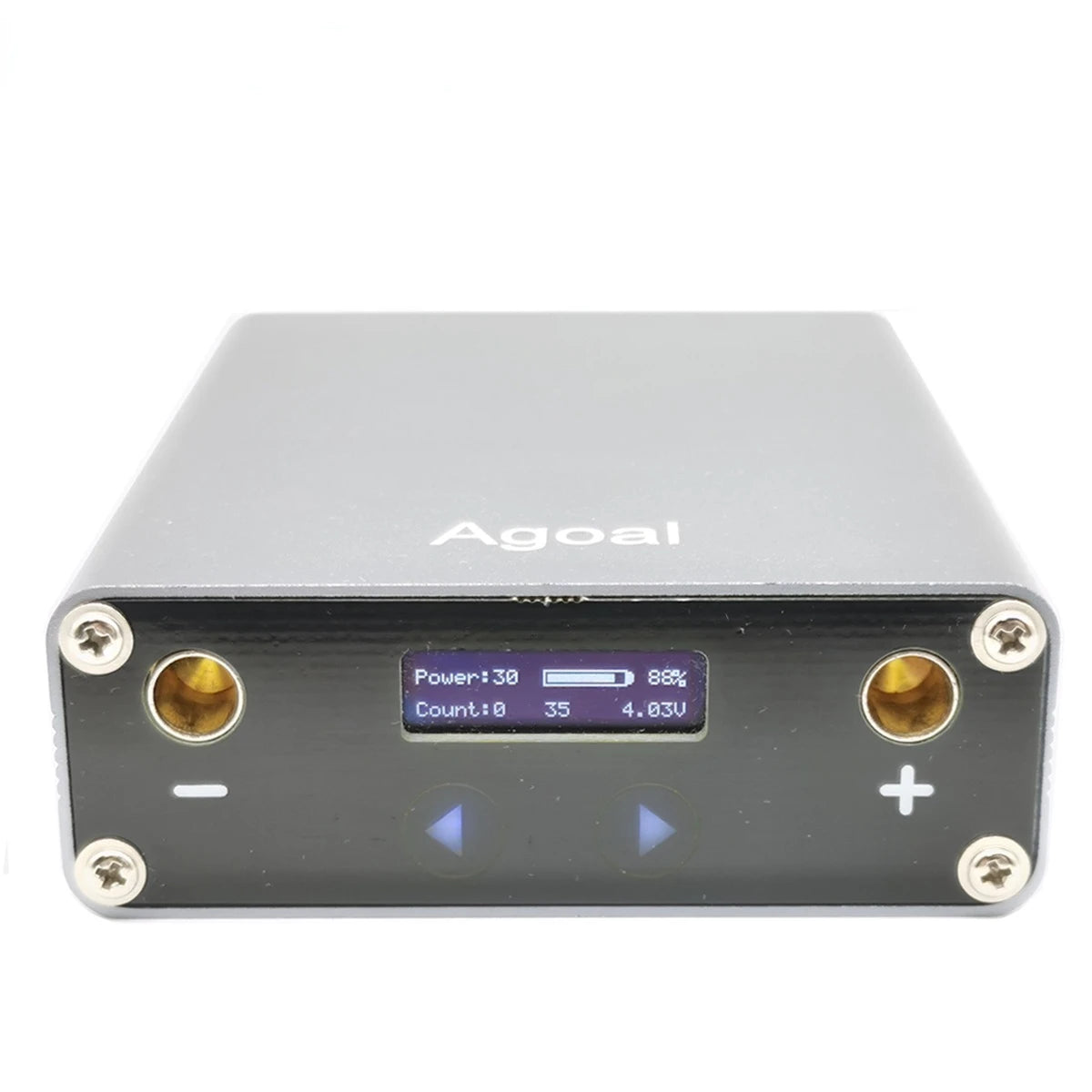

Screen: 0.91 Inch OLED

Material: Metal Case

Battery Capacity: 5500mAh

Welding Output: 4.2V MAX 650A

USB Output:5V MAX 2.4A

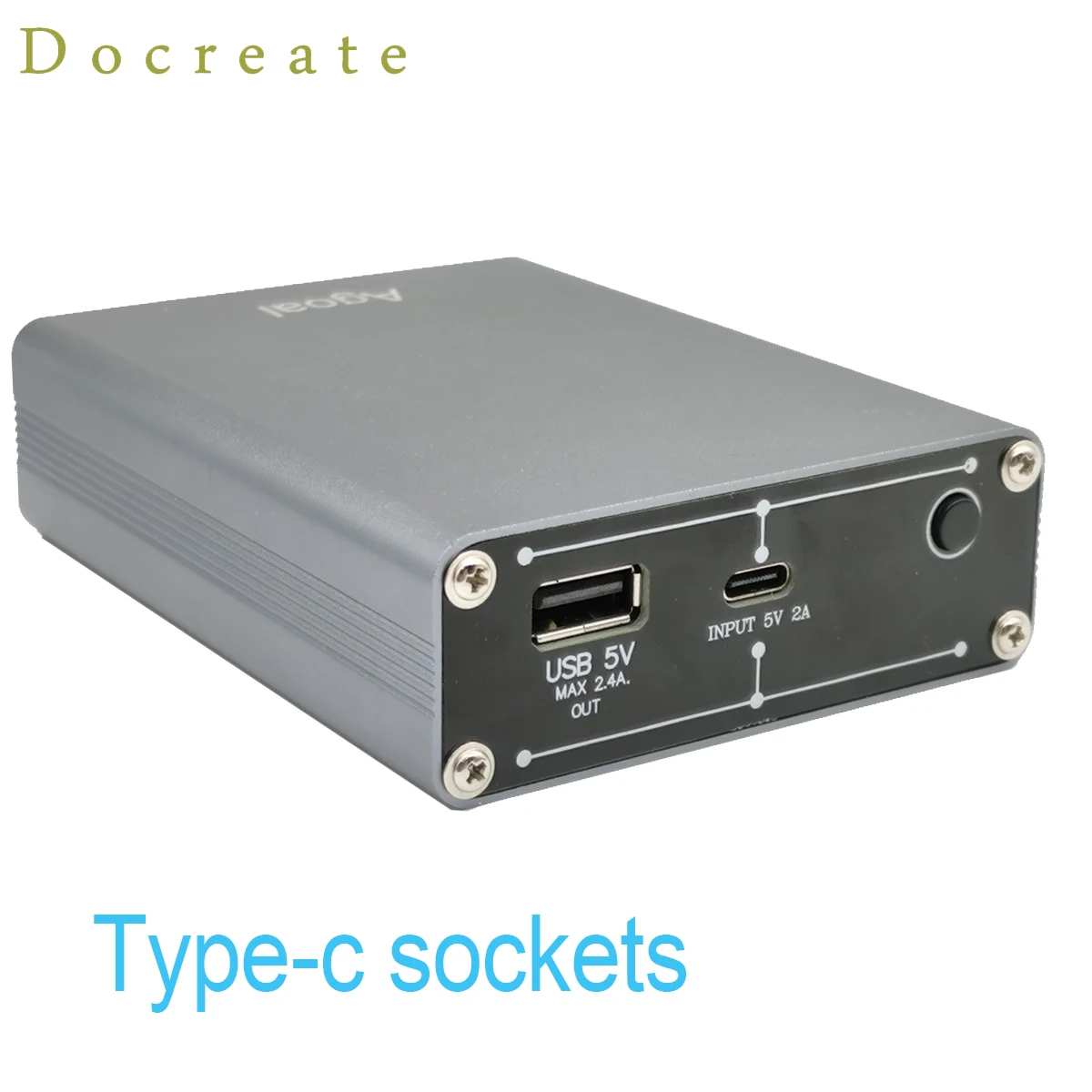

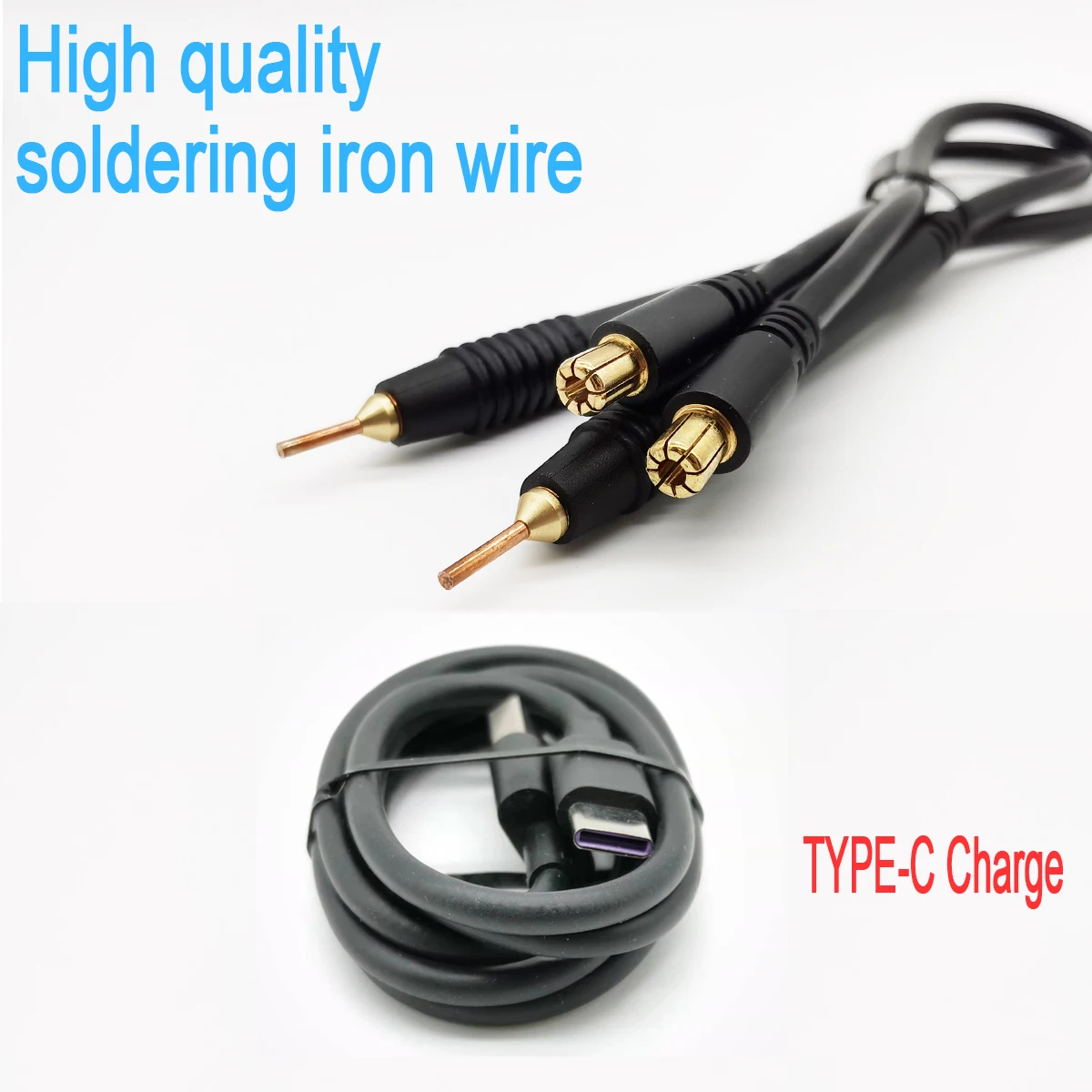

Charging Port: Type-C

Product Weight: 302g

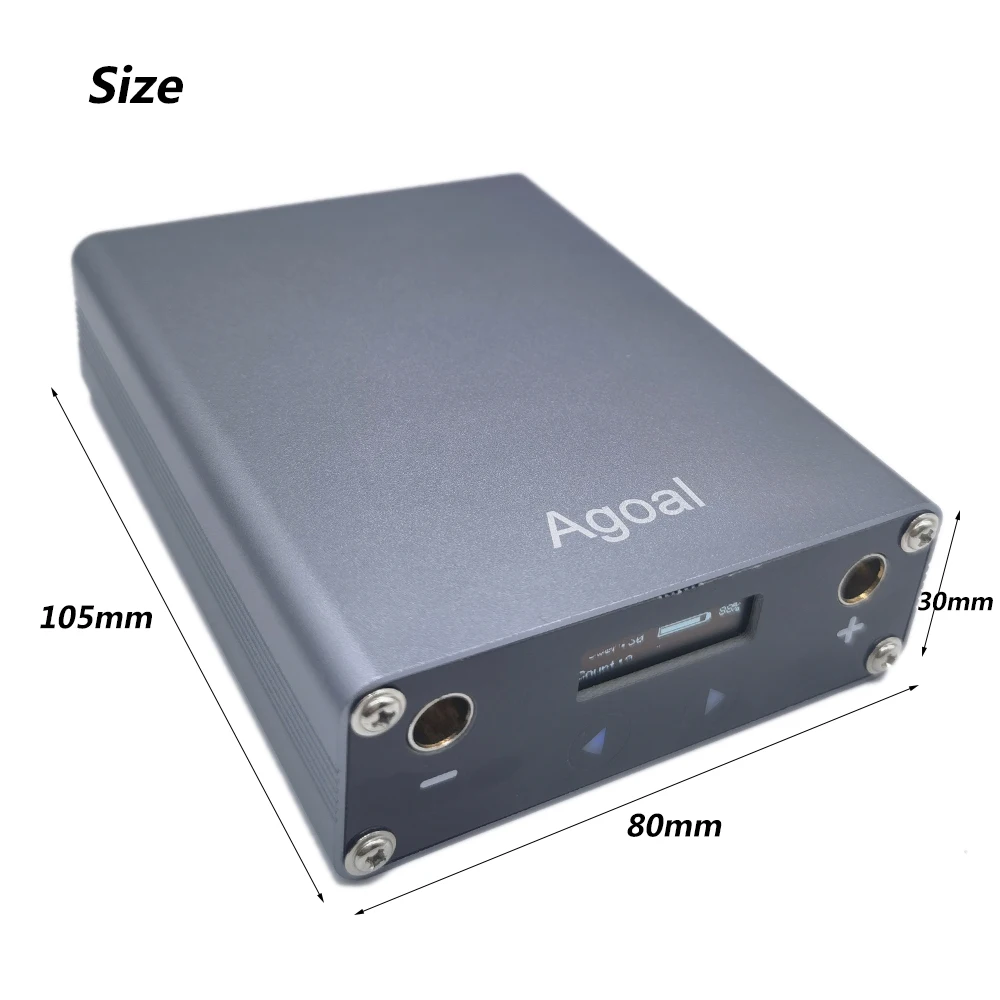

Product Size: 103x83x29mm

Package size: 143x107x48mm

Package weight: 407g

Spot Welding Power Setting:

Start with the first gear and increase the power slowly until it can be welded. Do not increase the power if it can be welded. Avoid MOS bombs. The black solder joints indicate that the power is too high.

When welding, press down the soldering pin lightly, and the nickel sheet and the battery can be bonded together. The harder you press, the less solid the welding will be. It will automatically trigger after pressing down for one second.

Adapter Selection Requirements:

The adapter requires 5V, 2A or more. If you don’t have such adapter, we recommend buying it at our store together to better charge the spot welder.

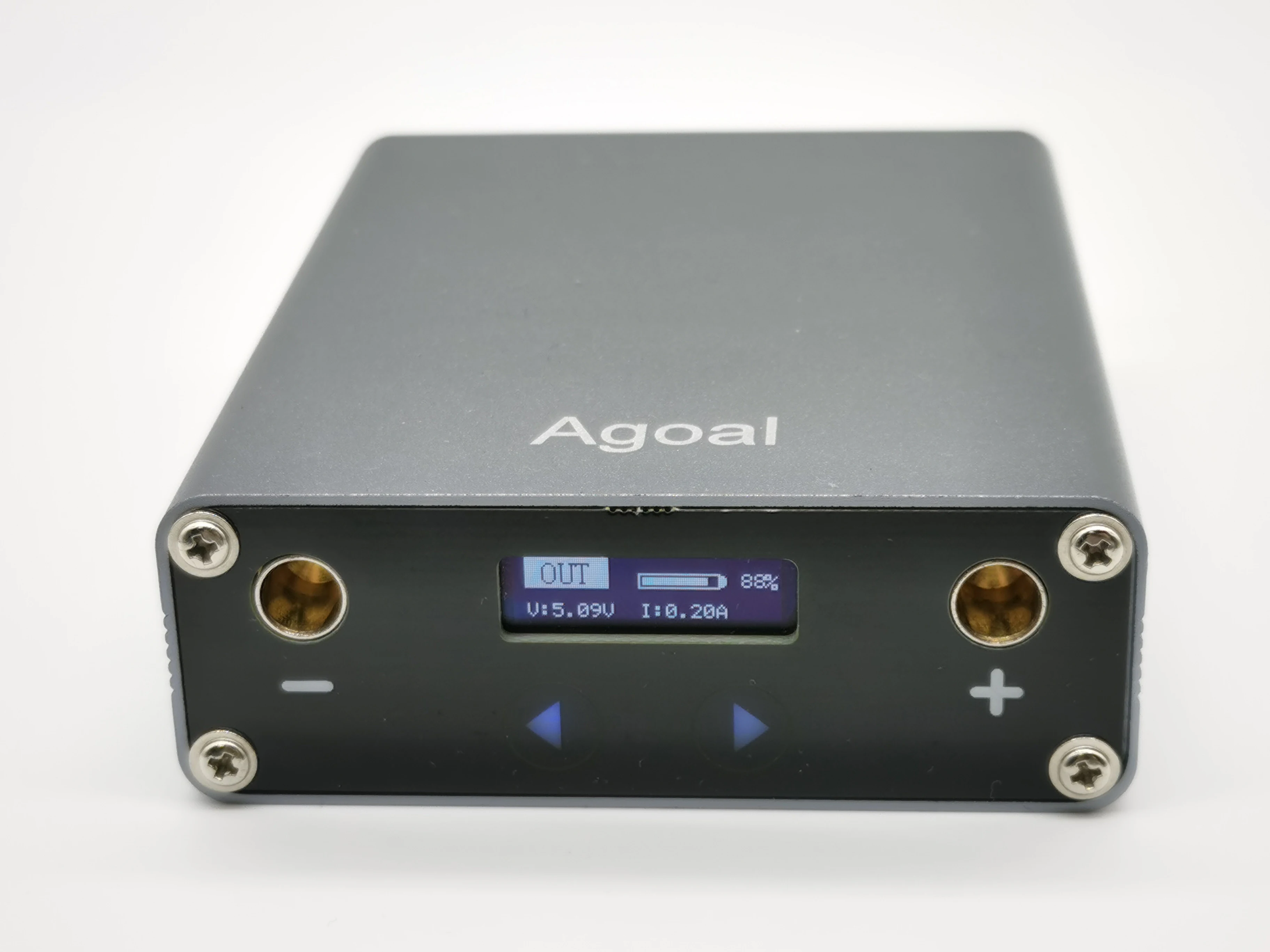

USB Output Port Description:

Because the internal circuit of the spot welding machine is different, there may be some compatibility issues with the phone charging, so the phone cannot be charged temporarily,if you need charger phone,you can Short-circuit 2 and 3 of the usb output port.

And for android cellphone,mobile phone charging protocols are different, and currently cannot all support fast charging protocols.

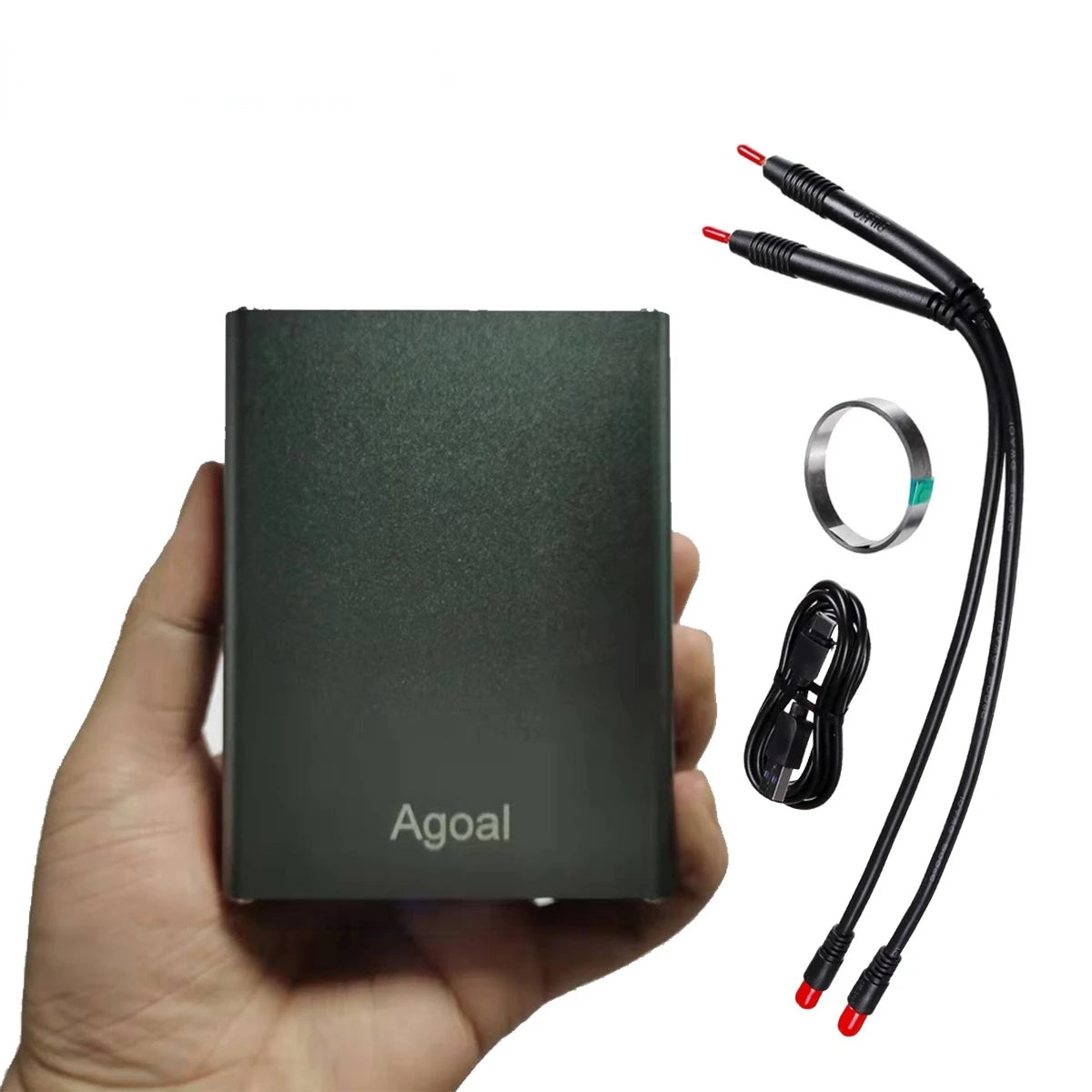

Package includes:

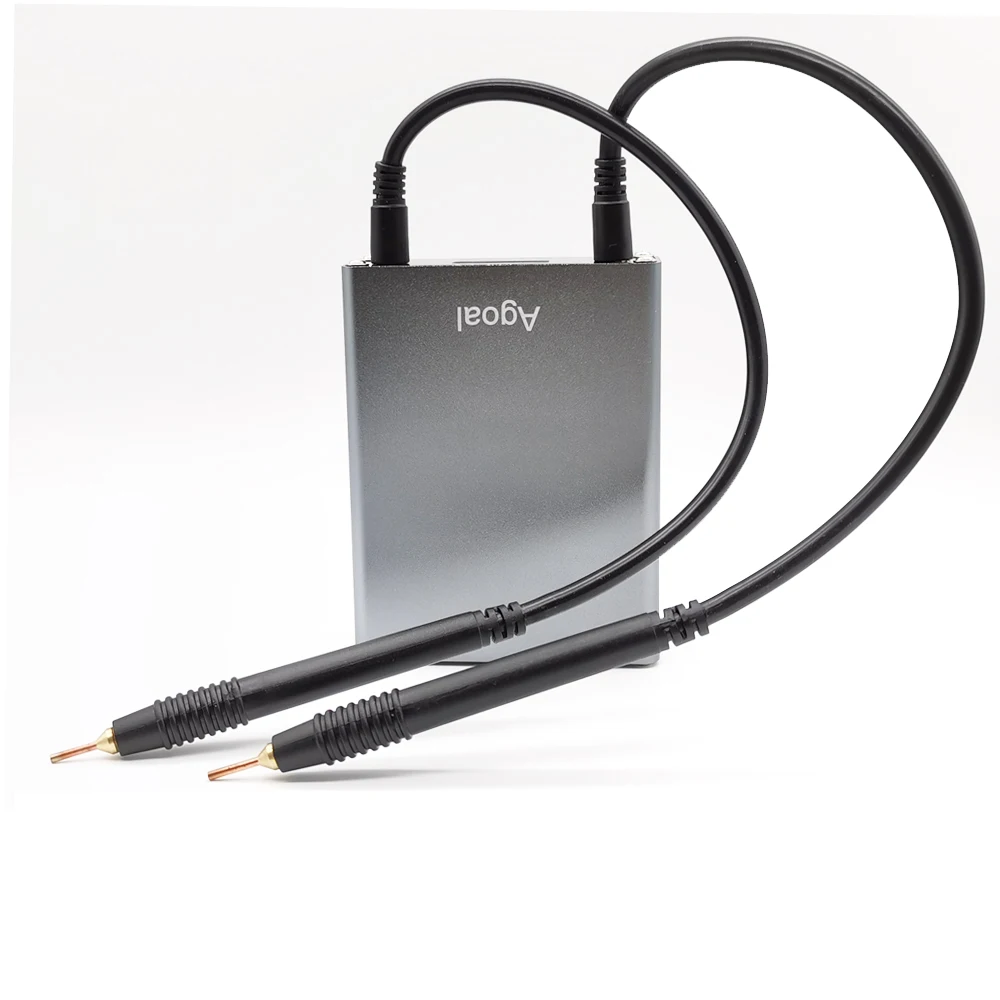

1 x Handheld spot welder with pen
