Custom DIY CD4017 Rotating LED SMD NE555 Soldering Practice Board DIY Kit Fanny Skill Training Electronic Suit
Custom DIY CD4017 Rotating LED SMD NE555 Soldering Practice Board DIY Kit Fanny Skill Training Electronic Suit
Regular price
$0.97 USD
Regular price
$3.97 USD
Sale price
$0.97 USD
Unit price
per
Couldn't load pickup availability
Please read before buying:
Because ordinary parcels do not have tracking information, so encountered the peak season of logistics, ordinary parcels will be extended to arrive, so if you mind the speed of logistics, please pay the registration fee, with faster logistics speed.
When encountering slight product damage, bent pins, and scratches on the case, we will not accept refunds of disputes if they do not affect use. If you mind this situation, please do not purchase my product. When you buy my product, it is the default acceptance of this article! ! ! So we will not accept your dispute.

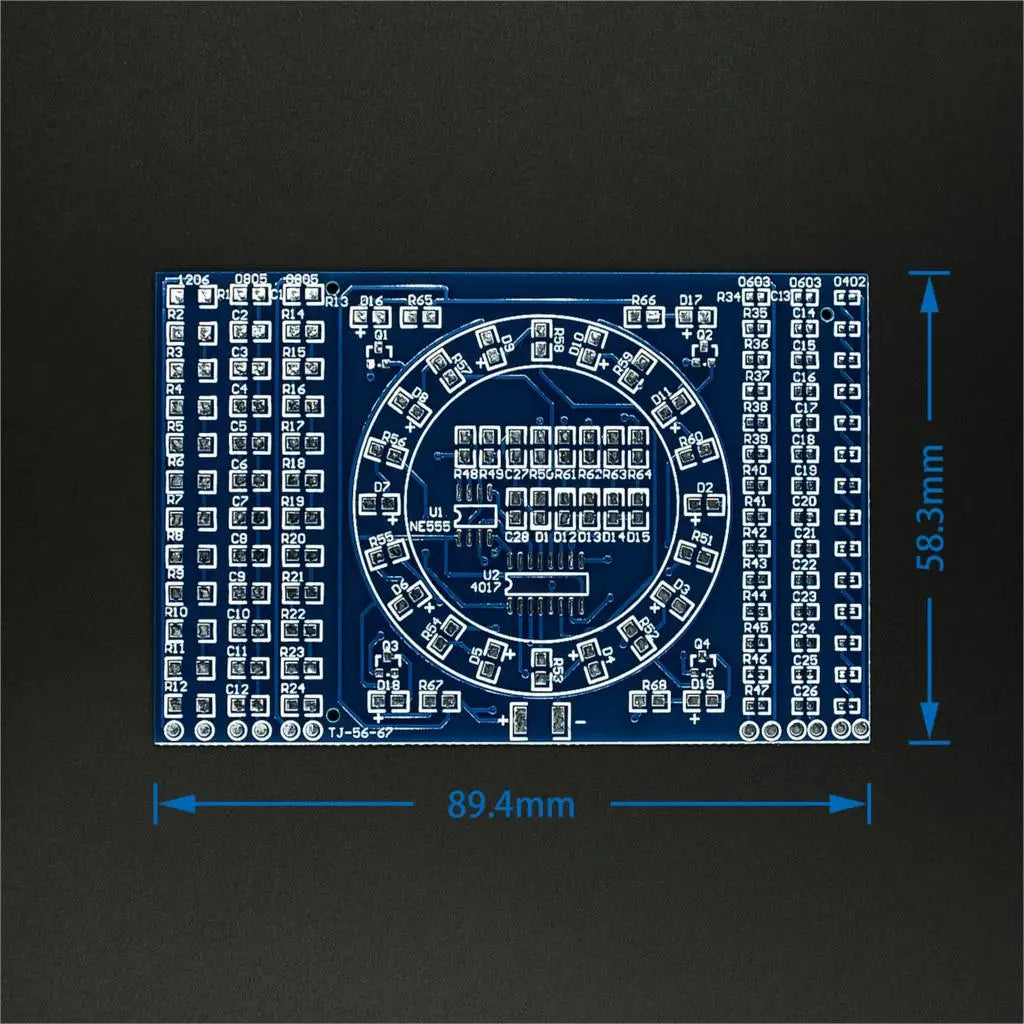

1.Board Size;90*60mm
2.Board Thickness:1.6mm

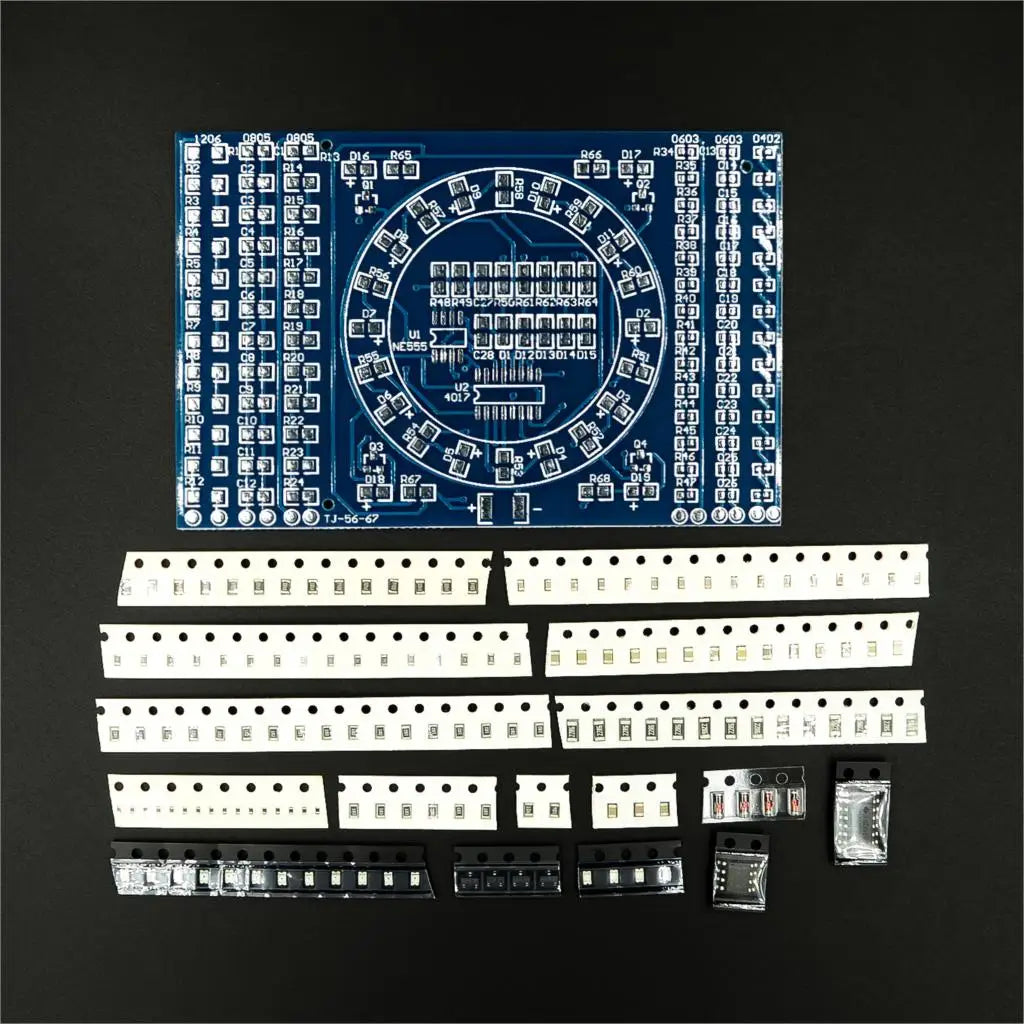

3.Flow Water Lamp Circuit : CD4017,NE888,LED;after correct connnection,it will operate
4.Operating Voltage :3-12V
board material: international standard sheet, all tin pad, high strength fire drop material, can be repeated disassembly.
6. PCB board design is reasonable, are commonly used in the SMD components.
7. the left and right of the three components are used to practice welding, each column with a test point.

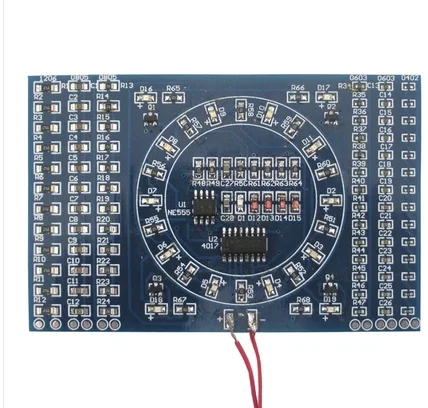

8. the middle of the circular circuit for the water lamp circuit, by the CD4017, NE555, light-emitting diodes, welding power can work.
9. the circuit is also used on the back, a ruler to facilitate the measurement of components. There are examples of PCB conductors to facilitate the use of PCB design.
Number of components: 125
Number of solder joints: 274
Use solder length: 35CM (diameter: 0.6mm)
Sample soldering time: 35 minutes
