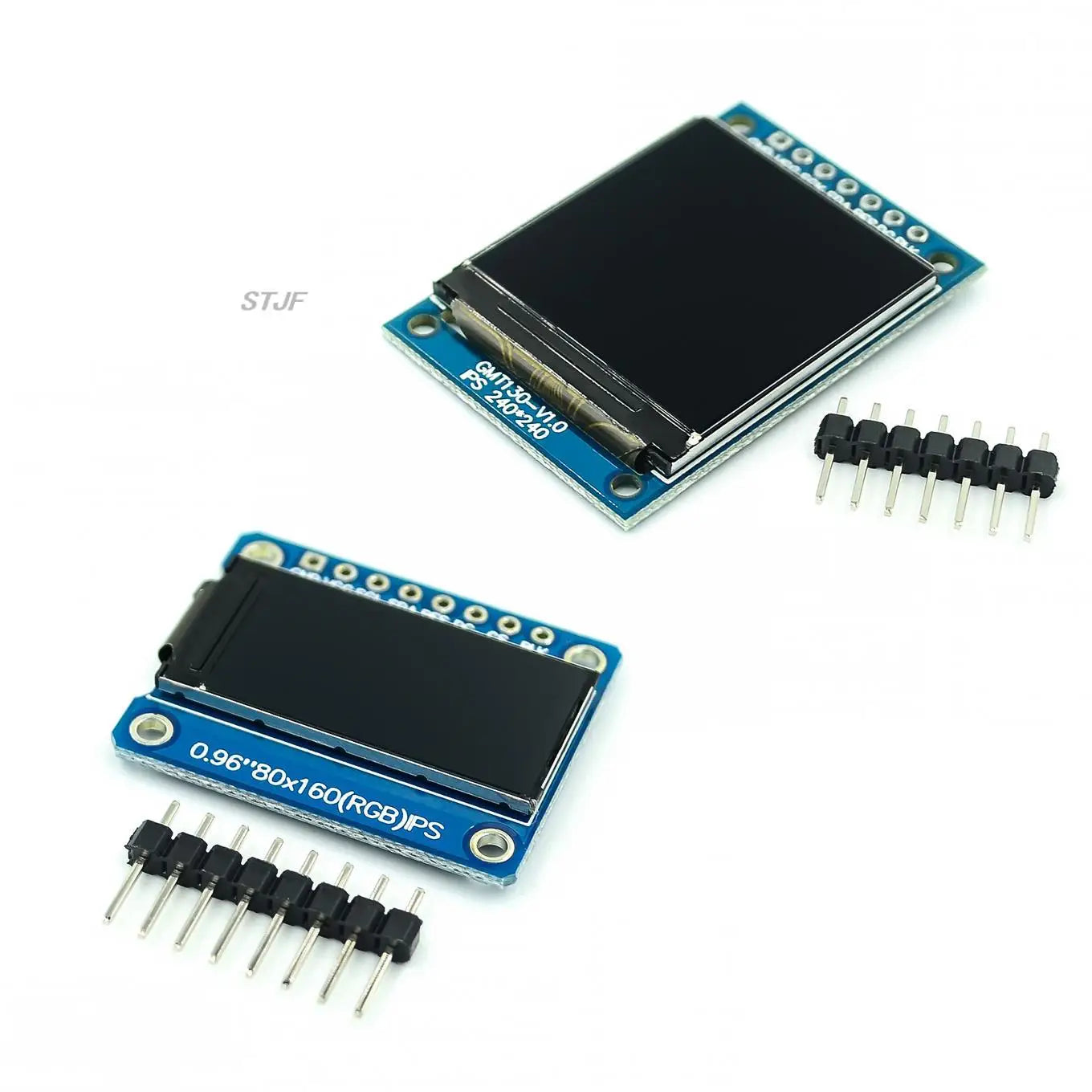

Custom Display 0.96 / 1.3 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) For Arduino
Custom Display 0.96 / 1.3 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) For Arduino
Regular price
$1.71 USD
Regular price
$6.99 USD
Sale price
$1.71 USD
Unit price
per
Couldn't load pickup availability
1.Features

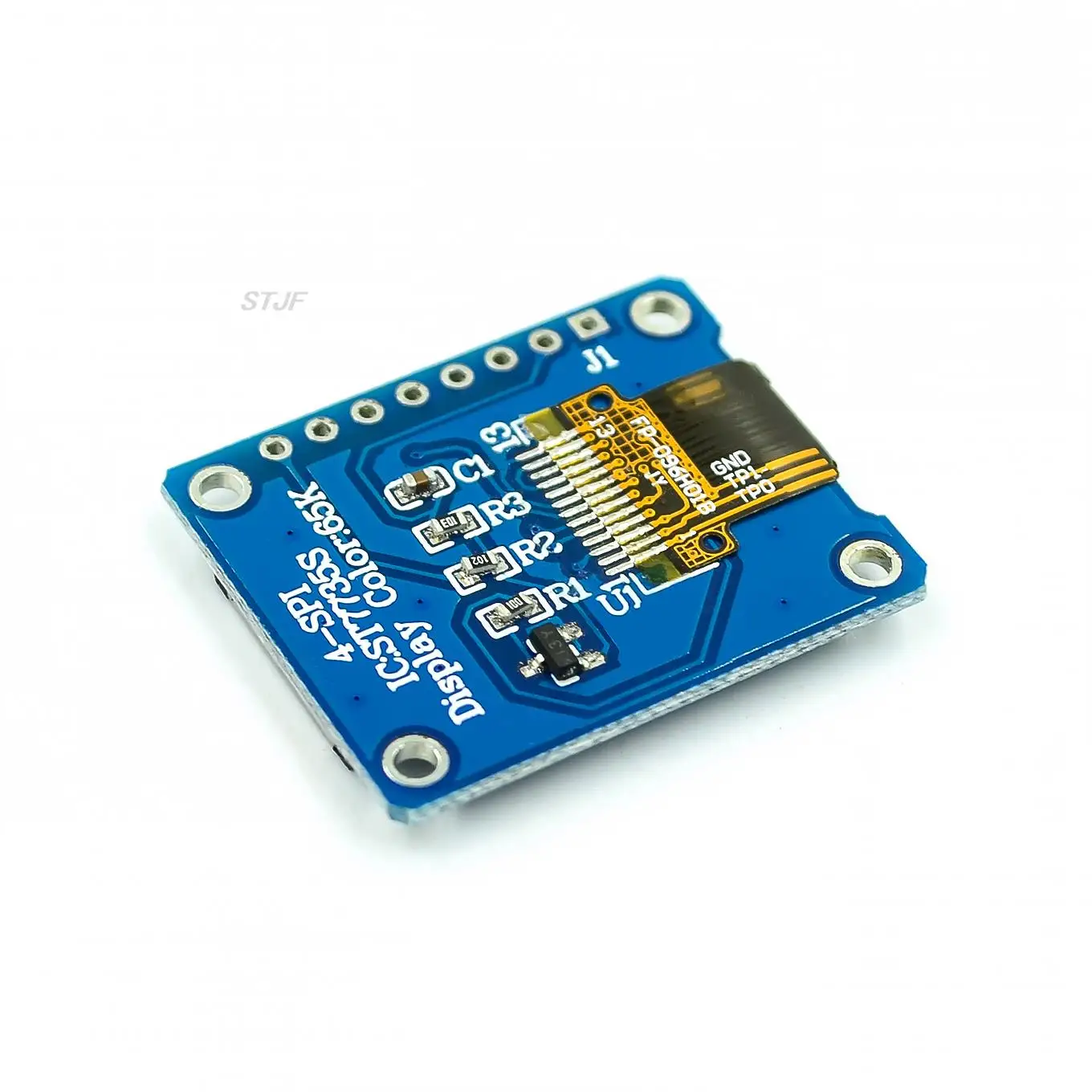

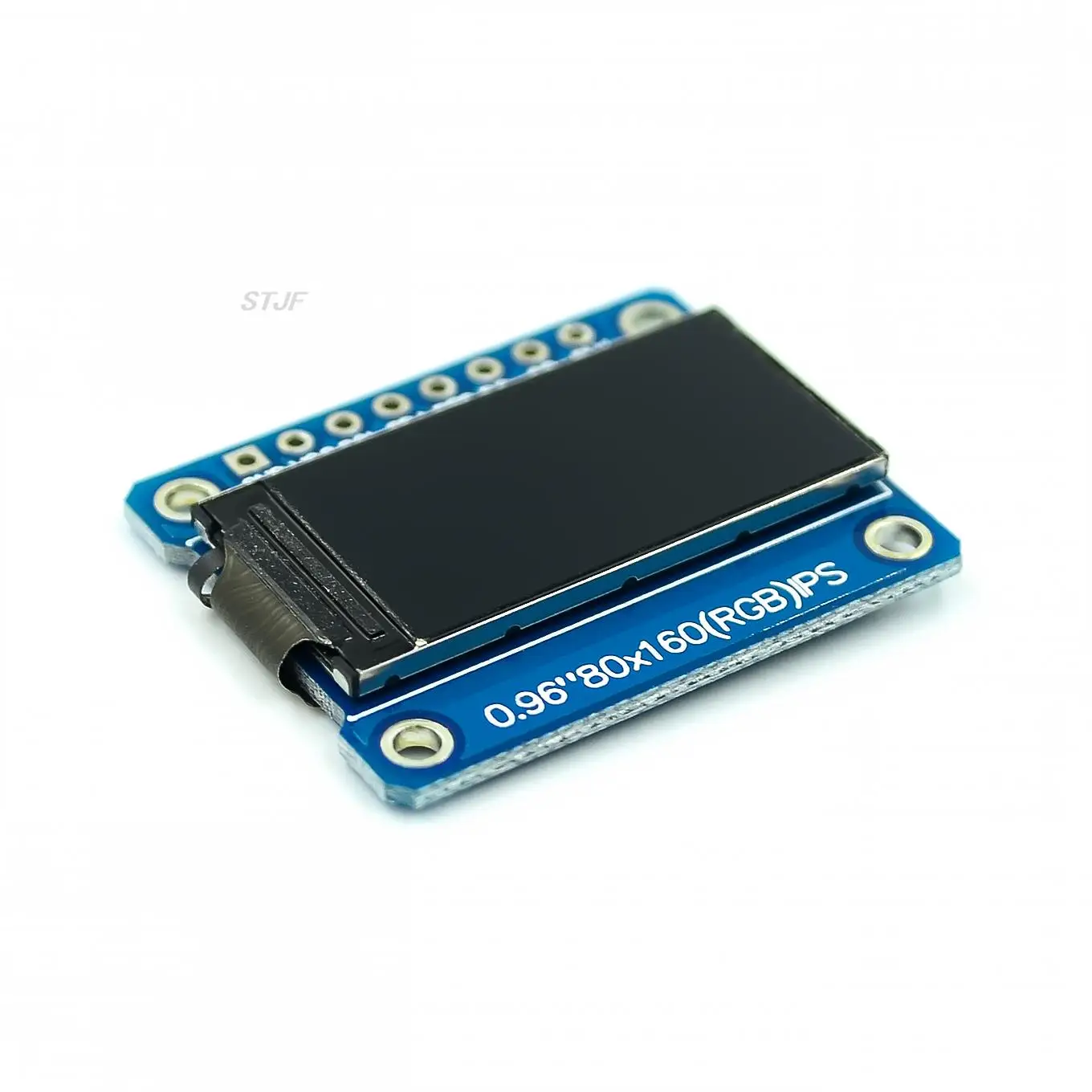

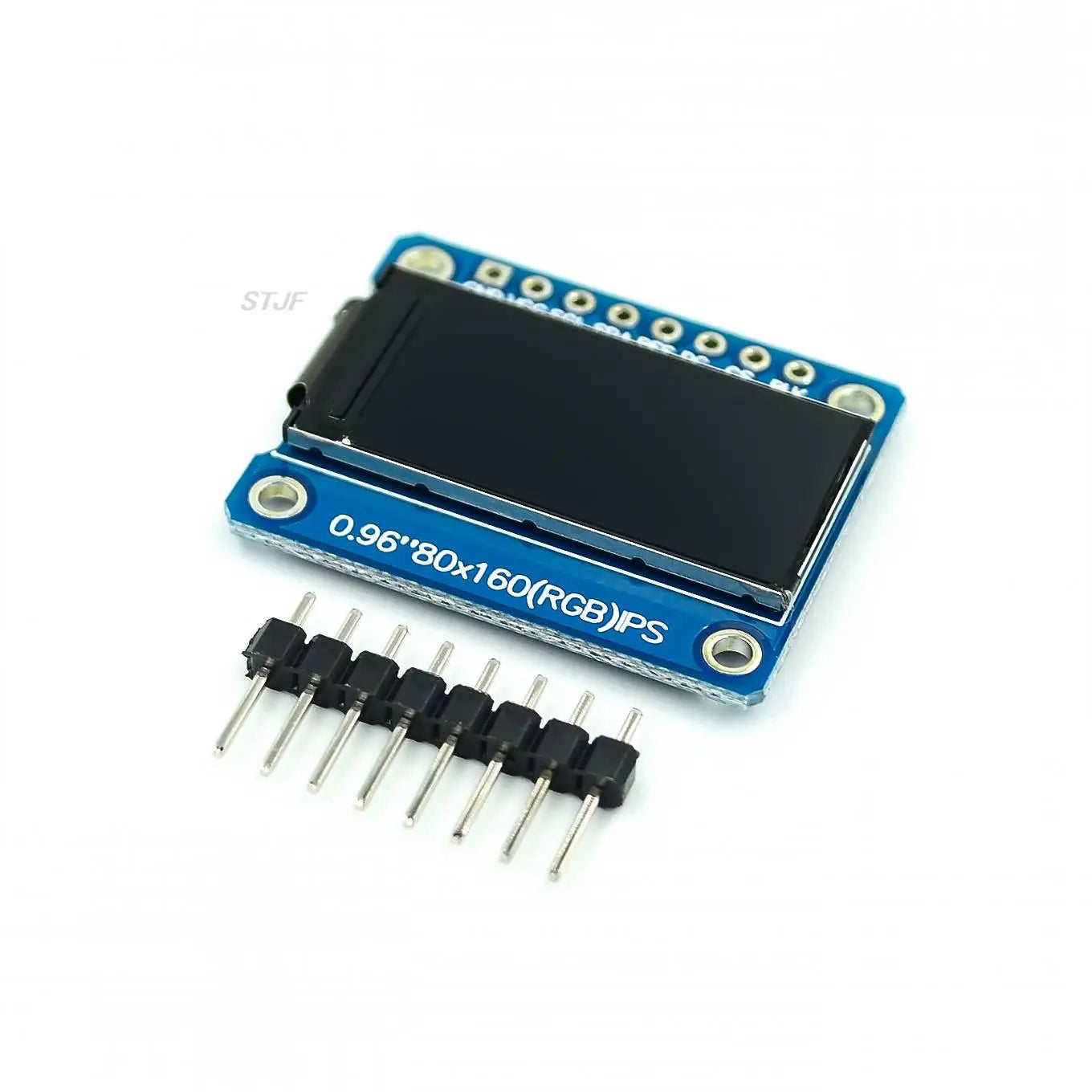

SIZE 0.96inch
Display Mode Normally black IPS
Display Format Graphic 80RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution 80RGB*160 Dots
LCD Active area 10.8 (W)*21.7 (H)
Dot pitch 0.135(H) x 0.1356(V) mm
Viewing Direction All View
Operating Temperature -2070°C
2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
1.Features

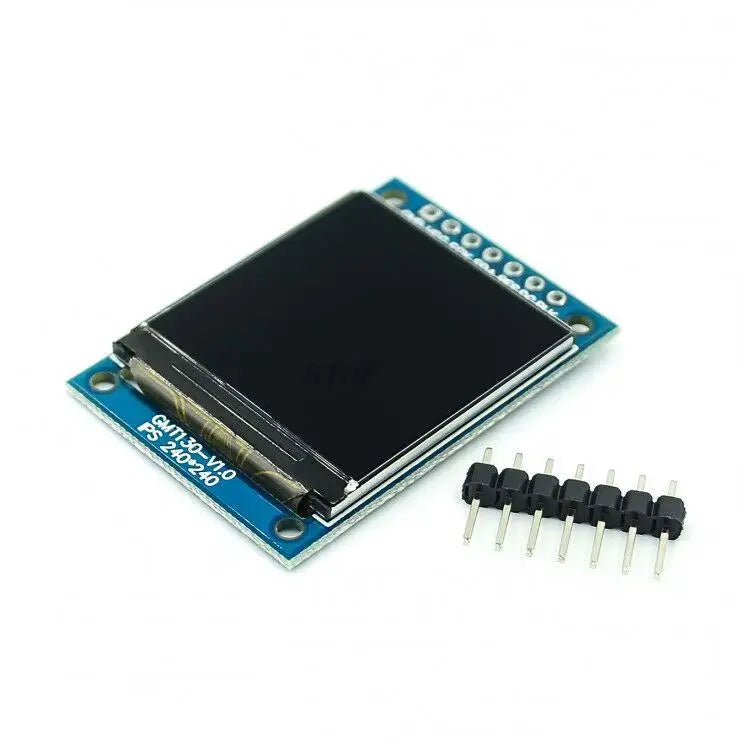

SIZE 1.3inch
Display Mode Normally black IPS
Display Format Graphic 240RGB*240 Dot-matrix
Input Data SPI interface
Drive IC ST7789VW
Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution 240RGB*240 Dots
LCD Active area 23.4 (W)*23.4 (H)
Dot pitch 0.0975(H) x 0.0975(V) mm
Viewing Direction All View
Operating Temperature -2070°C

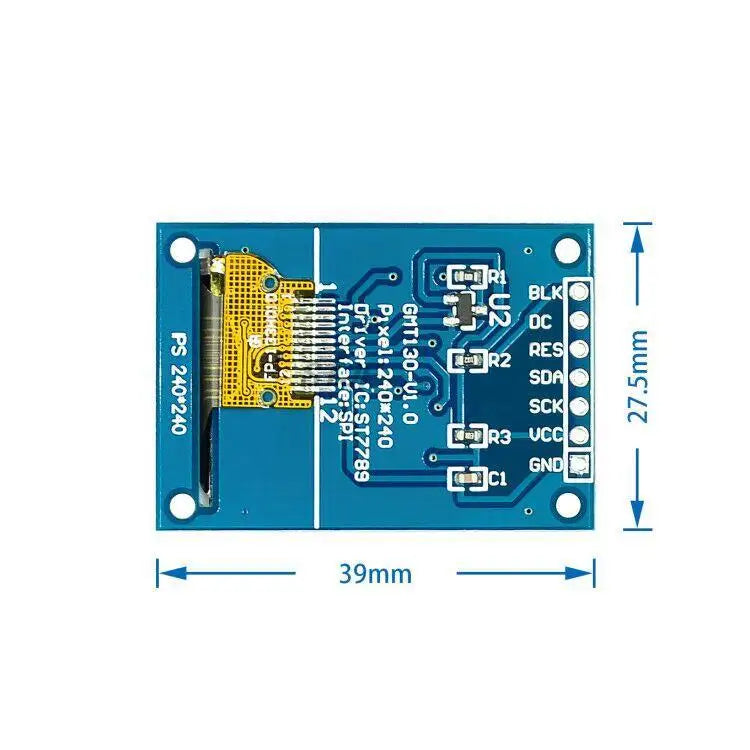

2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 BLK Backlight control pin
