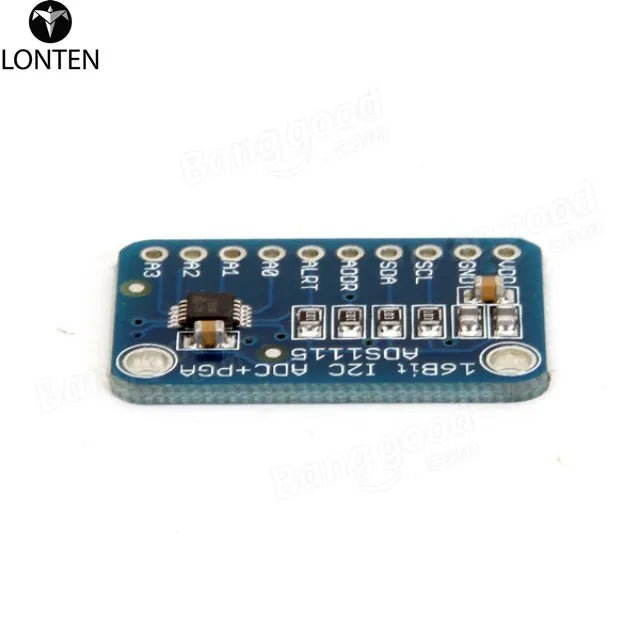

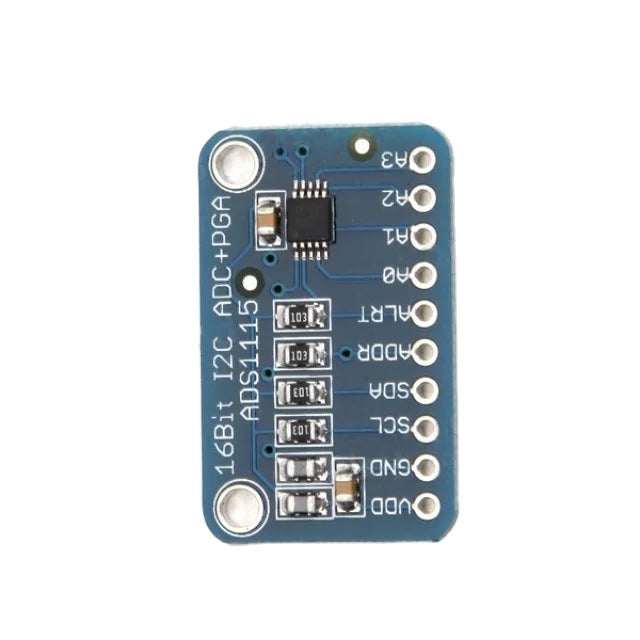

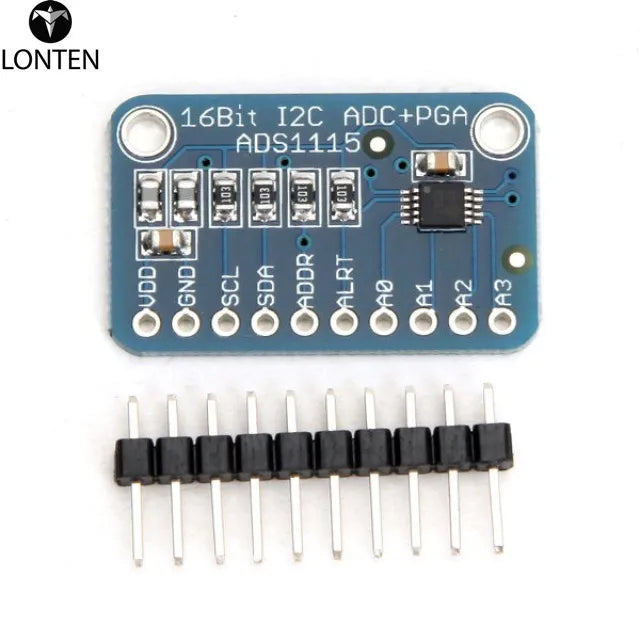

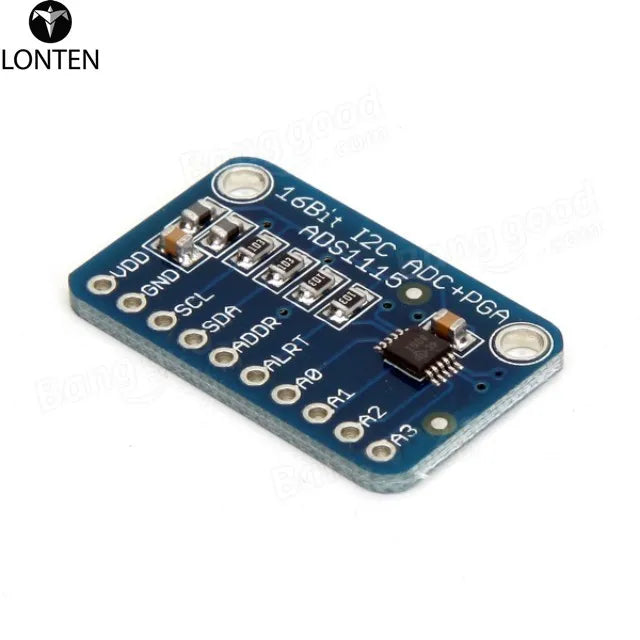

Custom digital converter ADC development board module China certificated multilayer pcb circuit board electronic pcb Manufacturer

Feature:

Wide supply voltage range: 2.0V to 5.5V
Low current consumption: Continuous mode: Only 150 μ
Single-shot mode: automatically turns off
Programmable data rate: 8SPS to 860SPS
Low drift internal voltage reference
Internal Oscillator
Internal PGA
Four single-ended or two differential inputs (ADS1115)
Programmable comparator (ADS1114 and ADS1115)
Operating temperature: -40 ° C to + 140 ° C

Description:

ADS1113, ADS1114 and ADS1115 are precision analog-to-digital converter (ADC) paragraph 16 of resolution, ultra-small, lead-,
QFN-10 or MSOP-10 package available. The ADS1113 / 4/5 design precision, power and easy-to-remember implementation. ADS1113 / 4/5
features an onboard reference and oscillator. Data transfer via a I 2 C-compatible serial interface, four I 2 C slave address.

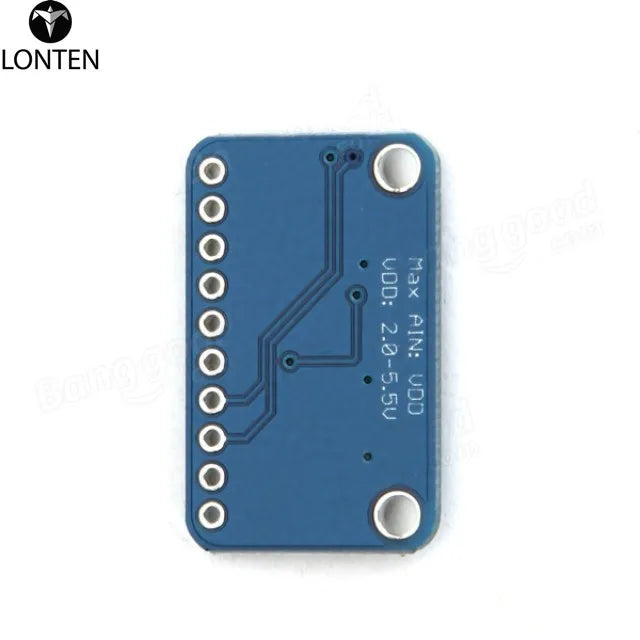

ADS1113 / 4/5 operating range from 2.0V to 5.5V single supply
