Custom Digital 70 Gears Adjustable Spot-welding Machine with 2.4A Fast-recharge Intelligent Function OLED Color Display Spot Welder Manufacturer

Description:

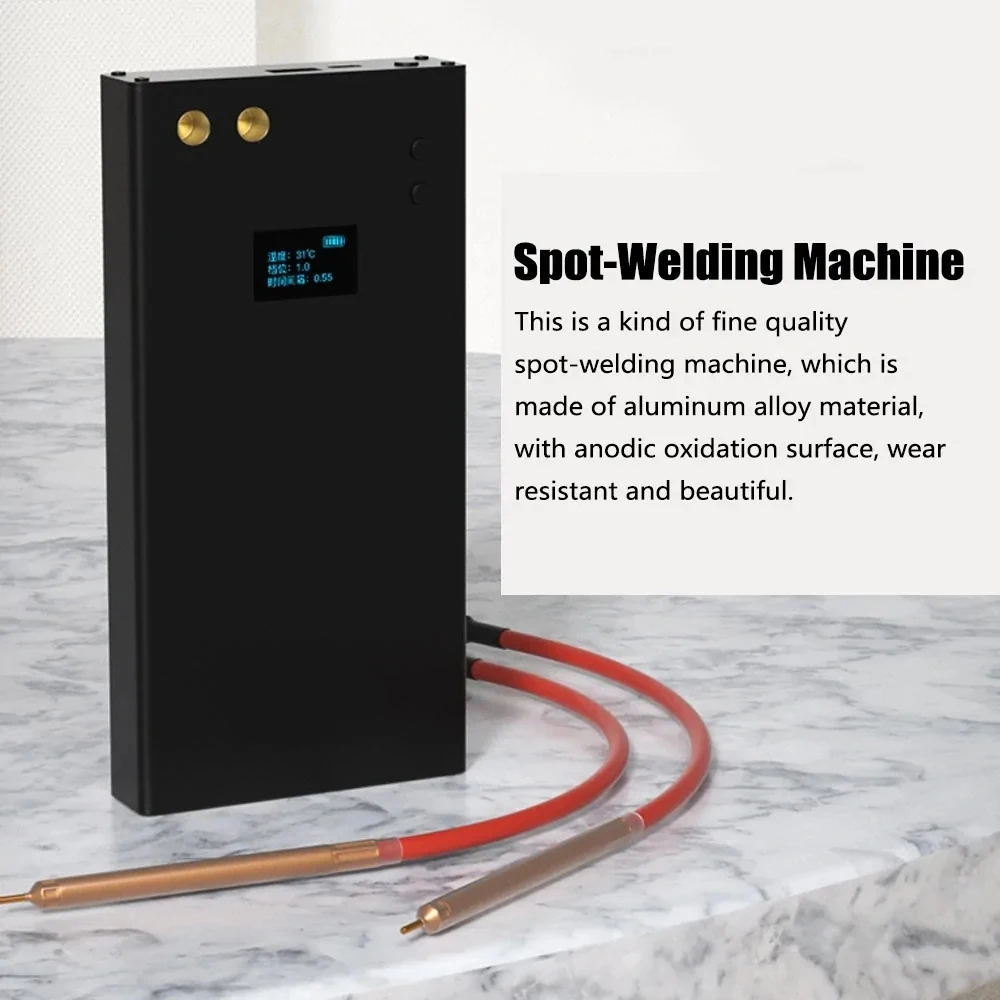

1. This is a kind of fine quality spot-welding machine, which is made of aluminum alloy material, with anodic oxidation surface, wear resistant and beautiful.
2. 70 gears adjustable, with OLED color display, you can know the usage situation at a glare.

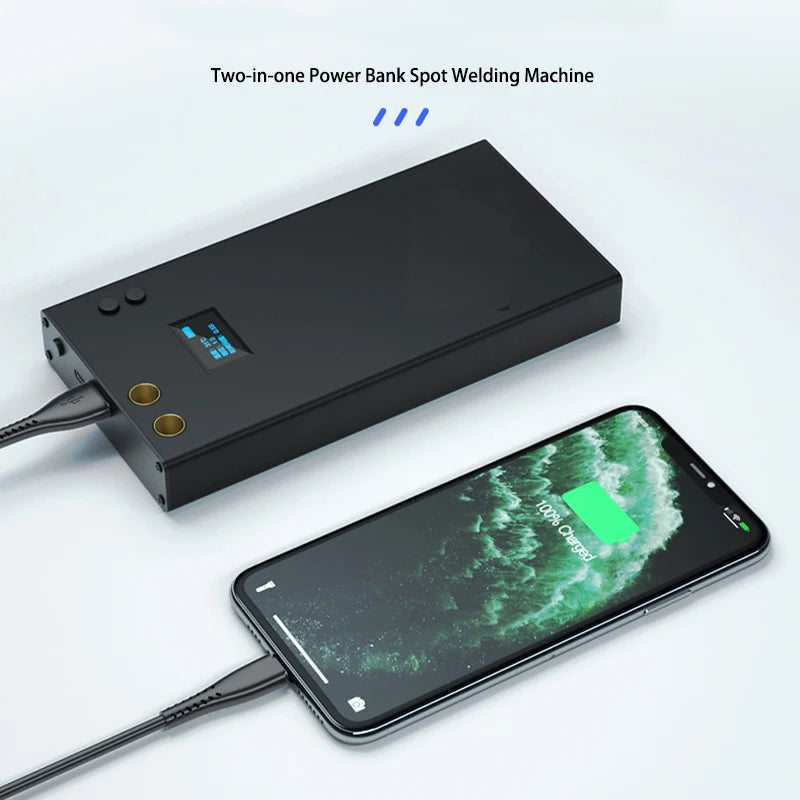

3. With fast-recharging function, which can be used as recharge pal and the max output current is 2.4A.

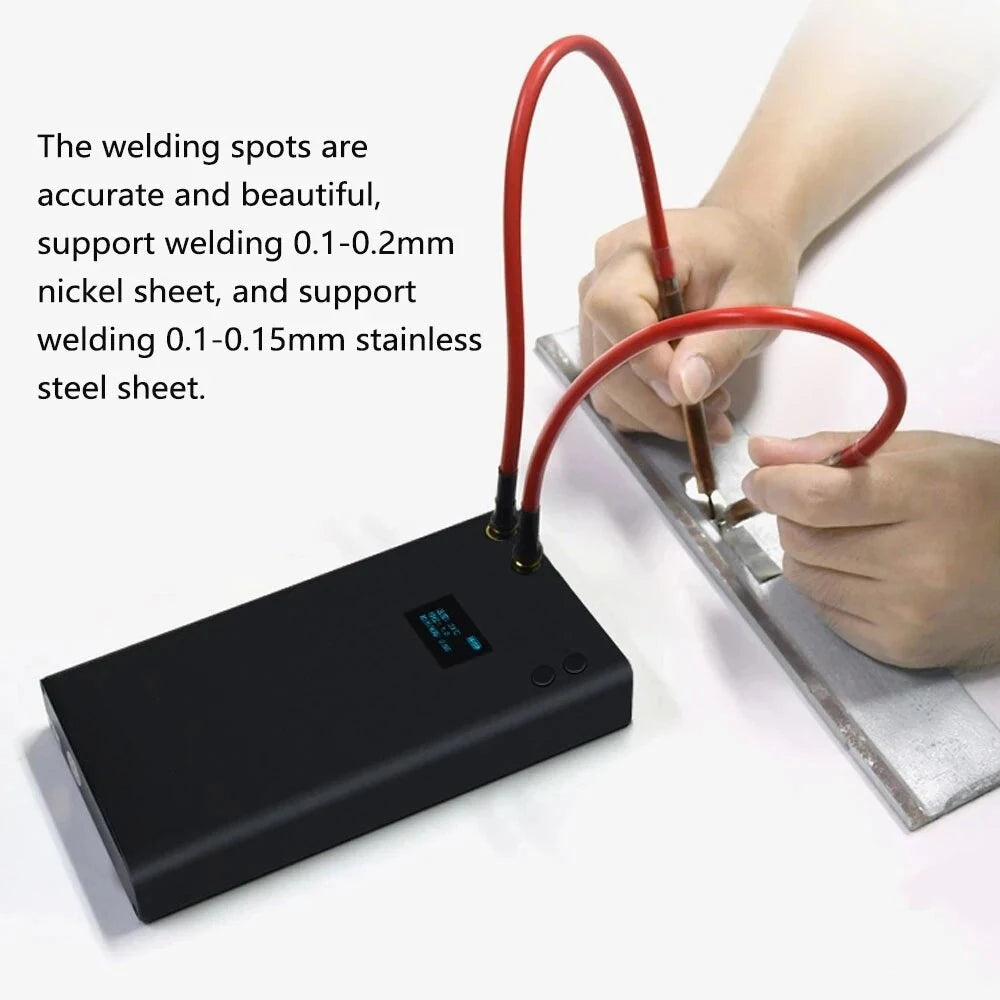

4. The welding spots are accurate and beautiful, support welding 0.1-0.2mm nickel sheet, and support welding 0.1-0.15mm stainless steel sheet. You can have a try.

Features:

1. Compact size, lightweight and portable, easy to carry around with you.

2. The outcase is made of aluminum alloy material, with anodic oxidation surface, wear resistant and beautiful.

3. 70 gears of output power adjustable, the welding process is more accurate and the welding effect is more perfect.

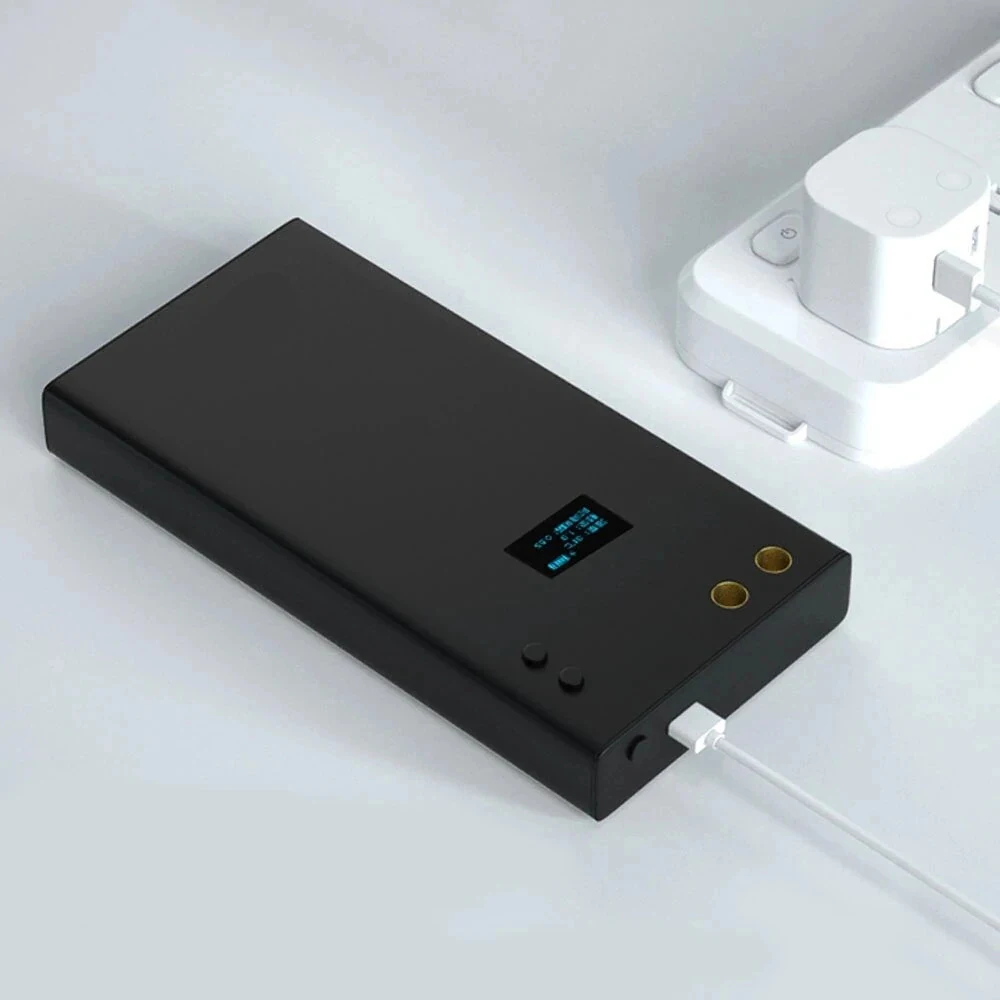

4. Type-C input interface design, max 2A USB output for recharge the spot-welding machine quickly.

5. With fast-recharging function, which can be used as recharge pal and the max output current is 2.4A.

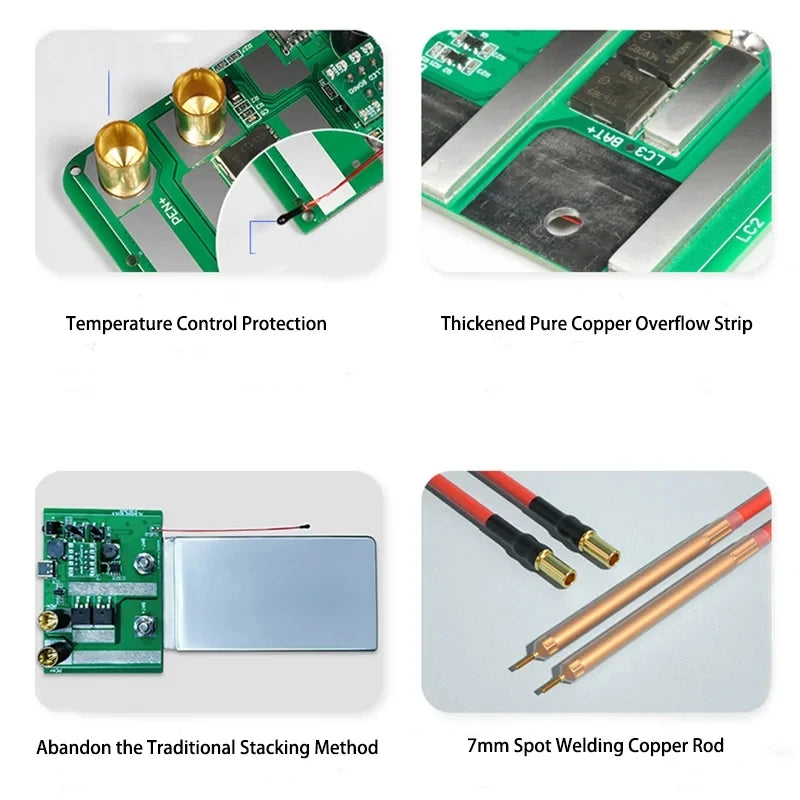

6. Intelligent temperature control protections, built-in temperature control probe fot real time monitoring the temperature, and you can see the temperature on the OLED display clearly.

7. This spot-welding machine can be used to spot-welding cylindrical lithium batteries, nickel-metal hydride batteries and cadmium nickel batteries such as 18650, 26650, 32650 and etc..

8. The welding spots are accurate and beautiful, support welding 0.1-0.2mm nickel sheet, and support welding 0.1-0.15mm stainless steel sheet.

9. 2mm thicken pure copper strip, supper-low internal resistance to increase over-current capability.

10. Built-in 2pcs high-rate polymer power cell, the maximum output current is more than 650A, and it can continuously weld thousands of points after being fully recharged.

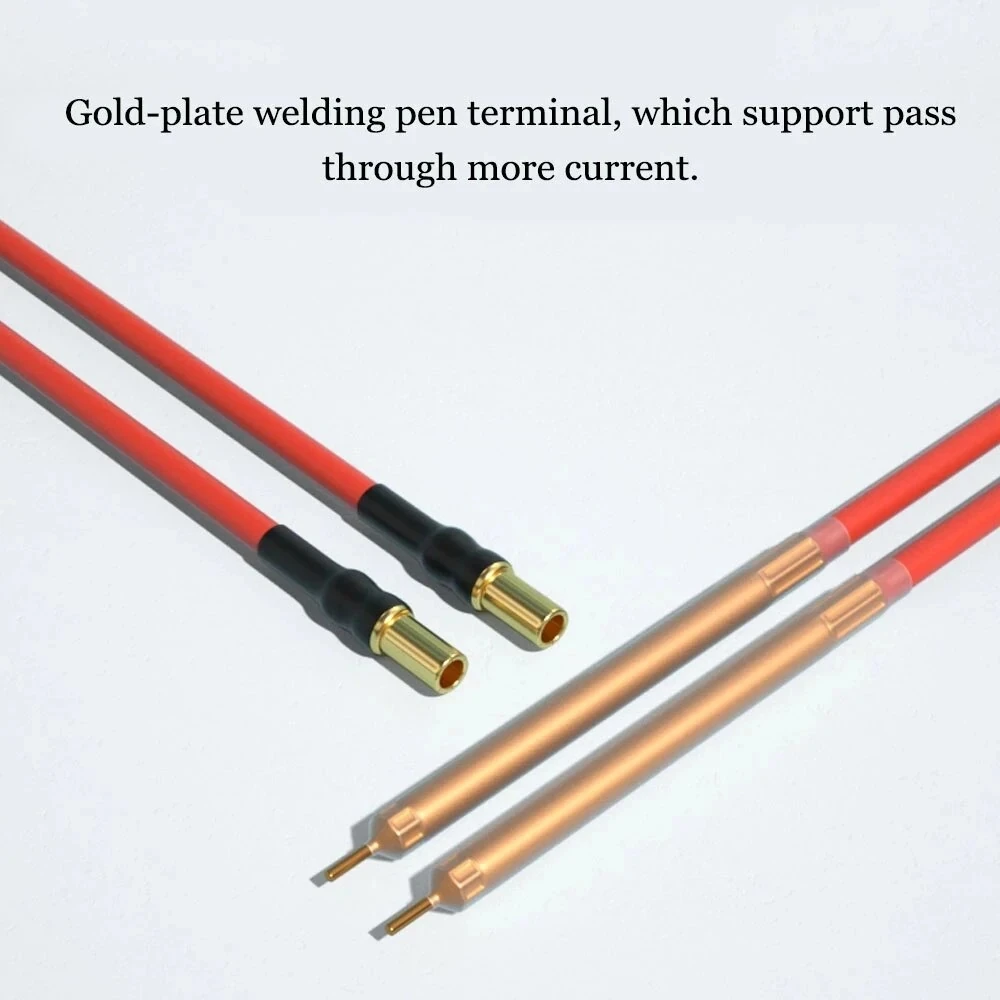

11.The gold-plated soldering pen terminal supports more current.

12. 7mm solid copper rod, good conductivity, low contact resistance, quick disassembly and easy to carry.

13. Spot welding pen composed of multiple high-temperature wires with strong torsion resistance.

Specifications:


Name: Spot-Welding Machine

Material: aluminum alloy

Battery: 2 * 4.2V, 7500mAh battery (included)

Recharging voltage: 5V/2A

Output voltage: 4.2V Max

Output current: 650A Max

Design current: 1000A Max

Input interface: Type-C interface

USB output: 5V/2.4A Max

Recommanded nickel sheet: 0.1-0.2mm

Recommanded stainless steel sheet: 0.1-0.15mm

Item size: 178 * 87 * 27mm / 7.01 * 3.43 * 1.06in

Package size: 26 * 15 * 5 cm

Package weight: 780g / 1.72lb

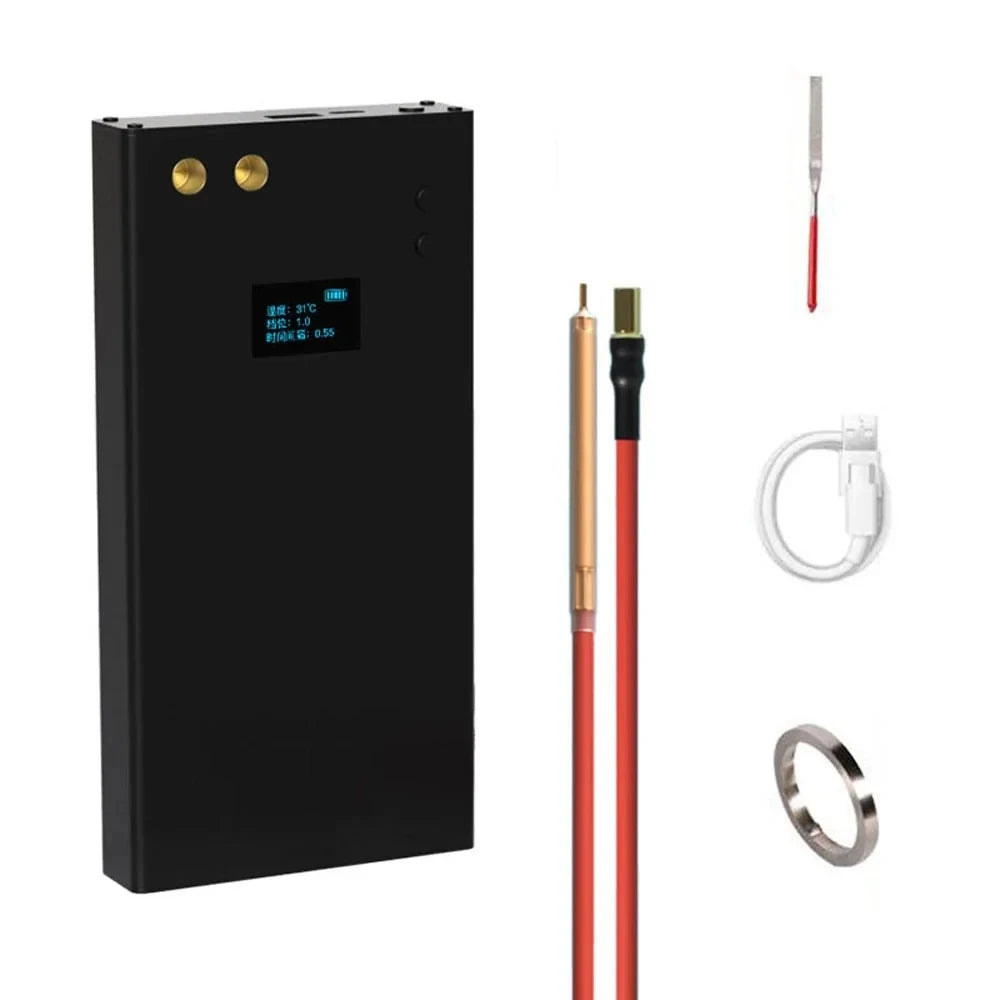

Package Included:

1 * Spot-Welding Machine

2 * Welding Pen

1 * product use manual

1 * Type-C Line

1 * 5meters Roll of Nickel Sheet

Detail Pictures:
