Custom Demonstration of high frequency AC wireless transmission principle of Tesla coil spark gap lightning simulator Manufacturer

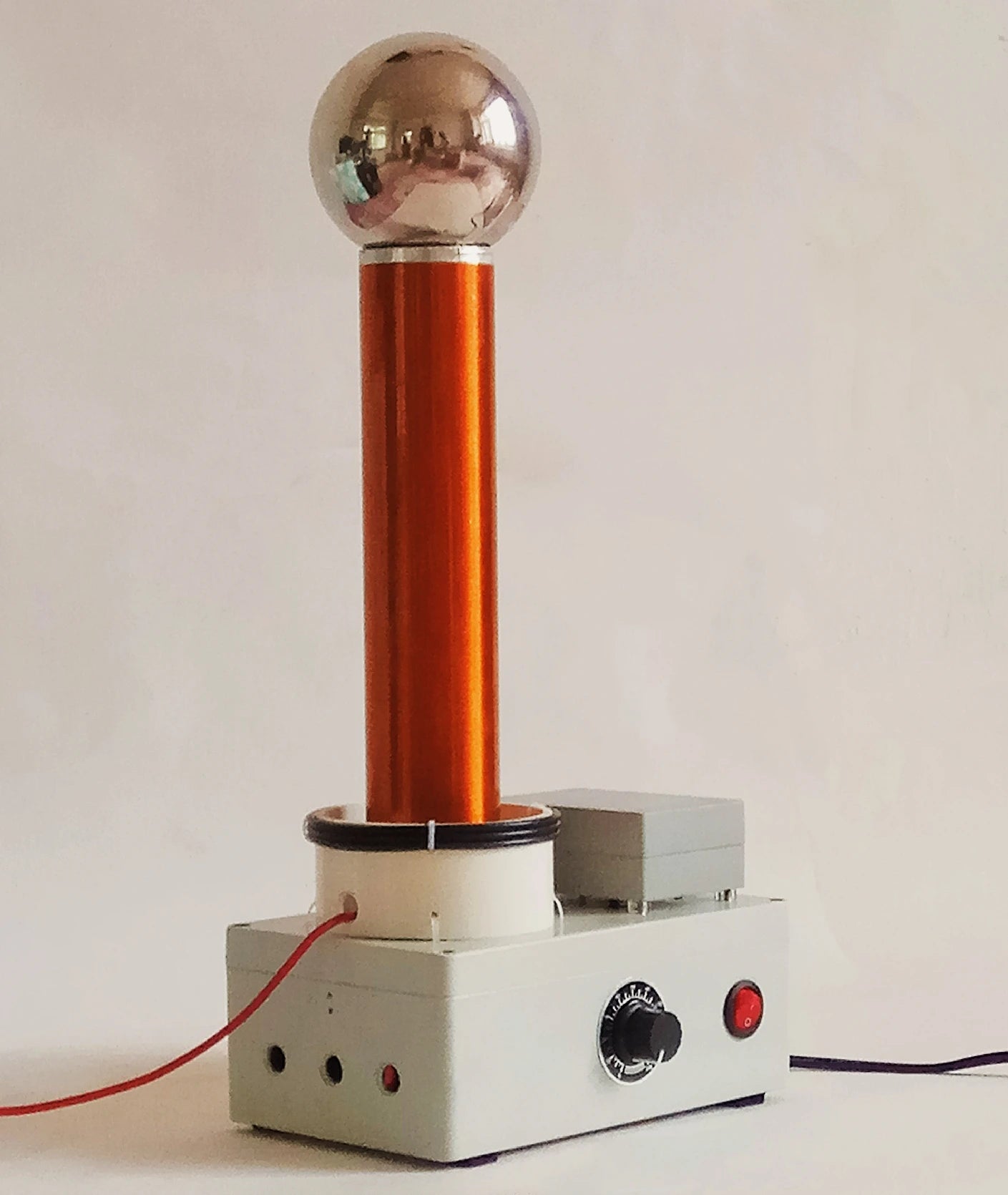

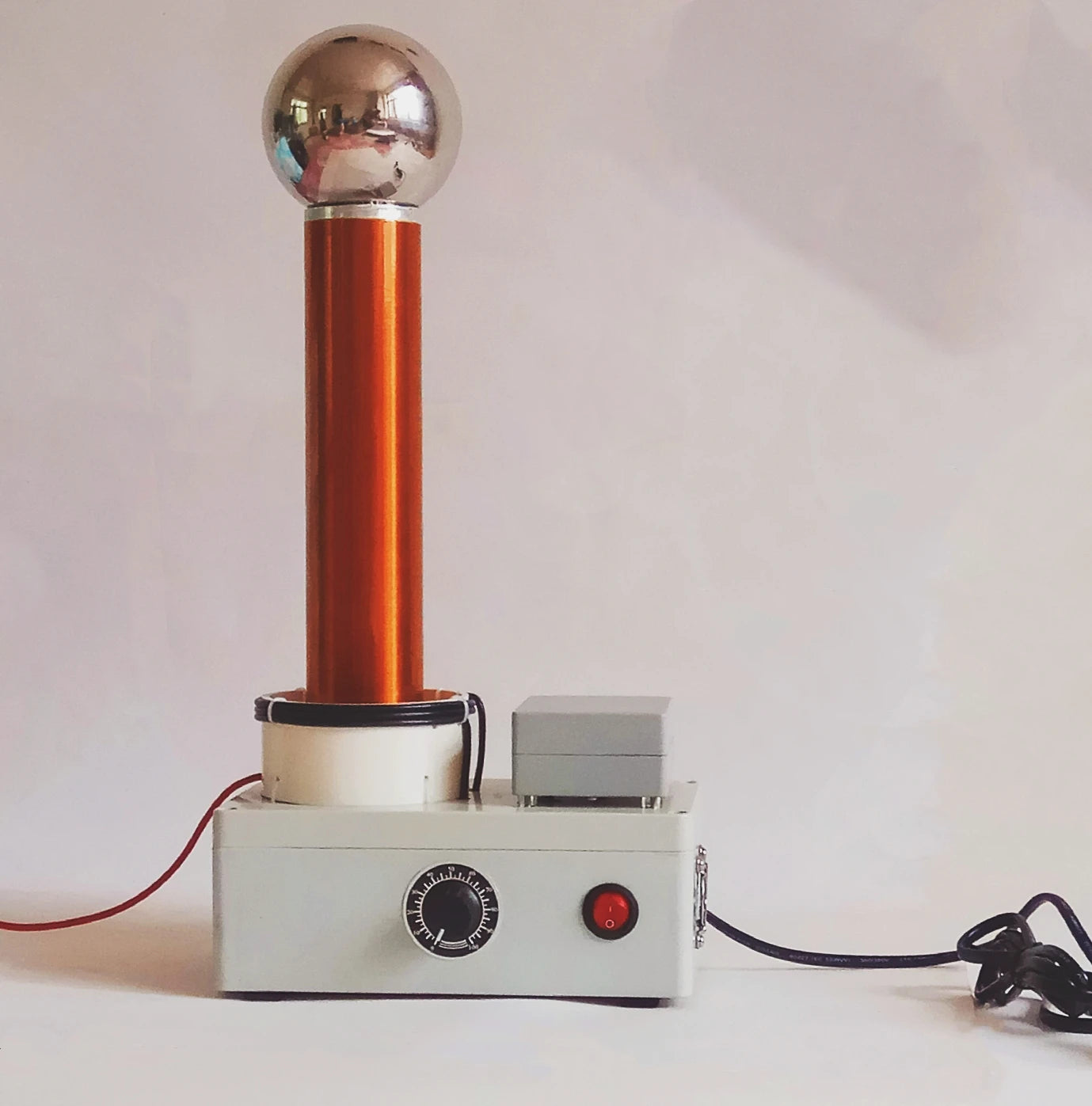

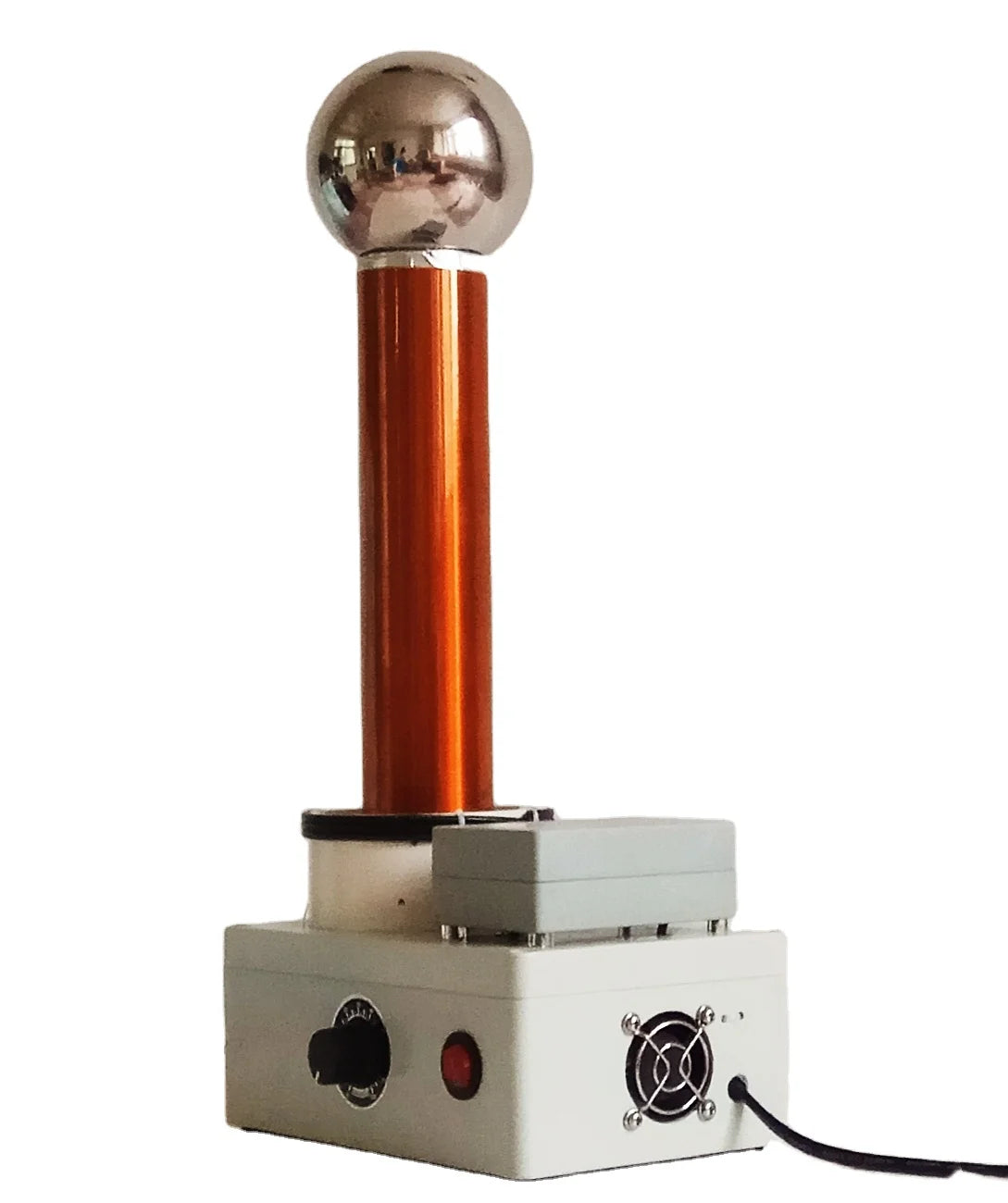

Spark gap Tesla coil

Product features:

1.The installation of the machine is simple and not error prone,It can also be used without understanding the circuit.

2.Volume after installation: long24cmXwide12cmXhigh41cm.

3.Package size:35cmX23cmX19cm.

4.Input voltage AC90V~230V.

5.Arc length15Within cm,power5W~30WAdjustable in range.

Video link URL:

http://v.youku.com/v_show/id_XMzg2MjU2OTI4MA==.html

All the lights in the link can be lit,You can buy it at will,Only the maximum brightness is not much different.

Tesla coil function

1.Can simulate lightning,A metal wire can be stuck on the ball with tape for discharge or another ground The wire is used to start the arc, which will be better.

2.sure30Turn on the gas lamp at an interval of about cm,It works well at night or in dark places,

3.Power in5~30Adjustable within watts,The current is a few milliamps,The feeling of touching electric arc by hand is similar to that of touching static electricity.From far to near, gradually close to the metal ball, just beginning to feel numb,It's too close. I feel some pain when I see the arc,The arc pulse can be adjusted very slowly so that most people can accept it.It should be noted that the principle of Tesla coil is different from that of normal motor,Tesla coil belongs to AC output and cannot produce hair erection effect .

Introduction to Tesla coil:

Tesla coil is also calledtesla coil,Because this is from"Tesla"This English name is transliterated directly.This is a distributed parameter high frequency series resonant transformer,High frequency voltages of 100000 to million volts can usually be obtained.The principle of traditional Tesla coil is to boost the common voltage by using the electromagnetic induction principle of transformer,Then give it to the juniorLCloopresonanceCapacitor charging,Charge to discharge threshold,Spark gap discharge conduction,primaryLCSeries resonance occurs in the circuit,Provide high enough pressure for the secondary coilexcitationpower,Followed by and secondaryLCThe frequency of the loop is equal,Make the inductance of the secondary coil and the distributed capacitance resonate in series,At this time, the discharge terminal voltage is the highest,So I saw lightning.to put it bluntly,It is an artificial lightning generator. There are Tesla coil enthusiasts all over the world,They made all kinds of equipment,Created dazzling artificial lightning,Very beautiful.

matters needing attention:

1.A lamp that cannot be used to light the LED(LED),The light of the LED will be broken.

2.When energized, only the discharge ball can be touched,Other circuit parts cannot be touched.The machine requires good grounding,In case of abnormal ignition, please adjust the gap of the lighter,General gap of lighter2mmwithin.

3.Tesla coil has strong electromagnetic interference,Keep heart patients away from people equipped with pacemakers.Stay away from precision instruments(at least1More than meters) Including switching power supply,Stepper motor,PLC,mobile phone,Network communication equipment.Unlike the upper splitter, you can't open the fingerprint lock.

About safety:

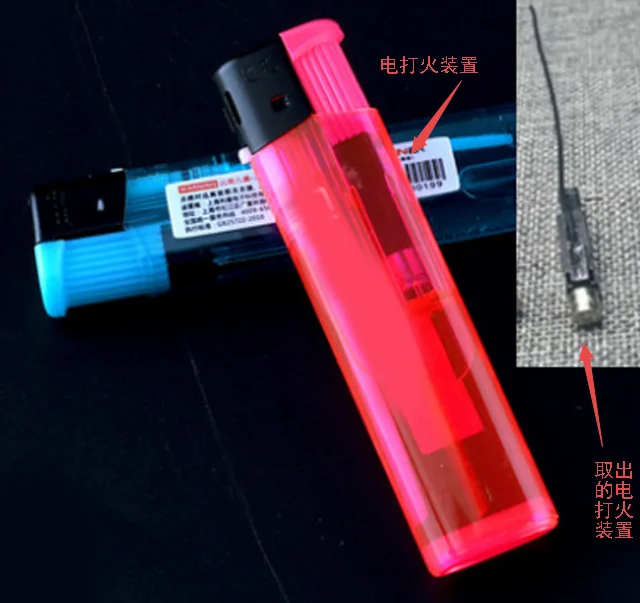

1. It feels when you are electrified,If you want to know if you can accept this feeling,You can feel it with the electric lighter of the lighter,It feels similar,Personally, I think the feeling of the machine is weaker than that of the lighter.

2.We do not advocate touching electric arcs,I don't want someone to force others to touch the arc,This is a voluntary experience.
