Custom Deauther MiNi WiFi ESP8266 Development Board with OLED 4MB ESP-07 - work for official boards modules Manufacturer
Custom Deauther MiNi WiFi ESP8266 Development Board with OLED 4MB ESP-07 - work for official boards modules Manufacturer
Regular price
$18.49 USD
Regular price
$18.49 USD
Sale price
$18.49 USD
Unit price
/
per
What is it

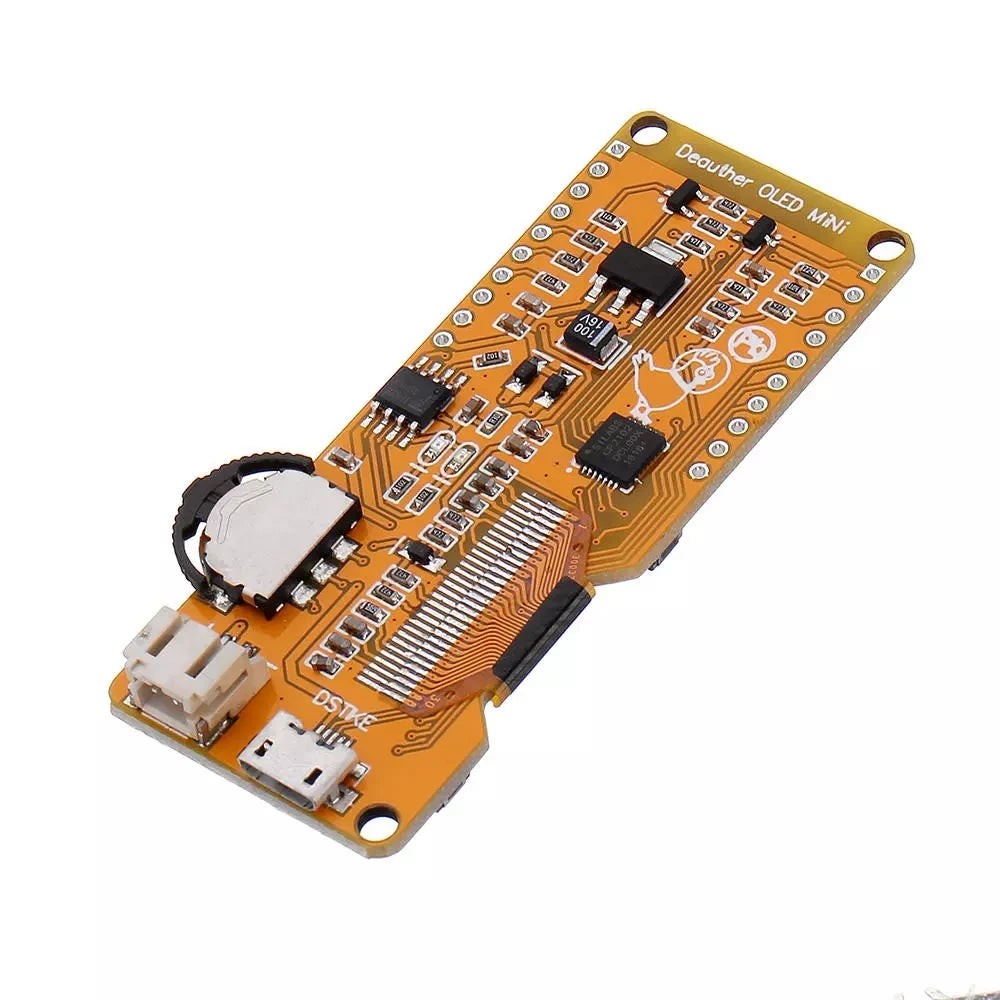

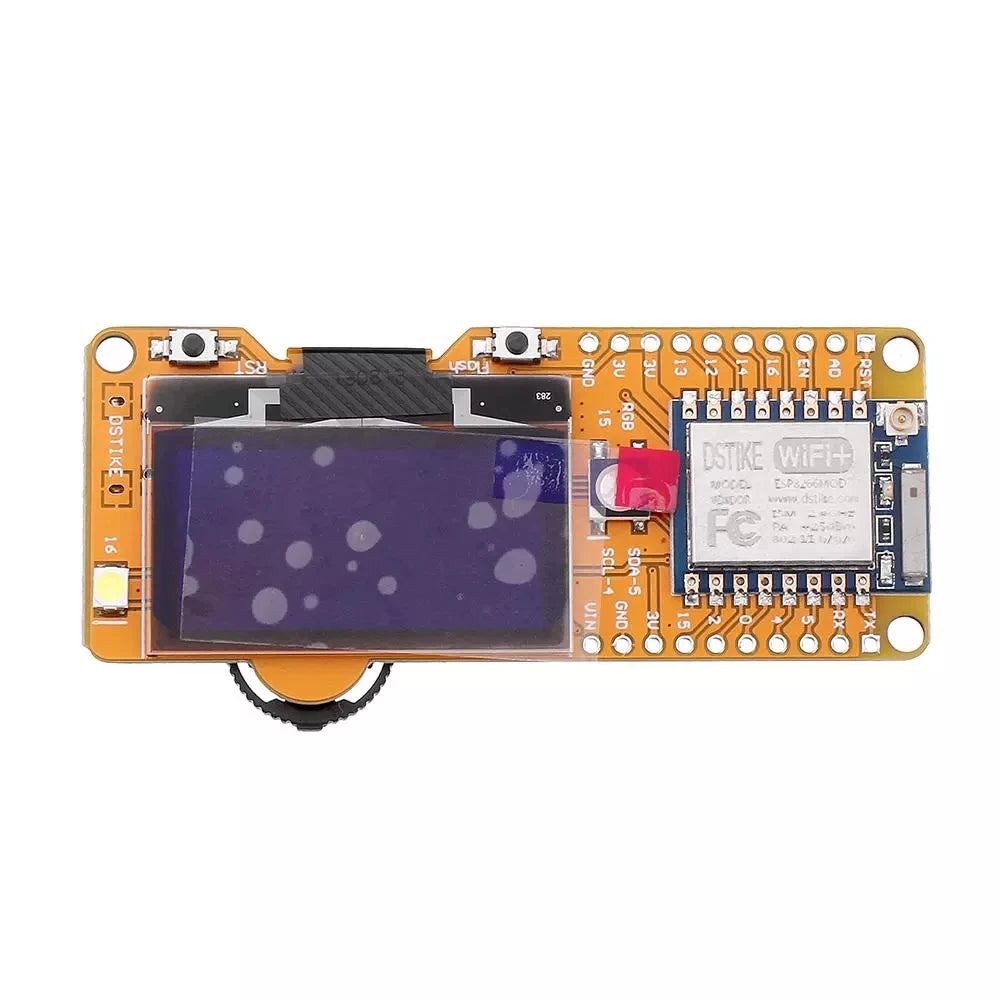

This tiny ESP8266 development board is a small version of our WiFideauther projects. It comes installed with the latest ESP8266
Deauther software.
With this software, you can perform different attacks to test WiFi networks.
Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit here .
You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.
GPIOs and hardware info:
* Display: SH1106 1.3" OLED
* Display SDA: GPIO 5 (D1)
* Display SCL/SCK: GPIO 4 (D2)
* WS2812b LED: GPIO 15 (D8)
* Button Up: GPIO 12
* Button Down: GPIO 13
* Button Select: GPIO 14
* High Light LED: GPIO16
All ESP8266 pins break out.
What makes it special
* Only ~80mA power usage
* LM39100 Low Voltage Low-Dropout Regulator
* TP4056+PL5353A battery protection solution
* Included 2dB antenna
* All GPIO breakouts and 3.3 and 5V output
* 2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
* Protection: short, over charging, over discharging, temperature
Usage

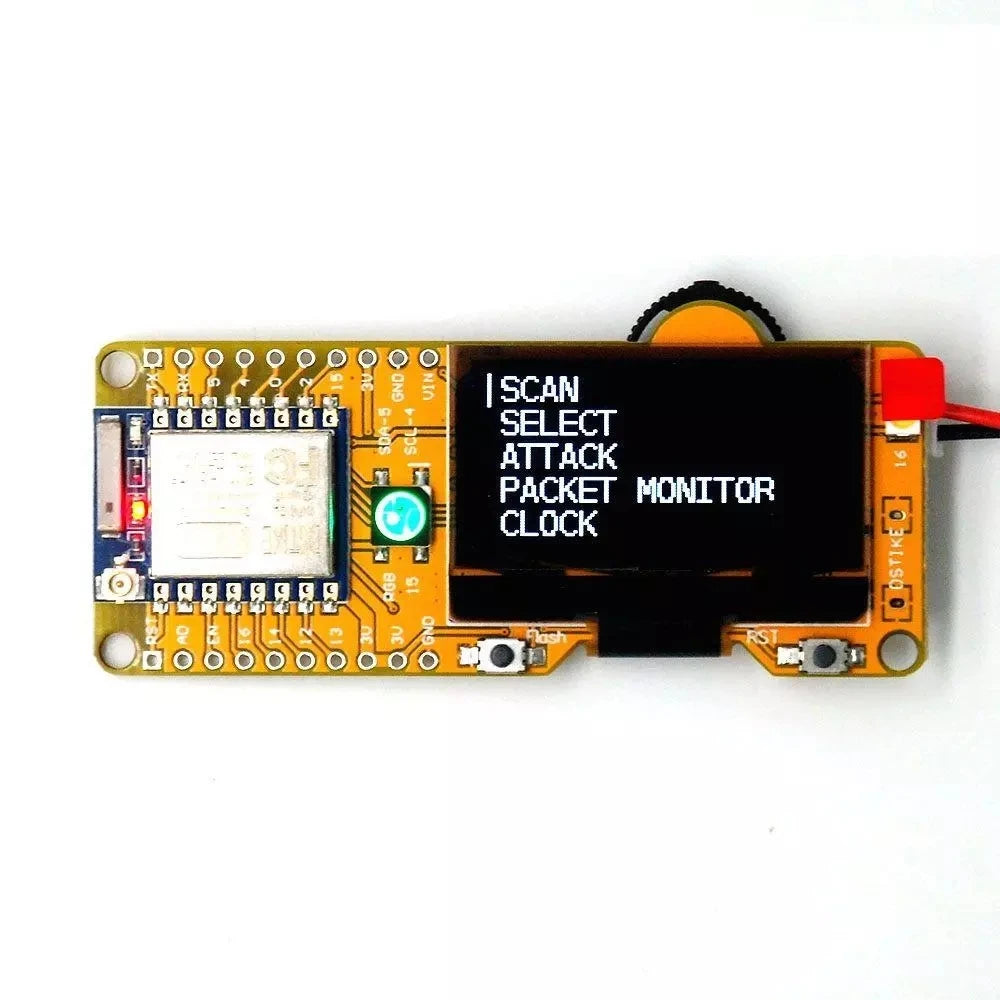

You can use it with the display and buttons:
https://github.com/spacehuhn/esp8266_deauther/wiki/Setup-Display-&-Buttons
You can also connect to "pwned" with the password "deauther" and use the web interface:
https://github.com/spacehuhn/esp8266_deauther/wiki/Web
If you lost the password you can reset it:
https://github.com/spacehuhn/esp8266_deauther/wiki/FAQ#how-to-do-a-reset
WiKi:
https://github.com/spacehuhn/esp8266_deauther/wiki
Blog:
https://dstike.com/blogs/news/about-those-co py cat-products-of-mine

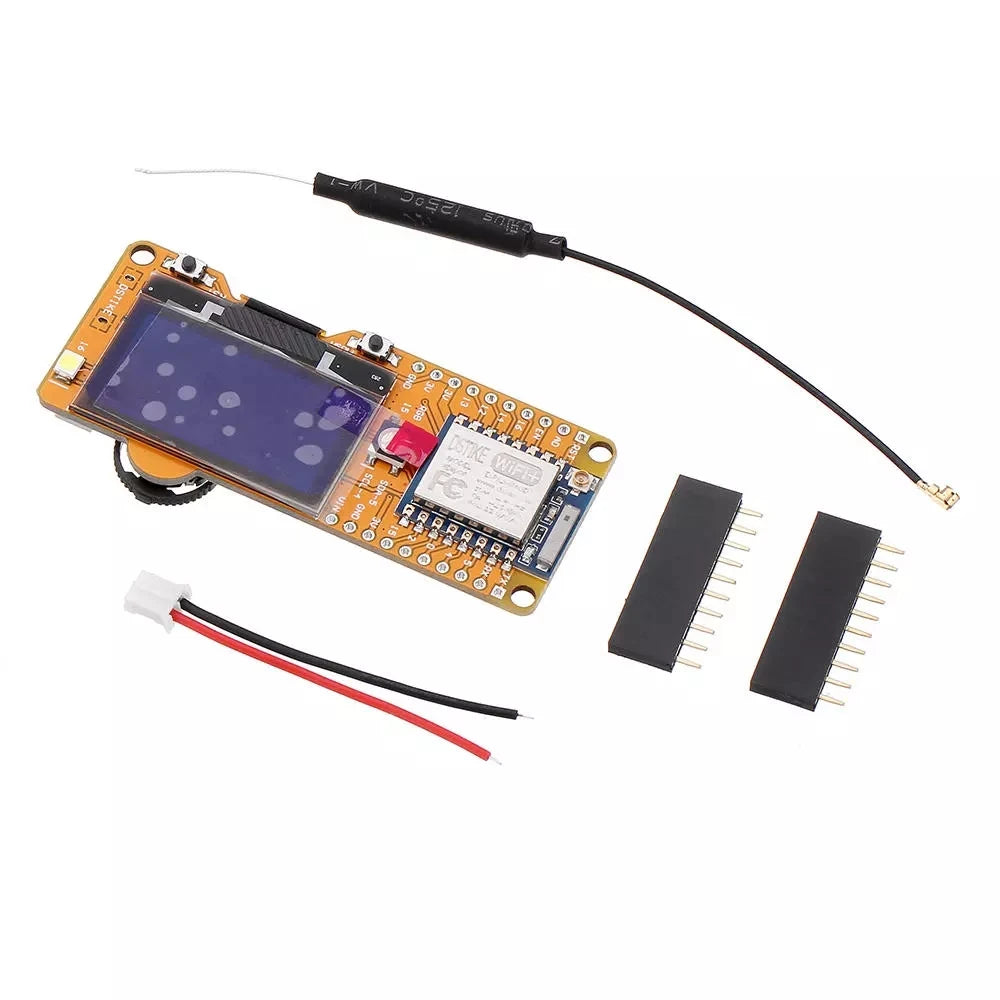

Package Included:
1 x Deauther MiNi WiFi ESP8266 Delopment Board with OLED
