Custom DC5-60V Solar Anti-backflow Anti-backflow Ideal Diode Constant Current Power Supply Module Battery Charging Anti-backflow Module

DC5-60V solar anti-backflow anti-backflow ideal diode constant current power supply module battery charging anti-backflow module

Product selling point:

1. Using high-quality materials, the quality is guaranteed

2. Anti-backflow solar panel

3. All kinds of battery charging anti-backflow

4. DC-DC constant voltage and constant current module output anti-reverse irrigation

5. More applications to play freely

parameter:

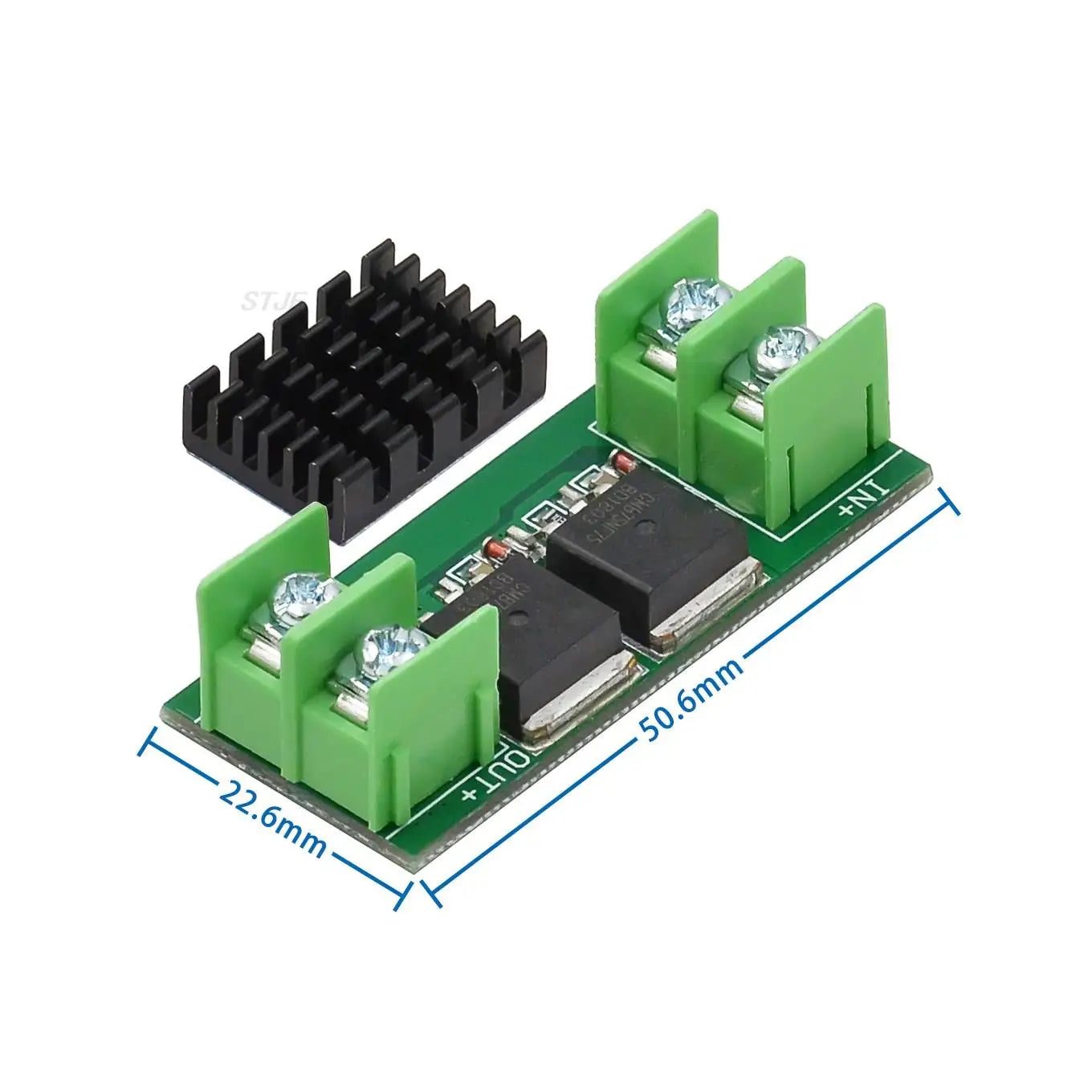

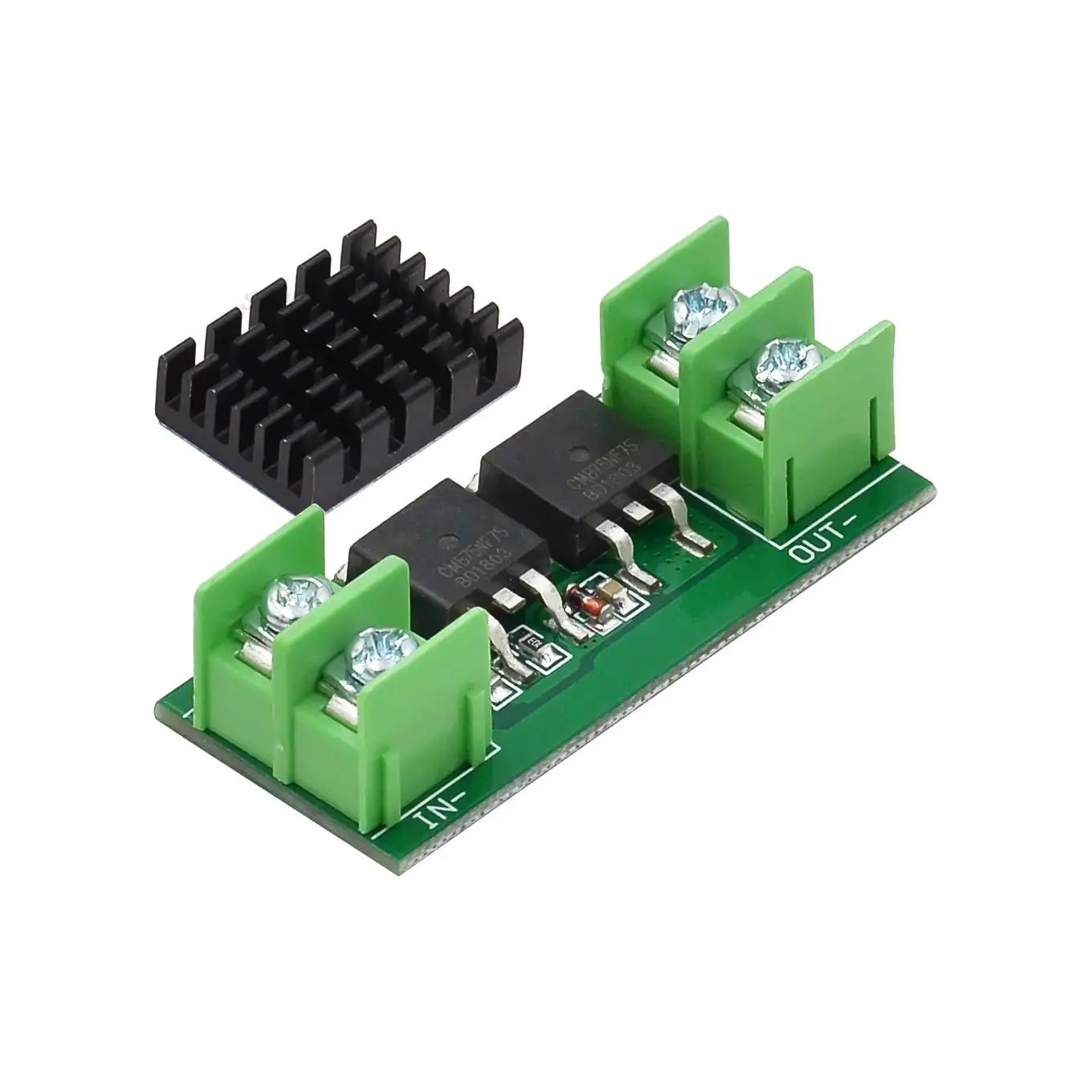

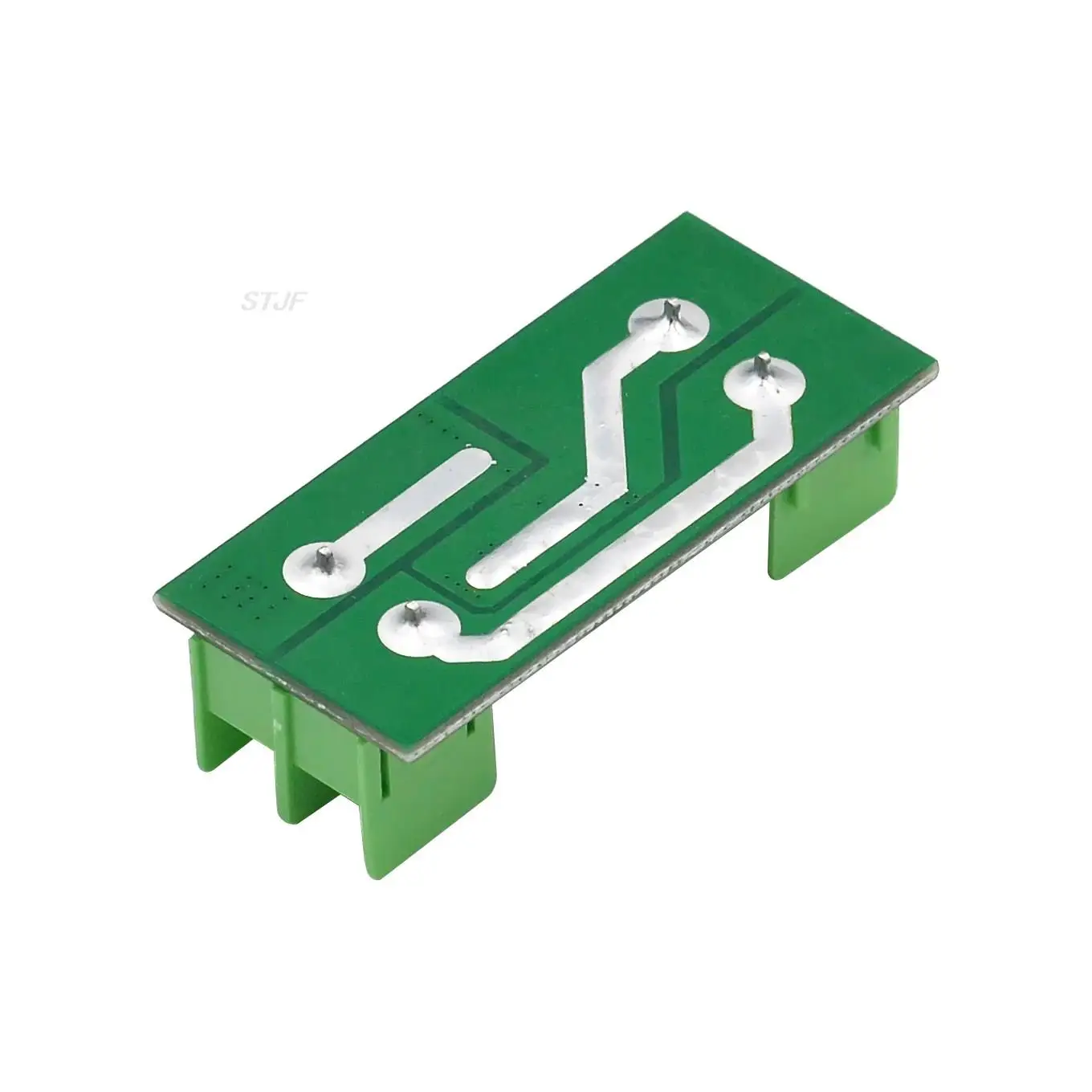

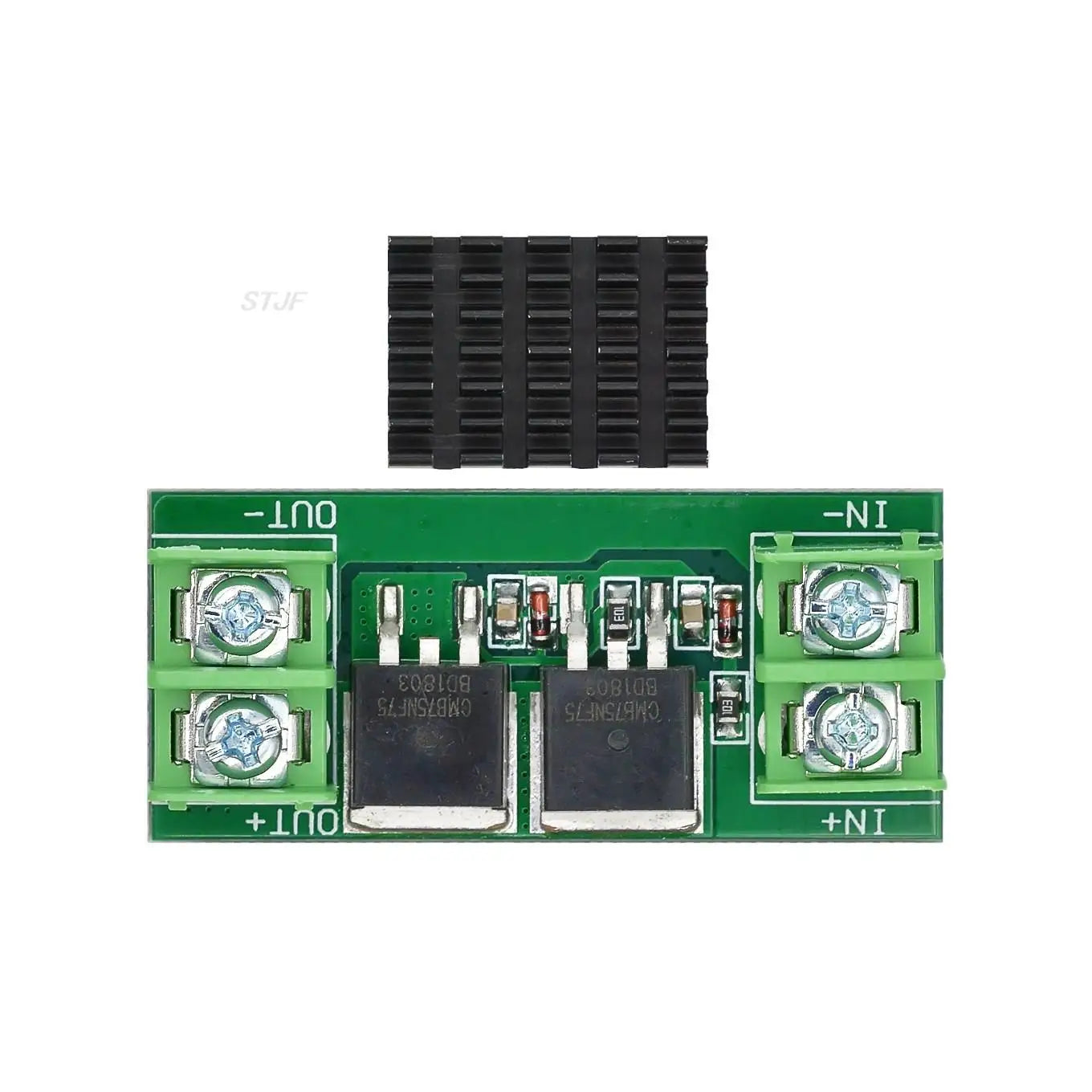

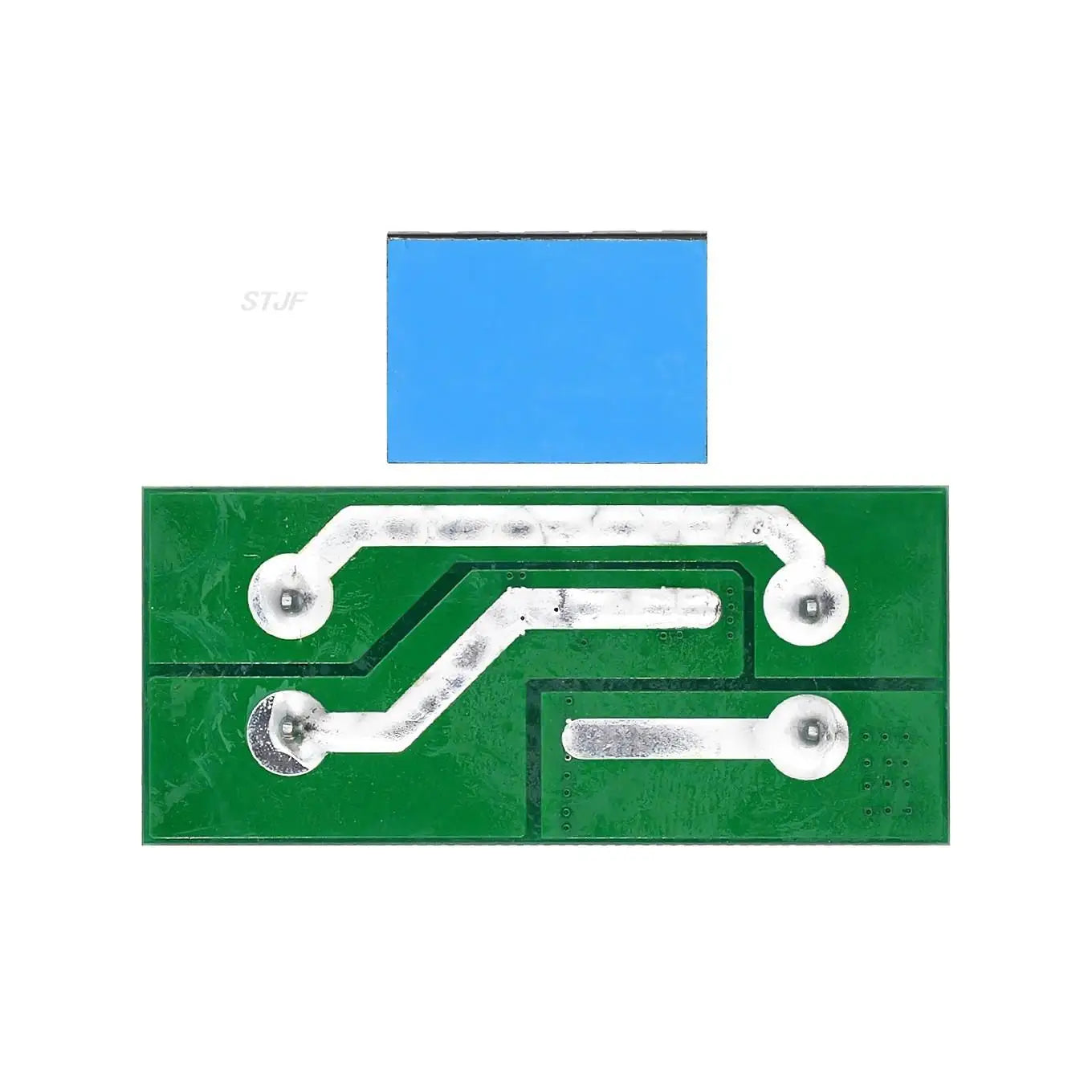

Product name: 15A ideal anti-backflow diode

Working voltage: DC5-60V

Working current: 15A (MAX) peak value 18A (without heat sink working within 10A for a long time, it can be used in parallel to increase the working current)

Static working current: 0.2mA (at 12V, there will be errors when the working voltage is different)

Working temperature: -40~+85°

It is used for anti-backflow of solar panels and anti-backflow of battery charging. Effectively reduce heat generation and improve efficiency

Ideal anti-backflow diode, 8 milliohm internal resistance in parallel, ultra-low drop, replace ordinary diodes

Package list:

Anti-backflow module*1
