Custom DC Gear Electric Motor JS-50 3V 5RPM Metal Outer Reduction Gear Box Mini DC Gear Motor Display Stand Dedicated Manufacturer

Description

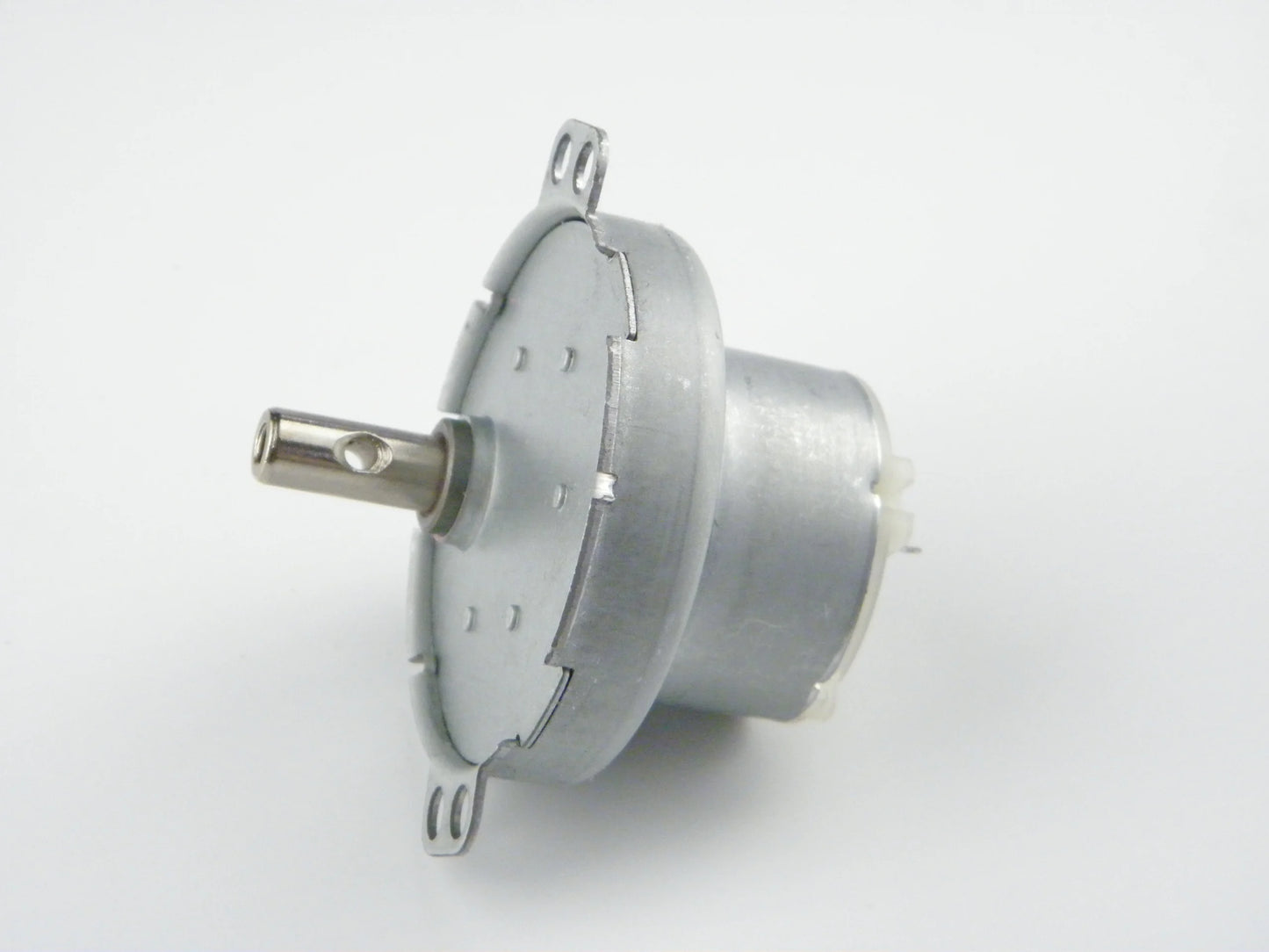

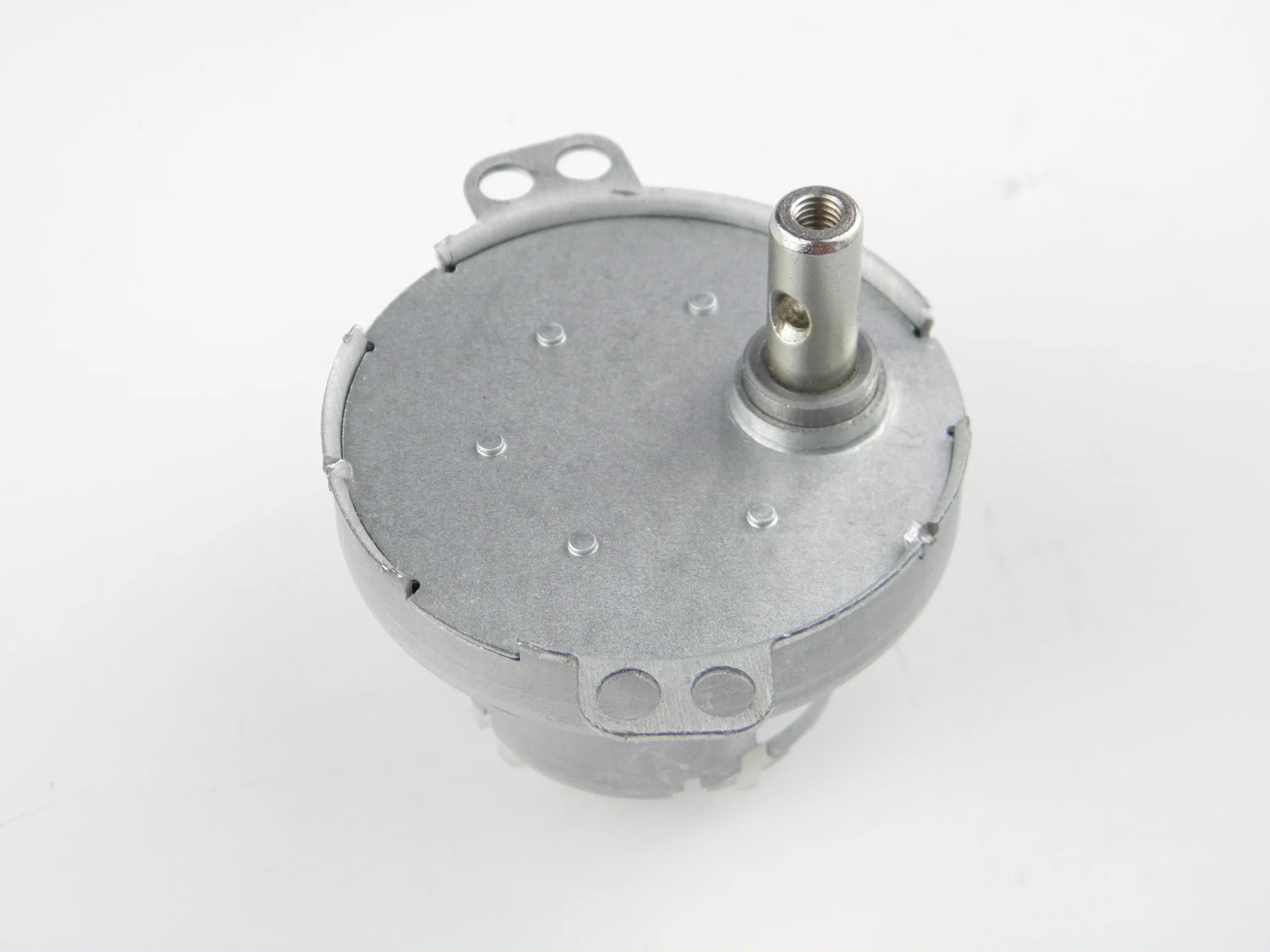

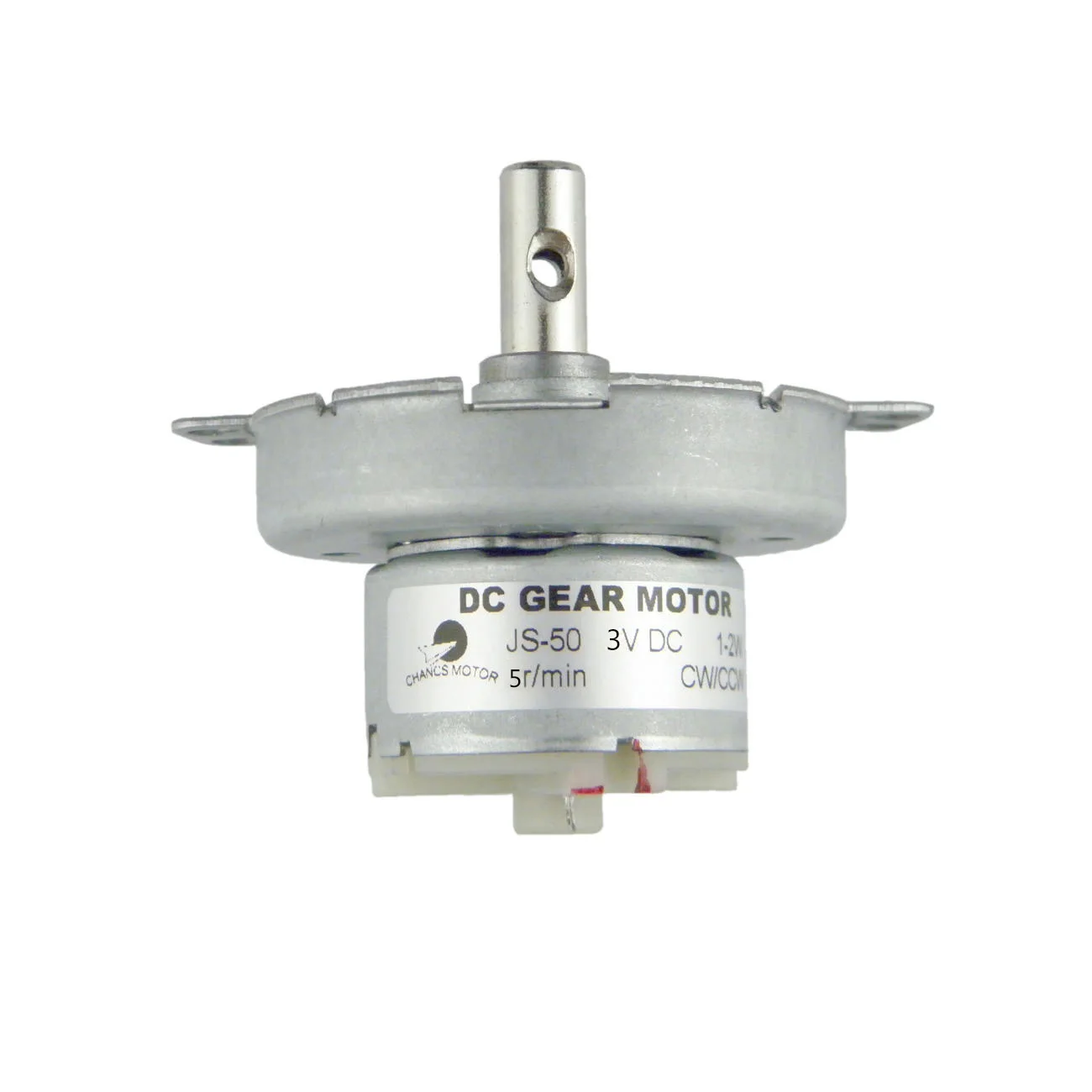

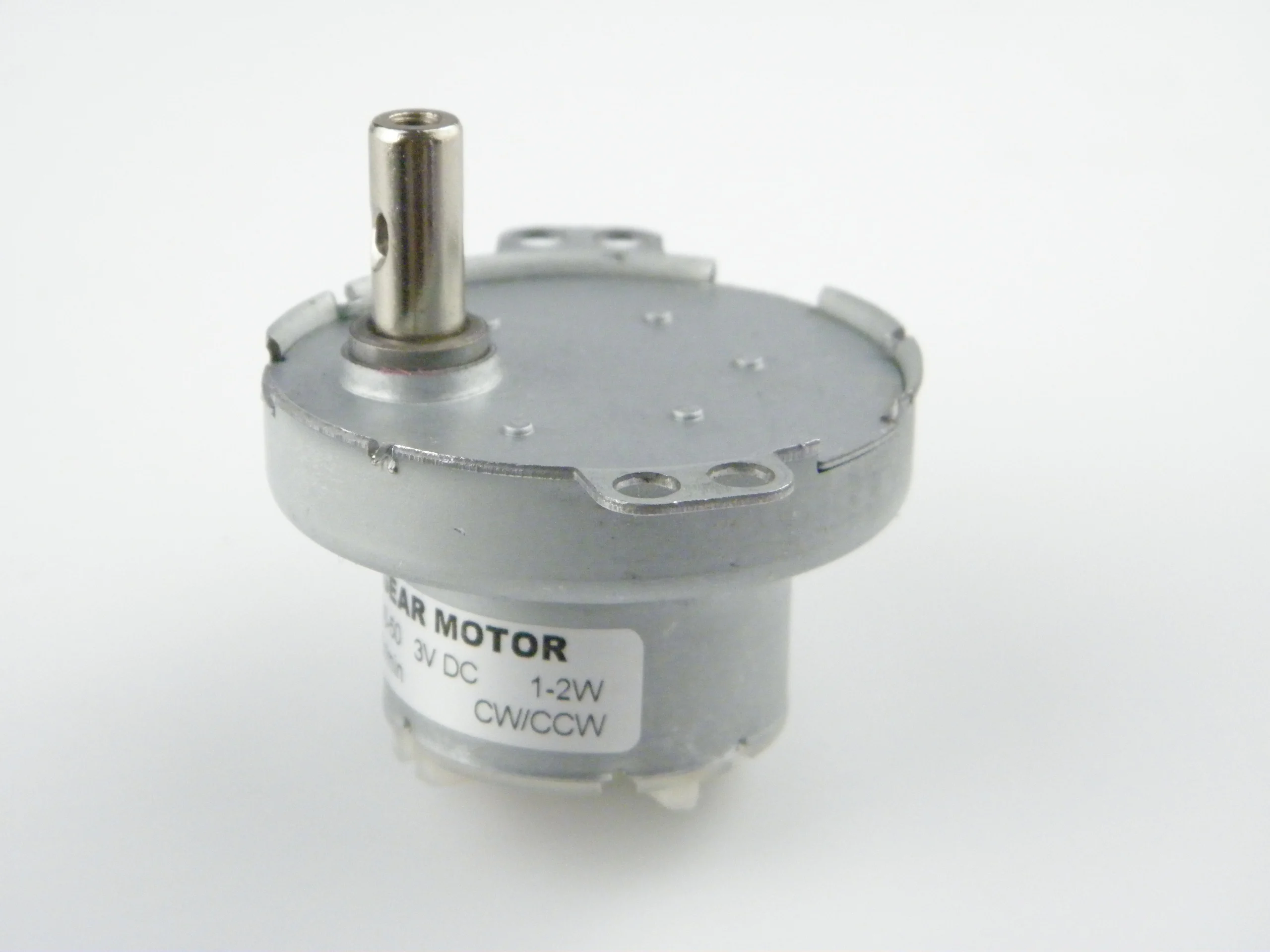

JS-50 DC geared motor has an iron shell on the outside and plastic gears on the inside.

The plastic gears are injection molded from high quality POM material, which is wear-resistant, low noise and not easy to deform.

Application

Mainly used for direct current electric fan wind guide mechanism, swing head mechanism, heater, heater, all kinds of display stands, arts and crafts, and so on.

Lighting fixtures, toys and other utensils, automatic doors and windows, vending machines, automatic barbecue grills, medical equipment, and air conditioning fan guide motors for all types of air conditioners. and microwave oven turntable motors, etc.

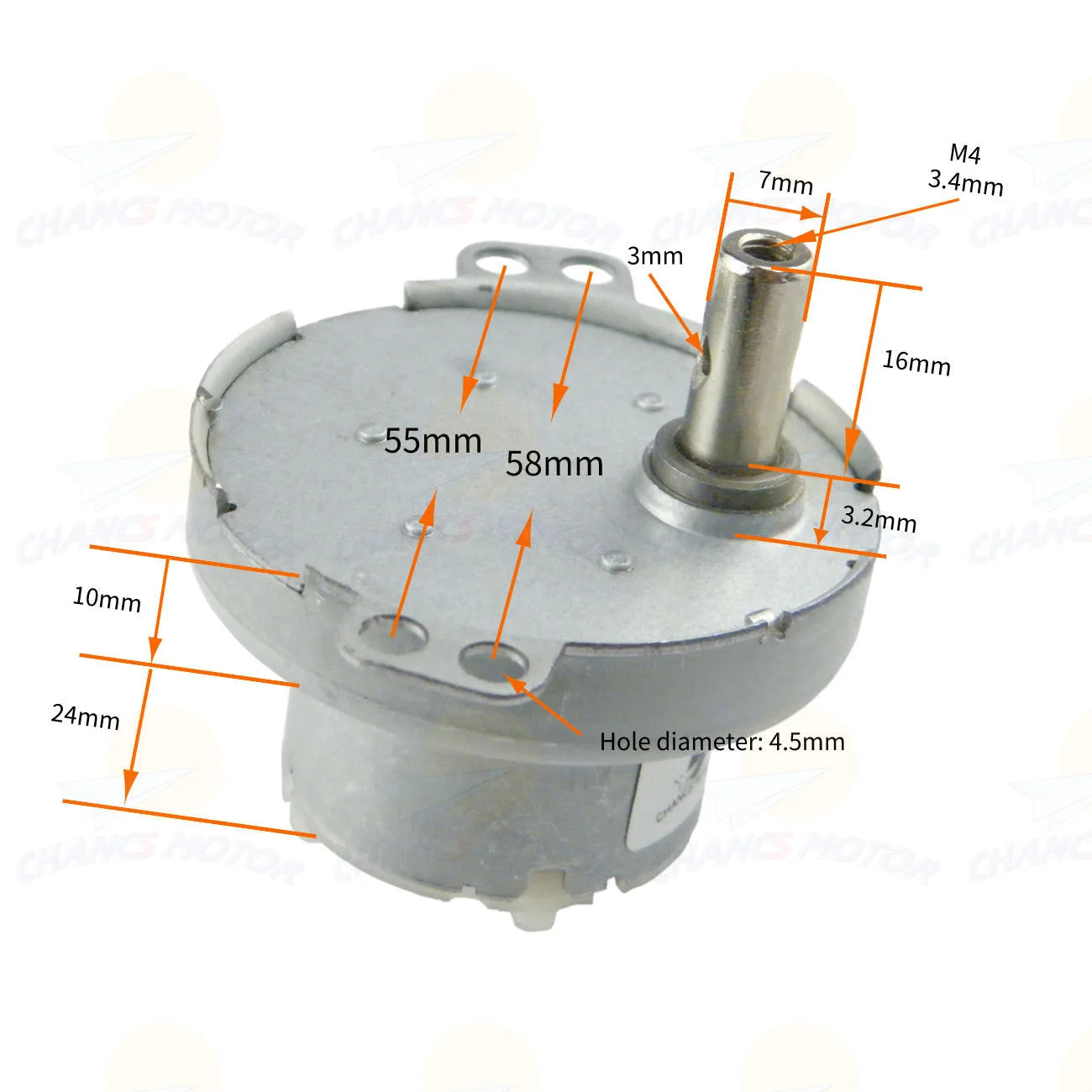

Shaft Diameter: 7mm (0.28");
Shaft Length: 15.5mm(0.61")/15mm (0.59");
Shaft Thread Hole Inner diameter: φ3.4mm (M4);
Size: 50*50*34mm (1.97"*1.97"*1.34");
Working Voltage: DC 3V;
No-Load Current: 20mA;
Speed: 5r/min;
Power: 2W;
Rotation: CW/CCW

There is a slight discrepancy in measurements, please check before ordering!!

1.The faster the speed, the quieter the relative noise will be. And, the higher the speed, the lower the torque.

2.This motor can change the direction of rotation by simply changing the positive and negative poles of the DC power supply.
