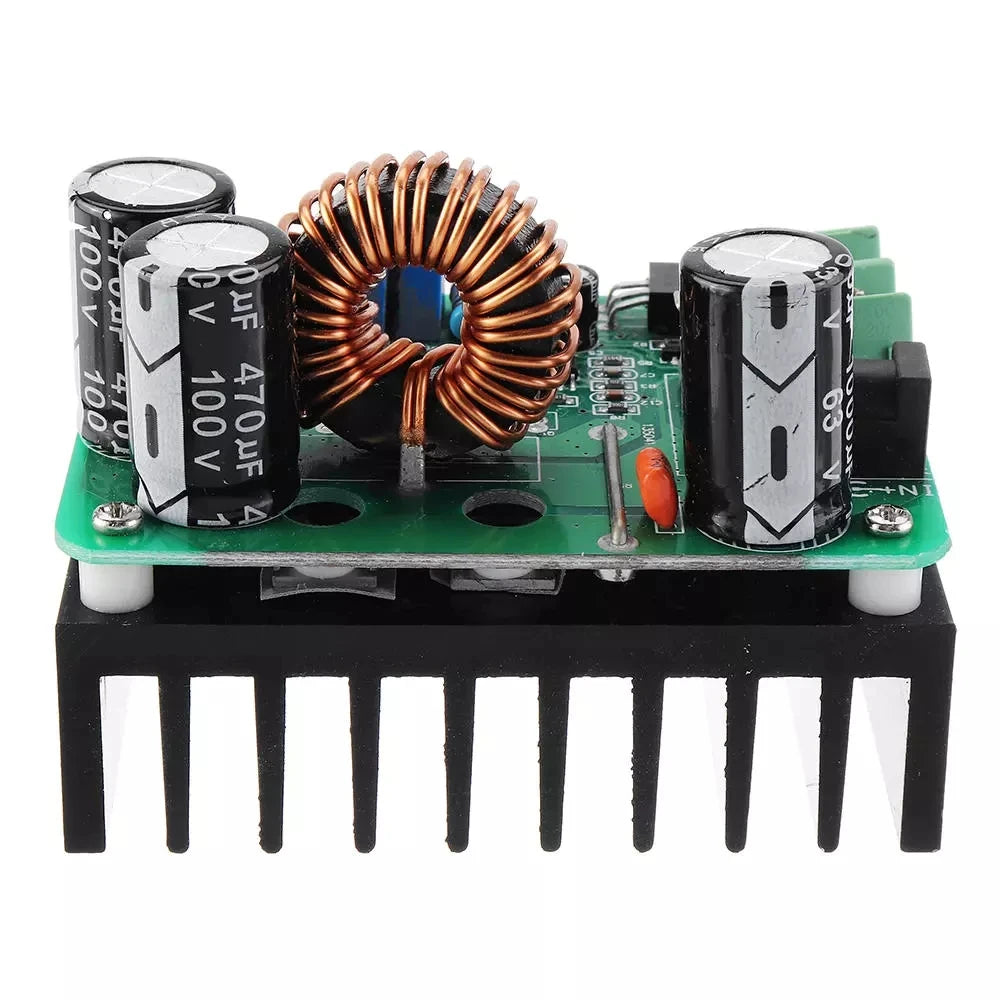

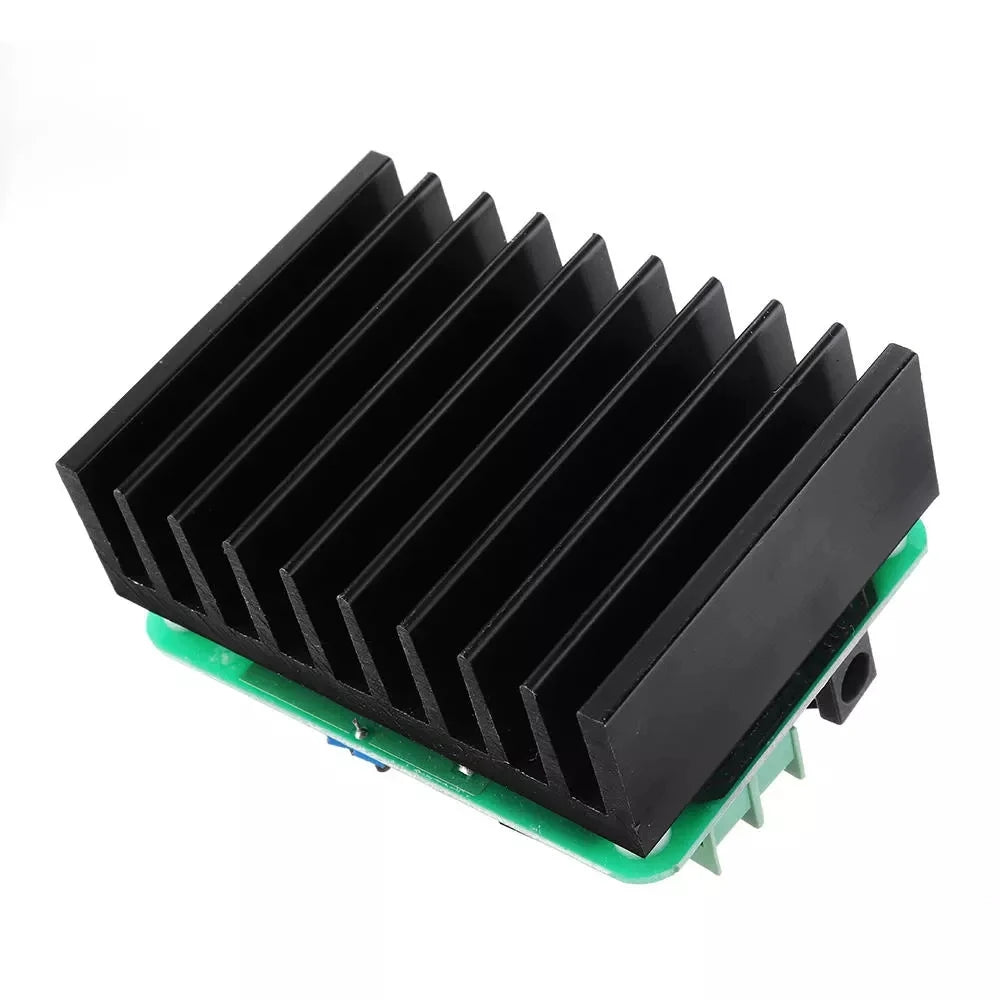

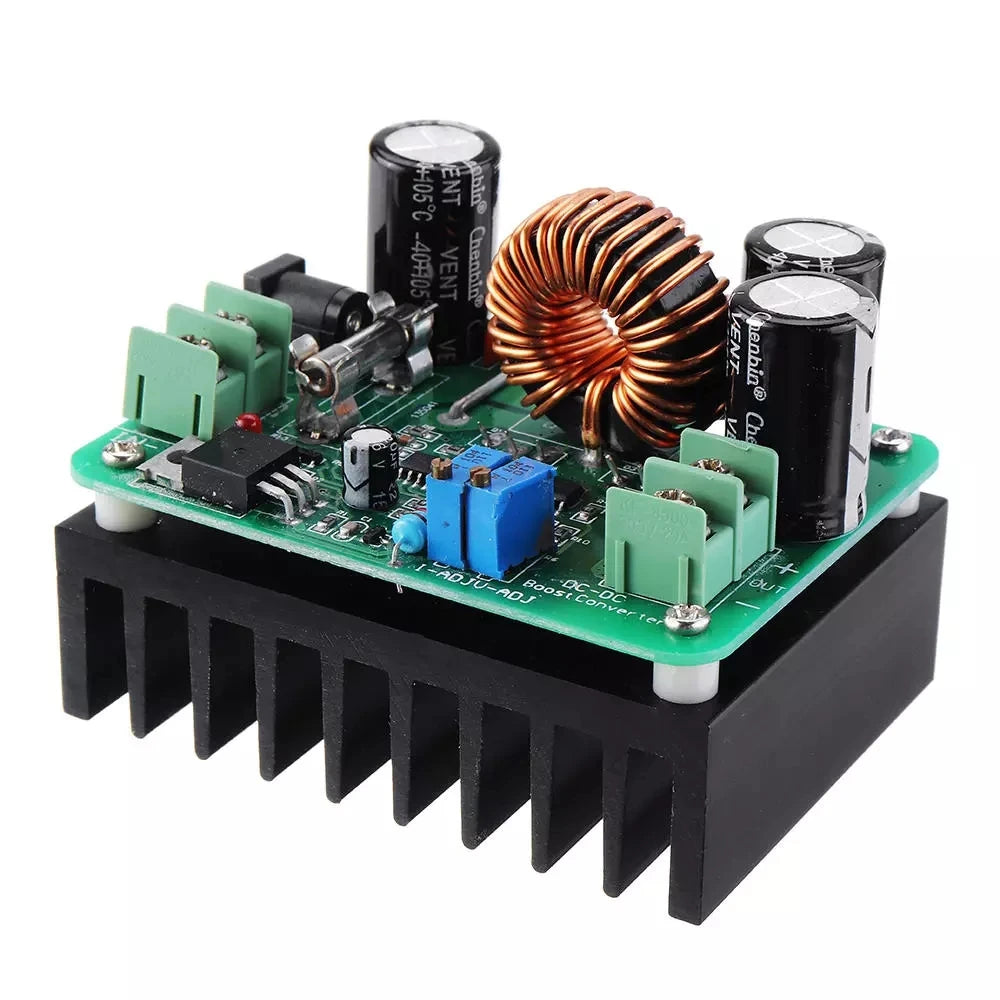

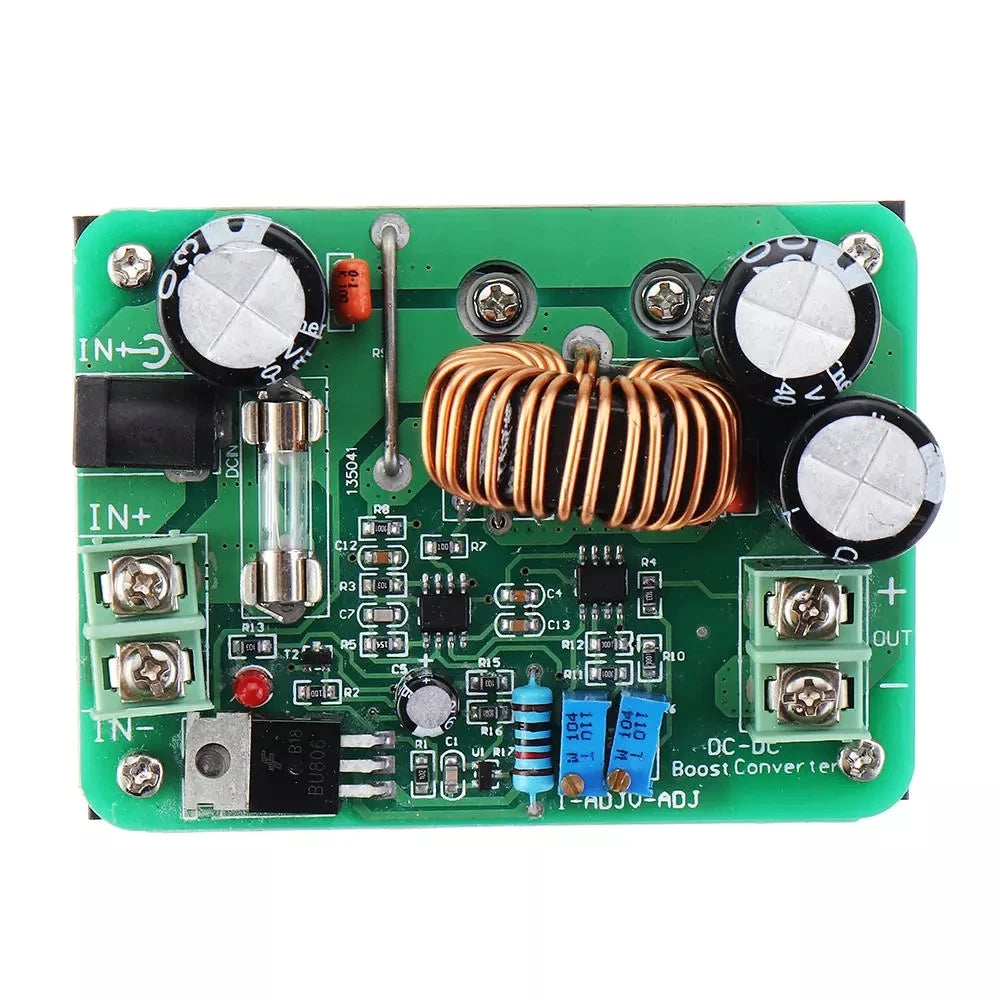

Custom DC-DC 10-60V to 12-80V 600W 10A Boost Converter Step Up Voltage Regulator Power Supply Module Transformer Adjustable Output Manufacturer
Custom DC-DC 10-60V to 12-80V 600W 10A Boost Converter Step Up Voltage Regulator Power Supply Module Transformer Adjustable Output Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
Module Properties: Step-up / Boost DC-DC Converter
Input Voltage: DC 10 ~ 60 V
Output Voltage: DC 12 ~ 80 V (adjustable, O/P Voltage more than the I/p Voltage by 2V)
Output Current: 10A Max
Input Current: 15 A Max (Under normal circumstances please 12A Current)
The minimum voltage difference: 2V
Output Power: Input 12V Max 120W, in 24V Max 240W, in 60V Max 600W (P=U x I)
Efficiency: 95% Max (eg input: 30V output: 40V 5A n: 93%)
Output Short-circuit Protection: Yes
Input Reverse Protection: None

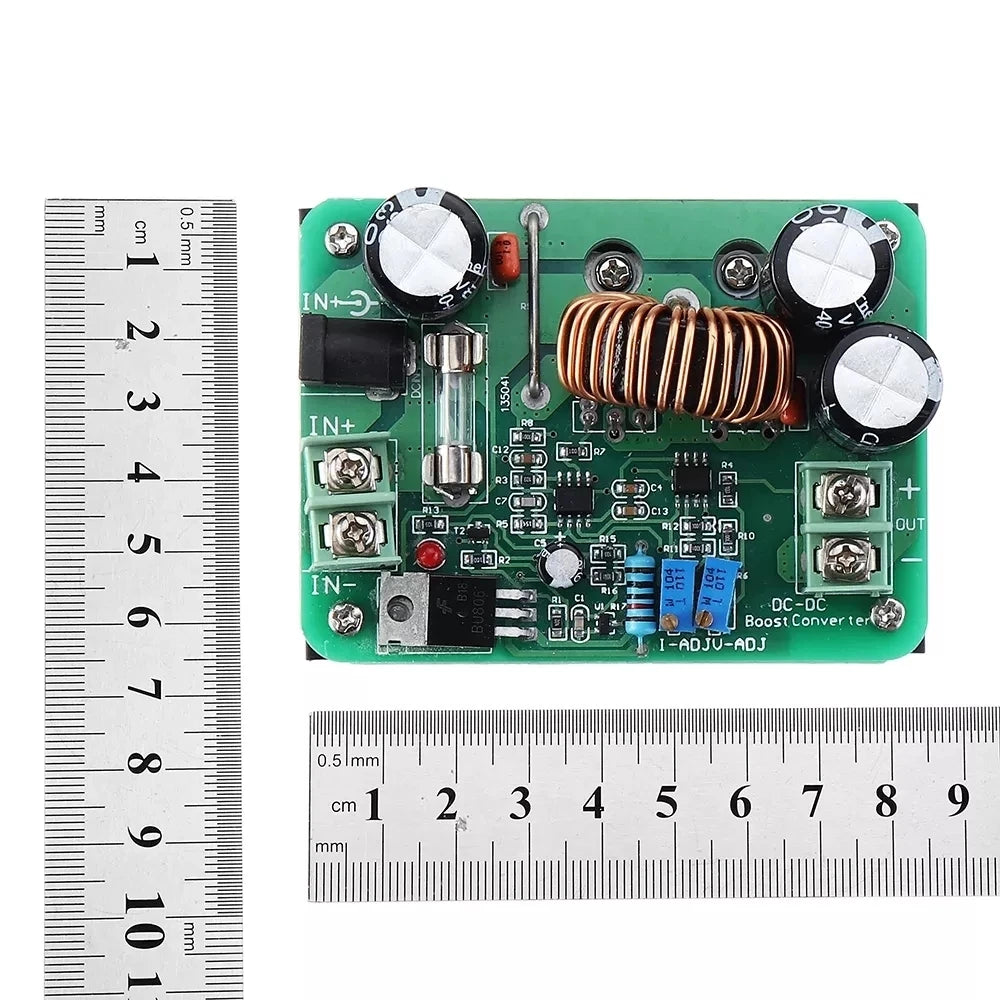

Size: 85 x 63 x 64mm (L x W x H )
Weight: 251g
Material: CCL
Package includes:
1 x DC-DC Power Supply Boost Converter
