Custom DC 3V-6V bis 400kV 400000V Boost Step up Power Module High Voltage Generator Generator

Product introduction
. The high voltage module is made of The principle of Tesla coil, and outputs
high voltage pulse current. It is small in size, high in efficiency, and has simple
peripheral circuit (only need to connect the switch to the battery).
， This module is the finished product module of high-voltage inverter transform
er/booster used for small scientific production. After dc3V-7 .2V voltage is inpu
t at the input end, about 200000 VOLTS of DC high voltage (about 1-2 cm arc)
can be obtained at the output end. Note that there is no ignition and smoke ligh
ting function.

Product parameters
Input voltage: DC 3V-7.2V
Input current: 2A-5A
High voltage type: pulse current type
Output voltage: about 200,000V (please pay attention to safety when using)
High voltage bipolar discharge distance: 10mm-20mm
Output high voltage line length: about 1 00mm
Length of input power cable: about 100mm (red line is positive) .

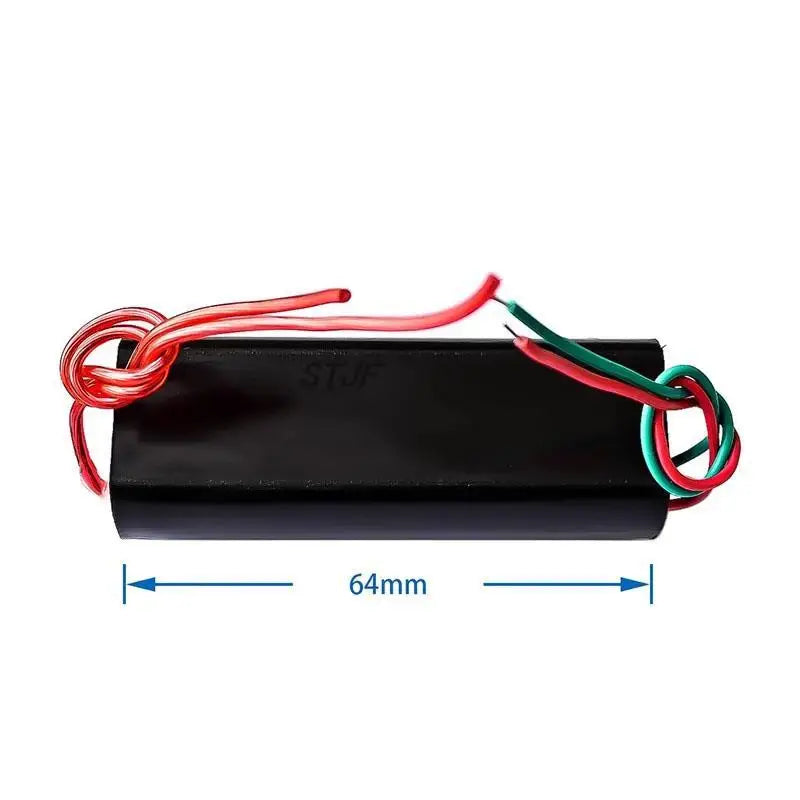

Dimensions: φ 24*6 4mm
Wiring: the red line is the positive pole of the power supply. The output is two
high temperature and high pressure resistant silica gel wires
About power supply: can use a single 3.7V lithium battery or two in series, such
as 1 8650 battery, idle mobile phone battery (to remove the protection plate, the
recommended capacity of more than 2000mAh) or nickel-cadmium/ni-MH battery
pack, 4V or 6V lead-acid battery, etc.

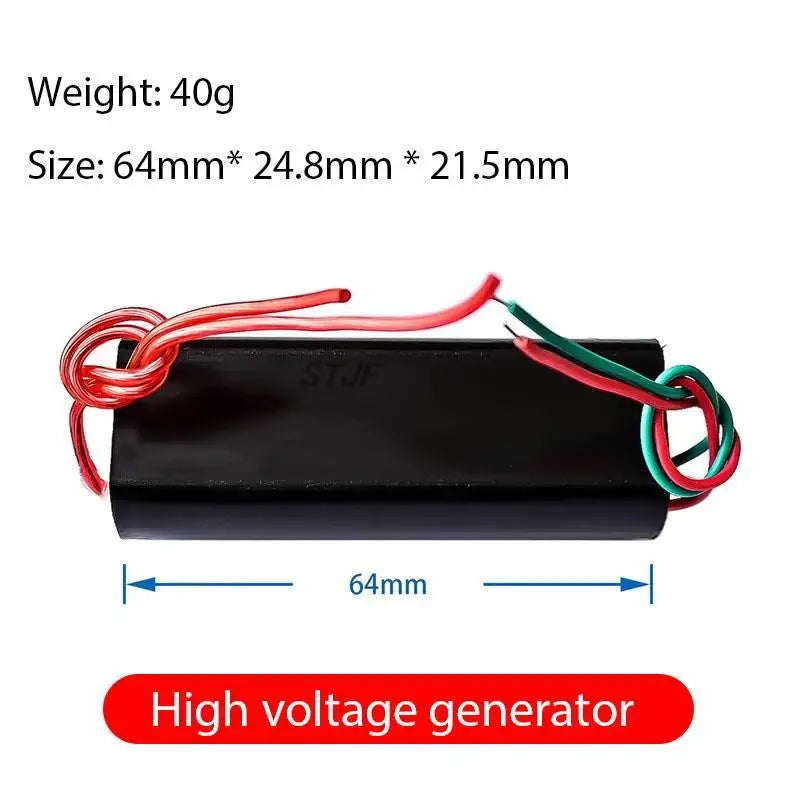

Product size
