Custom DC 3V-5V Rain Water Level Sensor Module Detection Liquid Surface Depth Height for Arduino DIY Compatible With UNO MEGA 2560

Water Sensor is an easy to use, cost-effective water level/water drop detection sensor, which measures the water drop/water volume by a series of exposed parallel wire trails. Easily complete the conversion of water to analog signals, and achieve the effect of water level alarm.

Specification parameters:

Product name: Water level sensor

Working voltage: DC3-5V

Working current: less than 20mA

Sensor type: Analog

Detection area: 40mm x 16mm

Production process: FR4 double-sided spray tin

Operating temperature: 10℃-30℃

Working humidity: 10%-90% no condensation

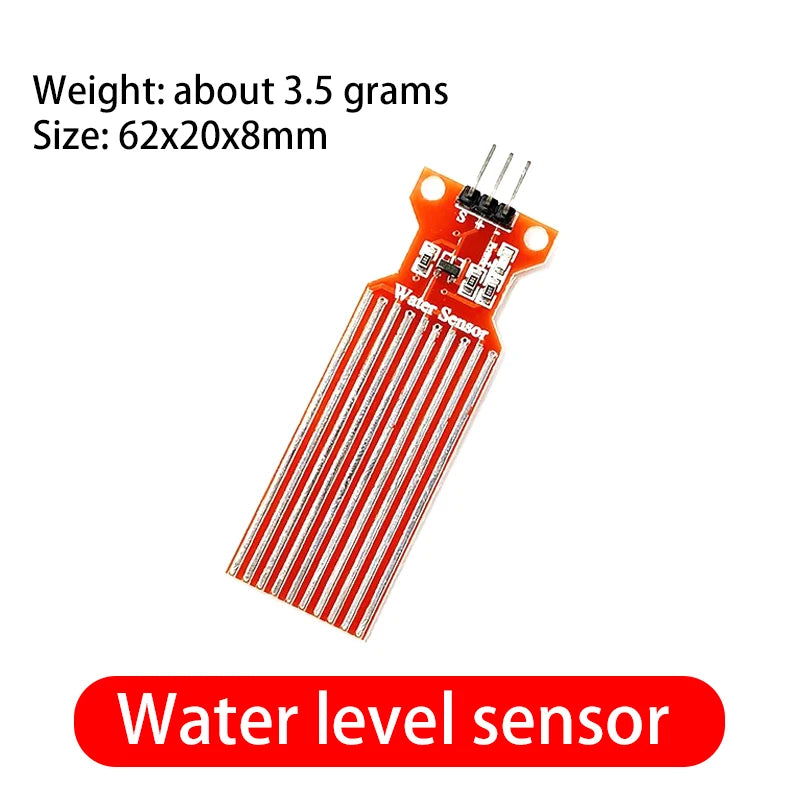

Product weight: 3.5g

Product size: 62mm x 20mm x 8mm

Packing: Sealed with electrostatic bag
