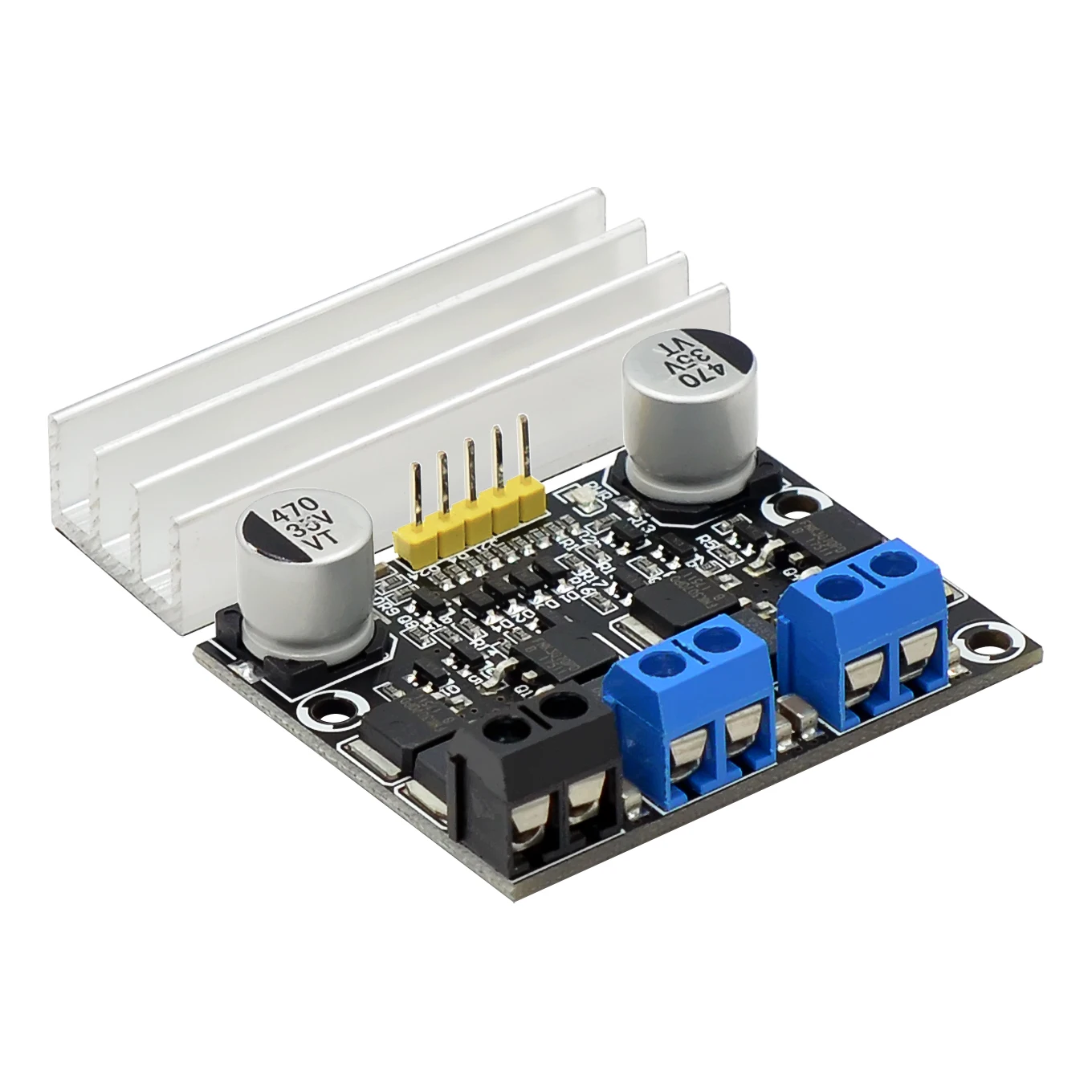

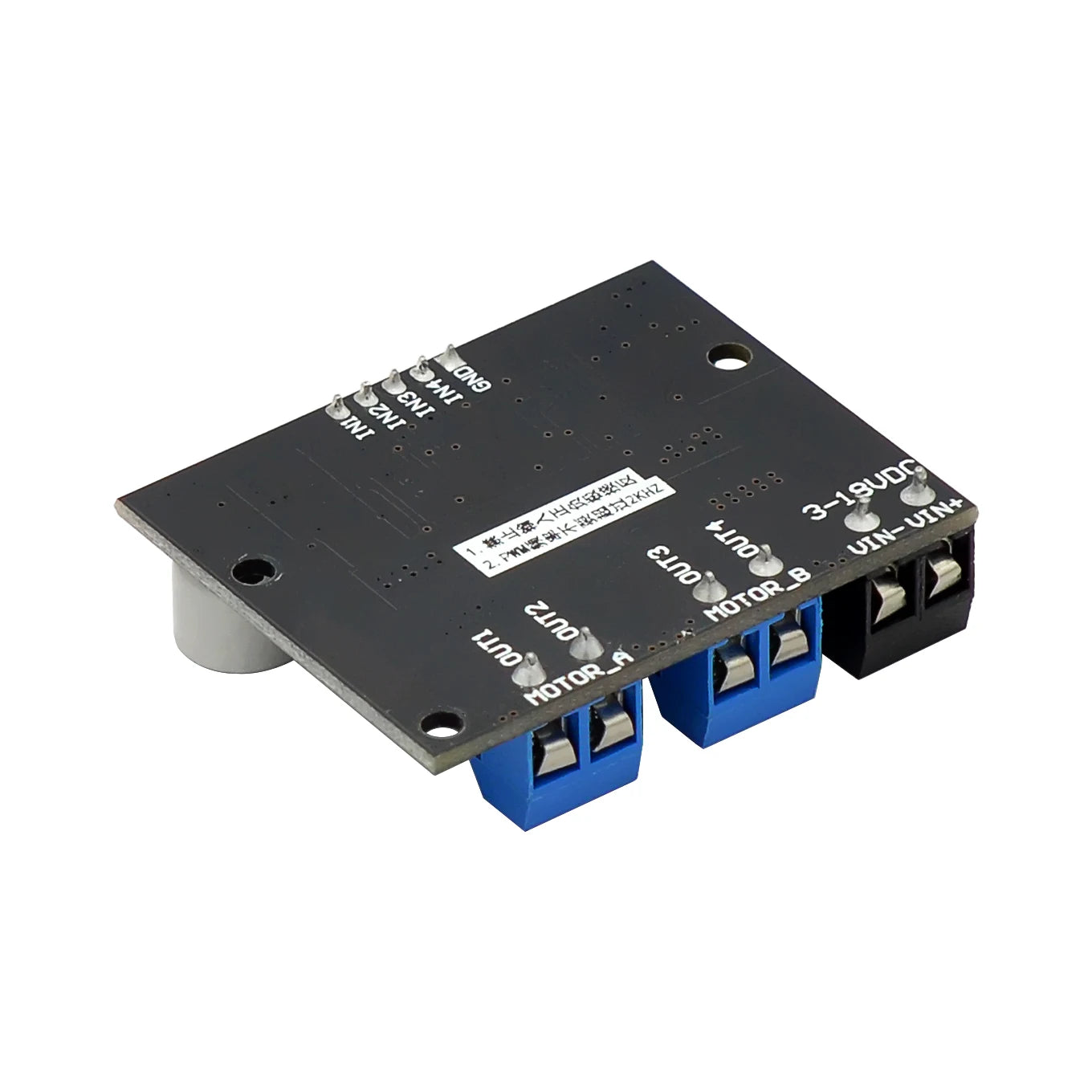

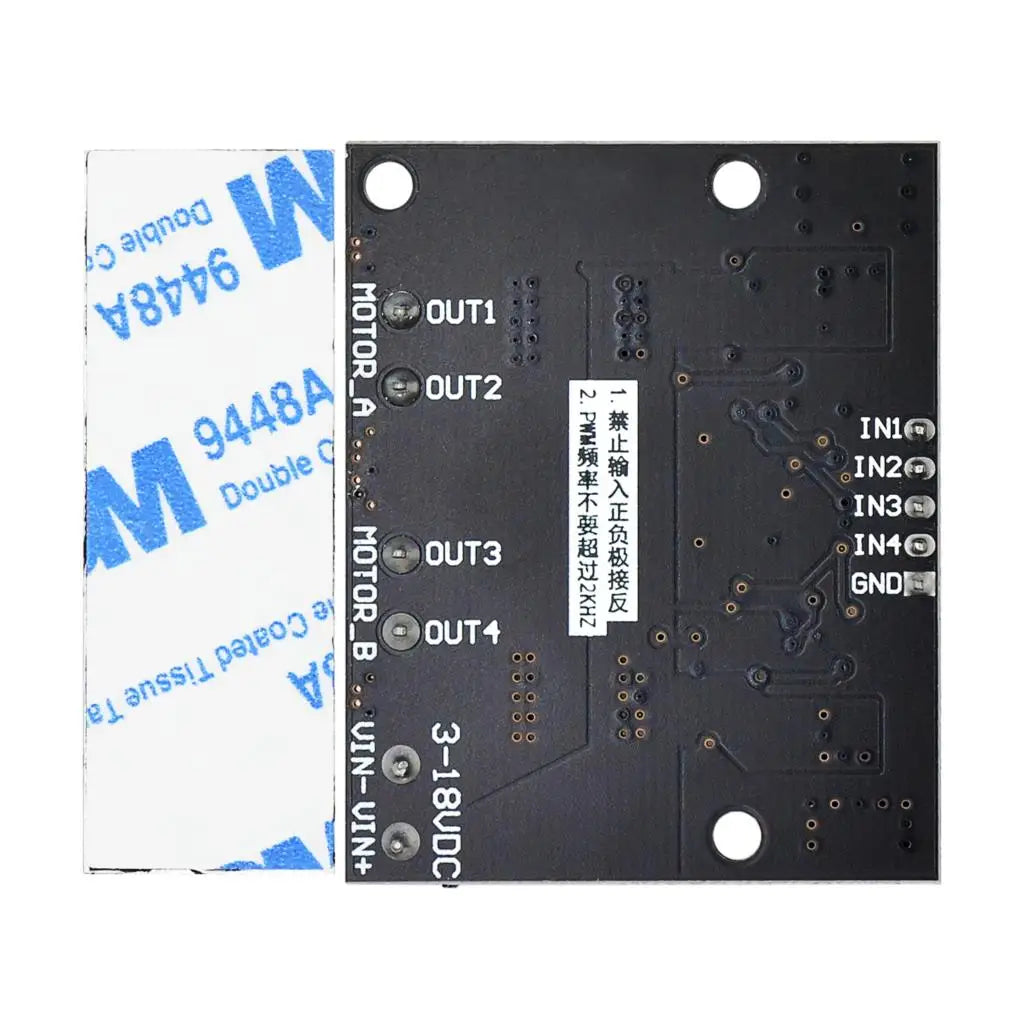

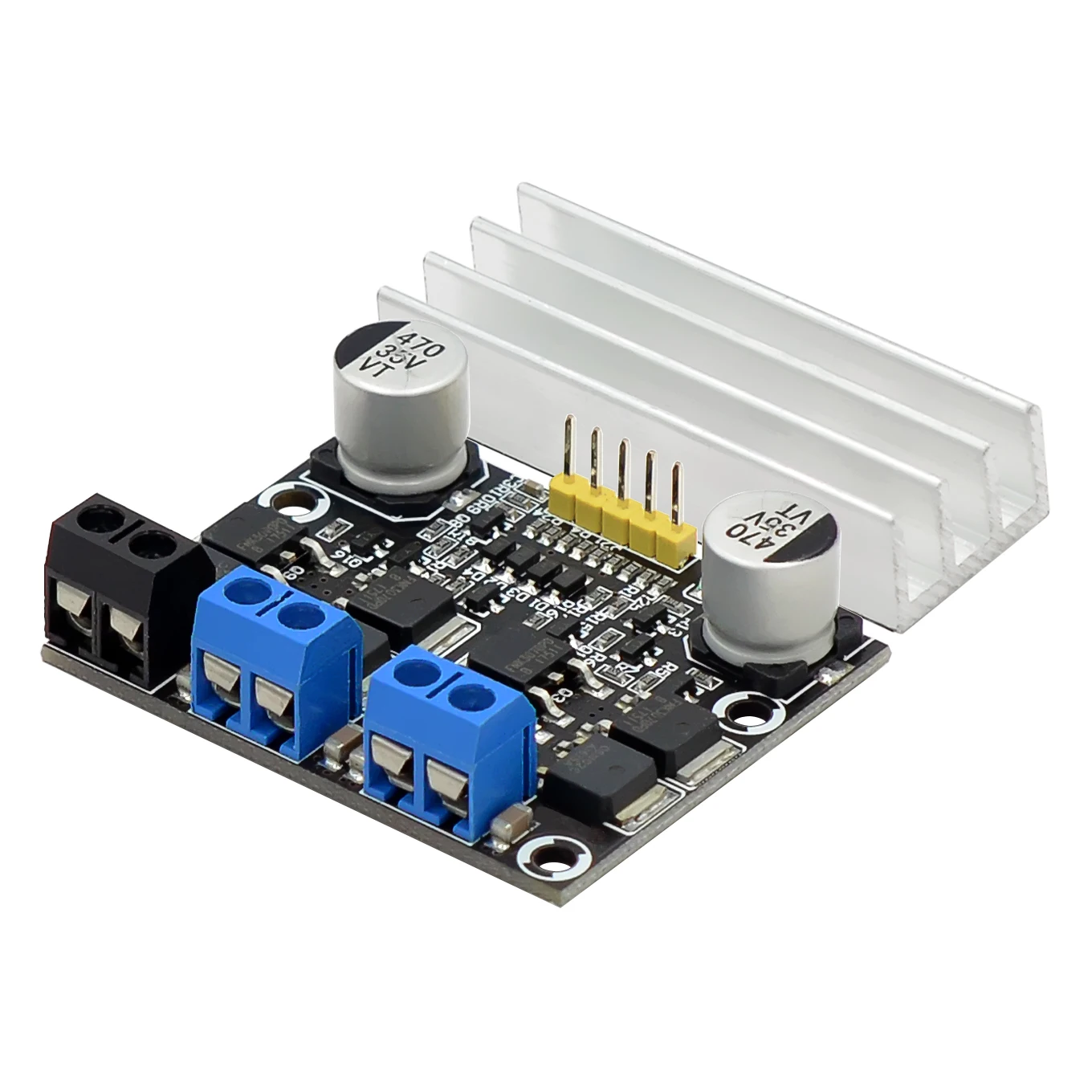

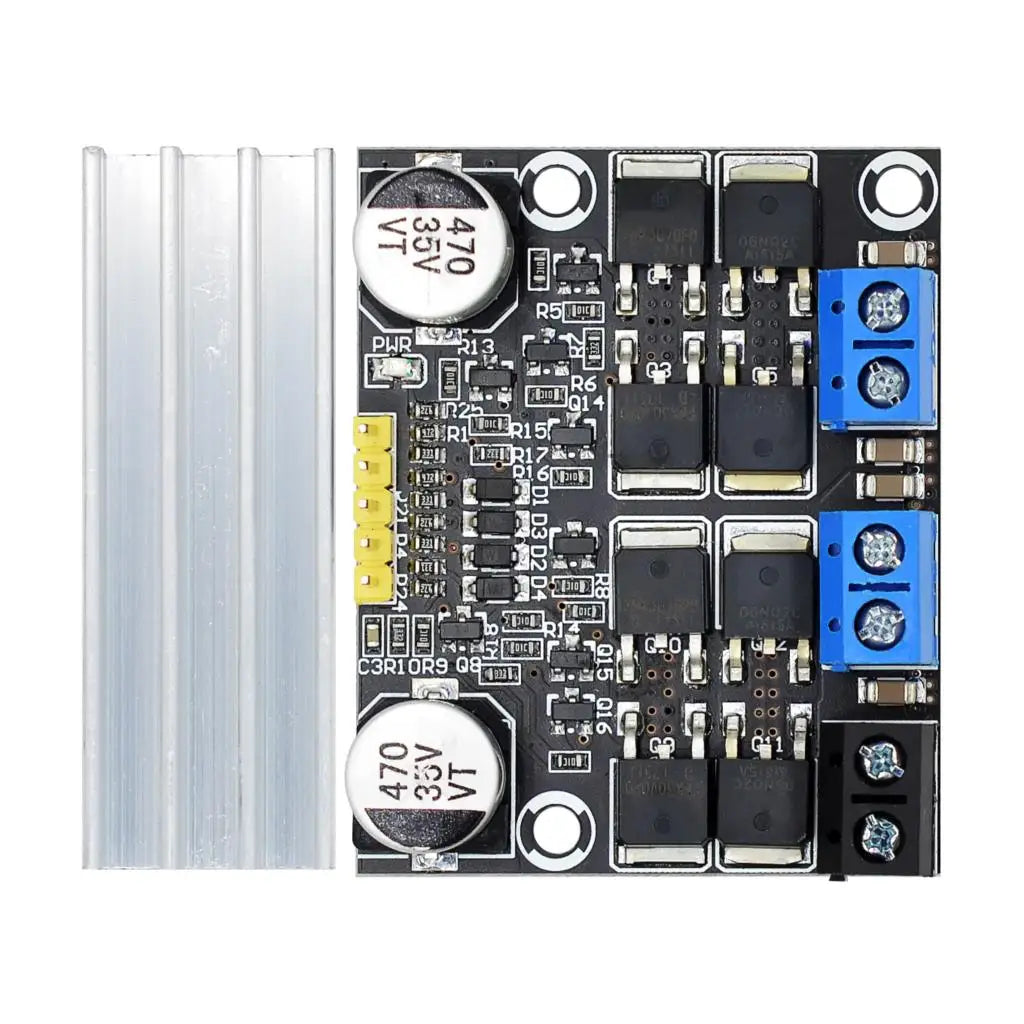

Custom DC 3V-18V Motor Drive Board 10A Dual Channel H Bridge DC Motor Drive Module PWM Speed Regulator Dimmer Module

Product parameters

1. Dual-channel H-bridge motor drive, which can drive two dc motors or a 4-line two-phase stepping motor at the same time, or load one end of the ground to control four channels

2. Module power supply voltage: 3V-18VDC

3. Signal power supply range: 3V-18VDC

4. The single working current is 10A, the peak current is 15A, and the current above 8A is recommended to enhance heat dissipation.

5 support PWM frequency range: 0-2khz

6. Duty cycle range: 0-100%

7. Diameter of mounting hole: 3mm.

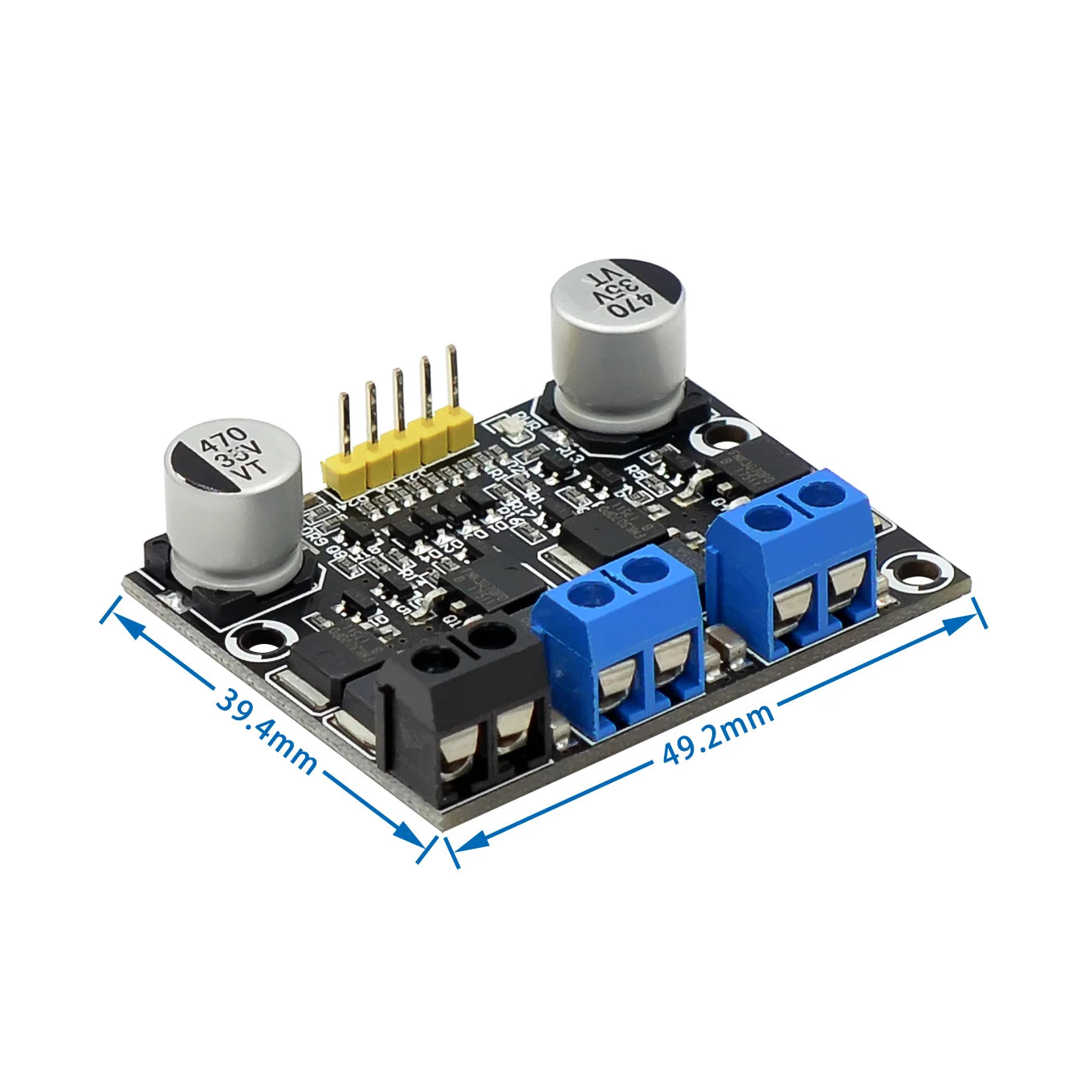

8. Size: 49*39*14mm

9. Weight: 28g

10. Packing form: Anti-static bag
