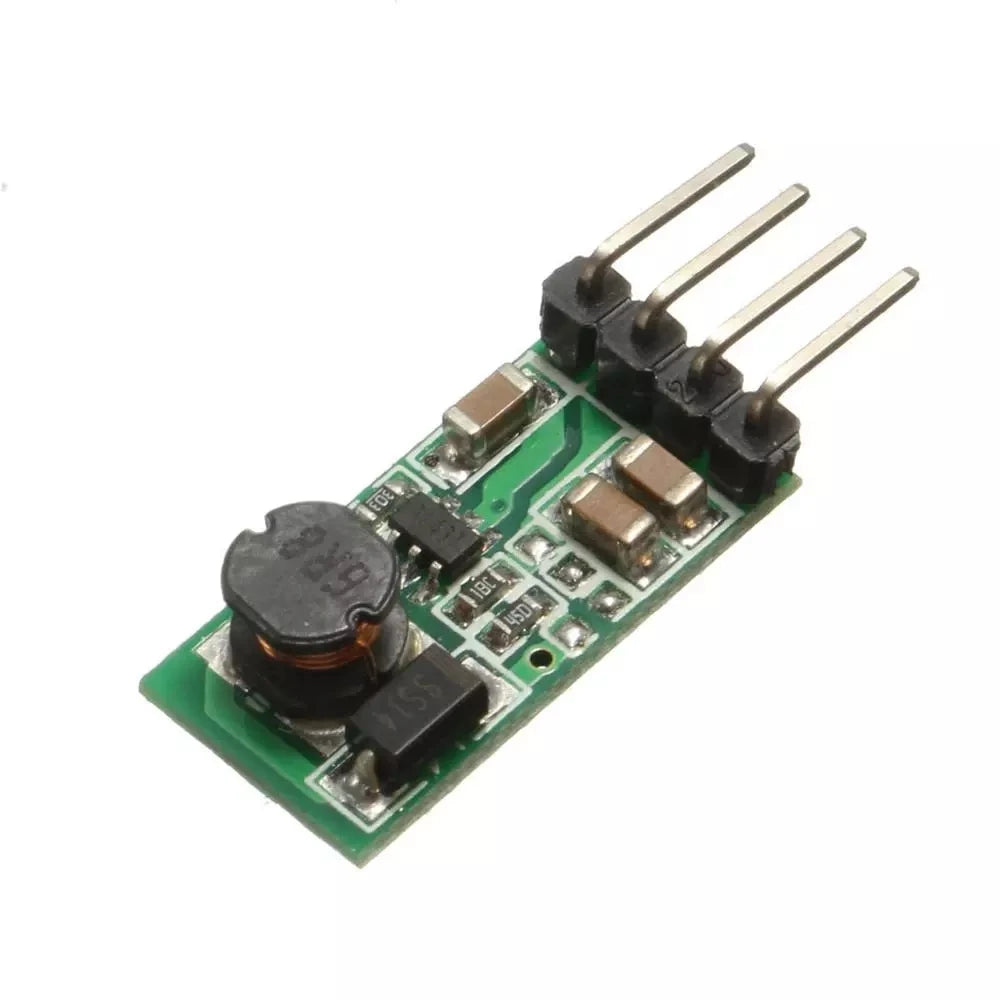

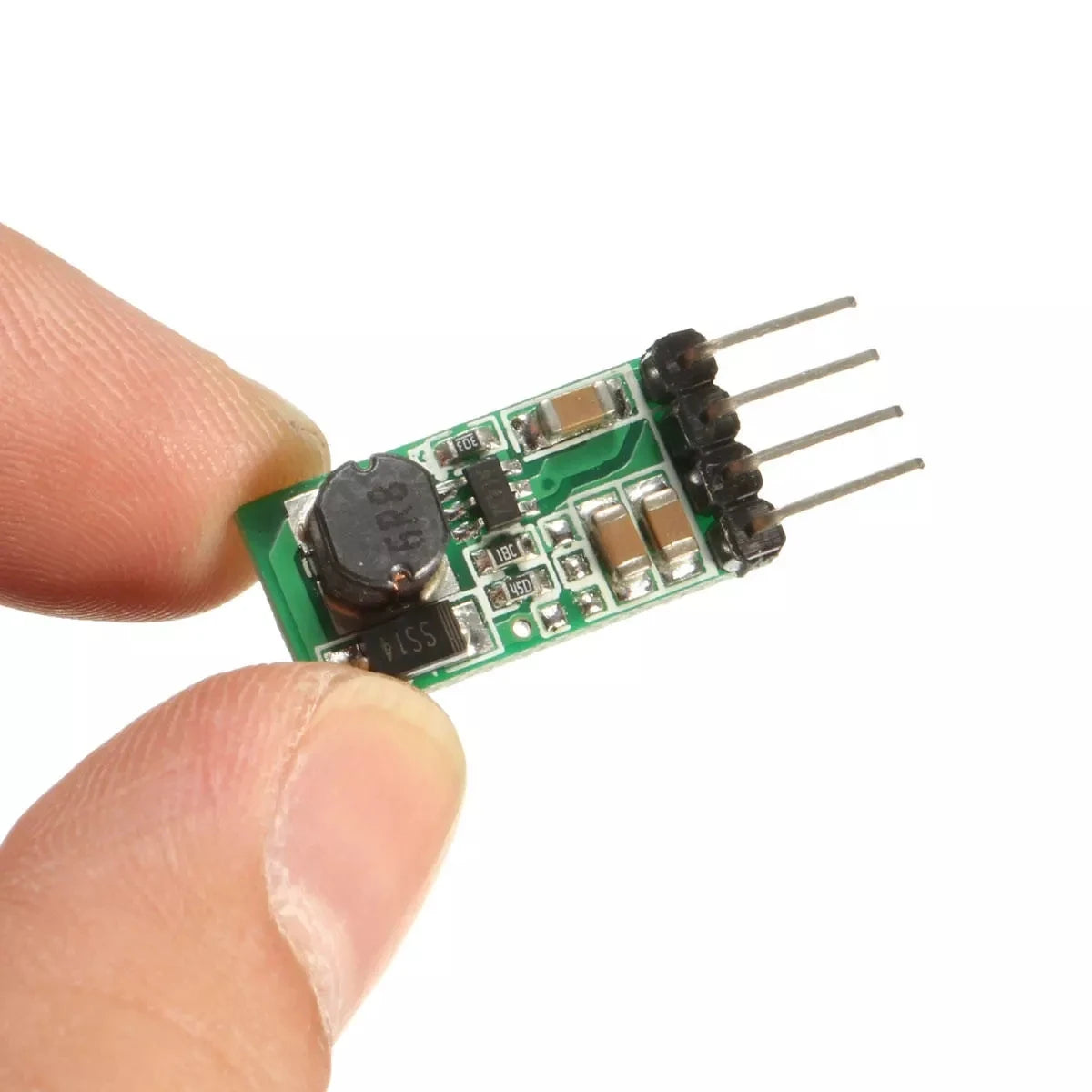

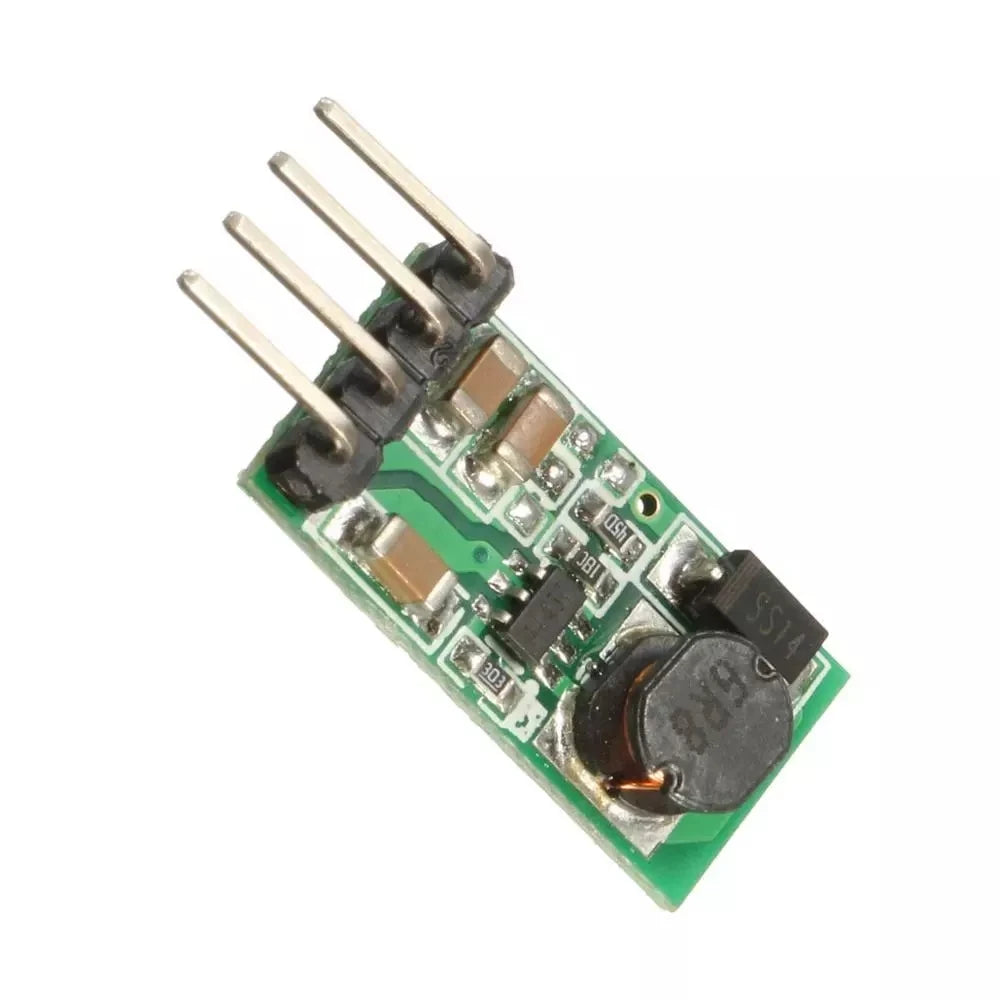

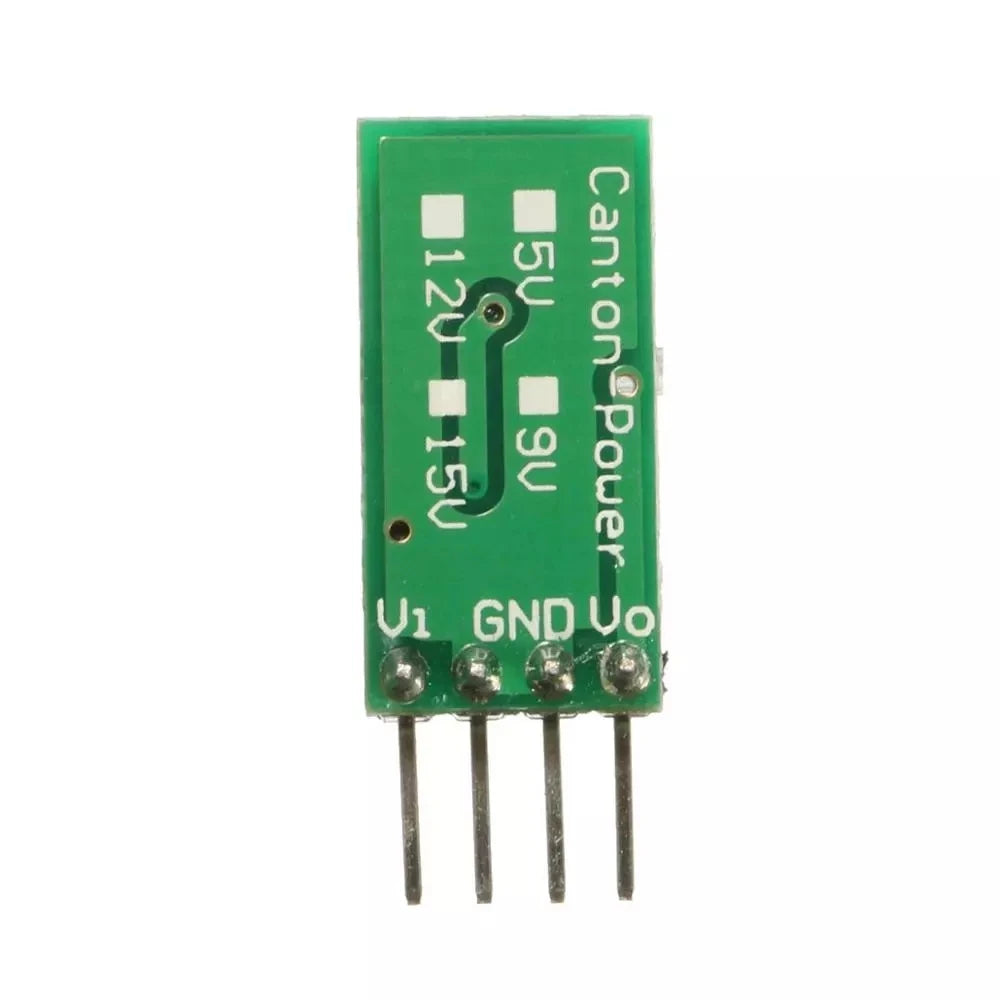

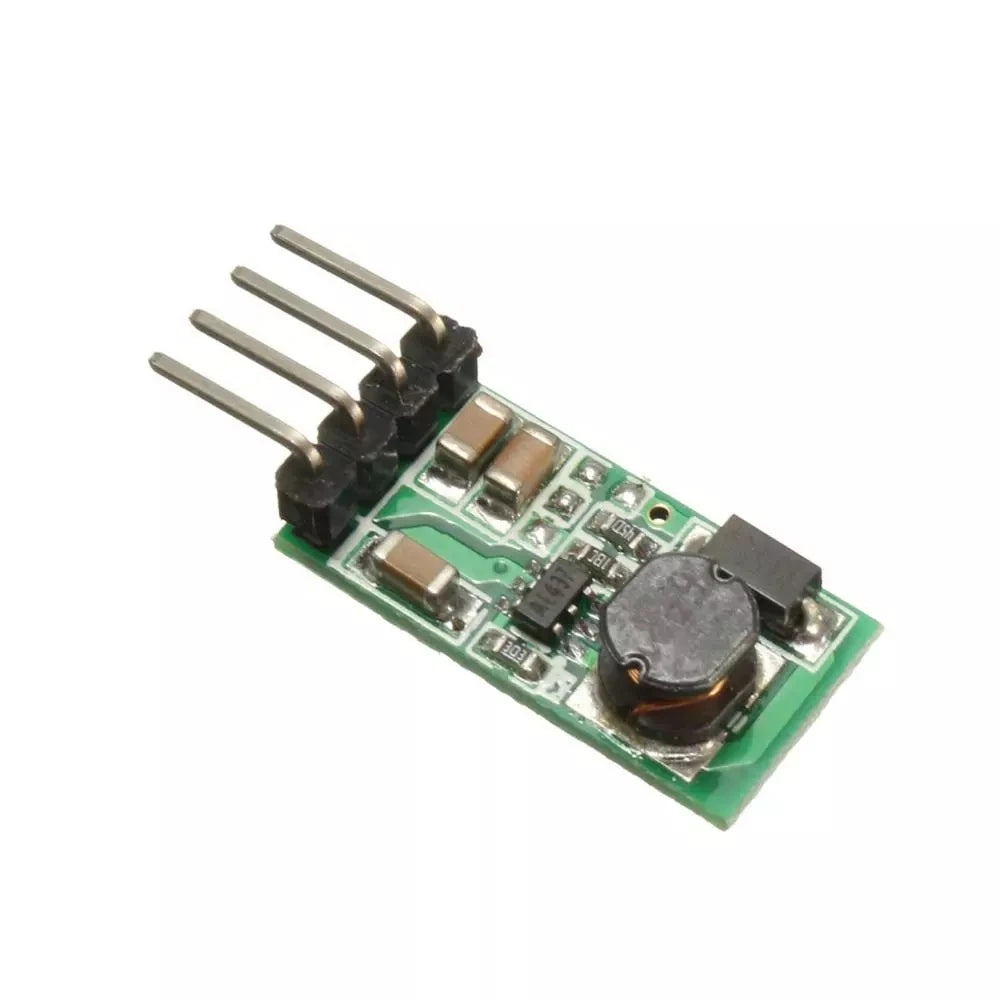

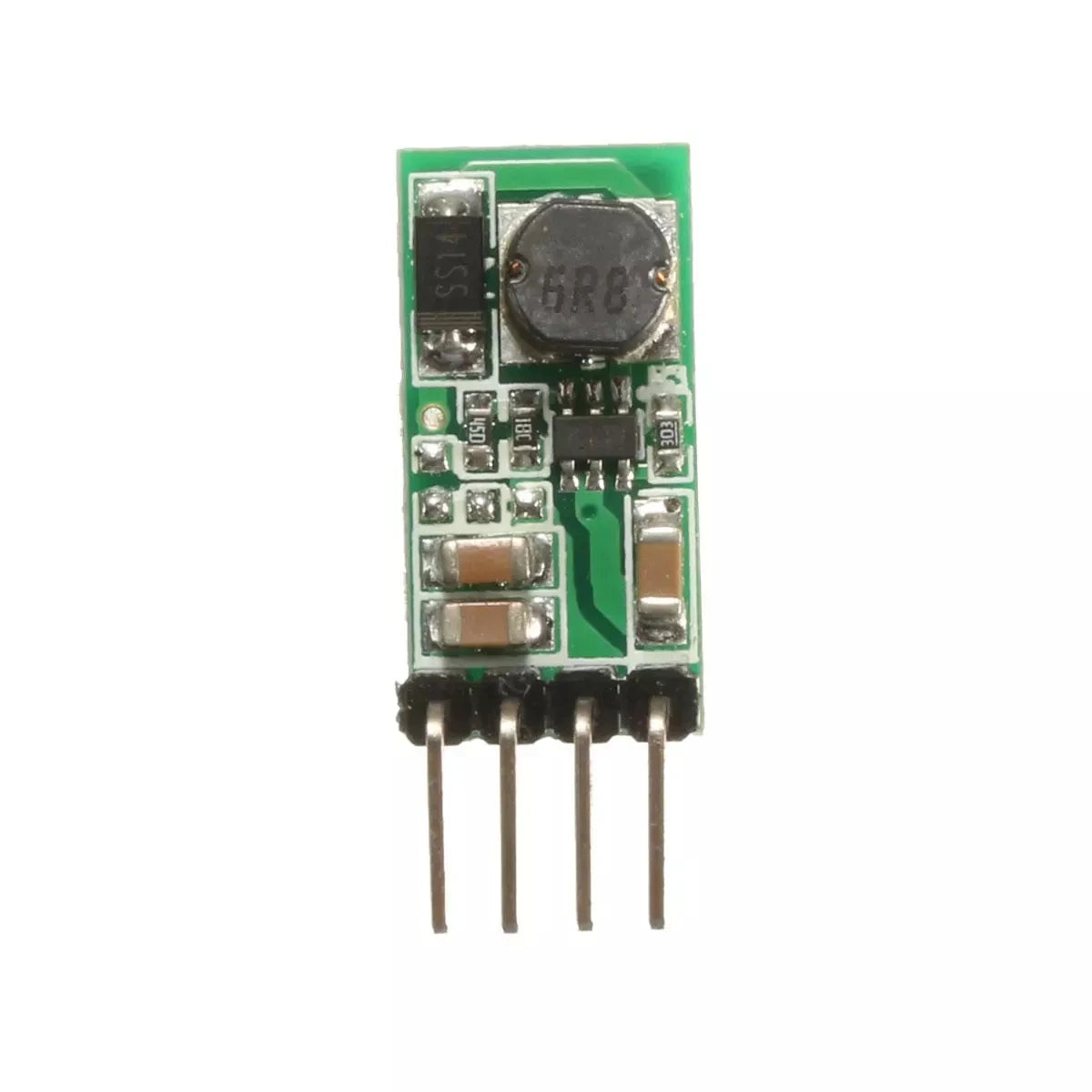

Custom DC 3.3V 3.7V 5V 6V to 12V Step up Boost Power Supply Module Breadboard Development Voltage Regulator Converter Manufacturer
Custom DC 3.3V 3.7V 5V 6V to 12V Step up Boost Power Supply Module Breadboard Development Voltage Regulator Converter Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Feature:
Board size: Approx. 20.5mm x 10.16mm x 5.6mm / 0.81" x 0.40" x 0.22"
Input voltage: 3~6V, Output: 12V
Maximum input current: 1.2A
Long-term working current: 1A
Conversion efficiency: 80-90%
Start voltage: 2.8V, Output current: 50mA
Input: 3V 1A; Output: 12V 220mA
Input: 3.3V 1A; Output: 12V 250mA
Input: 3.7V 1A; Output: 12V 280mA
Input: 4.5V 1A; Output: 12V 340mA
Input: 5V 1A; Output: 12V 370mA
Input: 6V 1A; Output: 12V 450mA
DC-DC boost module working frequency: 1.0MHz
Operating ambient temperature: -40 to +85℃
2.54mm pin pitch, for Arduiuo UNO DUE breadboard FPGA/CPLD development board
Board size: Approx. 20.5mm x 10.16mm x 5.6mm / 0.81" x 0.40" x 0.22"
Input voltage: 3~6V, Output: 12V
Maximum input current: 1.2A
Long-term working current: 1A
Conversion efficiency: 80-90%
Start voltage: 2.8V, Output current: 50mA
Input: 3V 1A; Output: 12V 220mA
Input: 3.3V 1A; Output: 12V 250mA
Input: 3.7V 1A; Output: 12V 280mA
Input: 4.5V 1A; Output: 12V 340mA
Input: 5V 1A; Output: 12V 370mA
Input: 6V 1A; Output: 12V 450mA
DC-DC boost module working frequency: 1.0MHz
Operating ambient temperature: -40 to +85℃
2.54mm pin pitch, for Arduiuo UNO DUE breadboard FPGA/CPLD development board
