Custom DC 220V 12500PRM CW/CCW Miniature Power Tool Motor 555 Brushed DC Motor 24V 3500RPM High Torque Manufacturer

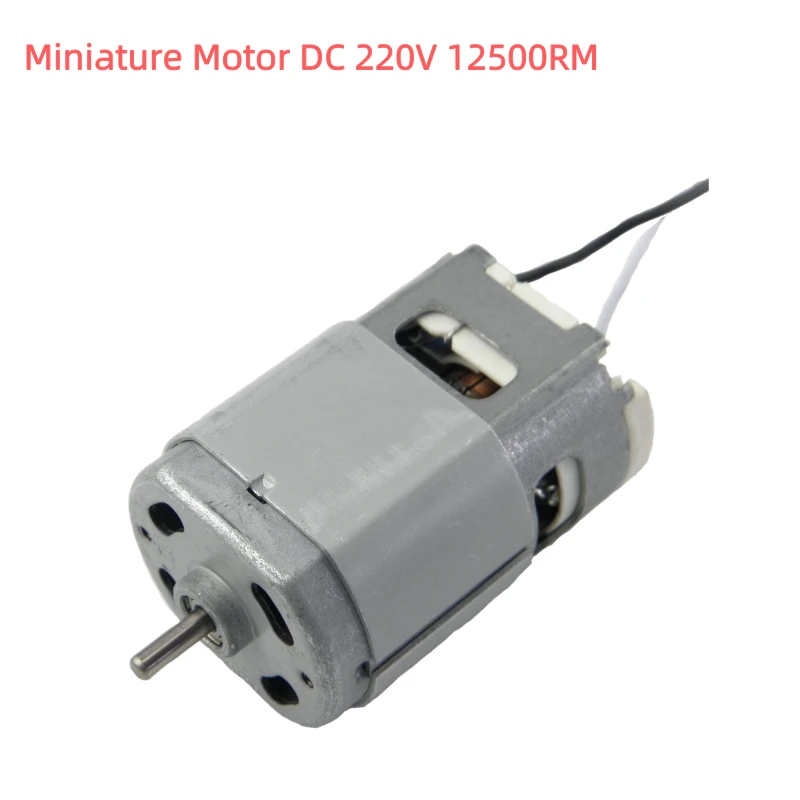

1. Miniature Motor DC 220V 12500RPM

This DC 220V micro motor can be using directly to home plug via a rectifier bridge.

Double ball bearings in head and tail,compensated carbon brush , 12 pole rotor.

Through rectifier bridge, 220V motor can be directly connected to the power supply (AC220V).

This carbon brush motor turns around 12,500RPM, run smoothly with low noise.

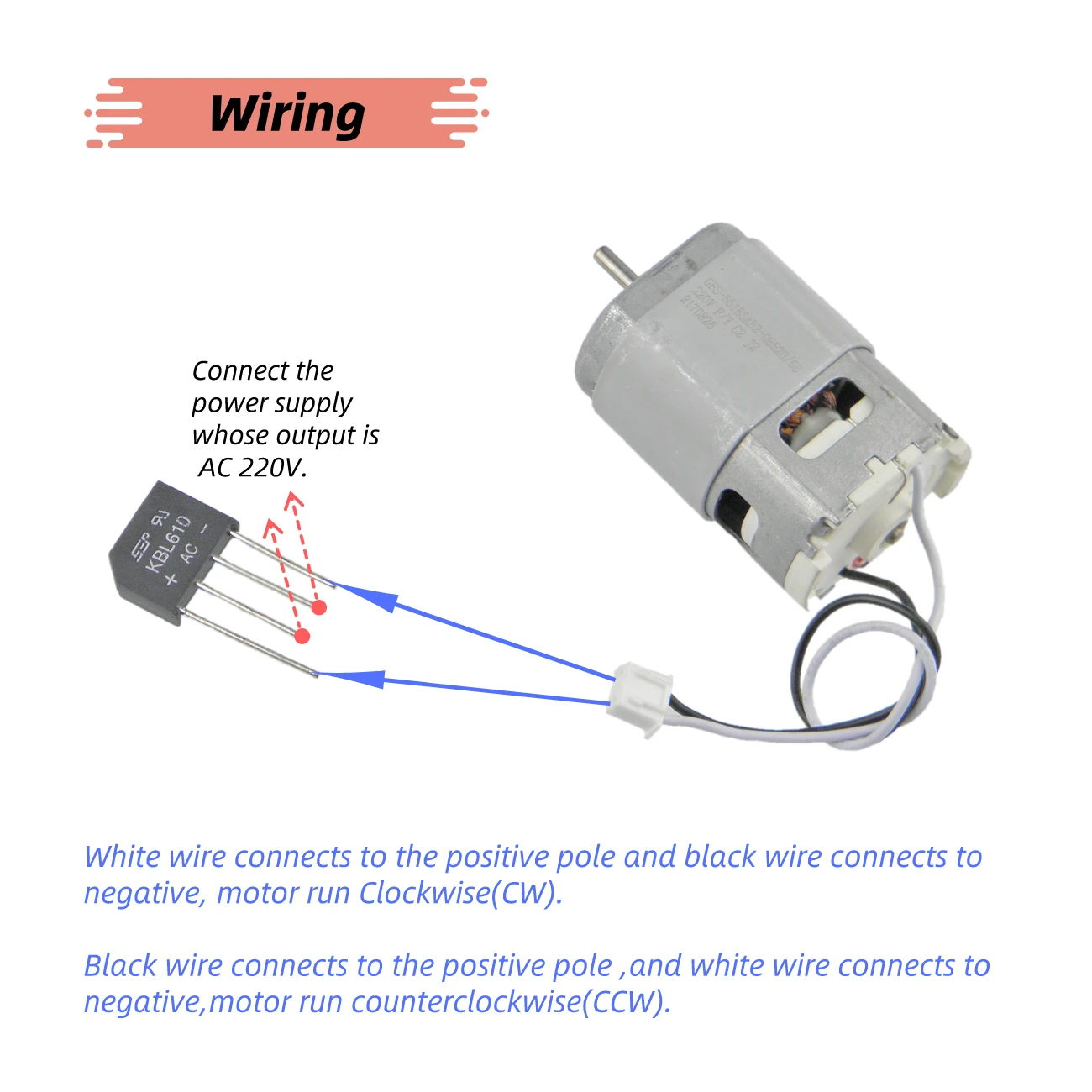

Rotation direction controllable. Via changing the positive and negative poles of motor or rectifier bridge, we can get it run CW or CCW.

White wire connects to the positive pole and black wire connects to negative, motor run Clockwise(CW)

Black wire connects to the positive pole ,and white wire connects to negative,motor run counterclockwise(CCW)

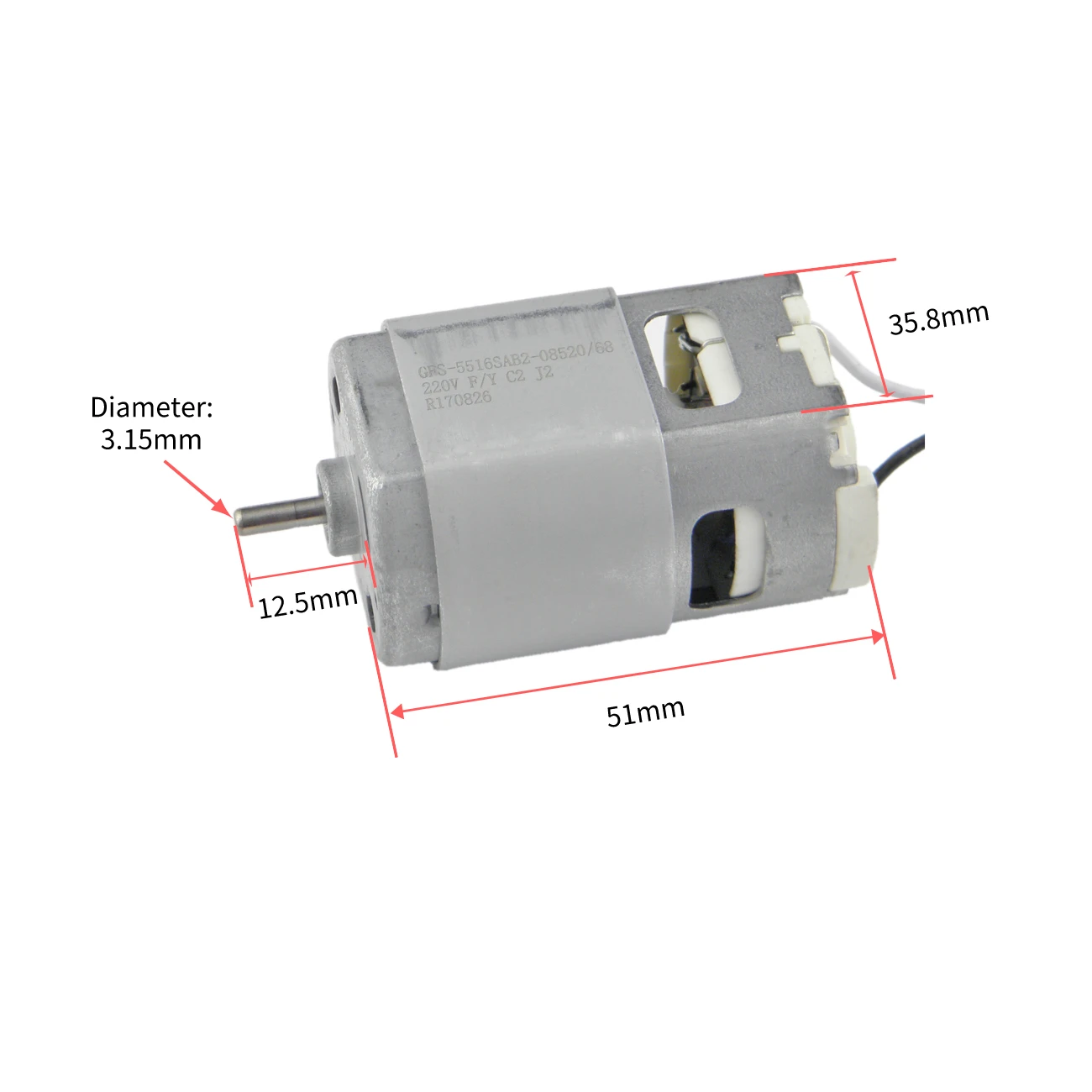

Size: 29.3*35.8*51mm
Shaft Diameter:3.15mm
Shaft length:12.5mm
Voltage: DC 220V (AC220V rectifier)
Speed:12500RPM

PLEASE NOTE!!!

This motor working on DC 220V, DO NOT connect to the AC 220V directly. It must using rectifier bridge before connect to 220V AC.

High voltage DC motor, please pay attention to safety in using. During the test, pay attention to Install firmly and electricity leakage. Make sure you are safety.

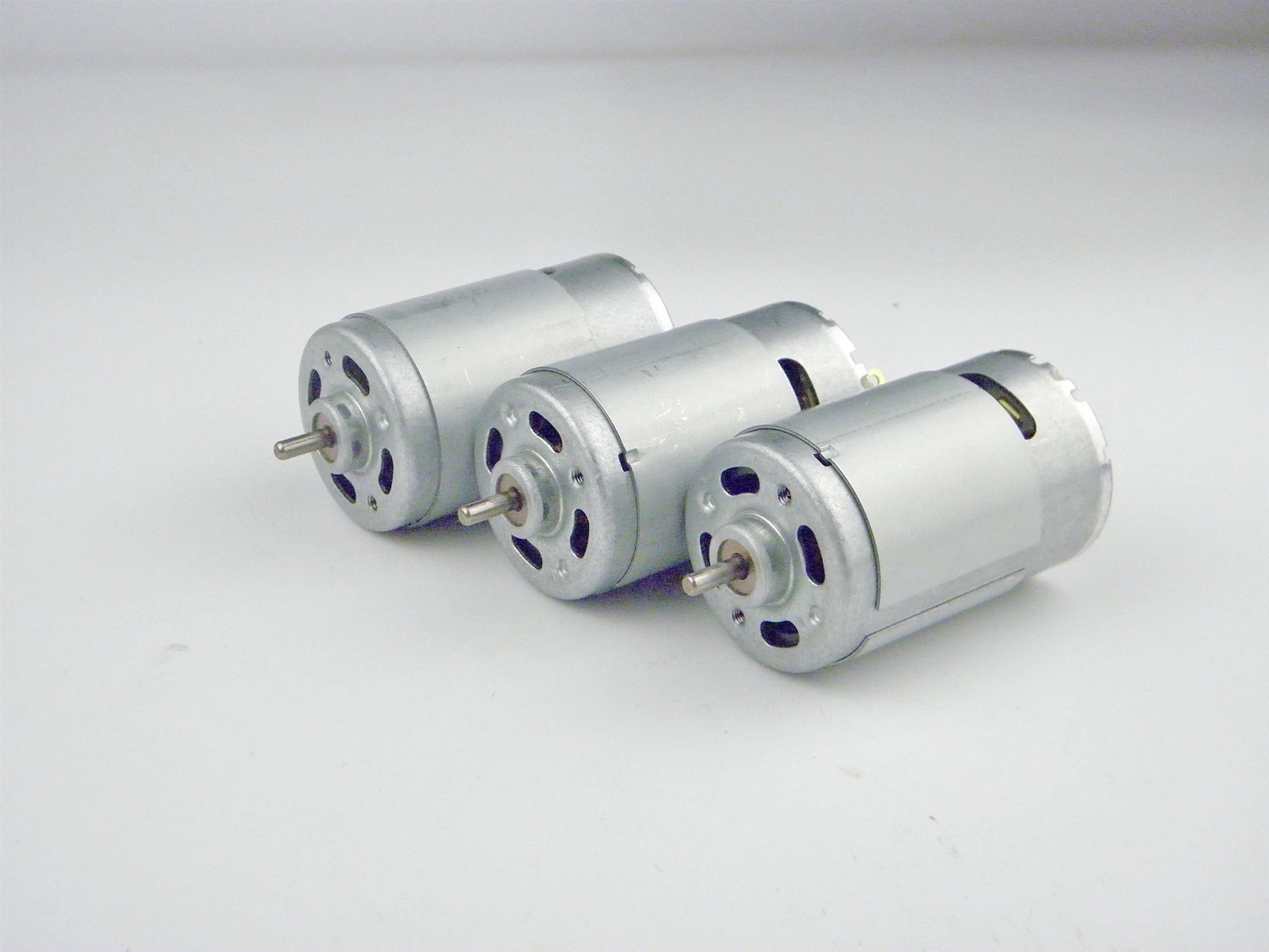

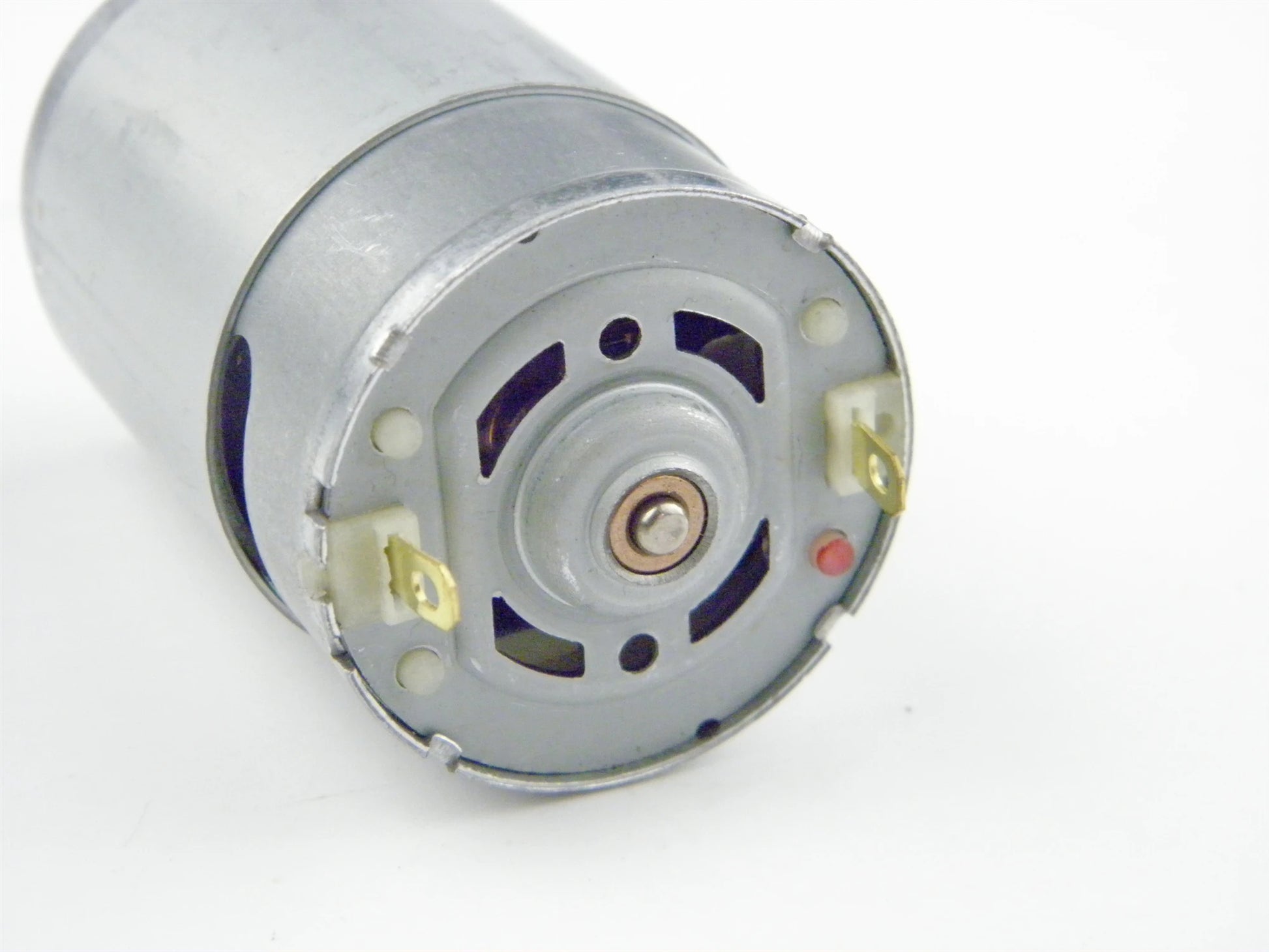

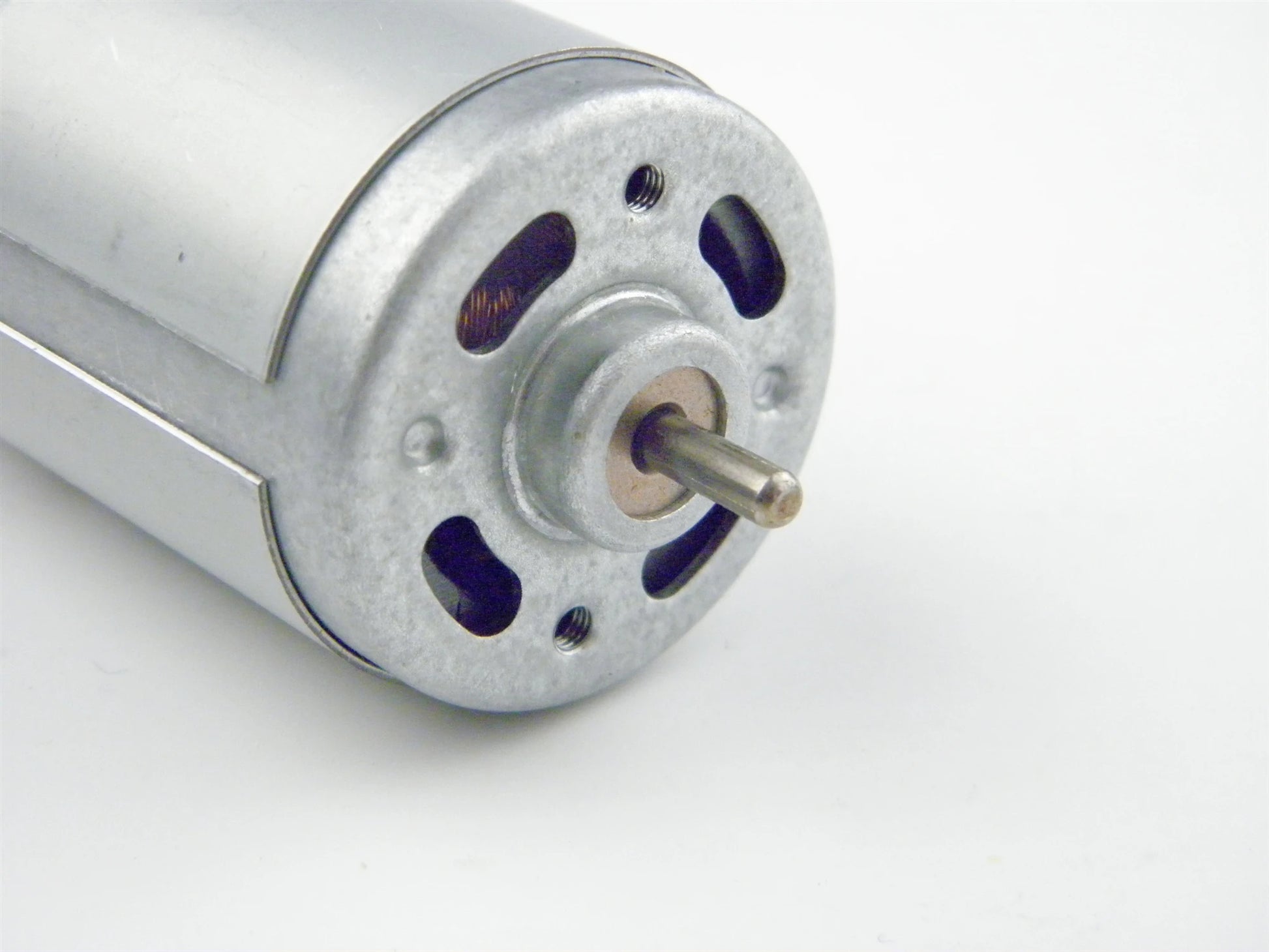

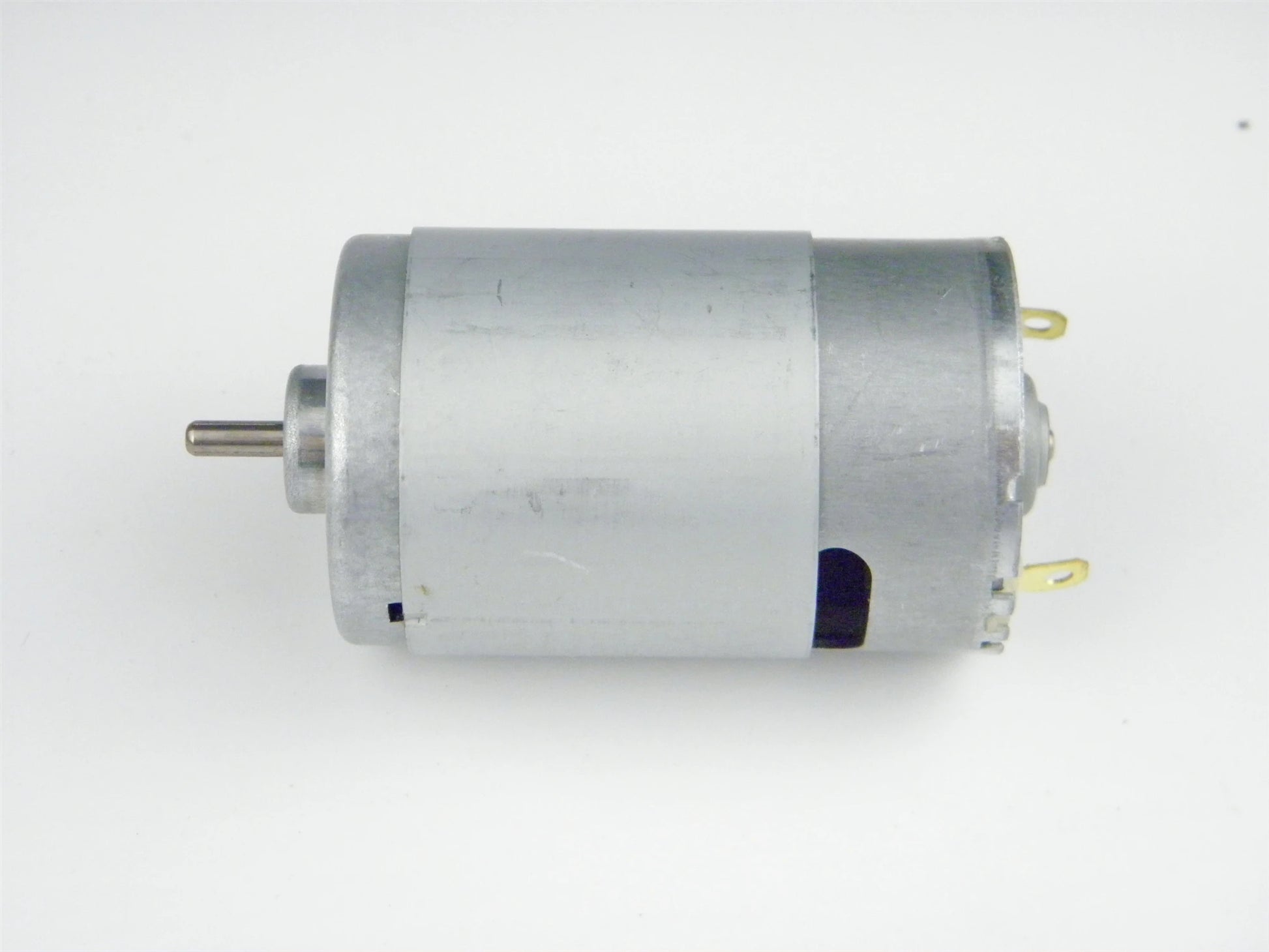

2. 555 Motor 24V DC 3500RPM

555 high torque PMDC motor operateds on DC 24V.

Brushed motor with ventilation holes. Iron case in back which can enhance motor stability, and it suits for 24V DC drill.

Low noise.

Motor Diameter: 37mm (1.405")
Size: 37*37*57mm
Shaft Diameter: 3.2mm
Shaft Length: 10mm
Working Voltage: 12-24V DC
Speed (12V DC, 0.08A, No-Load)
Speed (24V DC, 0.1A, No-Load): 3500RPM
CW/CCW
