Custom PCBA VEYE-MIPI-IMX462 forRaspberry Pi and Jetson Nano XavierNX,IMX462 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer

Custom PCBA VEYE-MIPI-IMX462 forRaspberry Pi and Jetson Nano XavierNX,IMX462 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

Brief

IMX462 is a back-illuminated sensor with extended red and near infrared response.

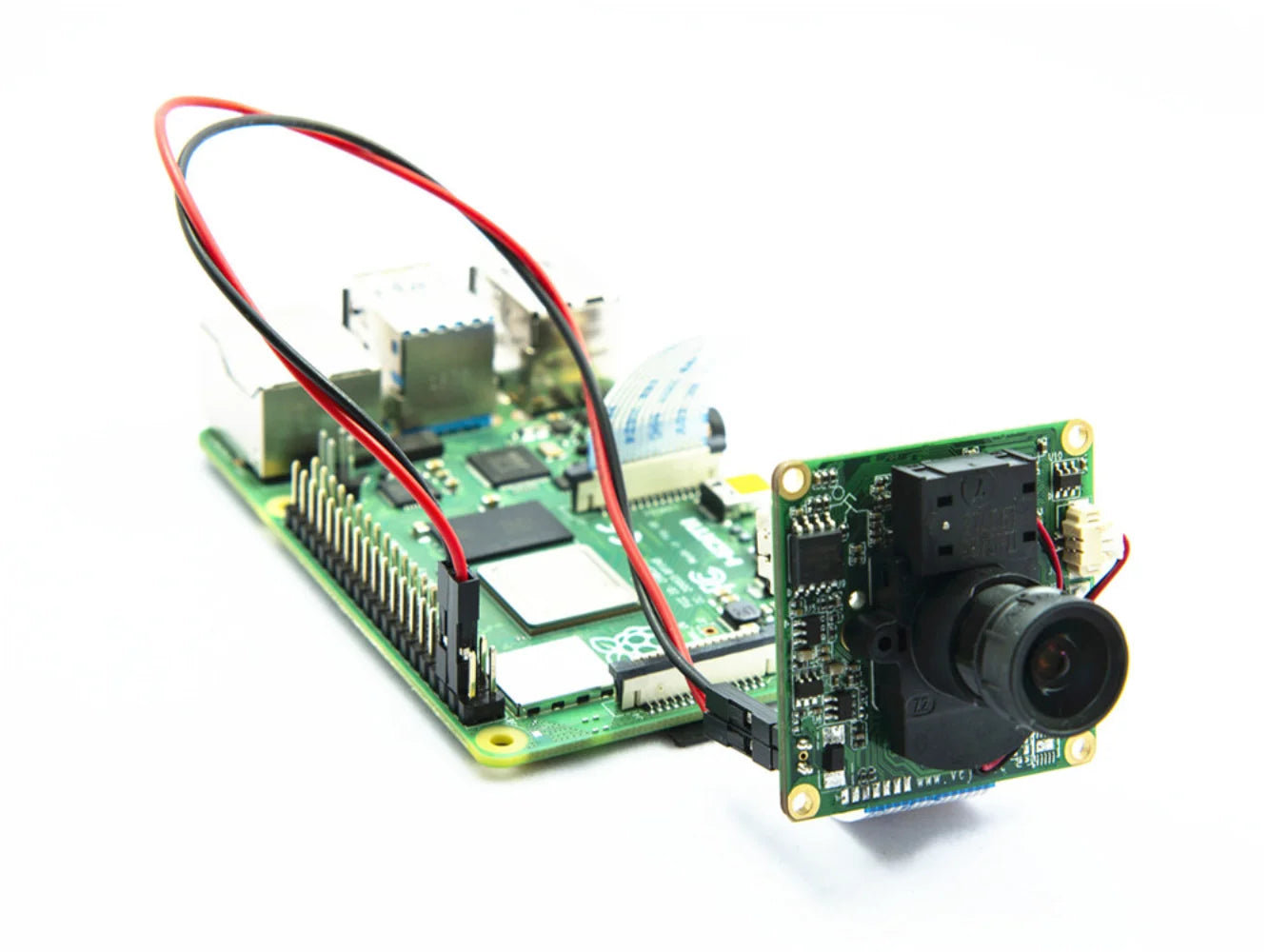

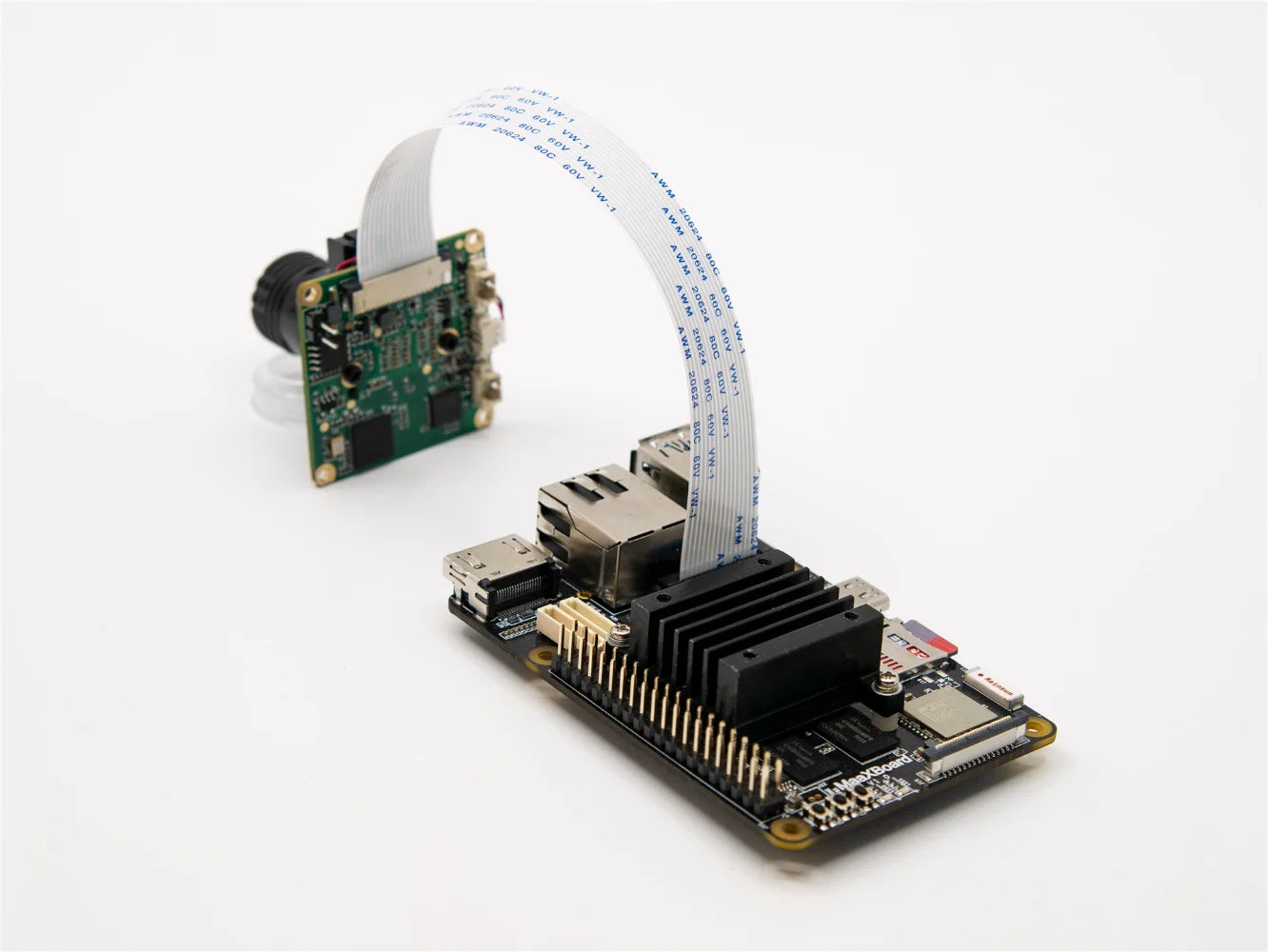

This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano/NX and i.MX8m.

Features

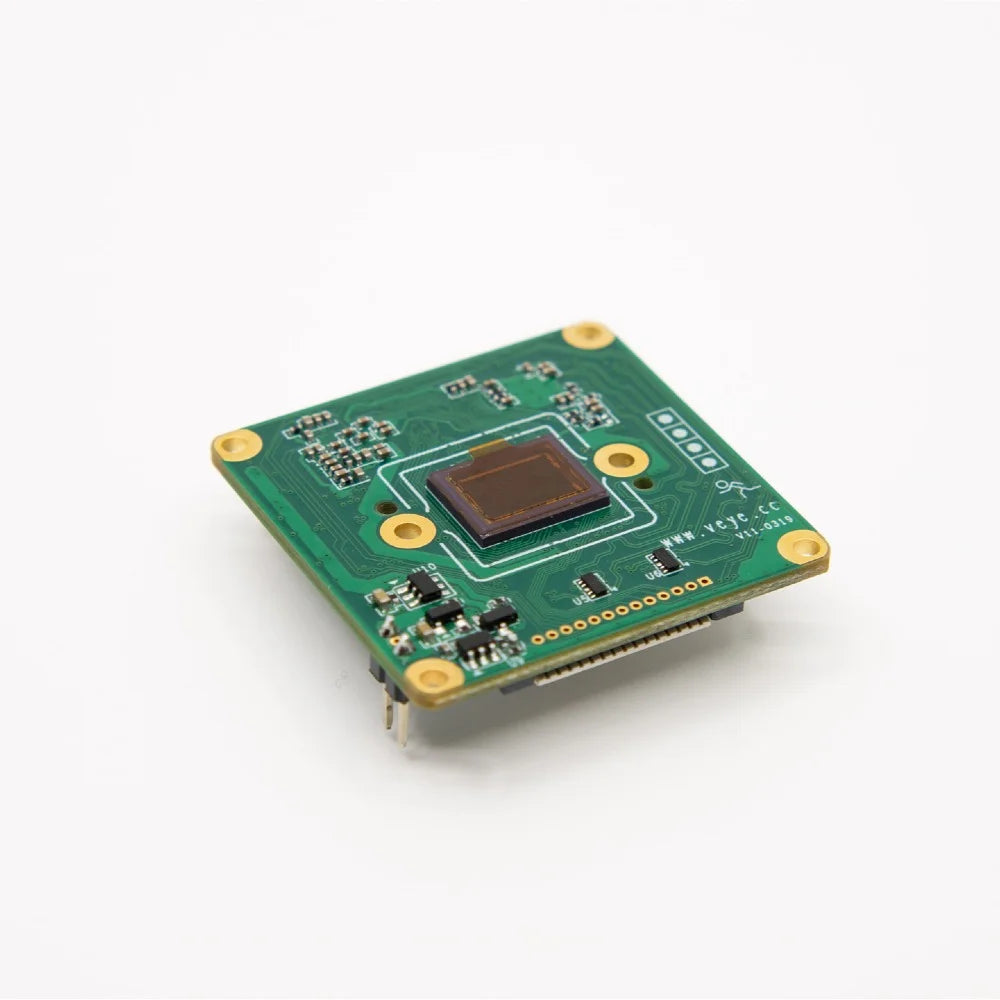

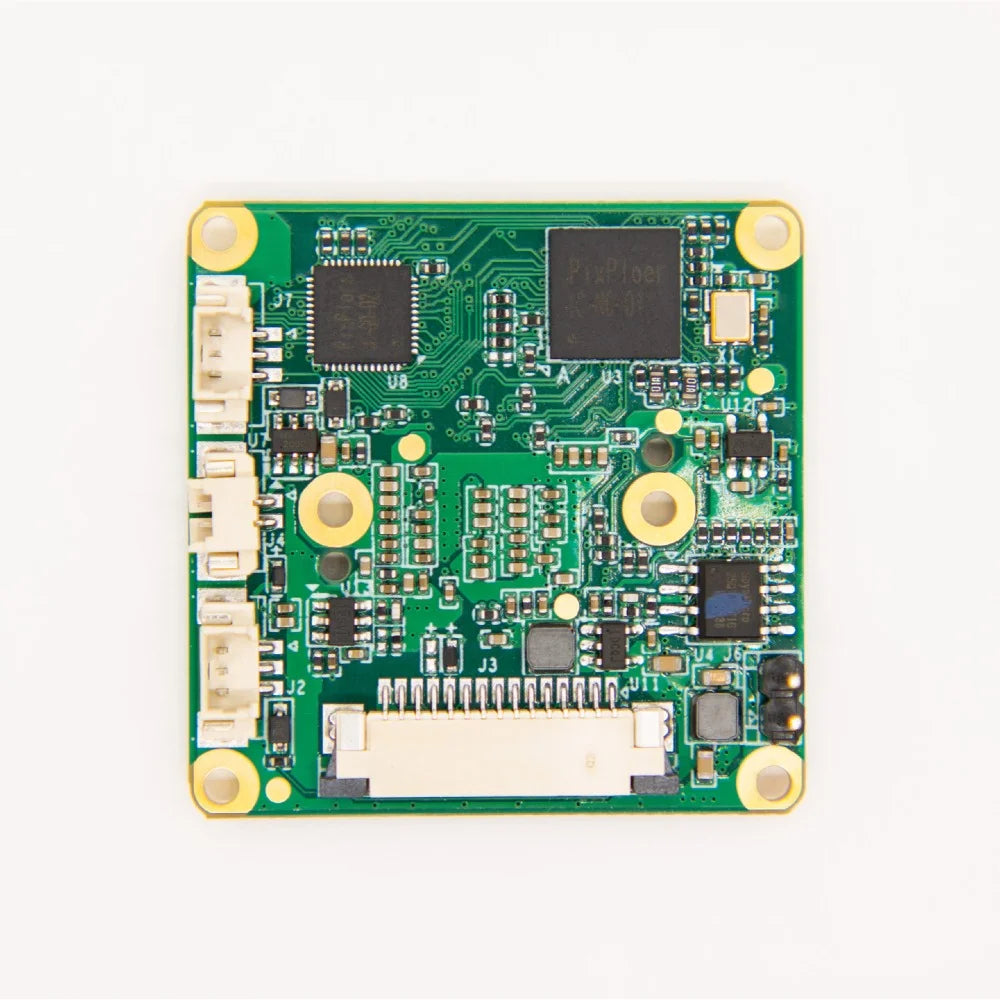

VEYE-MIPI-IMX462 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...
+ 1/2.8 inch 2 Mega STARVIS sensor IMX462 by SONY
+ MIPI output: CSI-2
+ Uncompressed UYVY format, YUV422-8bit
+ Standard lens mount
+ IR-CUT circuit
+ BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable
+ Stream mode and Capture mode
+ Framerate control
+ Support Raspberry PI, JETSON,i.MX8m
+ Open source drivers and applications for all platform supported
+ Support 5V - 3.3V access at the same time, automatic switch 5V power supply
+ Also support 5V, 3.3V independent power supply

Thechnical Details



CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select

Camera Caputure File in different scenes

Full Resolution Video and Capture file:

https://www.mediafire.com/folder/zziqnrhhvyyss/VEYE_Camera_modules_Videos



Important references links

+ wiki about VEYE-MIPI-IMX462
http://wiki.veye.cc/index.php/VEYE-MIPI-290/327_index

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

Packaging and accessories









 Welcome Customize Order!
