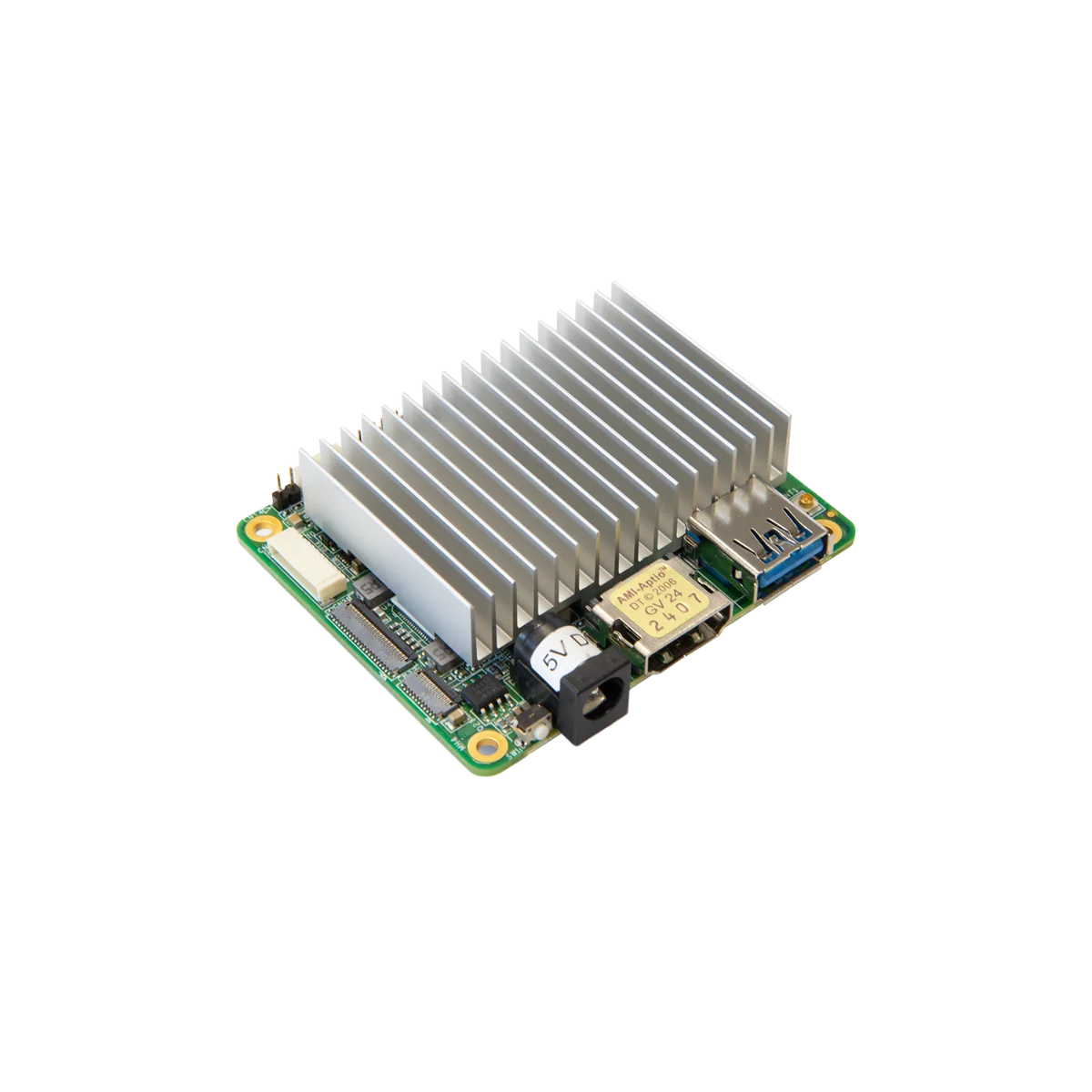

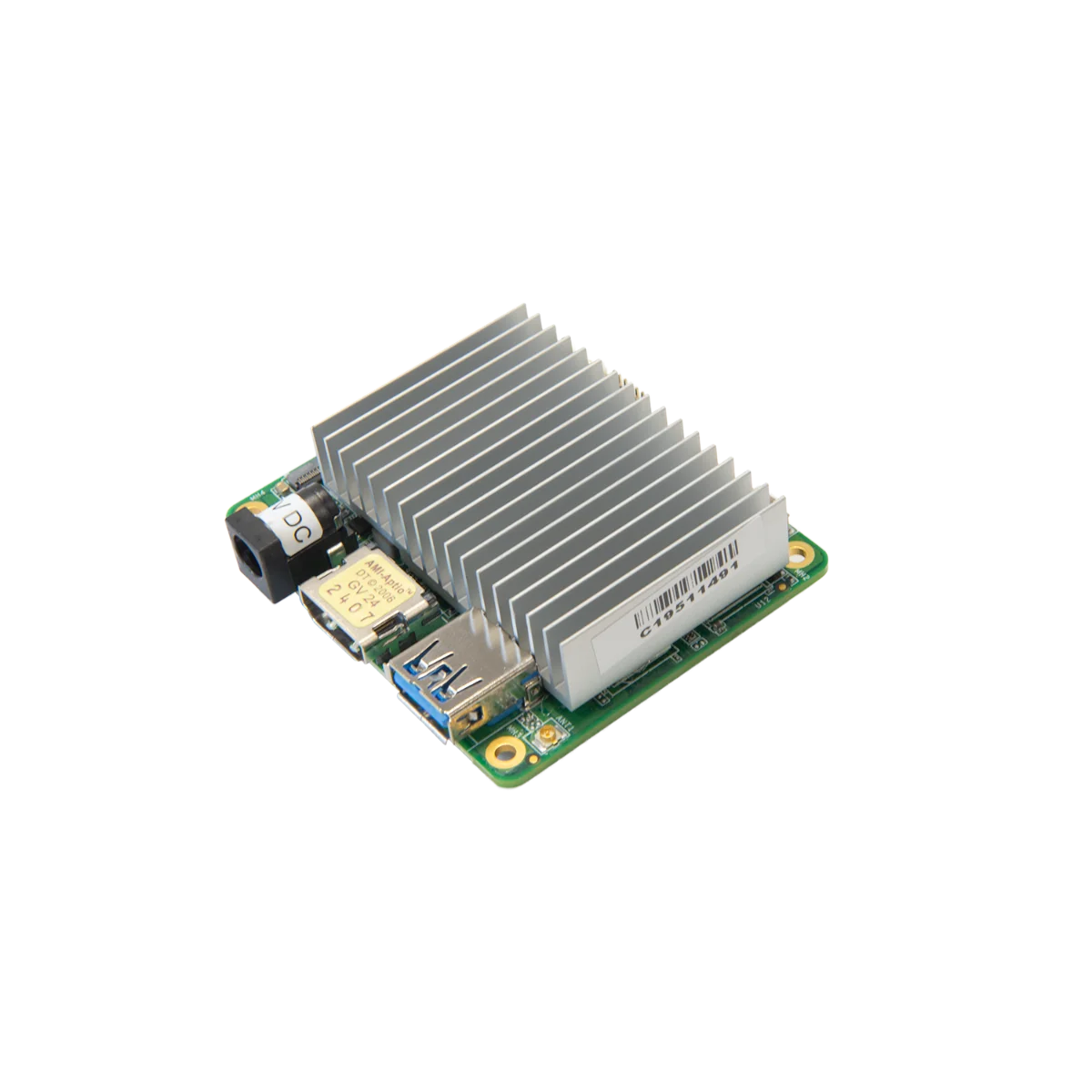

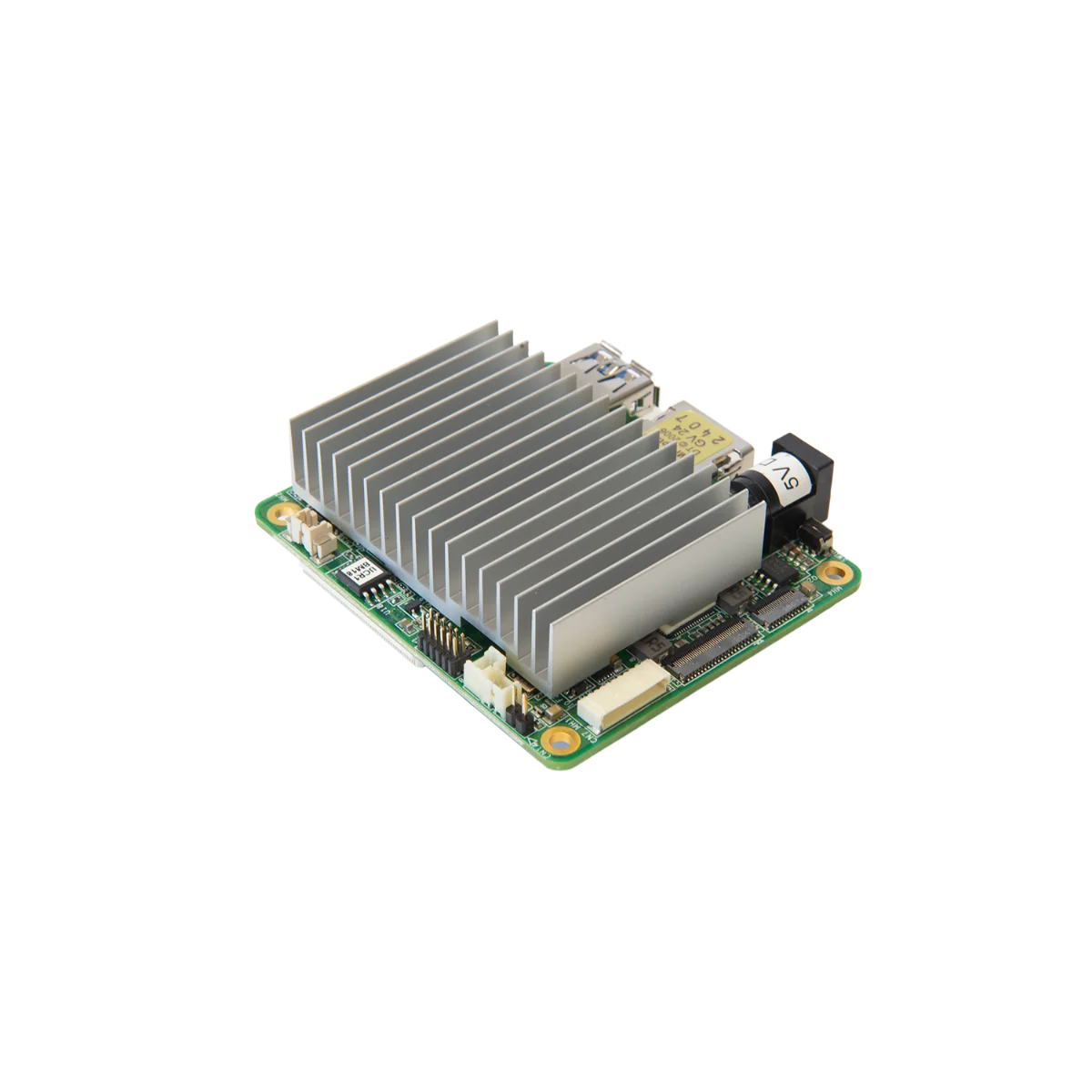

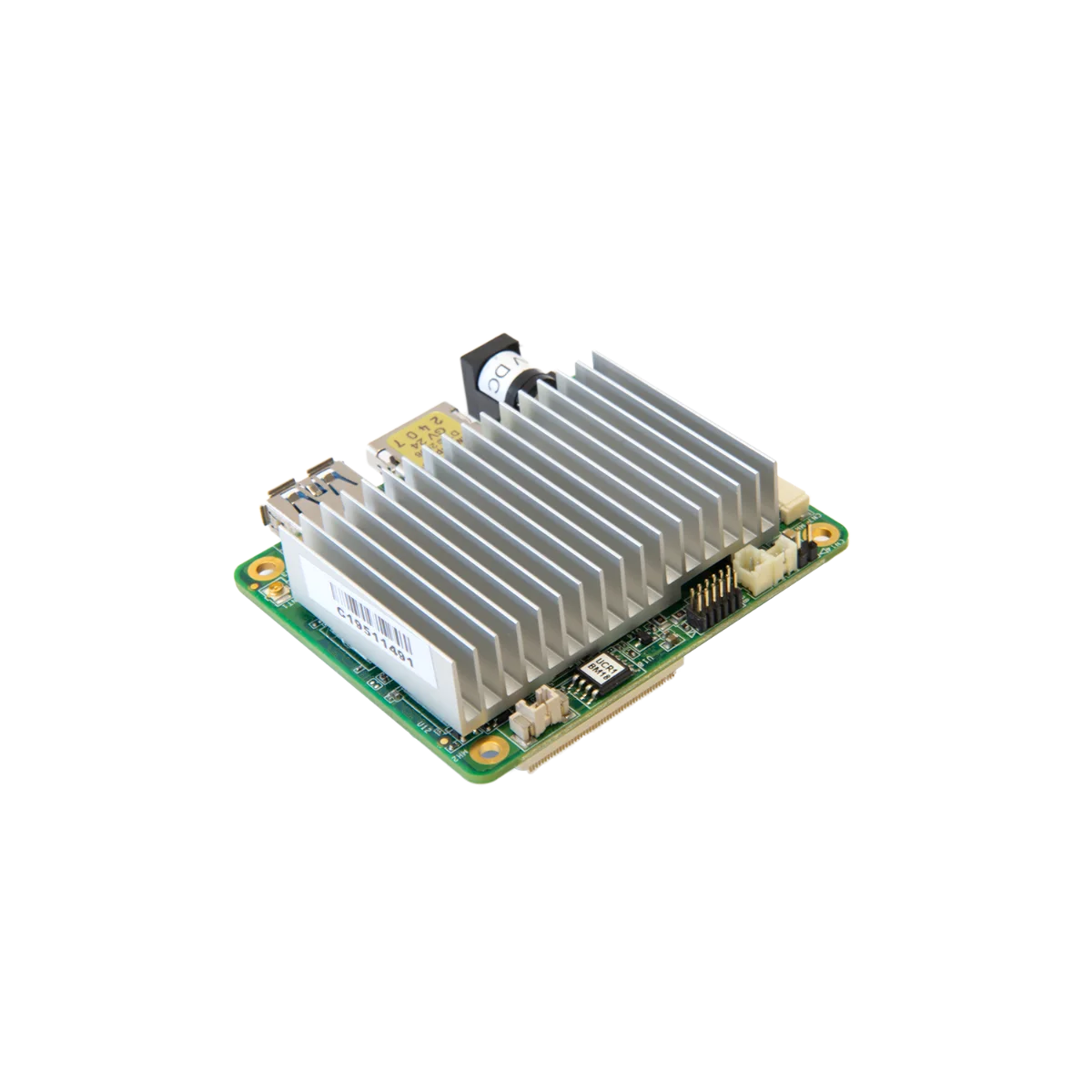

UP Core Series
A single board computer or computer-on-module? UP Core is whatever you wish to be.
Choose UP Core board from different variants from 2GB RAM up to 4GB RAM and from 16GB eMMC to 64GB eMMC.
| Net weight | 52.5 gram |
| Package dimension (L x W x H) | 110*84*24mm |
| Gross weight | 74.2g |
| HS Code | 8 |
| Longevity | 2024 |
| Cooling | passive cooling (fanless) |
| WiFi | WiFi 802.11 b/g/n @ 2.4 GHz (AMPAK.AP6214A) |
| BT | BT v4.0 (BLE) |
| LTE/4G/5G | N/A |
| Audio | I2S audio port |
| USB 2.0 pin header | 2 |
| USB 3.0 Type A | 1 |
| UART | 2 x UART (Tx/Rx) debug port (pin header) |
| 100-pin GP Bus | 1 |
| MIPI-CSI | 1x MIPI-CSI 2 lane , 1x MIPI-CSI 4 lane |
| SIM slot | No |
| HDMI | 1 (HDMI 1.4a) |
| Display Port | N/A |
| MIPI DSI/ eDP | 1 x eDP |
| SoC | Intel® Atom™ x5-z8350 (up to1.92 GHz) |
| # of Core | 4 |
| Graphics | Intel® HD 400 Graphics |
| memory | 1/4GB |
| eMMC/Storage | 16/64B |
| BIOS | UEFI |
| RTC | Yes |
| WAKE ON LAN (WoL) | Yes |
| Watchdog timer | Yes |
| PXE | Yes |
| Compatible OS | Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android |
| Power requirement | 5V DC-in @ 4A 5.5/2.1mm jack |
| Power Supply Type | AT (default) /ATX |
| Power Consumption ( typical) | 13 Watt |
| Dimension | 2.22"x 2.59" ( 56.50 mm × 66 mm) |
| Operation temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF ( hours) | 327,838 Hours |
| Certification | CE/FCC Class A |
