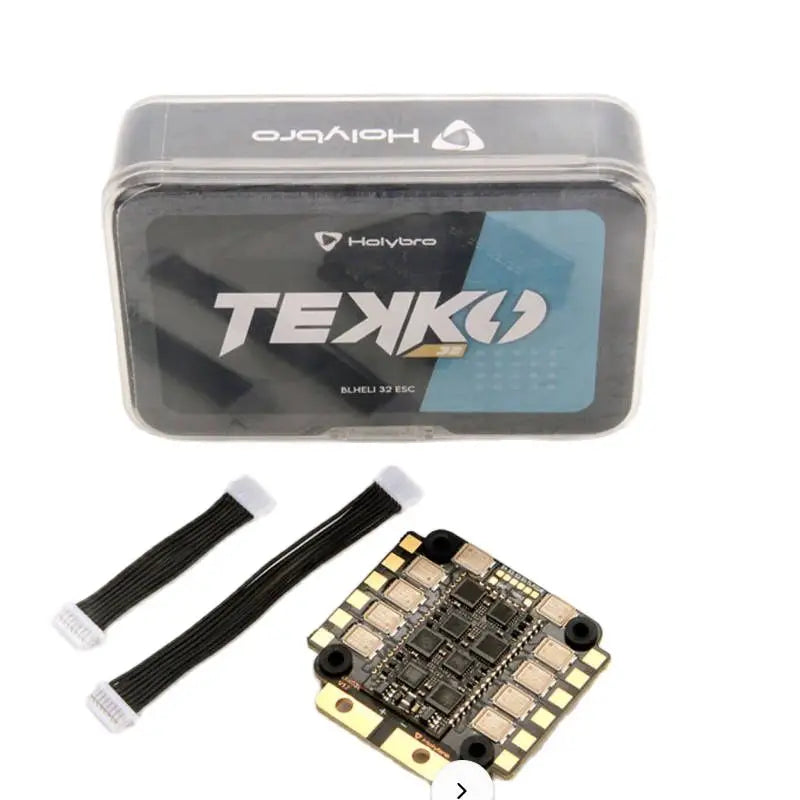

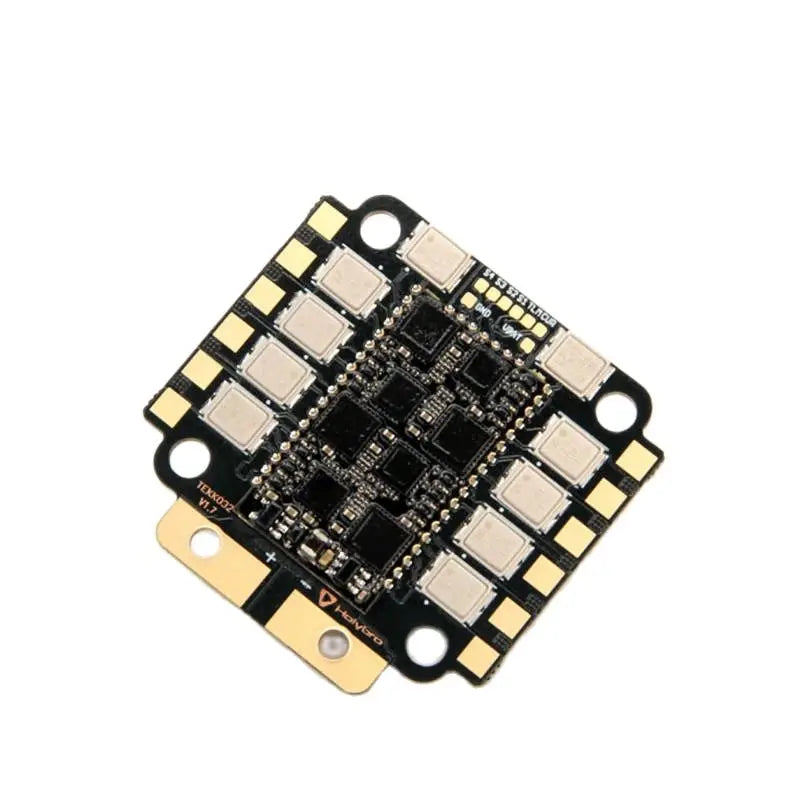

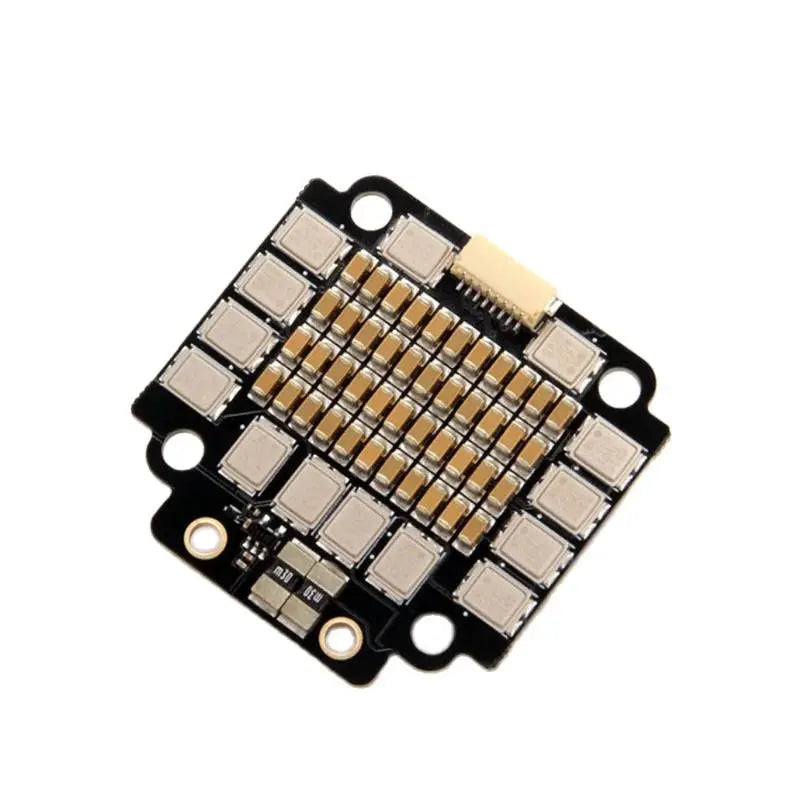

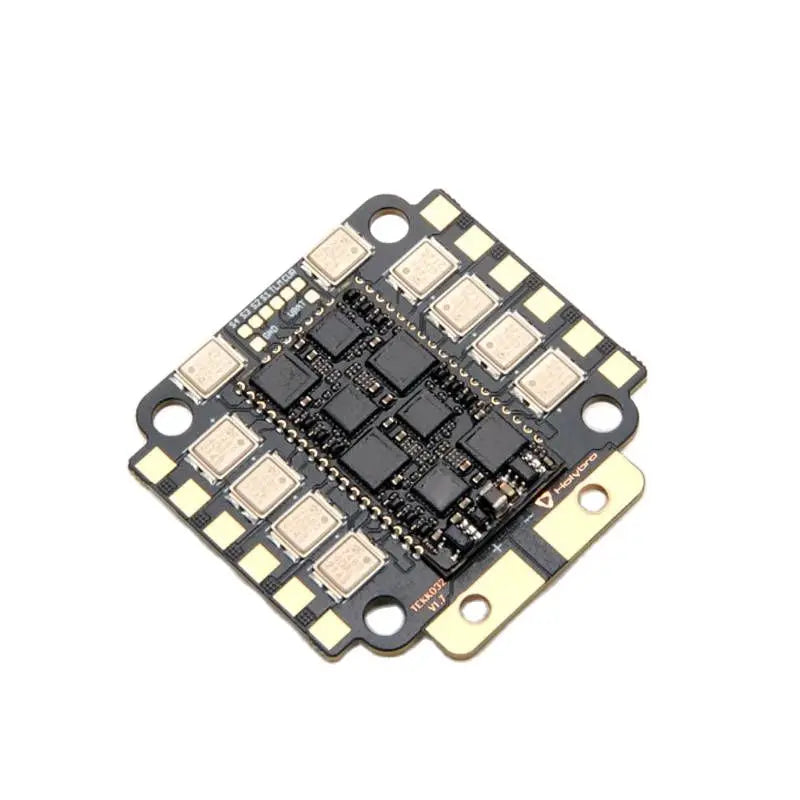

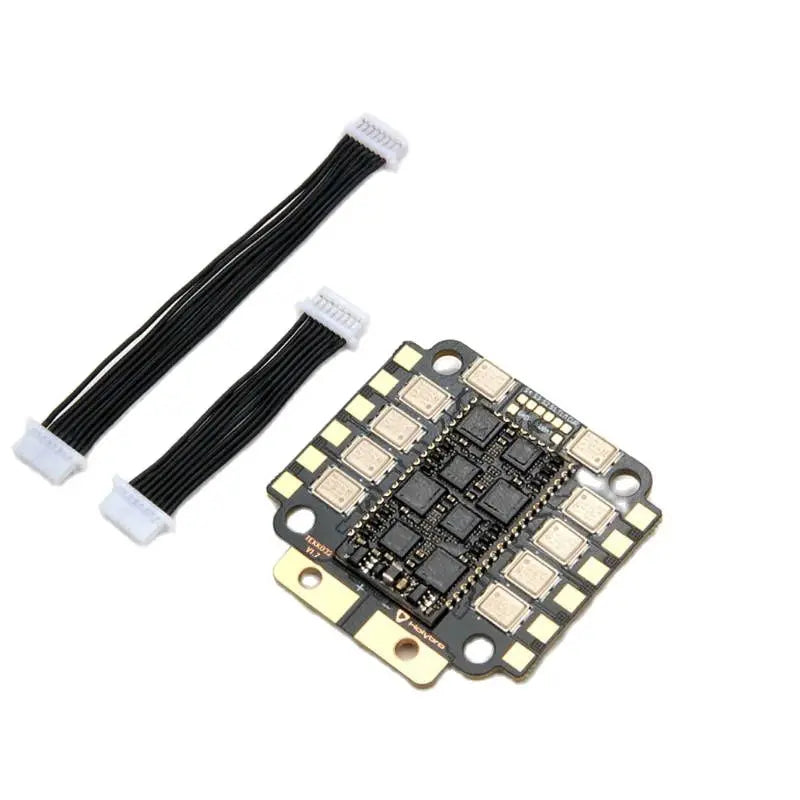

Custom PCBA Tekko32 F4 Metal 4in1 65A ESC (65A) Development Boards Manufacturer

Custom PCBA Tekko32 F4 Metal 4in1 65A ESC (65A) Development Boards Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

MCC-AM335X-J CPU Module

The MCC-AM335X-J CPU Module is a feature-packed System on Module (SOM) supporting the TI AM335x (AM3352, AM3354, AM3356, AM3357, AM3358 and AM3359) ARM Cortex-A8 Sitara processors which is capable of running at up to 1GHz with a rich 2D/3D graphics accelerator. It is a ready-to-run Linux controller board, supporting -40 to +85 Celsius extended temperature operation and has brought out up to two CAN bus, two Gigabit Ethernet, two USB OTG and up to six Serial ports and more other signals from one DDR2 SO-DIMM 200-pin gold finger expansion interface, thus makes it ideal for many industrial applications like game peripherals, printers, medical devices, educational terminals, intelligent charging system, intelligent vending machine, weighing system, etc.

The MCC-AM335X-J CPU Module has integrated some core components on board including the AM335x processor, 256MB DDR3 SDRAM, 256MB Nand Flash, 32Kb EEPROM, Gigabit Ethernet PHY chip as well as Power Management IC. It can also have flexible and compatible selections of AM335x CPU, 128/512MB DDR3 and 128/512MB Nand Flash to meet users’ different requirements. The TI AM335x CPU consists of 6 different devices with various options including speed grades, packages, graphics and peripherals. The image below gives a brief overview of options.

MYD-AM335X-J Development Board

MYIR also offers a low-cost, high-performance development board MYD-AM335X-J to provide an excellent evaluation platform to enable your quickly evaluation of the AM335x microprocessors and the MCC-AM335X-J CPU modules on this platform.

MY-LCD70TP-C 7 inch LCD Module

The MY-LCD70TP-C 7 inch LCD Module is designed to work with MYIR's ARM development boards and single board computers. It has one 7 inch TFT LCD including capacitive touch screen with 800 by 480 pixels resolution. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin 1.27mm pitch IDC cable and one 50-pin 0.5mm pitch FPC cable are provided for user selection to connect the LCD adapter board with MYIR's development board or single board computer. User can experience the high-performance of MYIR's board products through touching and watching the MY-LCD70TP-C.

MY-LCD70TP 7 inch LCD Module

The MY-LCD70TP 7 inch LCD Module is designed to work with MYIR's ARM development boards and single board computers. It has one 7 inch TFT LCD including resistive touch screen with 800 by 480 pixels resolution. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin cable is also provided to connect the LCD adapter board and MYIR's development board or single board computer. User can experience the high-performance of MYIR's board products through touching and watching the MY-LCD70TP.

MY-LCD43TP 4.3 inch LCD Module

The MY-LCD43TP 4.3 inch LCD Module is designed to work with MYIR's ARM development boards and single board computers. It has one 4.3 inch TFT LCD including touch screen with 480 by 272 pixels resolution. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin IDC cable or 50-pin FPC cable is also provided to connect the LCD adapter board and MYIR's development board or single board computer. User can experience the high-performance of MYIR's board products through touching and watching the MY-LCD43TP.

 Welcome Customize Order!
