F4 MCU / PWM output up to 96K / 4~6S / BLHELI32

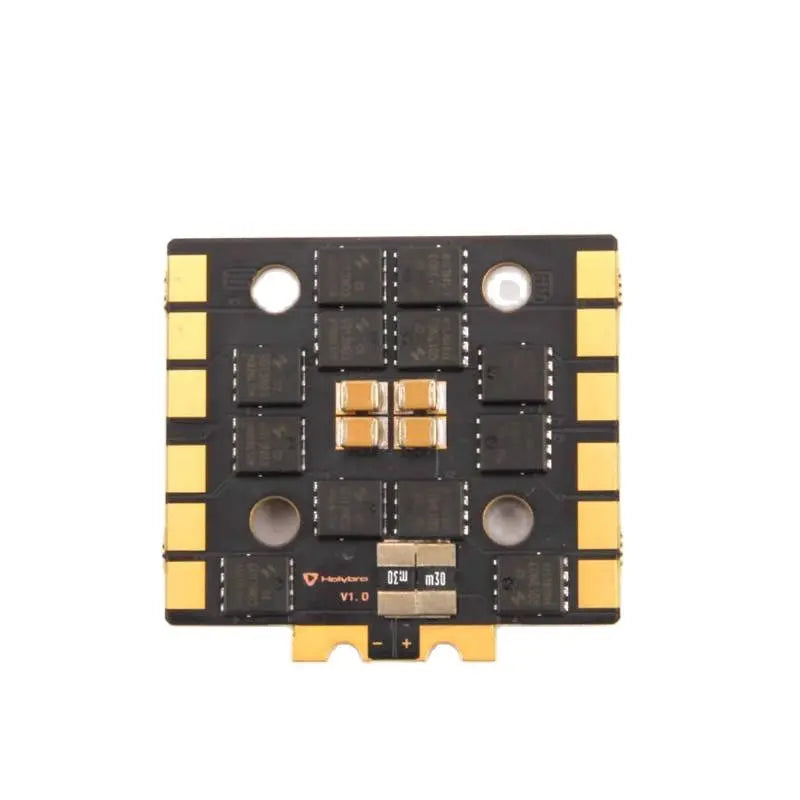

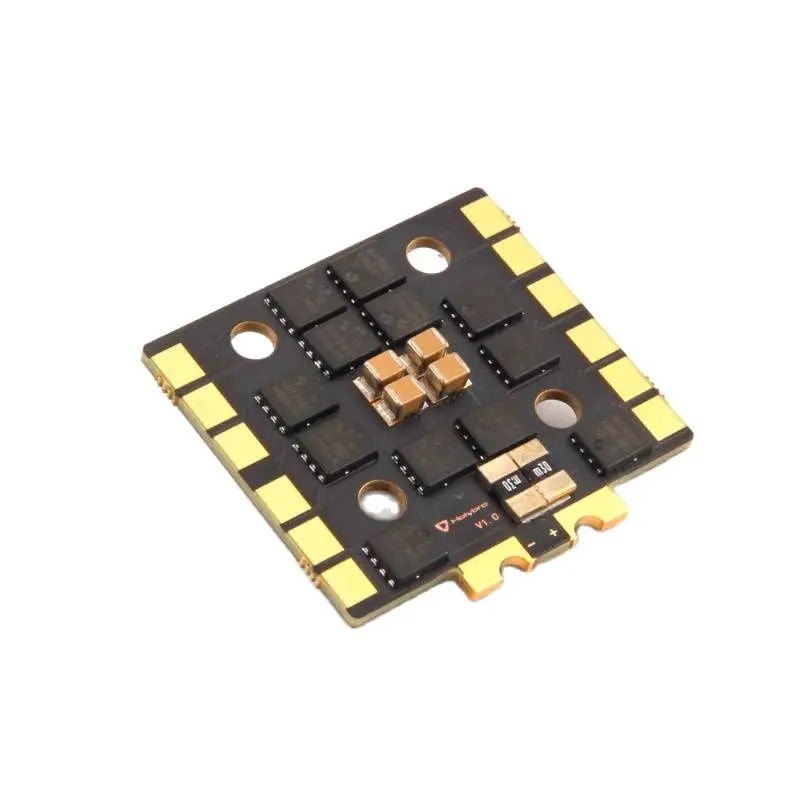

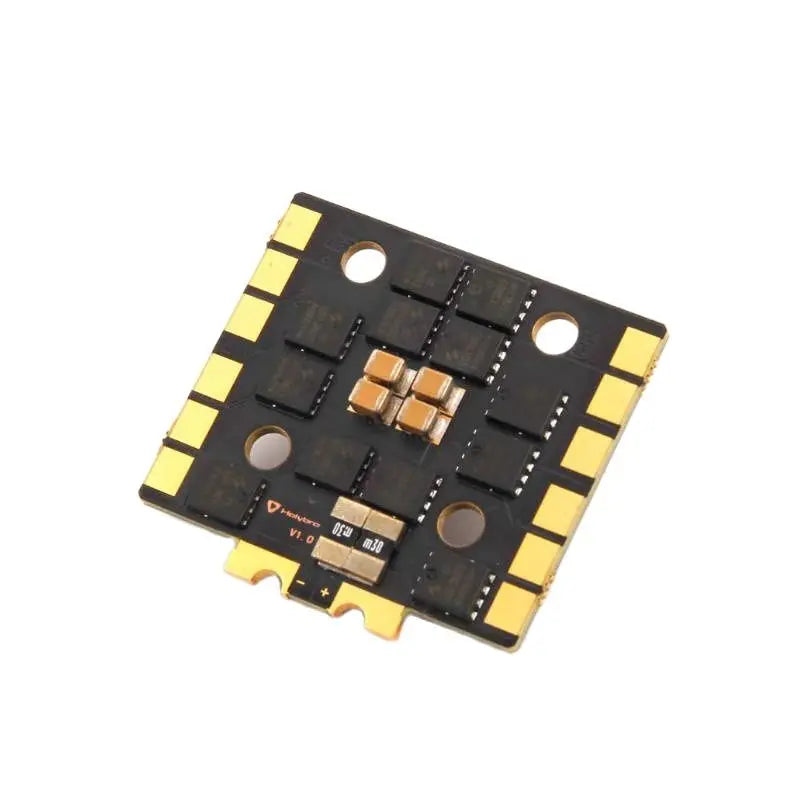

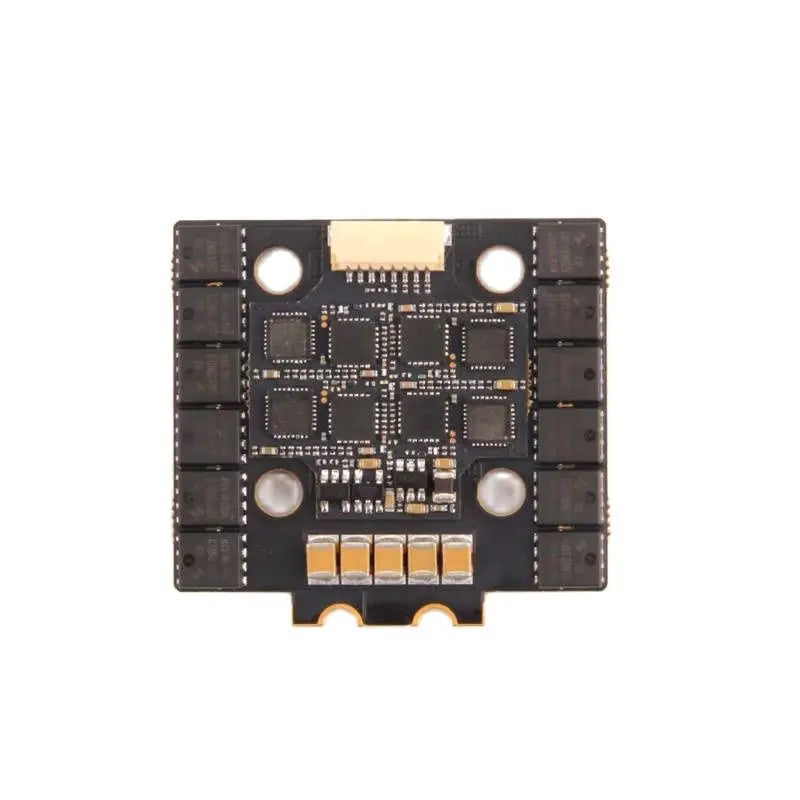

Tekko32 F4 BigFET are made for those that uses 20x20 mount and also need the power of big MOSFET. The F4 MCU & quality big MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.
Features:
-
New F4 MCU, much faster than F3 & F0
-
PWM output up to 96K (default 48K)
-
20x20 Mount design with big MOSFET
-
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification:
-
Continuous Current: 50A x4
-
Burst Current: 60A x4
-
Supports 4-6S battery
-
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
-
ESC telemetry Supported
-
Onboard analog current sensor
-
No output BEC
-
BLHeli_32 firmware
-
1000uf 35v capacitor included (highly recommended for 6s setup)
-
Amperage meter scale ratio: 168
-
Dimensions: 39x36.5x6mm / Weight: 11.8g
-
Mounting holes: M4 30.5x30.5mm (M3 grommets included)
Pin Map:
Package includes:
Tekko32 F4 BigFET 4in1 50A ESC *1

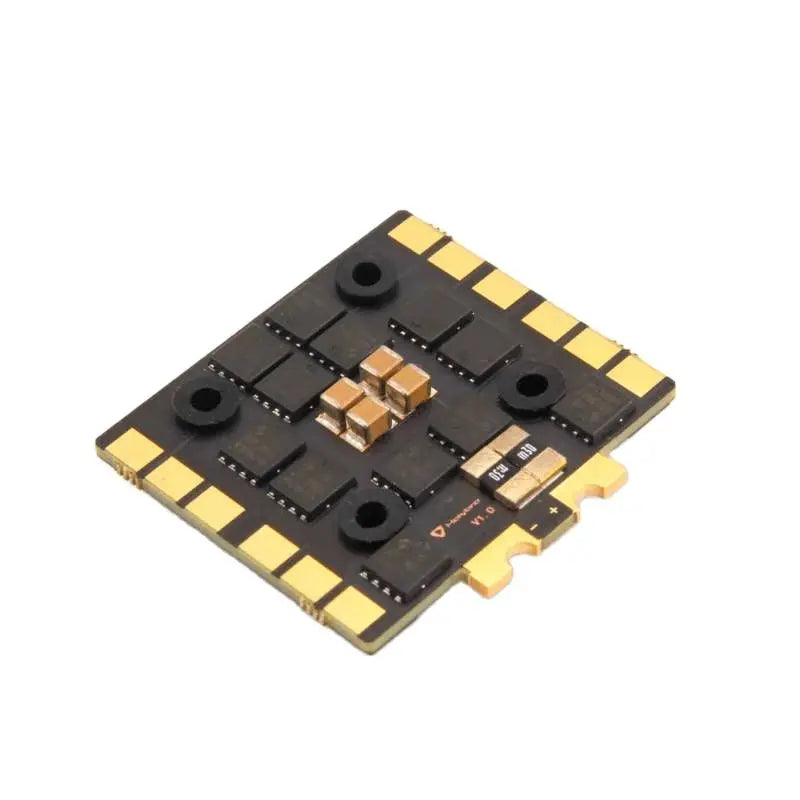

M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
