SPEC:
-
F4 MCU with BLHELI32 firmware
-
Maximum PWM output upto 96K (default 48K)
-
Amperage meter scale ratio has been adjusted to 120.
-
PWM input, TLM supported
-
Voltage output (VBAT)
-
NO output BEC
-
Supports oneshot / Multishot / Dshot PWM
-
Supports damped light
-
Supports 3-6S lipo input
-
cap needed for 6s (1000uf 35v for 6s usage.)
-
Mounting holes: 20x20mm (M2& M3 Rubber Gourmet Included)
-
Size:30 x 39 mm
PIN MAP:
Package included:

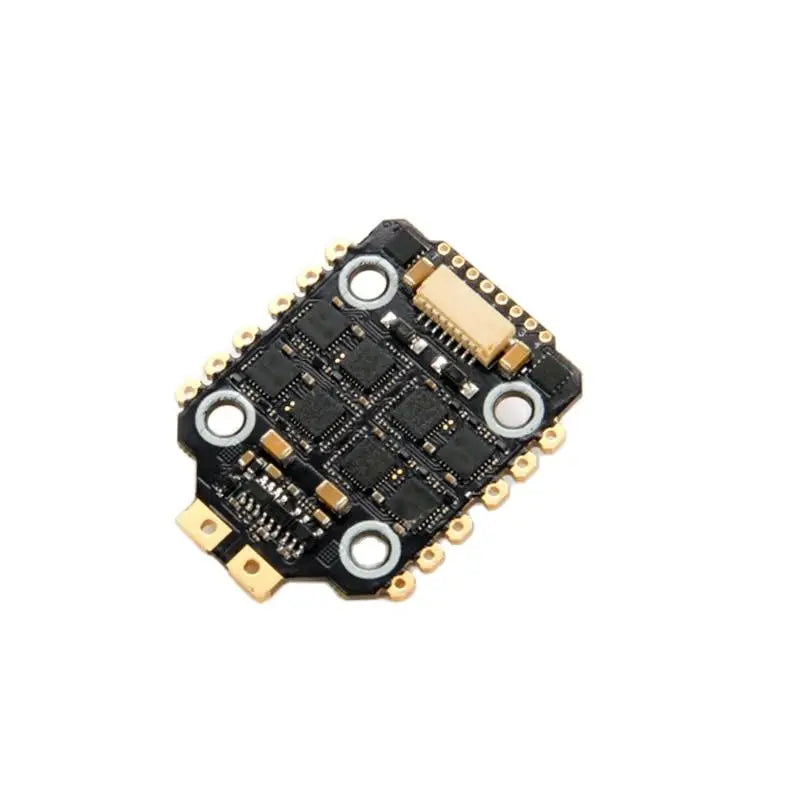

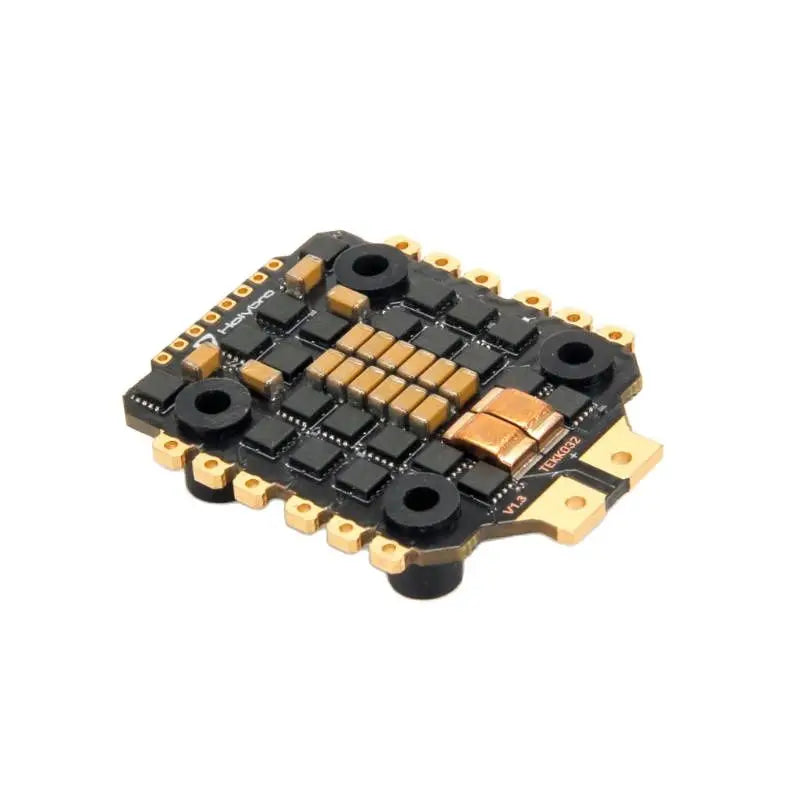

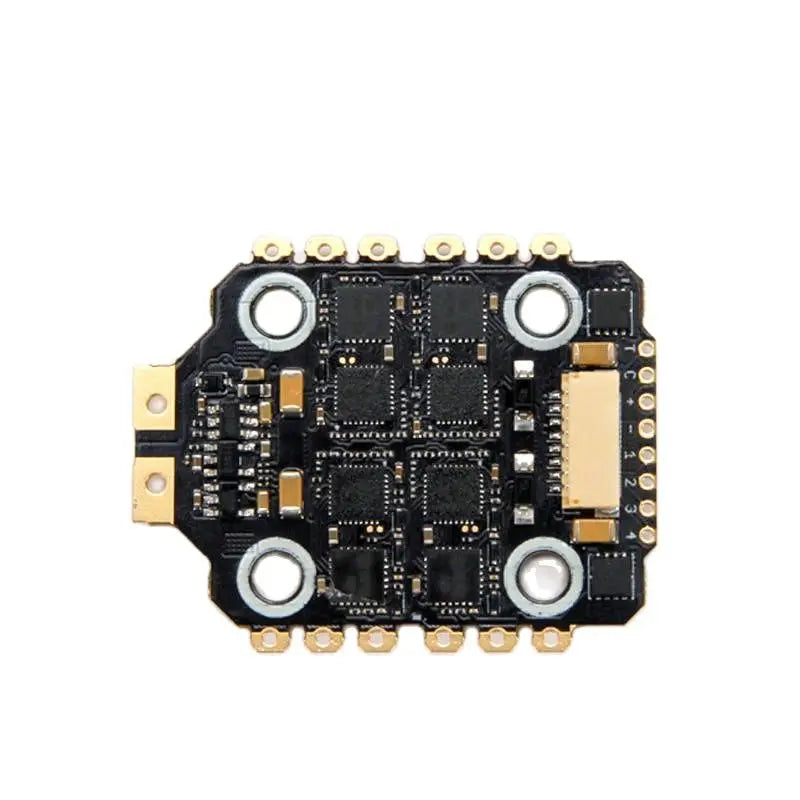

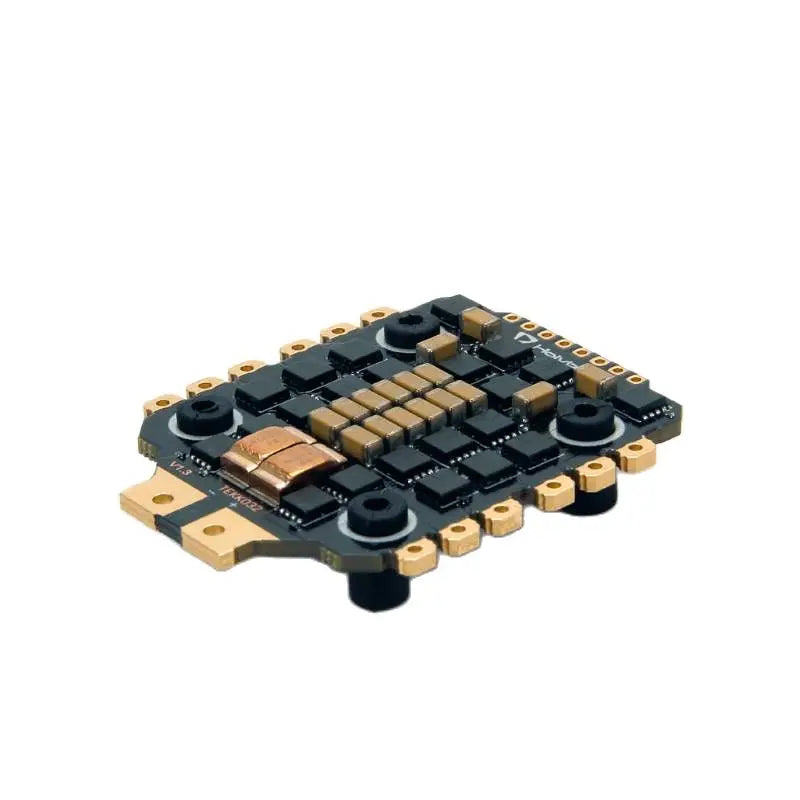

Tekko32 F4 4in1 mini 45A ESC *1
M2 Anti-Vibration Silicone Grommet Insert *4
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacito: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Downloads:
Tekko32 F4 4in1 Mini 45A ESC SPEC
Some Tips:
• BLHeli_32 ESC Firmware Overview
• GitHub
