Custom PCBA ST VL53L1X Lidar Development Boards Manufacturer
Custom PCBA ST VL53L1X Lidar Development Boards Manufacturer

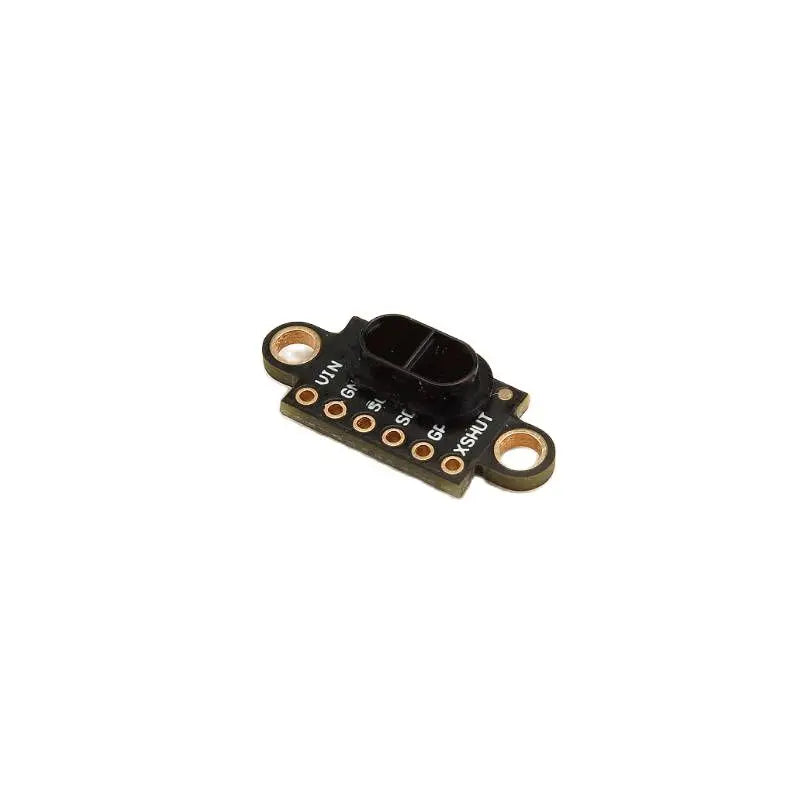

The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.
Features
• Fully integrated miniature module – Emitter: 940 nm invisible laser (Class1) – SPAD (single photon avalanche diode) receiving array with integrated lens – Low-power microcontroller running advanced digital firmware • Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor • Fast and accurate long distance ranging – Up to 400 cm distance measurement – Up to 50 Hz ranging frequency • Typical full field-of-view (FoV): 27 ° • Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced • Programmable ROI position on the receiving array, providing multizone operation control from the host • Easy integration – Single reflowable component – Can be hidden behind many cover window materials – Software driver and code examples for turnkey ranging – Single power supply (2v8) – I²C interface (up to 400 kHz) – Shutdown and interrupt pins
SPECIFICATIONS
Package Included

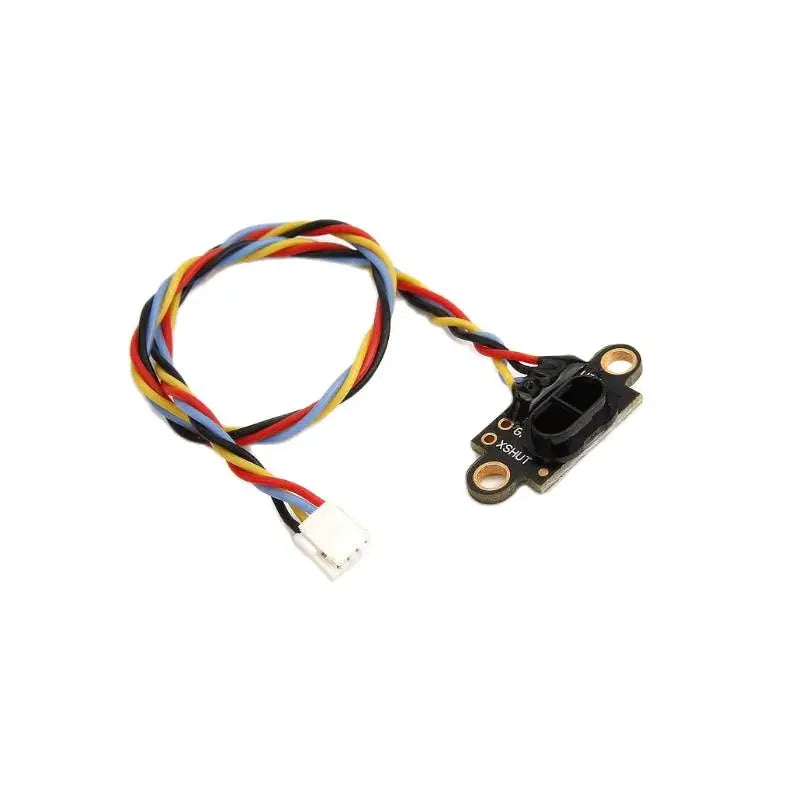

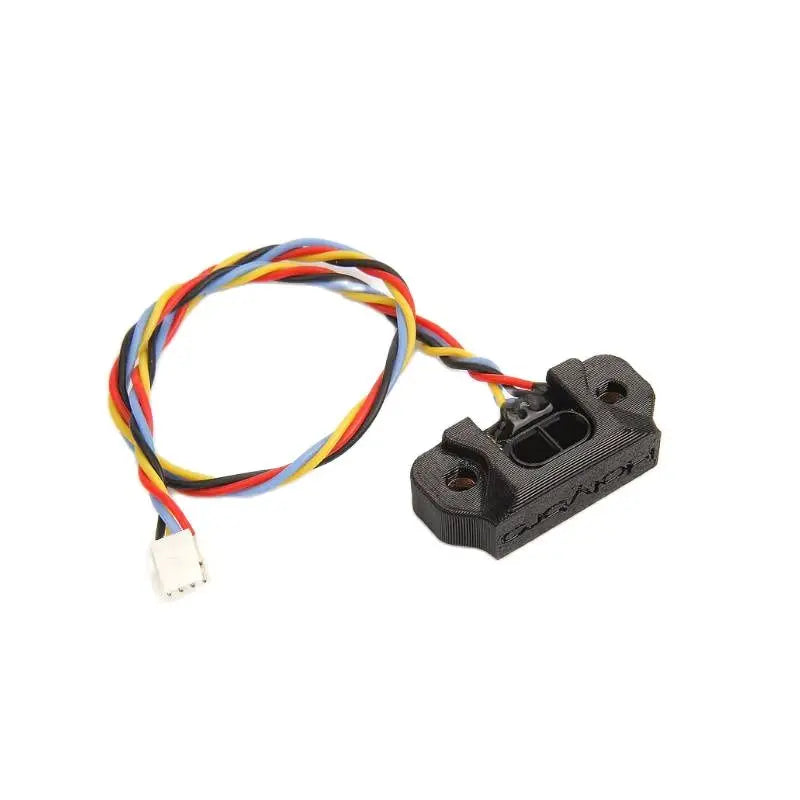

1x VL53L1X 1x GH4P 200mm Cable(installed) 1x TPU Protective Case Shell
