Custom PCBA Snapdragon 8 Gen 1 Mobile Hardware Development Kit w/ Battery Manufacturer

The Qualcomm® Snapdragon 8 Gen 1 Hardware Development Kit (HDK8450) provides an open-frame solution for technology companies to integrate and innovate devices based on the Snapdragon 8 Gen 1 Mobile Platform. The Snapdragon 8 Gen 1 Mobile HDK is a feature-rich Android development platform that is suited for Android application developers, consumer manufacturers, hardware component vendors, camera vendors, and flash chip vendors to evaluate, optimize, test, and deploy applications that can utilize the Snapdragon 8 Gen 1 mobile platform technology.

This kit SKU includes both a QC-HDK-8450 and a QC-HDK-8450-B battery bundled together.

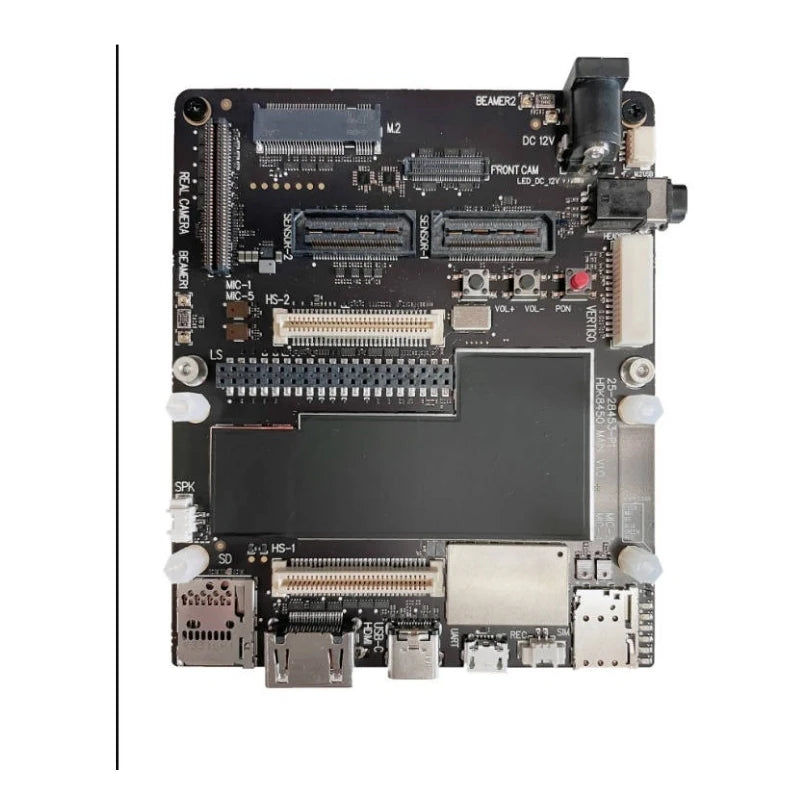

The package content includes the 100 mm x 85 mm main board with APQ8450 processor, 12V DC power adaptor and a USB cable. The main board contains the following:

• Snapdragon 8450 (SM8450P) main application processor

• Memory: 256 GB UFS 3.0 + LPDDR5 up to 3200 MHz 12 GB RAM

• PMIC: PMK8450+ PM8450 + PM8350 + PM8350C + PM8350B + PM8010 + PMR735A

• WCN6856 Wi-Fi + BT combo chip over SLIMbus, PCIE, UART, PCM

• WCD9385 Audio Code

• SDR735

User guide, schematics and other support collateral is available to customers after purchase of the HDK through Lantronix’s Technical Portal.
