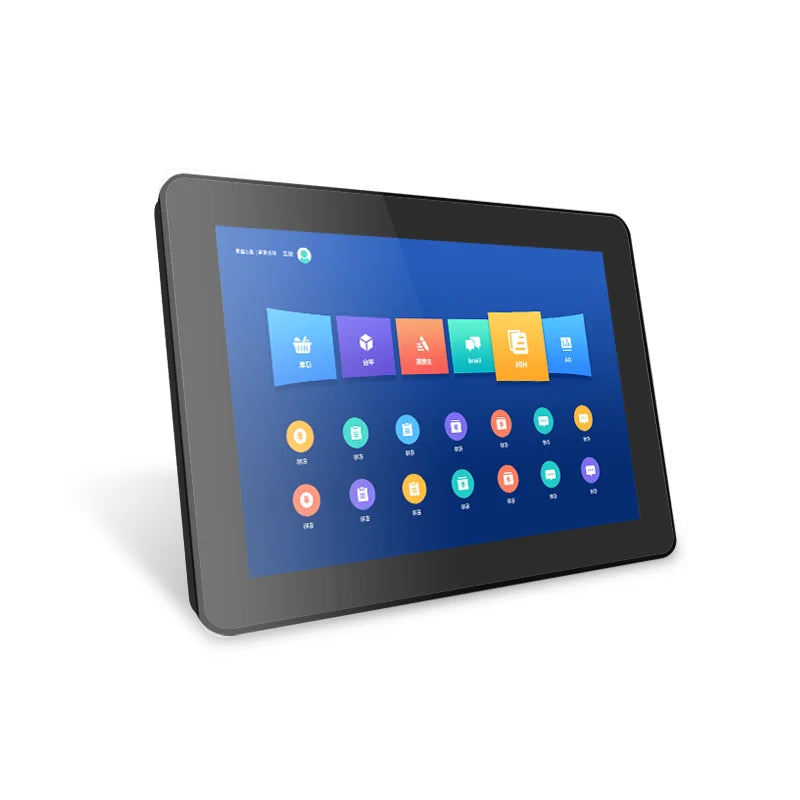

Custom PCBA Rockchip 8-inch all-in-one MIPI vertical screen Rockchip crystal morning amlogic Manufacturer
Custom PCBA Rockchip 8-inch all-in-one MIPI vertical screen Rockchip crystal morning amlogic Manufacturer
Couldn't load pickup availability

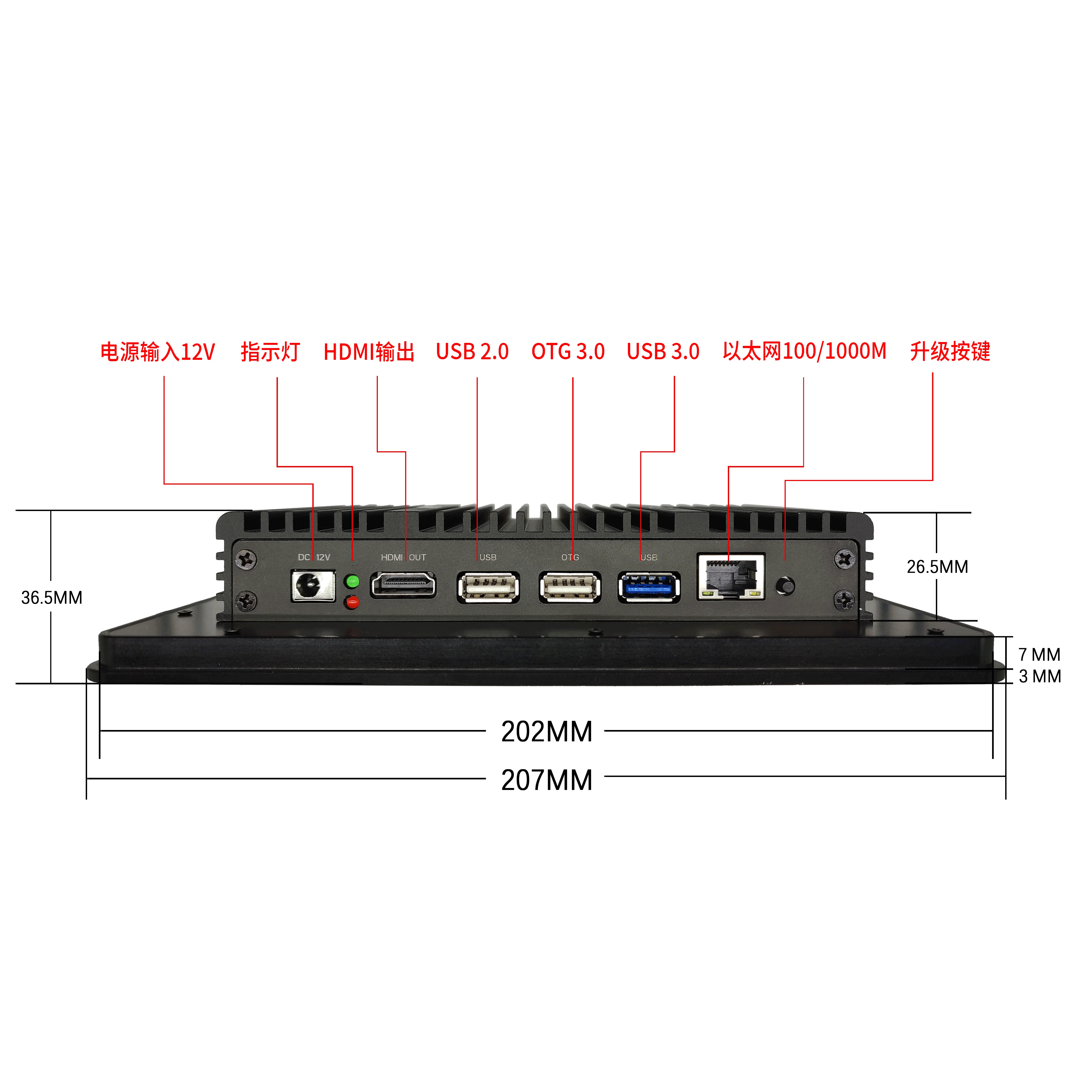

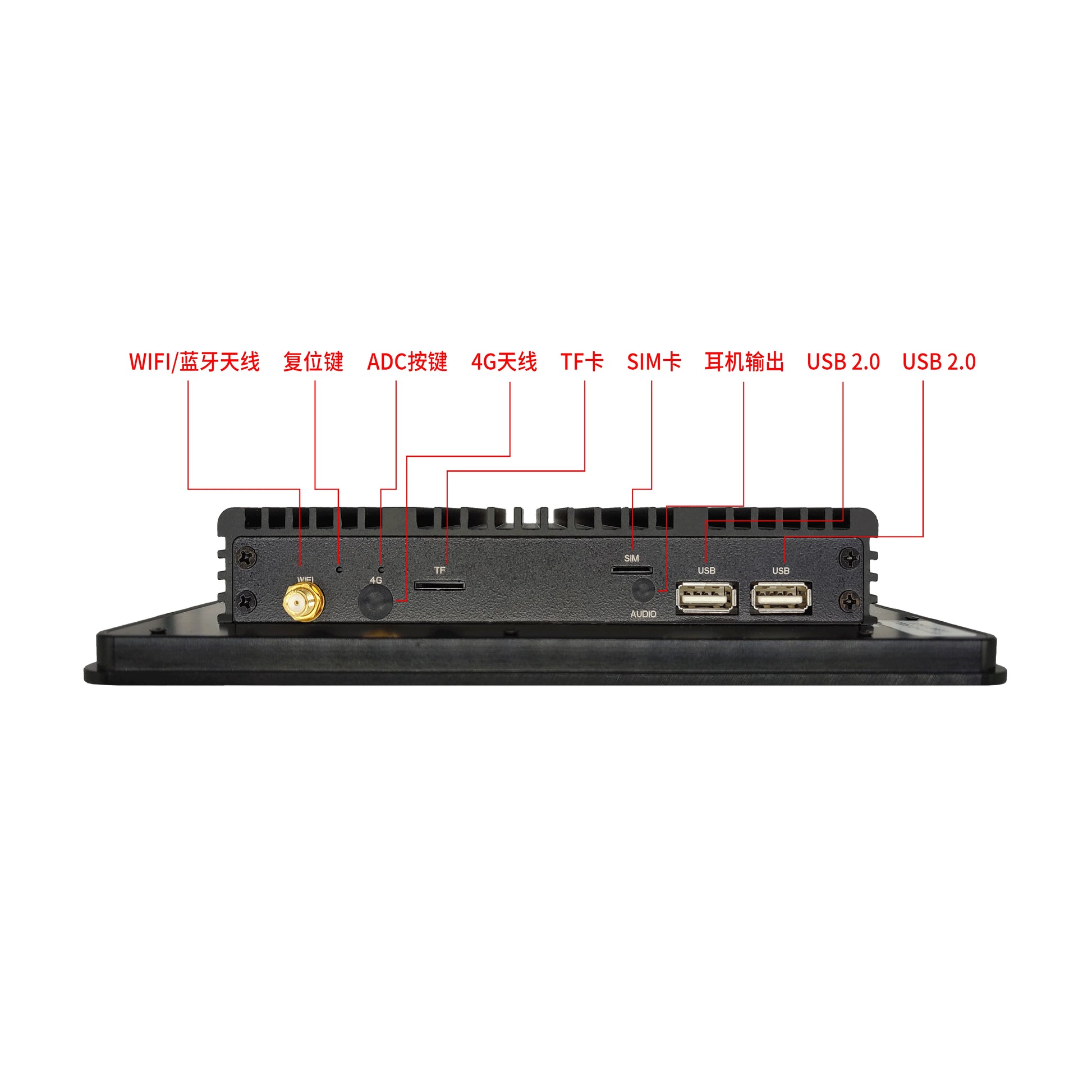

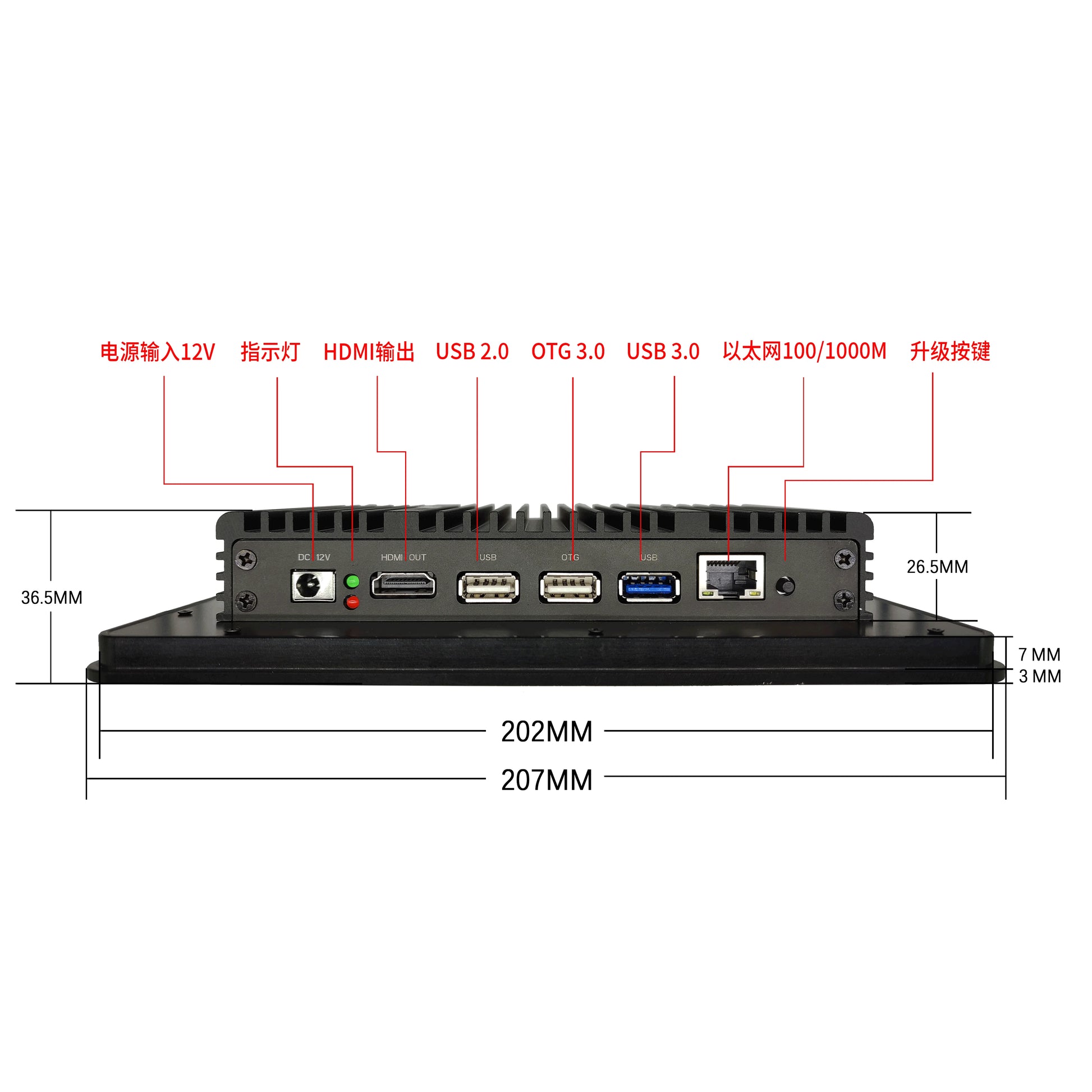

| RK3568 host hardware parameters | |
| processor | ROCKCHIP RK3568 Quad Core A55 2GHz |
| RAM | LPDDR4 2GB or 4GB/8GB |
| storage | EMMC 8GB/16GB or 64GB |
| audio | Amplifier speaker 2-way 3W (with socket, can be connected externally) |
|
| Microphone (with socket, can be externally connected) |
| Network Interface | 2-way Ethernet 100/1000M |
|
| Wireless WIFI 2.4G/5G(AP6256) |
|
| BT 5.0+BLE(AP6256) |
|
| 4G CAT1 (not included as standard, optional) |
| USB interface | 1-way USB OTG 3.0 interface (can ADB) |
|
| 1-way USB HOST 3.0 interface |
|
| 2-way USB HOST 2.0 interface |
|
| 1-way USB HOST 2.0 built-in interface |
| display interface | HDMI 2.0 output 1920x1080 |
|

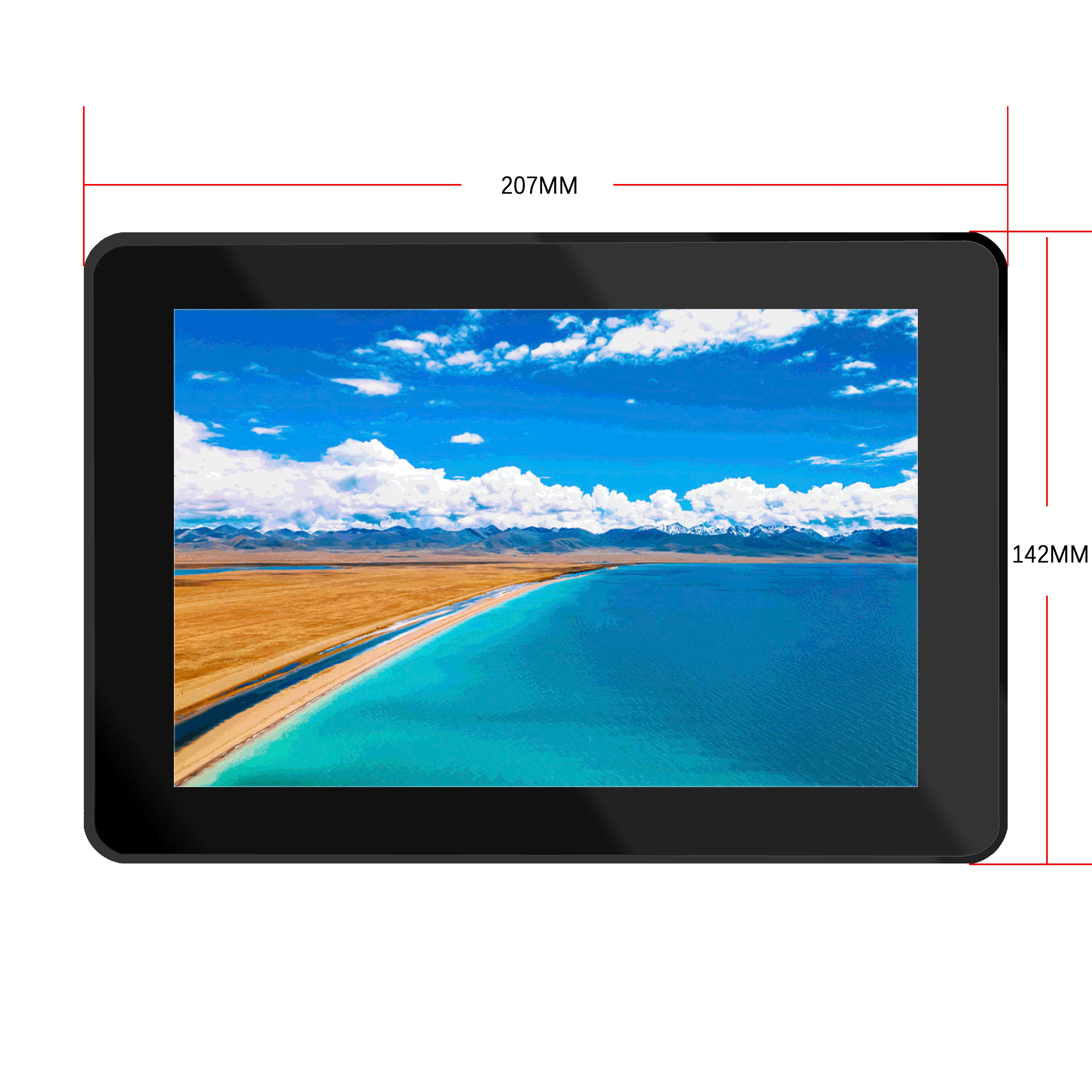

| 8 inch display FHD 1200x1920 450 cd/m2 |
| indicator light | One power light, one system running light |
| RTC | Built-in RTC (HYM8563), power consumption 0.25uA, sustainable for 4 years |
| Extensible interface | 1-way SPI (with socket, can be externally connected) |
|
| 6-way TTL serial port (with socket, can be externally connected) |
| Extensible interface | 1 channel I2C (with socket, can be externally connected) |
|
| 12V / 5V / 3.3V power output (with socket, can be externally connected) |
|
| 1-way controllable GPIO, can operate the whole machine to power on and off (with socket, can be connected externally) |
|
| 15 GPIO multiplexed serial port or SPI port (with socket, can be externally connected) |
|
| Dual MIPI CSI camera interface (with socket, can be externally connected) |
| power input | Above 12V 2A DC5.5x2.1 |
| support system | Android 11/ Ubuntu1804/ Linux+QT5.14 |
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11.5V | 12V | 15V |
| ripple |
| 50mV | 100mV | |
| Turn-on current | 179mA | 378mA | 618mA | |
| Play sound |
| 389mA | 537mA | |
| Connect to HMDI boot current | 189mA | 398mA | 559mA | |
| Connect to HMDI quiescent current |
| 392mA |
| |
| RK3566 host hardware parameters | |
| processor | ROCKCHIP RK3566 Quad Core A55 1.8GHz |
| RAM | LPDDR4 2GB or 4GB/8GB |
| storage | EMMC 8GB/16GB or 64GB |
| audio | Amplifier speaker 2-way 3W (with socket, can be connected externally) |
| Microphone (with socket, can be externally connected) | |
| Network Interface | 1 Ethernet 100/1000M |
| Wireless WIFI 2.4G/5G(AP6256) | |
| BT 5.0+BLE(AP6256) | |
| 4G CAT1 (not included as standard, optional) | |
| USB interface | 1-way USB OTG 2.0 interface (can ADB) |
| 1-way USB HOST 3.0 interface | |
| 3-way USB HOST 2.0 interface | |
| 1-way USB HOST 2.0 built-in interface | |
| display interface | HDMI 2.0 output 1920x1080 |
| 8 inch display FHD 1200x1920 450 cd/m2 | |
| indicator light | One power light, one system running light |
| RTC | Built-in RTC (HYM8563), power consumption 0.25uA, sustainable for 4 years |
| Extensible interface | 3-way SPI (with socket, can be externally connected) |
| 4-way TTL serial port (with socket, can be externally connected) | |
| Extensible interface | 2-way I2C (with socket, can be externally connected) |
| 12V / 5V / 3.3V power output (with socket, can be externally connected) | |
| 1-way controllable GPIO, can operate the whole machine to power on and off (with socket, can be connected externally) | |
| 28 GPIO multiplexed serial port or SPI port (with socket, can be externally connected) | |
| Dual MIPI CSI camera interface (with socket, can be externally connected) | |
| power input | Above 12V 2A DC5.5x2.1 |
| support system | Android 11/ Ubuntu1804/ Linux+QT5.14 |
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11.5V | 12V | 15V |
| ripple |
| 50mV | 100mV | |
| Turn-on current | 199mA | 378mA | 687mA | |
| Play sound |
| 385mA | 558mA | |
| Connect to HMDI boot current | 205mA | 394mA | 679mA | |
| Connect to HMDI quiescent current |
| 392mA |
| |
| RK3399 host hardware parameters | |
| processor | ROCKCHIP RK3399 Six-core A72+A53 1.8GHz |
| RAM | LPDDR4 2GB or 4GB |
| storage | EMMC 16GB or 64GB |
| audio | Amplifier speaker 2-way 3W (with socket, can be connected externally) |
| Microphone (with socket, can be externally connected) | |
| Network Interface | Ethernet 100/1000M |
| Wireless WIFI 2.4G/5G | |
| BT 5.0+BLE | |
| 4G CAT1 (not included as standard, optional) | |
| USB interface | 1-way USB OTG 3.0 interface (can ADB) |
| 1-way USB HOST 3.0 interface | |
| 3-way USB HOST 2.0 interface | |
| 1-way USB HOST 2.0 built-in interface | |
| display interface | HDMI 2.0 output 1920x1080 |
| 8 inch display FHD 1200x1920 450 cd/m2 | |
| indicator light | One power light, one system running light |
| RTC | Built-in RTC (HYM8563), power consumption 0.25uA, sustainable for 4 years |
| Extensible interface | 1-way SPI (with socket, can be externally connected) |
| 2-way TTL serial port (with socket, can be externally connected) | |
| Extensible interface | 1 channel I2C (with socket, can be externally connected) |
| 12V / 5V / 3.3V power output (with socket, can be externally connected) | |
| 1-way controllable GPIO, can operate the whole machine to power on and off (with socket, can be connected externally) | |
| 8-way GPIO+4-way multiplexable GPIO (with socket, can be externally connected) | |
| Dual MIPI CSI camera interface (with socket, can be externally connected) | |
| power input | Above 12V 2A DC5.5x2.1 |
| support system | Android 8.1/ Ubuntu1804/ Linux+QT5.9 |
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11.5V | 12V | 15V |
| ripple |
| 50mV | 100mV | |
| Turn-on current | 217mA | 415mA | 894mA | |
| Play sound |
| 435mA | 599mA | |
| Connect to HMDI boot current | 225mA | 428mA | 906mA | |
| Connect to HMDI quiescent current |
| 408mA |
| |
| RK3288 host hardware parameters | |
| processor | ROCKCHIP RK3288 Quad Core A17 1.8GHz |
| RAM | DDR3 2GB or 4GB |
| storage | EMMC 16GB or 64GB |
| audio | Amplifier speaker 2-way 3W (with socket, can be connected externally) |
| Microphone (with socket, can be externally connected) | |
| Network Interface | Ethernet 100/1000M |
| Wireless WIFI 2.4G | |
| BT 4.0+BLE | |
| 4G CAT1 (not included as standard, optional) | |
| USB interface | 1-way USB OTG 2.0 interface (can ADB) |
| 4-way USB HOST 2.0 interface | |
| display interface | HDMI 2.0 output 1920x1080 |
| 8 inch display FHD 1200x1920 450 cd/m2 | |
| indicator light | One power light, one system running light |
| RTC | Built-in RTC (HYM8563), power consumption 0.25uA, sustainable for 4 years |
| Extensible interface | 1-way SPI (with socket, can be externally connected) |
| 4-way TTL serial port (with socket, can be externally connected) | |
| Extensible interface | 1 channel I2C (with socket, can be externally connected) |
| 12V / 5V / 3.3V power output (with socket, can be externally connected) | |
| 1-way controllable GPIO, can operate the whole machine to power on and off (with socket, can be connected externally) | |
| 3-way GPIO+14-way multiplexable GPIO (with socket, can be externally connected) | |
| 1-way MIPI CSI + DVP camera interface (with socket, can be externally connected) | |
| power input | Above 12V 2A DC5.5x2.1 |
| support system | Andriod 5.1 or 8.1/Ubuntu1804/Linux+QT5.9 |
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11.5V | 12V | 15V |
| ripple |
| 50mV | 100mV | |
| Turn-on current | 206mA | 329mA | 658mA | |
| Play sound |
| 339mA | 516mA | |
| Connect to HMDI boot current | 228mA | 349mA | 525mA | |
| Connect to HMDI quiescent current |
| 368mA |
| |
| A311D host hardware parameters | |
| processor | AMLOGIC A311D Hexa-Core 2.2GHz |
| RAM | LPDDR4 2GB or 4GB |
| storage | EMMC 16GB or 64GB |
| audio | Amplifier speaker 2-way 3W (with socket, can be connected externally) |
| Microphone (with socket, can be externally connected) | |
| Network Interface | Ethernet 100/1000M |
| Wireless WIFI 2.4G/5G Dual Band | |
| BT 5.0+BLE | |
| 4G CAT1 (not included as standard, optional) | |
| USB interface | 1-way USB OTG 3.0 interface (can ADB) |
| 4-way USB HOST 2.0 interface | |
| 3-way plug-in USB HOST2.0 interface | |
| display interface | HDMI 2.0 output 1920x1080 |
| 8 inch display FHD 1200x1920 450 cd/m2 | |
| indicator light | One power light, one system running light |
| RTC | Built-in RTC (HYM8563), power consumption 0.25uA, sustainable for 4 years |
| Extensible interface | 2-way I2C (with socket, can be externally connected) |
| 3-way TTL serial port (with socket, can be externally connected) | |
| Extensible interface | 2-channel ADC (with socket, can be externally connected) |
| 12V / 5V / 3.3V power output (with socket, can be externally connected) | |
| 1-way controllable GPIO, can operate the whole machine to power on and off (with socket, can be connected externally) | |
| 9-way GPIO (with socket, can be externally connected) | |
| 1-way MIPI CSI camera interface (with socket, can be externally connected) | |
| power input | Above 12V 2A DC5.5x2.1 |
| support system | Android 9.0/Ubuntu20.04/Linux+Buildroot |
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11.5V | 12V | 15V |
| ripple |
| 50mV | 100mV | |
| Turn-on current | 175mA | 285mA | 538mA | |
| Play sound |
| 285mA | 399mA | |
| Connect to HMDI boot current | 208mA | 298mA | 497mA | |
| Connect to HMDI quiescent current |
| 289mA |
| |
| touch parameters | |
| touch | Projective 10-point touch |
| product structure | G+FF |
| Resolution | 1200x1920 |
| Transmittance | 90% |
| Response time | less than 5ms |
| Surface hardness | 7H |
| touch communication | I2C |
| Static level | Contact 6KV Air 8KV |
| Environmental parameters | |
| Operating temperature | -10- 60 |
| storage temperature | -30 - 70 |
| Relative humidity | 10%~80% 40 |
| shock | 1.5Grms@5~500Hz,random,1hr/axis |
| impact | 10G, 11 second interval, half sine wave |
| Adapt to the scene | Semi-outdoor (shed) |
Welcome Customize Order!
