Lonten Tech

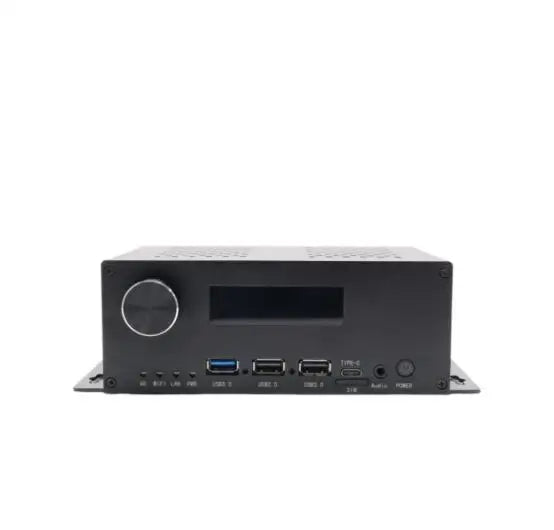

Custom PCBA R58X-Pro R58X Pro host development board Mekotronics MicroAndroid 12 Development Boards Manufacturer

Custom PCBA R58X-Pro R58X Pro host development board Mekotronics MicroAndroid 12 Development Boards Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out





1. R58X-Pro introduction



Mekotronics R58X-Pro is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.

With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)

Mekotronics R58X-Pro Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.

The model R58X-Pro has diverse interfaces, which can reach three screen display at the same time: 8K screen + 4K screen + 2K screen, or we can do 4K screen + 4k screen + 4K screen at the same time.

With dual Gigabit network ports, 4*16 bit channel DDR, max support is up to 32GB



And of course, the biggest feature the R58X-Pro is adding adding POE, mini PCIe for 4G LTE/GPS module, SIM card slot, M.2 PCIe NVMe SSD slot, Micro SD card slot, and 10G Ethernet port.



3. R58X-Pro specifications:

CPU

Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55)

CPU frequency

Quad-core Cortex A76 @2.4Ghz

Quad-core Cortex A55 @1.8Ghz

GPU

Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2

Embedded high-performance 2D acceleration hardware

8K 10 bit decoder, 8K encoder

NPU

6.0 TOPS NPU

DDR

LPDDR4X (4G, 8G, 16G optional)

OS

Android 12, Buildroot, Debian 11, Ubuntu 20.04

Internal storage

Support eMMC5.1, SDIO3.0

(32GB, 64GB, 128GB optional)

Display output

HDMI2.1, max output 8K 60Hz, HDCP2.3

DP1.4, max output 8K 30Hz, HDCP2.3

HDMI input

Max input 4K 60Hz

Camera

Mipi CSI 2 Lane

Ethernet

1000Mbps, G-LAN Ethernet port x2

10000Mbps, 10G-LAN Ethernet port x1 (from M.2 PCIe 3.0 port)

WiFi

WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO

Clock

Support RTC clock

USB/SD card

USB3.0, USB2.0, Tpye-C, Micro SD card

SATA

SATA 3.0 (7 pin)

PCIE

PCIE 3.0 M.2 M-key), support NVMe SSD size 2280

Mini PCIe

Mini PCIe for 4G LTE/GPS module

SIM card slot

Support Nano SIM card for 4G

Audio

Support MIC and audio jack

Industrial port

RS232

RS485

I2C

GPIO

Display

Front panel display

Volume

Sound volume adjusting knob

DC power

12V 2Ah (DC port 5.5x2.0)



4. R58X-Pro operation systems: Android 12, Buildroot, Debian 11, Ubuntu 20.04





 Welcome Customize Order!
