Custom PCBA R58X-HDD R58X HDD host development board Mekotronics RK3588 Android 12 Manufacturer
Custom PCBA R58X-HDD R58X HDD host development board Mekotronics RK3588 Android 12 Manufacturer
Couldn't load pickup availability
Mekotronics R58X-HDD is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)
Mekotronics R58X-HDD Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.
The model R58XHDD has diverse interfaces, which can reach three screen display at the same time: 8K screen + 4K screen + 2K screen, or we can do 4K screen + 4k screen + 4K screen at the same time.
With dual Gigabit network ports, 4*16 bit channel DDR, max support is up to 32GB

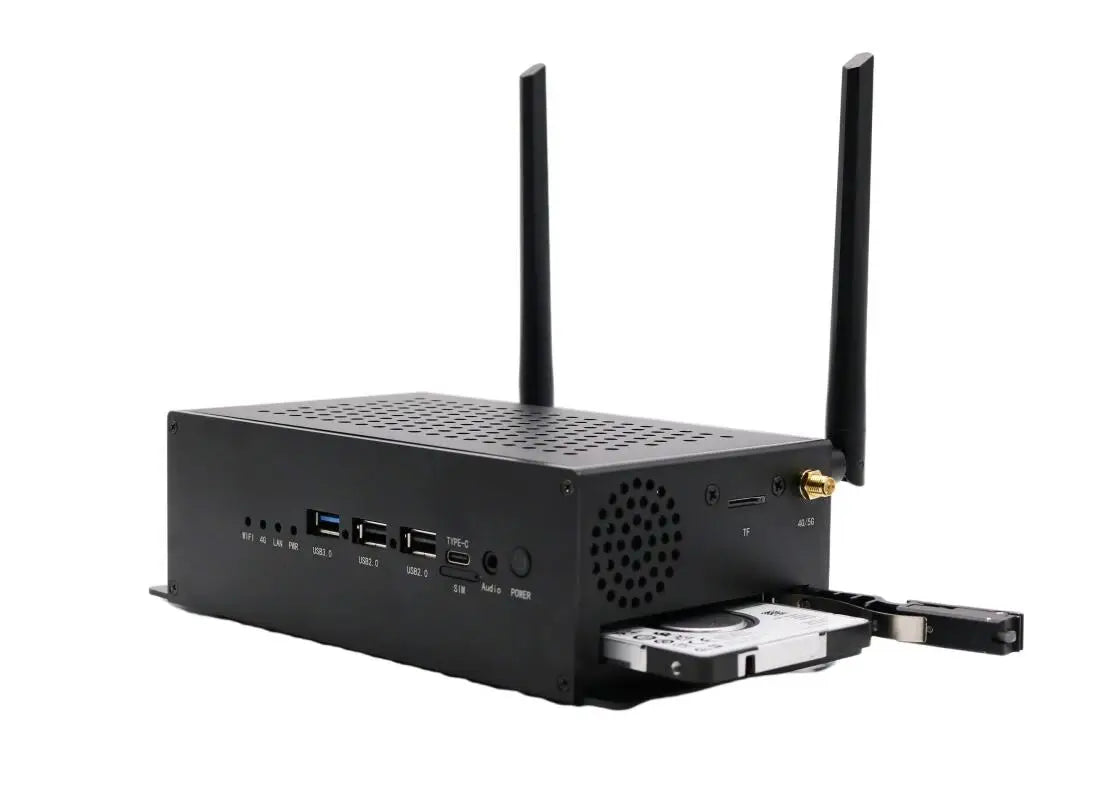

And of course, the biggest feature the R58XHDD is adding adding POE, mini PCIe for 4G LTE/GPS module, SIM card slot, M.2 PCIe NVMe SSD slot, Micro SD card slot, and 10G Ethernet port; and the 2.5" Hard disk drive slot for convenient storage installation.
R58X-HDD specifications
| CPU | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
| CPU frequency | Quad-core Cortex A76 @2.4Ghz Quad-core Cortex A55 @1.8Ghz |
| GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
|
| Embedded high-performance 2D acceleration hardware |
|
| 8K 10 bit decoder, 8K encoder |
| NPU | 6.0 TOPS NPU |
| DDR | LPDDR4X (4G, 8G, 16G optional) |
| OS | Android 12, Buildroot, Debian 11, Ubuntu 20.04 |
| Internal storage | Support eMMC5.1, SDIO3.0 (32GB, 64GB, 128GB optional) |
| Display output | HDMI2.1, max output 8K 60Hz, HDCP2.3 |
|
| DP1.4, max output 8K 30Hz, HDCP2.3 |
| HDMI input | Max input 4K 60Hz |
| Camera | Mipi CSI 2 Lane |
| Ethernet | 1000Mbps, G-LAN Ethernet port x2 10000Mbps, 10G-LAN Ethernet port x1 (from M.2 PCIe 3.0 port) |
| WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
| Clock | Support RTC clock |
| USB/SD card | USB3.0, USB2.0, Tpye-C, Micro SD card |
| SATA | SATA 3.0 (7 pin) with 2.5” hard disk slot |
| PCIE | PCIE 3.0 M.2 M-key), support NVMe SSD size 2280 |
| Mini PCIe | Mini PCIe for 4G LTE/GPS module |
| SIM card slot | Support Nano SIM card for 4G |
| Audio | Support MIC and audio jack |
| Industrial port | RS232 |
|
| RS485 |
|
| I2C |
|
| GPIO |
| DC power | 12V 2Ah (DC port 5.5x2.0) |
Welcome Customize Order!
