Description:

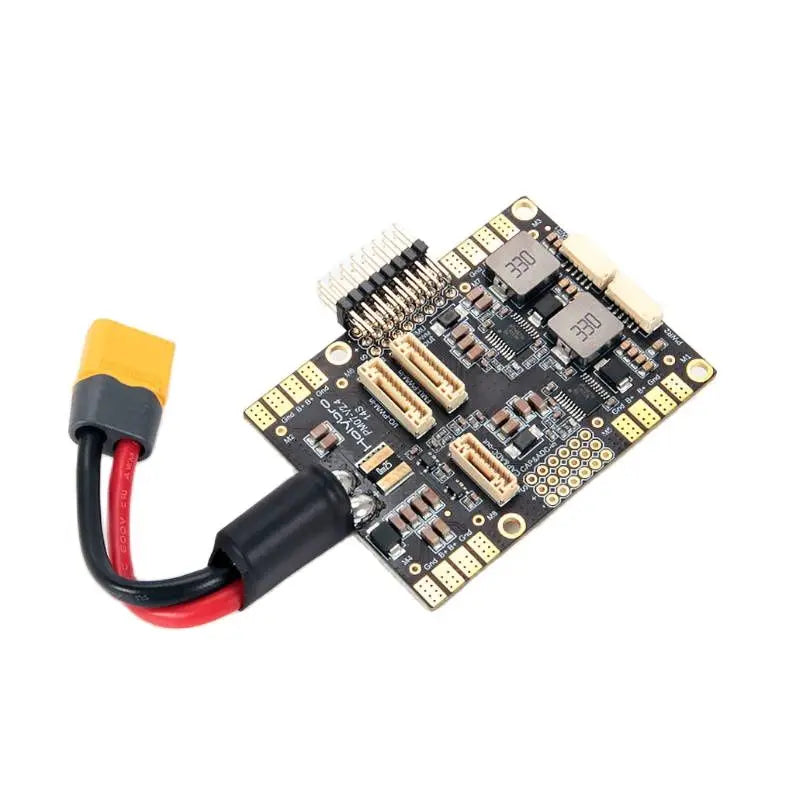

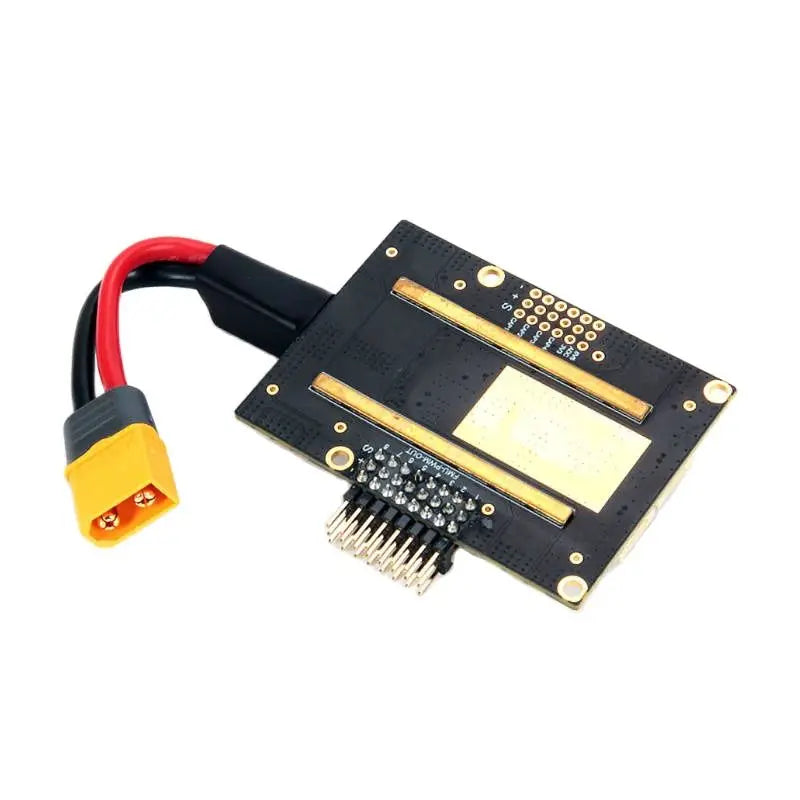

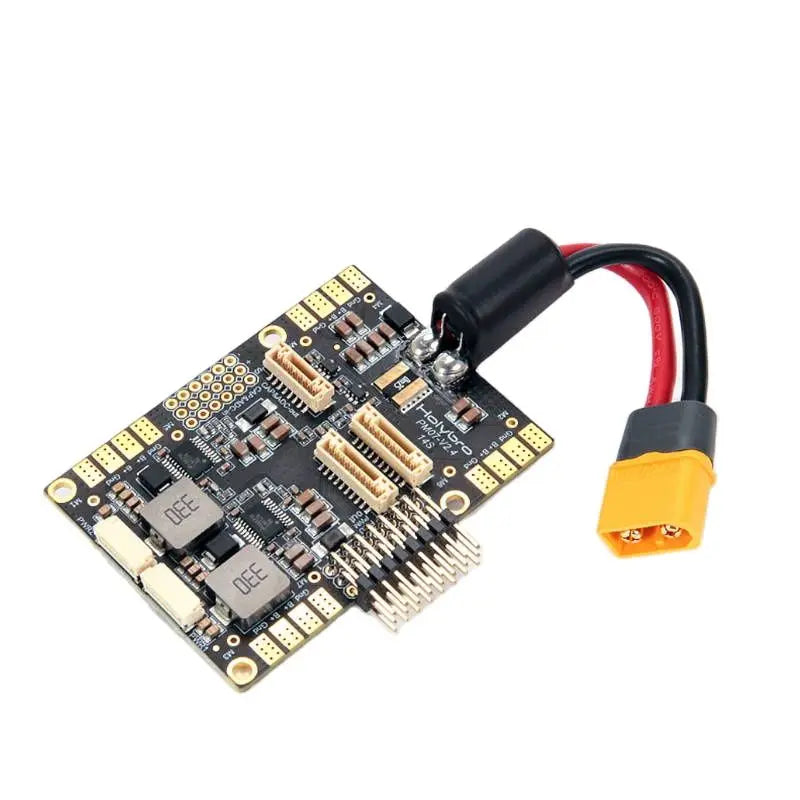

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs. It is designed specifically for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector. It has two power output port with independent BEC and circuitry.
Specifications:
-
Input voltage: 2S-14S
-
PCB Cont. Current Rating: 90A
-
PCB Burst Current Rating: 140A (<60 Sec)
-
Output: DC 5.2V & 3A Max
-
Voltage Divider: 18.182
-
Amperes per Volt: 36.364
Please Note:
-
The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
-
This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
Mechanical Specification:
-
Dimensions:68*50*10 mm
-
Mounting Holes:45*45mm
-
Weight: 43.8g
Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.
PM07 User guide can be found here

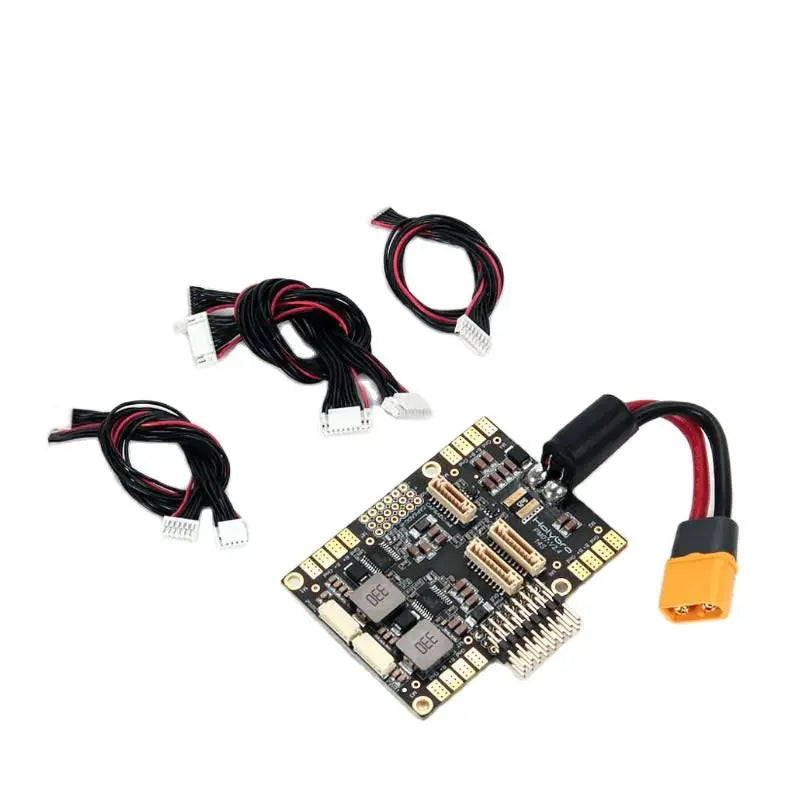

Package Include:
-
1x PM07 board
-
1x 80mm XT60 connector wire (installed)
-
1x Electrolytic capacito: 220uF 63V (installed)
-
2x JST GH 10P Cable
-
1x JST GH 8P Cable
-
2x JST GH 6P Cable
