Custom PCBA OKMX8MQ-C Single Board Computer Development Boards Manufacturer

Custom PCBA OKMX8MQ-C Single Board Computer Development Boards Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

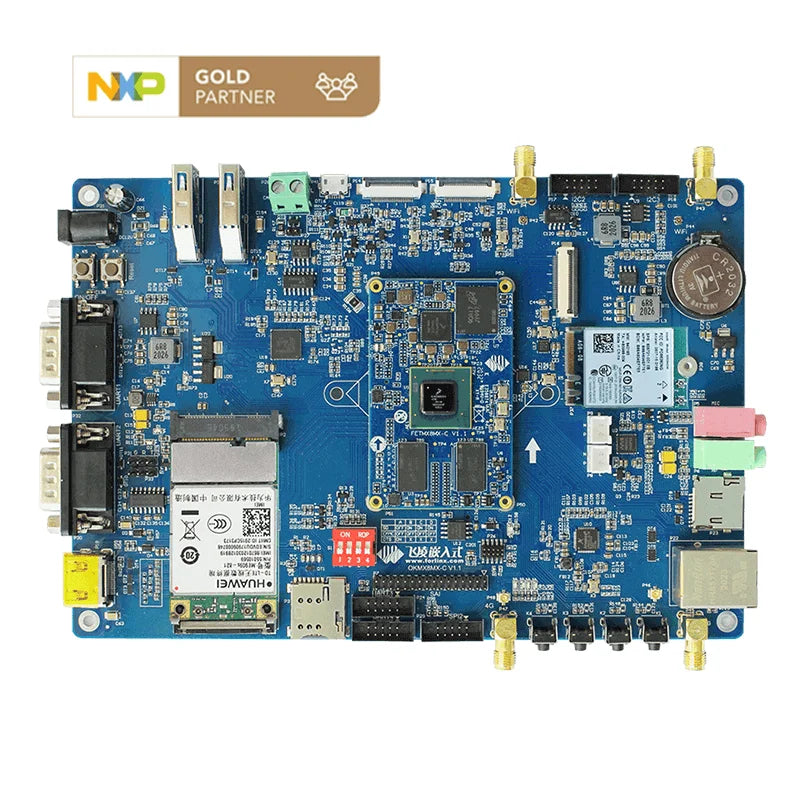

Single Board Computer OKMX8MQ-C based on i.MX8MQ

OKMX8MQ-C is a single board computer (SBC) designed based on NXP quad-core ARM Cortex-A53 featuring processor i.MX8MQ runs up to1.3GHz, carries on-board 2GB RAM, 8GB ROM, working temperature ranges from -40℃ to 85℃.

i.MX8MQ Single Board Computer Features



  • 1. Advanced audio, voice and video processing performance up to 4K;

  • 2. UltraHD and HDR(Dolby Vision, HDR10 and HLG), fanless, long bettary longebity;

  • 3. Dual-screen planning;

  • 4. MIPI-DSI(1080P) and HDMI2.0a(4K);

  • 5. Vivante GC7000 Lite GPU can support OpenGL ES3.1, OpenGL3.0, Vulkan and OpenCL1.2;

  • 6. Video decoding: 4Kp60 HDR(h.265, VP9), 4Kp30 (h.264), 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS/AVS+, h.263, DiVX), MJPEG - 8x8;

  • 7. Video encoding(software): 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS, h.263)

  • 8. Large set of peripherals that are commonly used in consumer/industrial markets including 2x MIPI-CSI, 2x USB 3.0, 2x PCIe 2.0, 4x UART and Gigabit Ethernet




Advanced performance, power efficient

SoM baed on NXP i.MX8MQ SoC running at up to 1.3GHz, carries 2GB DDR4 RAM and 8GB eMMC on-board, low power Cortex-A53 architecture and fanless designing

4K+1080P Dual-screen Play

SoM FETMX8MQ-C can support HDMI and MIPI-DSI dual-screen playing separately up to 4K. HDMI could be converted to eDP, LVDS, RGB output;MIPI-DSI could be converted to LVDS, HDMI and other display output.

H.265, VP9 low band width encoder

VP9 and H.265 decoder up to 4Kp60, video decoding efficiency 50% improved than H.264 but band width and capacity only 50% of H.264.

Large set of peripherals

Large set of peripherals that are commonly used in consumer/industrial markets including 2x MIPI-CSI, 2x USB3.0, 2x PCIe2.0,
4x UART, 1Gb Ethernet and other high speed peripherals preferable for HD camera, CCD, 5G, 4G, FPGA, SSD, PLC and high speed Ethernet peripherals connection.

Android9.0*, Linux5.4.3+ QT 5.13

Optimized 64-bit system supporting of Android 9.0 and Linux5.4.3(QT 5.13)  takes better security and interactive experience.

Carrier board pin diagram

Target Applications

5G, edge computing, HMI, V2X RSU, fuel dispenser, PCR, MTC, medical, power industry , industry automation, smart tranportation, environment monitoring, etc.




 Welcome Customize Order!
