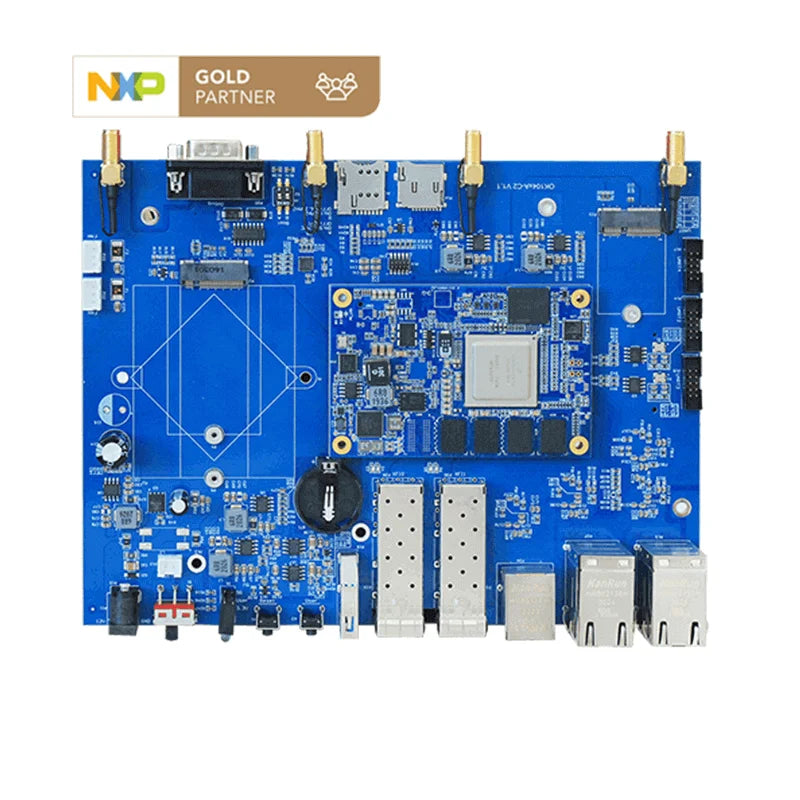

OK1046A-C2 Single Board Computer

OK1046A-C2 is LS1046A single board computer / development board designed based on NXP Cortex -A72 featuring quad-core processor with frequency up to 1.8GHz. It consists of carrier board and SoM system on module) with separated structure by COM Expressor connector with transfer rate up to 10GHz. the processor can support 2 native SFP+(10Gb), 5 Gagibit Ethernet, and also USB3.0, M.2( 5G ), mSATA, M.2(WiFi), UART and other useful prepherial interfaces are available, in software view, Ubuntu and OpenWRT are both well supported. Target applications are industrial router, edge computing gateway, IP-PBX, energy management, automation, etc.

Robust processing performance

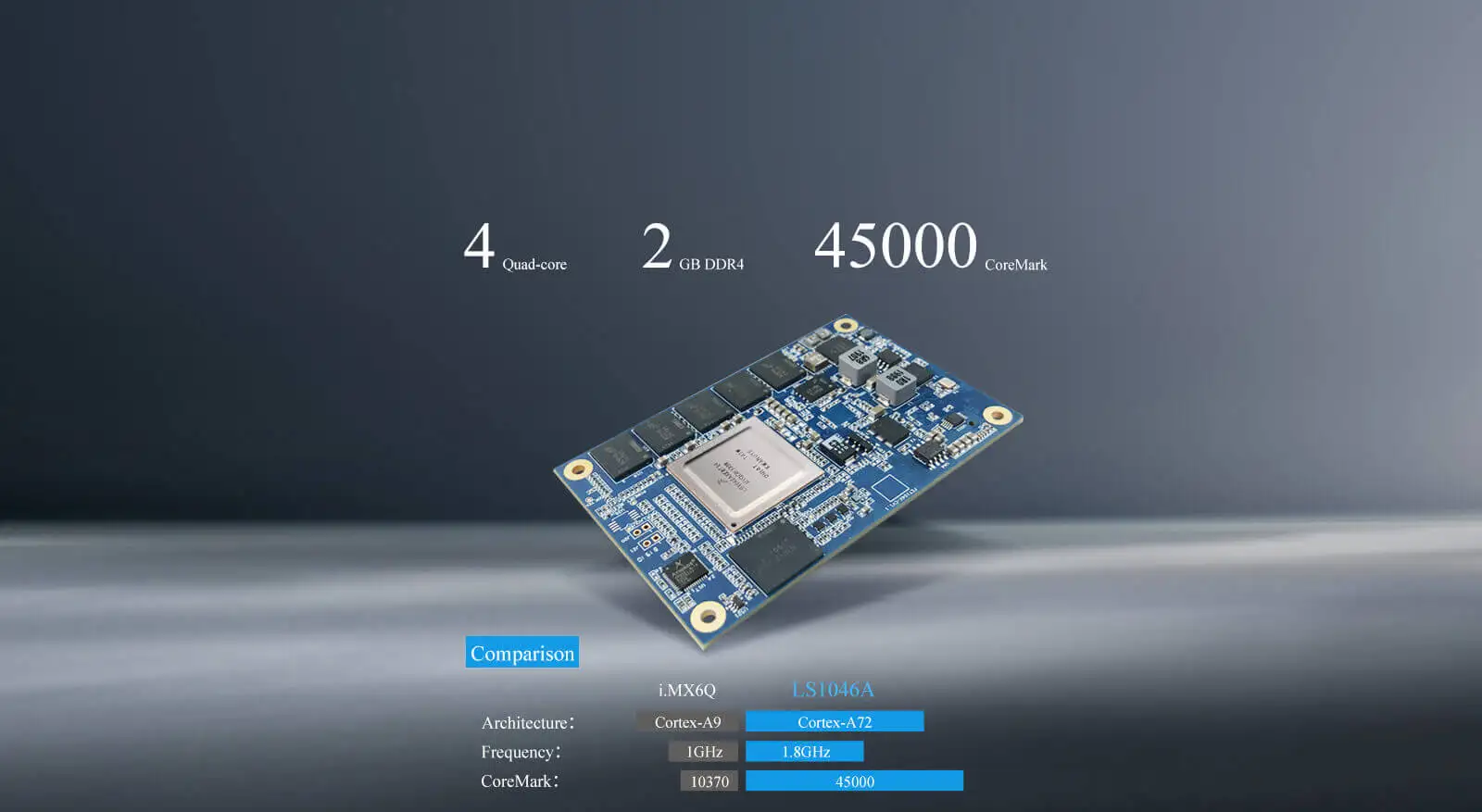

Quad-core ARM Cortex -A72 processor with frequency up to 1.8GHz,
2GB DDR4 RAM, data throughput up to 2.1GT/s, and CoreMark up to 45000

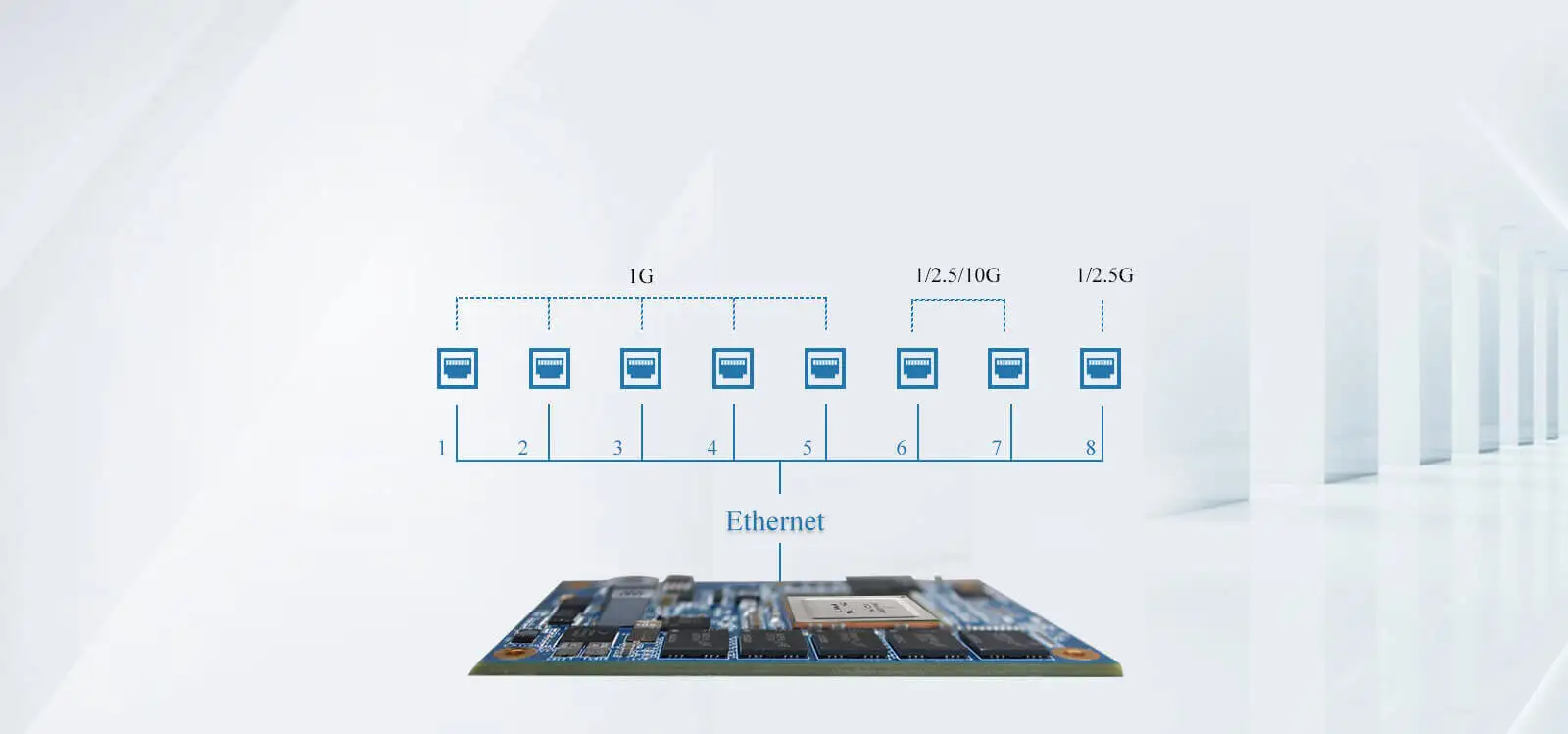

8 Native Ethernet

up to two XFI(10GbE)

High-speed Network

Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification,
and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation
and de-allocation(BMan). Software supported with DPDK and OVS-DPDK for high
performance in network related data packet processing

Various High-speed Interfaces

5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet, 32GT/s PCIe3.0(x4)

Flexible scalability

PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals

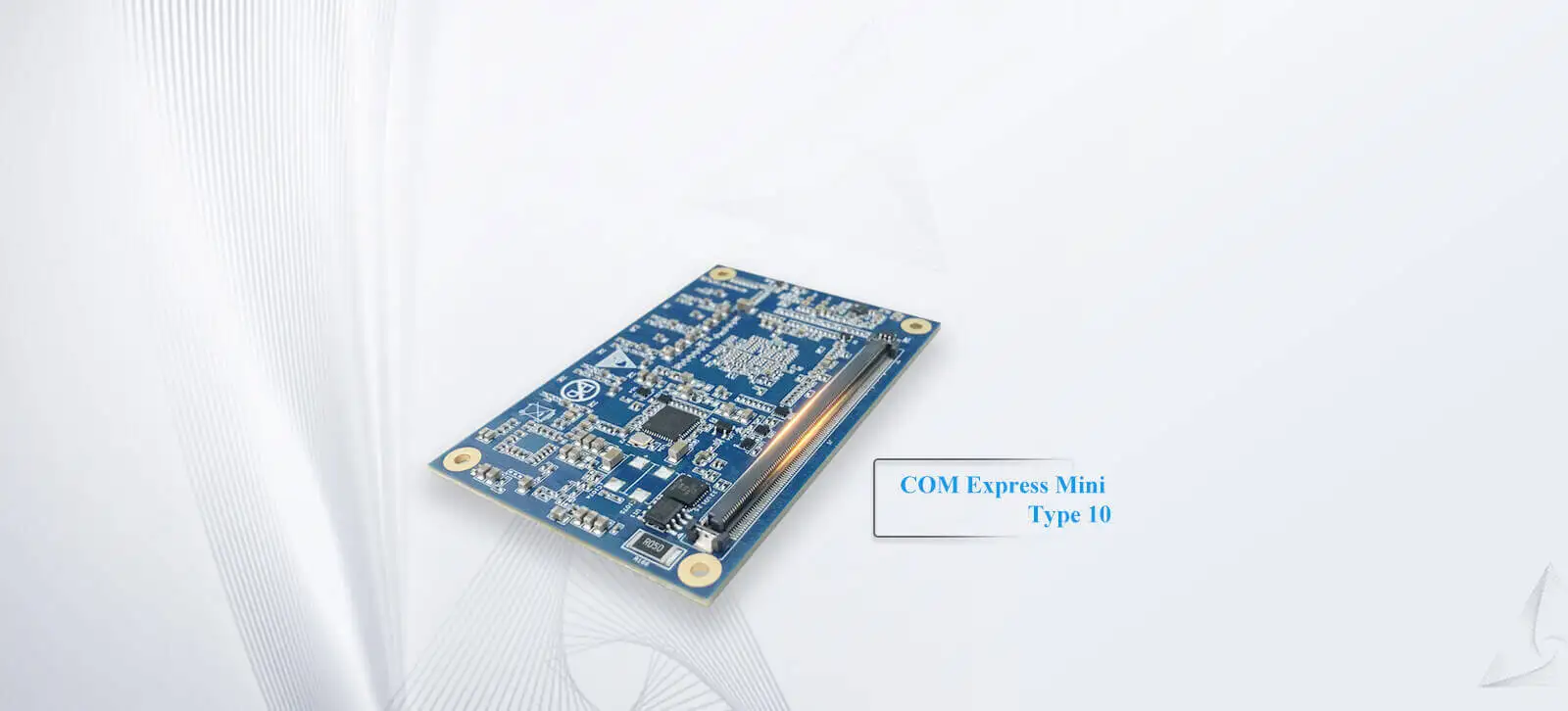

COM Express Package designing

COM Express package designing between SoM
and carrier board can provide data transfering rate up to 10GHz,
providing a wealth of connectivity and interface options. COM Express
Mini Type 10 with high compatibility makes it flexible for users to custom different SoM for carrier board.

OS Supporting

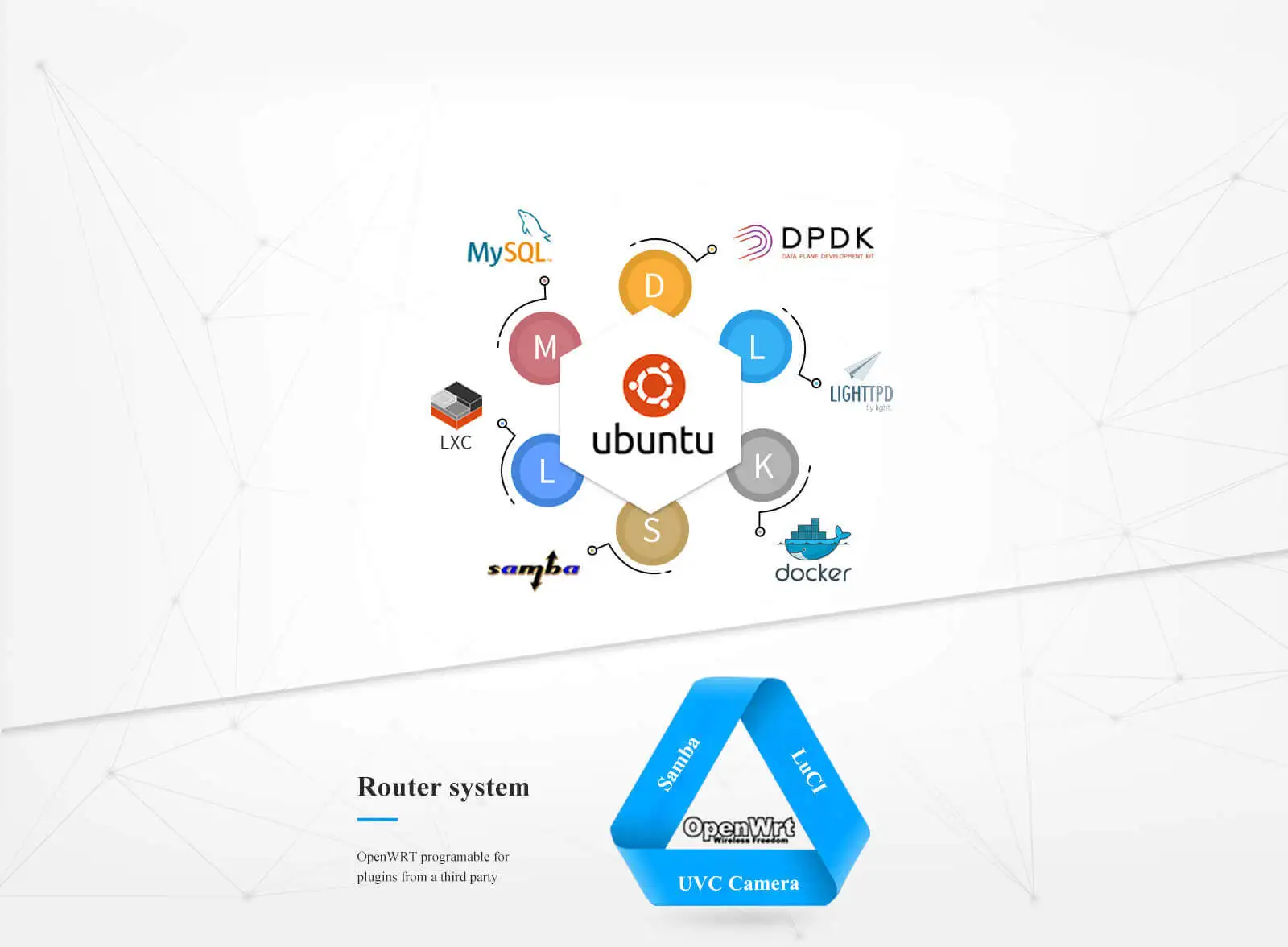

Ubuntu18.04 and OpenWRT are available for applications
and plugins from third parties, which is convenient for users to do development

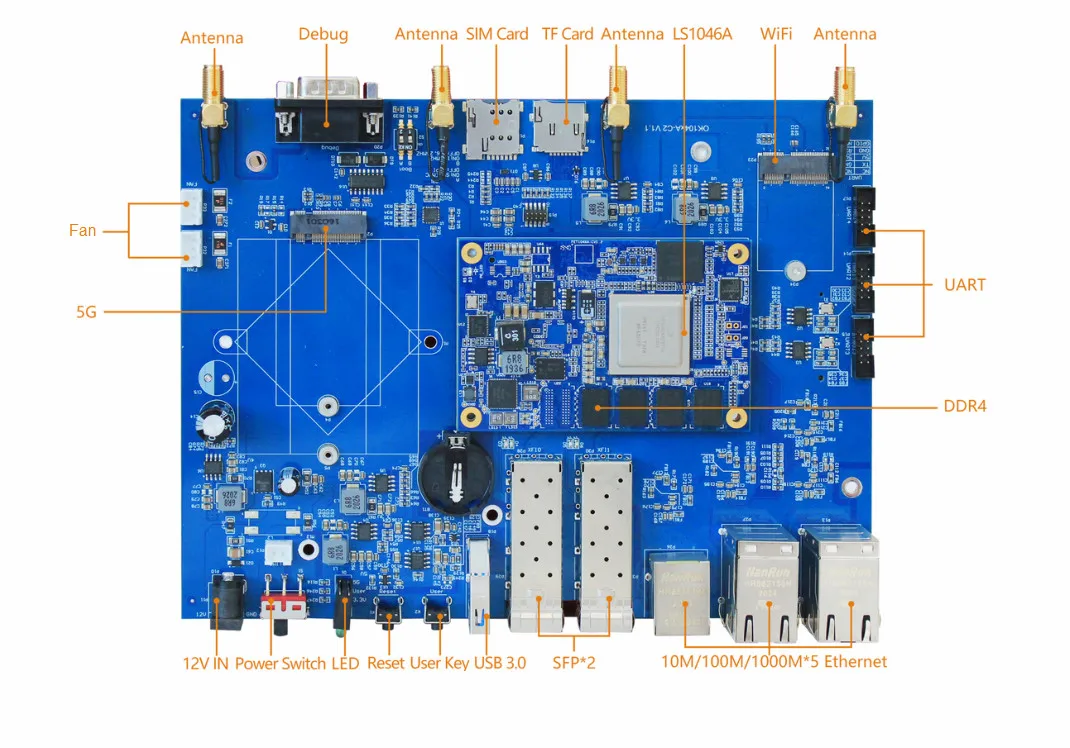

OK1046A-C SBC Pin Diagram

OK1046A-C single board computer consists of SoM FET1046A-C and carrier board
