Custom PCBA NEW arrival PCBA Quad core A53 i.MX8M Plus Android System on Module for Smart Vision Manufacturer

Custom PCBA NEW arrival PCBA Quad core A53 i.MX8M Plus Android System on Module for Smart Vision Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out
Specifications

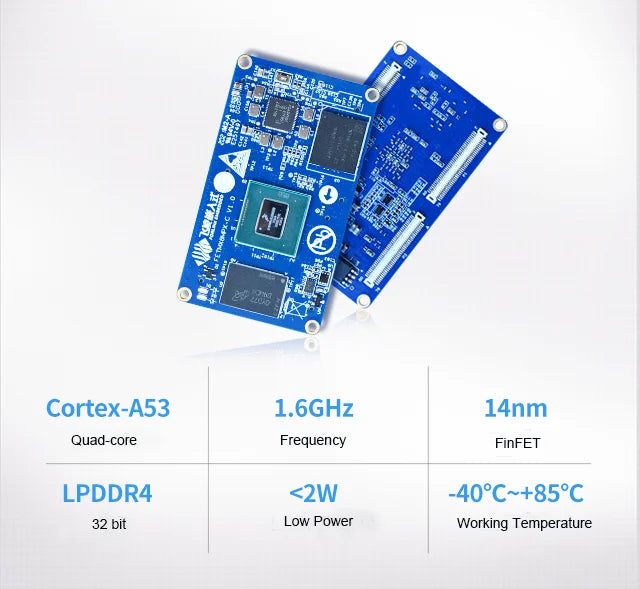

Basic Parameters

CPU
NXP i.MX 8M Plus
Architecture
Quad-Core Cortex-A53, Single-Core Cortex-M7
Frequency
1.6GHz
RAM
2GB/4GB/6GB/8GB LPDDR4(Standard 4GB)
Flash
16GB eMMC
OS Support
Linux5.4.70+Qt5.15, Android11
Working Voltage
5V
Interface Mode
Ultra-thin board-to-board connector (4*80pin pitch 0.5mm)
Working Temperature
-40℃~+85℃
Size
62mm × 36mm, Thickness 1.6mm, 8-layer ENIG PCB
Function Parameters


Function
QTY
Parameters
USB
2
The CPU contains 2 USB 3.0/2.0 controllers with integrated PHY;
Host mode: Support Super-speed (5Gbit/s), high-speed (480Mbit/s), full-speed (12Mbit/s), low-speed (1.5Mbit/s).
Device mode: SS/HS/FS
PCIE
1
Support 1 PCI Express Gen3.
MIPI_CSI
2
Provides two 4-lane MIPI camera serial interfaces, which can work up to 1.5 Gbps.
MIPI_DSI
1
Provides a 4-lane MIPI display serial interface, which can work up to 1.5 Gbps.
• 1080 p60
• WUXGA (1920x1200) at 60 Hz
• 1920x1440 at 60 Hz
• UWHD (2560x1080) at 60 Hz
• WQHD (2560x1440) by reduced blanking mode
HDMI
1
Supports HDMI 2.0a display resolution up to 4Kp30Supports HDMI2.1 eARC
LVDS
1
Single channel (4 lanes) supports 720p60
Dual asynchronous channels (8 data, 2clocks) support 1920x1200p60
Ethernet
≤2
Ethernet ≤2 supports 2 RGMII interfaces, one of which supports TSN
SD
≤2
SD2, 4-bit, support 1.8/3.3V mode switching SD1, 8-bit, only support 1.8V mode
UART
≤4
The maximum baud rate supported is 4Mbps.
SPI
≤3
The maximum supported rate is 52Mbit/s, master-slave mode can be configured
I2C
≤5
The highest rate supported in standard mode is 100Kbit/s;
The highest rate supported in fast mode is 400Kbit/s.
CAN
≤2
The CAN FD protocol is used to implement the CAN communication controller, and the CAN protocol conforms to the CAN 2.0B protocol
specification. (CAN FD requires CPU version support)
SAI
≤6
Synchronous Audio Interface (SAI), a full-duplex serial interface that supports frame synchronization, such as I2S, AC97, tdM, and
codec/DSP interfaces.
SPDIF
≤1
A standard audio file transmission format, jointly developed by Sony and Philips.
PWM
≤4
With 16-bit counter;
QSPI
≤1
Has been occupied by the core board, connected to the 16MB Nor Flash
JTAG
1

Details Images
4K+1080P Dual-screen Playing

SoM FETMX8MQ-C can support HDMI and MIPI-DSI dual-screen playing separately up to 4K. HDMI could be converted to eDP, LVDS, RGB output;MIPI-DSI could be converted to LVDS, HDMI and other display output.



Large set of peripherals
Large set of peripherals that are commonly used in consumer/industrial markets including 2x MIPI-CSI, 2x USB3.0, 2x PCIe2.0, 4x UART, 1Gb Ethernet and other high speed peripherals preferable for HD camera, CCD, 5G , 4G, FPGA, SSD, PLC and high speed Ethernet peripherals connection.
Target Applications
5G, edge computing, HMI , V2X RSU, fuel dispenser, PCR, MTC, medical, power industry , industry automation, smart tranportation, environment monitoring, etc.



Packing & Delivery

Accessory of a development board including power adapter, debug cable

generally, the packing will be a development board a box (23*19*9cm)
