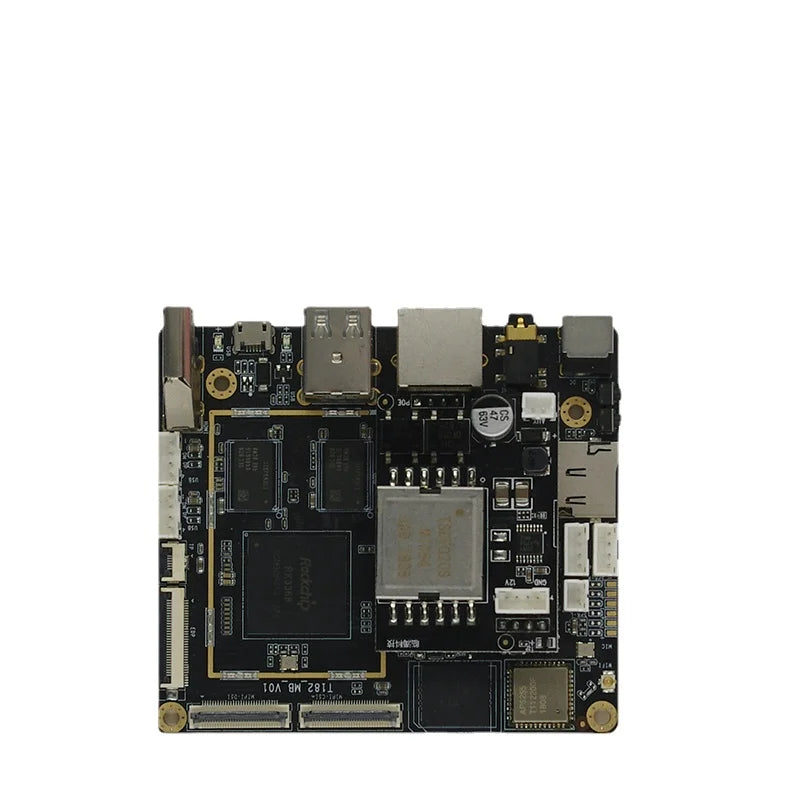

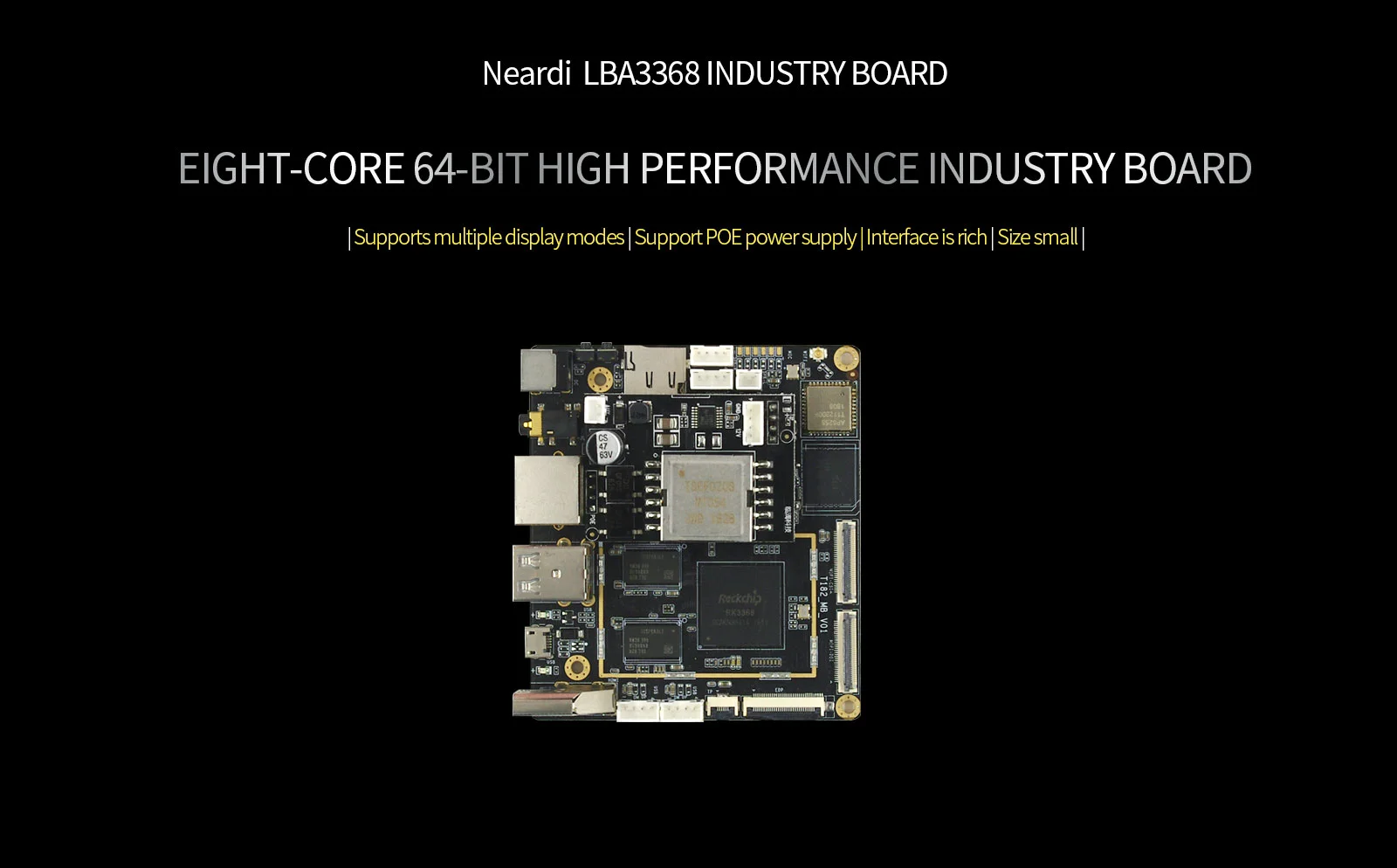

Custom PCBA Neardi LBA3368 Industry Board,RK3368 Manufacturer

CPU

RK3368, Octa-core Cortex-A53 up to 1.5GHz frequency

GPU

PowerVR G6110

High performance OpenGL ES1.1/2.0/3.0, OpenCL 1.2, DirectX 9.3

High performance 2D Graphics Engine

VPU

Real-time video decoder of MPEG-1, MPEG-2/4, H.263/264, AVS, VC-1, VP8, MVC

H.264 up to HP level 5.2: 4Kx2K@30fps

MPEG-1/2/4 VP8/AVS/MVC up to 1080p@60fps

VC-1/ up to 1080p@30fps

video encoder for H.264, MVC and VP8

DDR

DDR3，1GB

eMMC

eMMC 4.5.1， 8GB/16GB (Optional)

PMU

RK808

Net work

10/100Mbps Ethernet (Realtek RTL8211E)

Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac,up to 433 Mbps (AP6255)

BT V4.2 with BLE supported

Storage

MicroSD (TF) Card Compatible with SDIO3.0

OS

Android

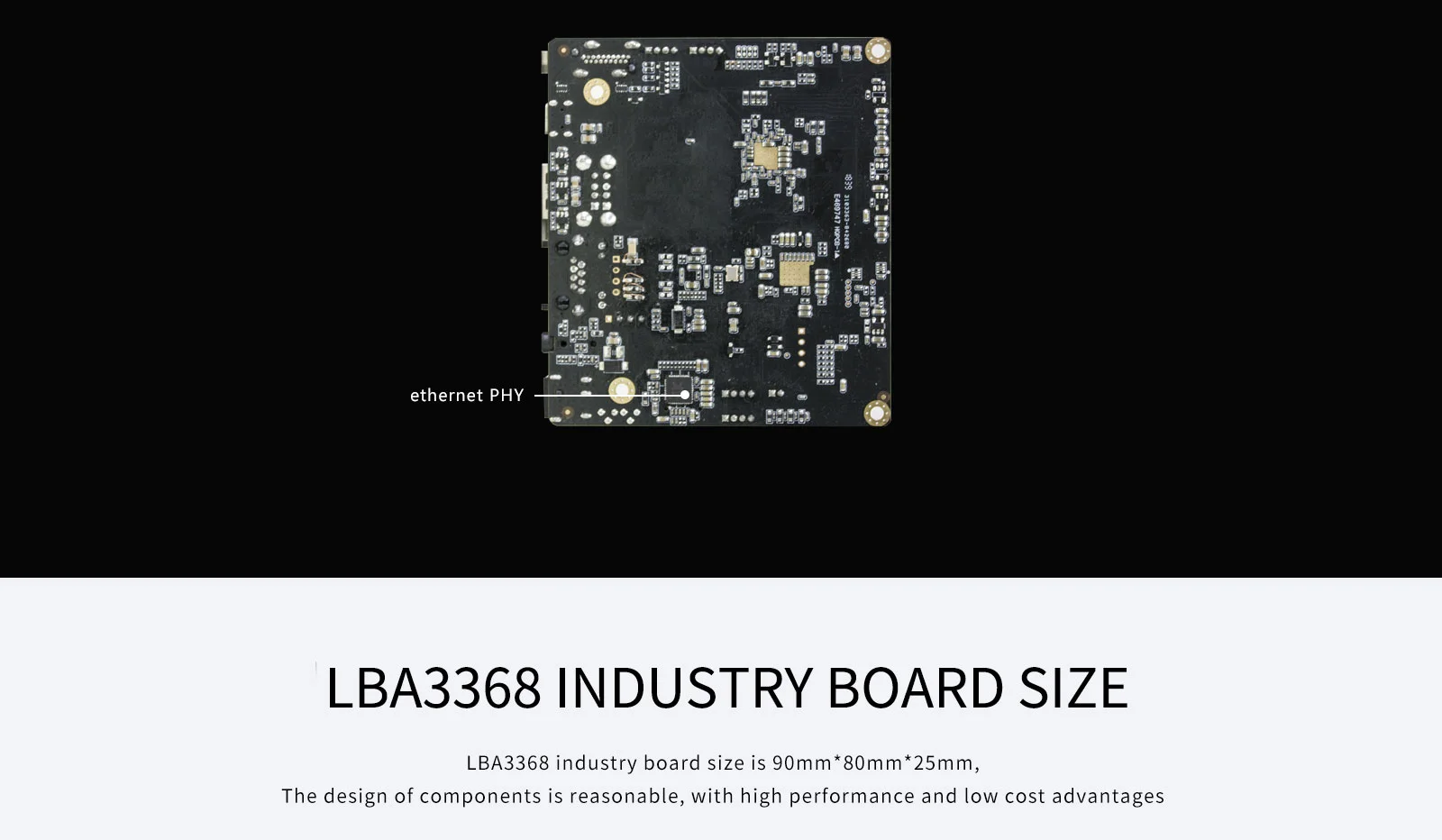

PCB size

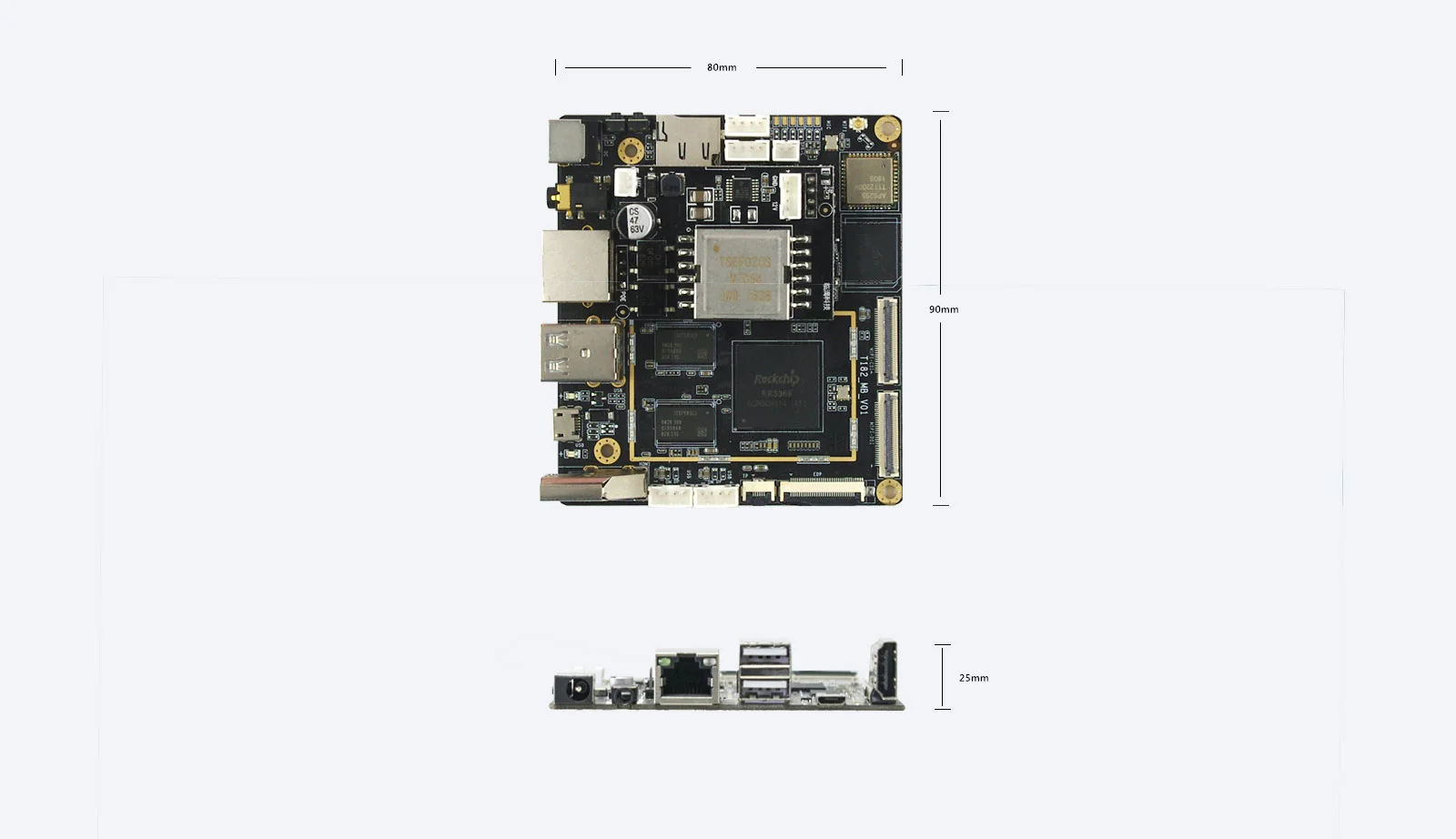

L* W (mm)：90* 80（PCB 1.6mm）

Screw size

φ3.0mm

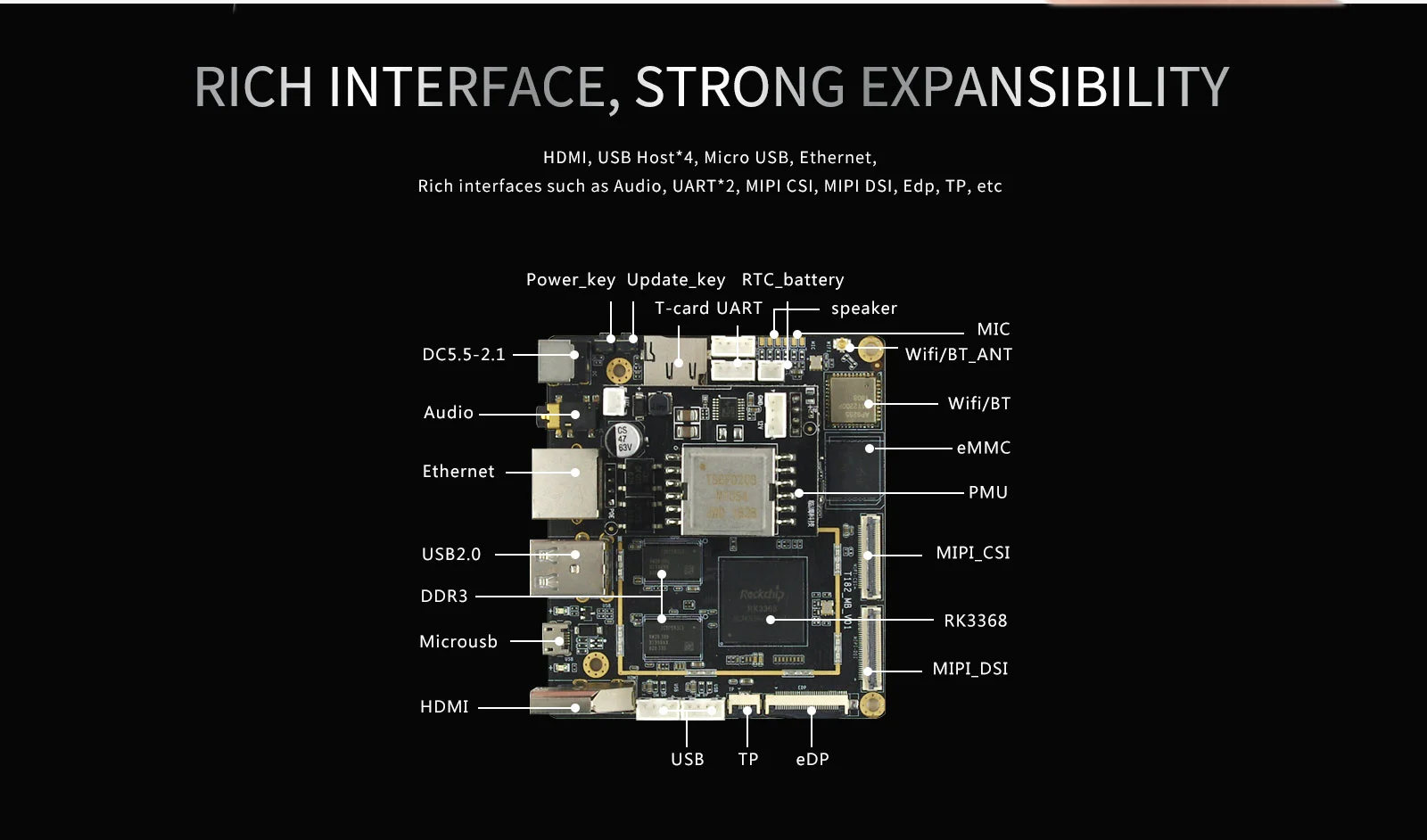

Hardware Interface

Power

DC12V - 2A (DC Jack 5.5*2.1mm) or POE

USB

2*Type-A USB2.0 HOST +1*Micro USB OTG + 2*4Pin PH2.0 USB2.0 HOST

Display

Type-A HDMI 2.0 up to 4K@60HZ

MIPI-DSI up to 1080P@60HZ

eDP1.1 20Pin PH2.0 up to 4Kx2K @ 30fps

Audio

φ3.5mm earphone Jack with L/R audio out and Mic in

1x analog microphone

1x HDMI audio out

2x 3W/4Ω speaker out with L/R channel

Camera

1x MIPI-CSI interface with ISP built-in

SD card

Compatible with SDIO 3.0 protocol, system boot up supported

RJ-45

10/100-Mbps data transfer rates

RTC

2Pin PH2.0 connector, RTC power on and off supported

Serial port

2x UART

Keys

2x keys ( reset, update)

Others

1x I2C(CTP supported),2x GPIO
