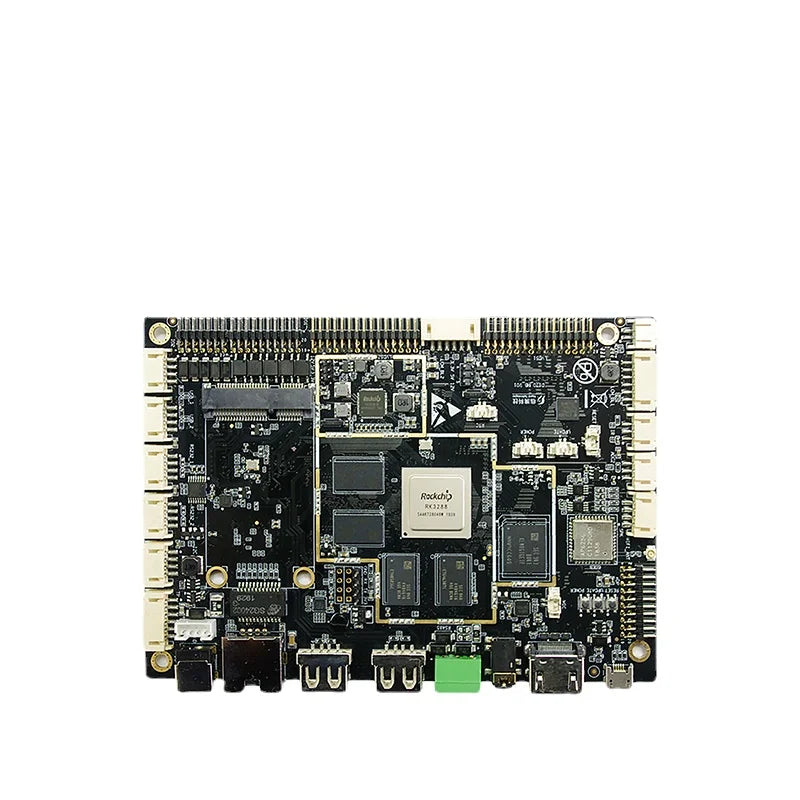

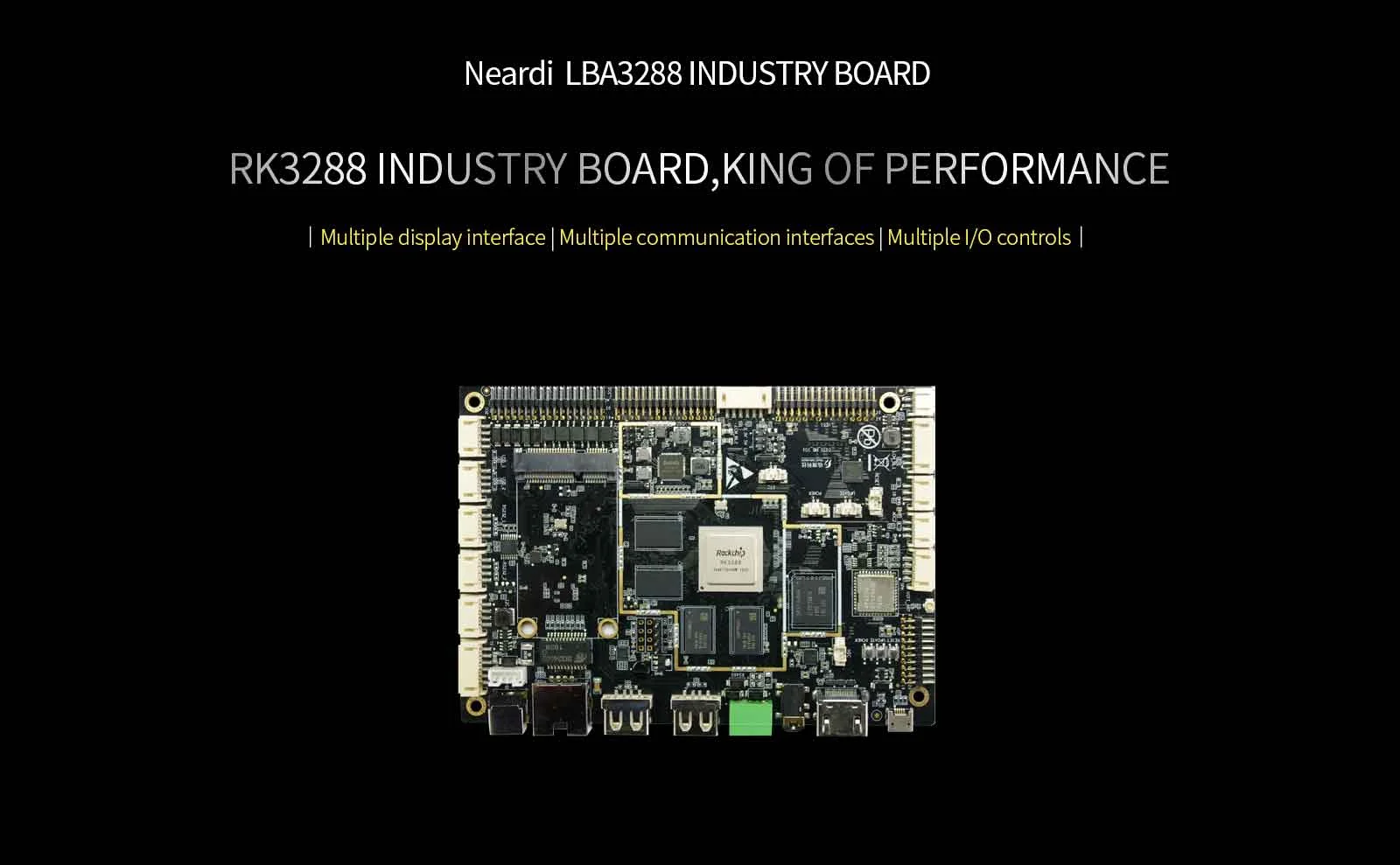

Custom PCBA Neardi LBA3288 Industry Board,RK3288 Manufacturer

CPU

RK3288, Quad-core ARM Cortex-A17,upto 1.8GHZ frequency

GPU

ARM Mali- T764 GPU core

High performance OpenGL ES1.1/2.0/3.0, OpenCL 1.2, DirectX 11

High performance 2D Graphics Engine

VPU

Real-time video decoder of MPEG-1, MPEG-2/4, H.263/264, AVS, VC-1, VP8, MVC

H.264 up to HP level 5.1: 2160p@24fps

MPEG-1/2/4 VP8/AVS/MVC up to 1080p@60fps

VC-1/ up to 1080p@30fps

video encoder for H.264, MVC and VP8

DDR

DDR3，1GB/2GB(Optional)

eMMC

eMMC 5.1， 8GB/16GB/32GB/64GB/128GB(Optional)

PMU

RK808

Net work

10/100/1000Mbps Ethernet (Realtek RTL8211E)

Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac,up to 433 Mbps (AP6256)

BT V5.0 with BLE supported

2G/3G/4G LTE module supported (optional)

Storage

MicroSD (TF) Card Compatible with SDIO3.0

OS

Android / Ubuntu / Buildroot

PCB size

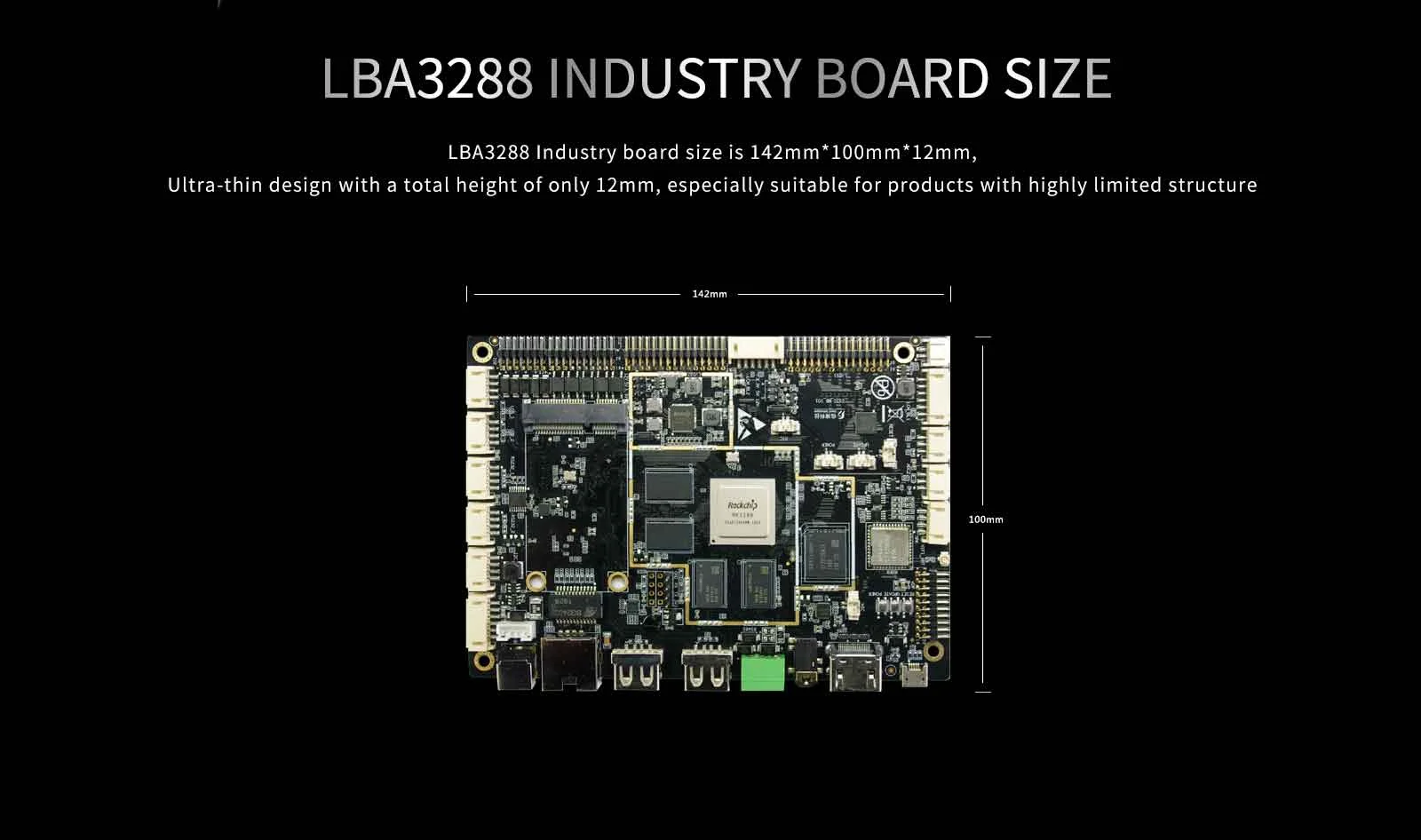

L* W (mm)：142 * 100（PCB 1.6mm）

Screw size

φ3.6mm

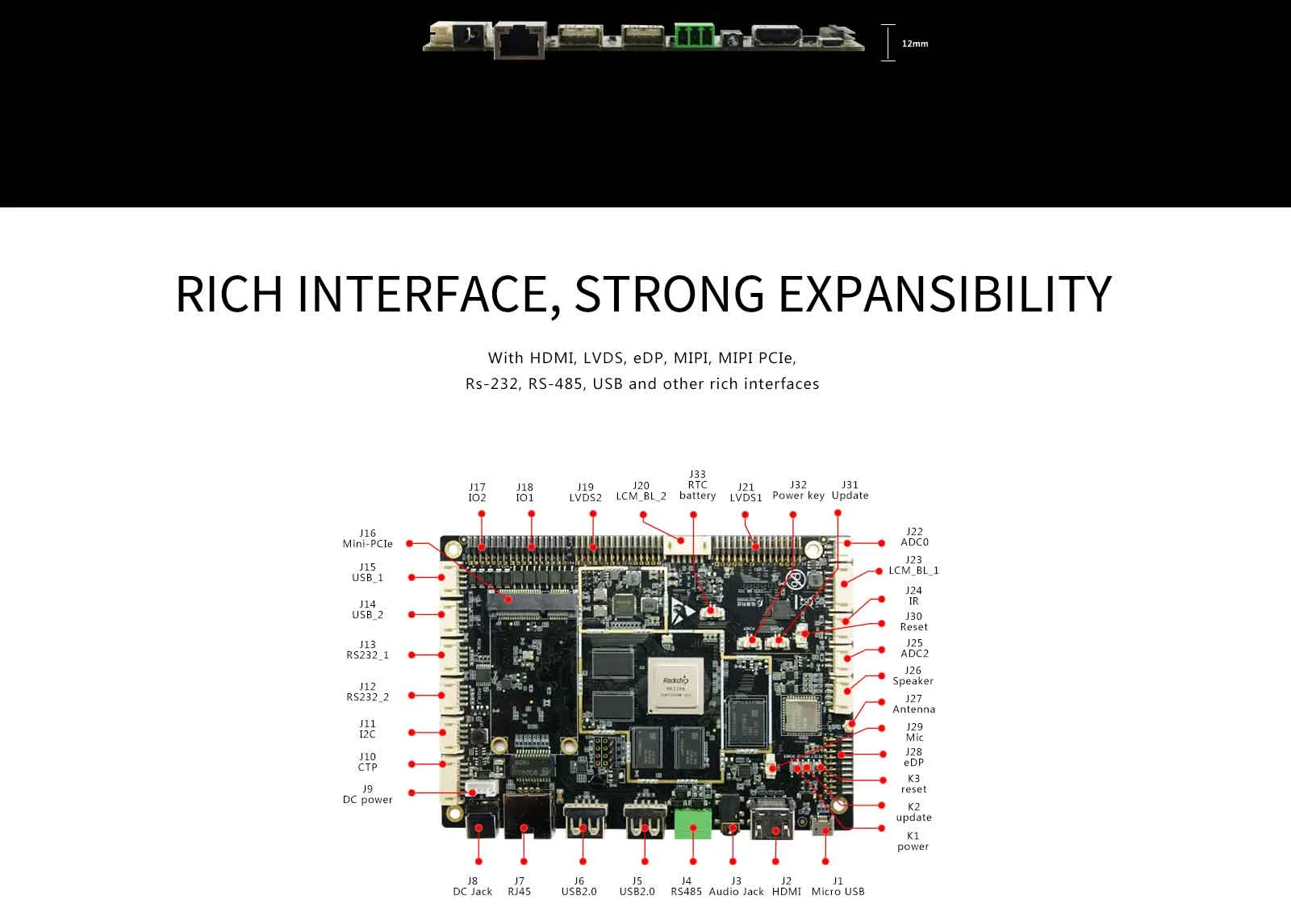

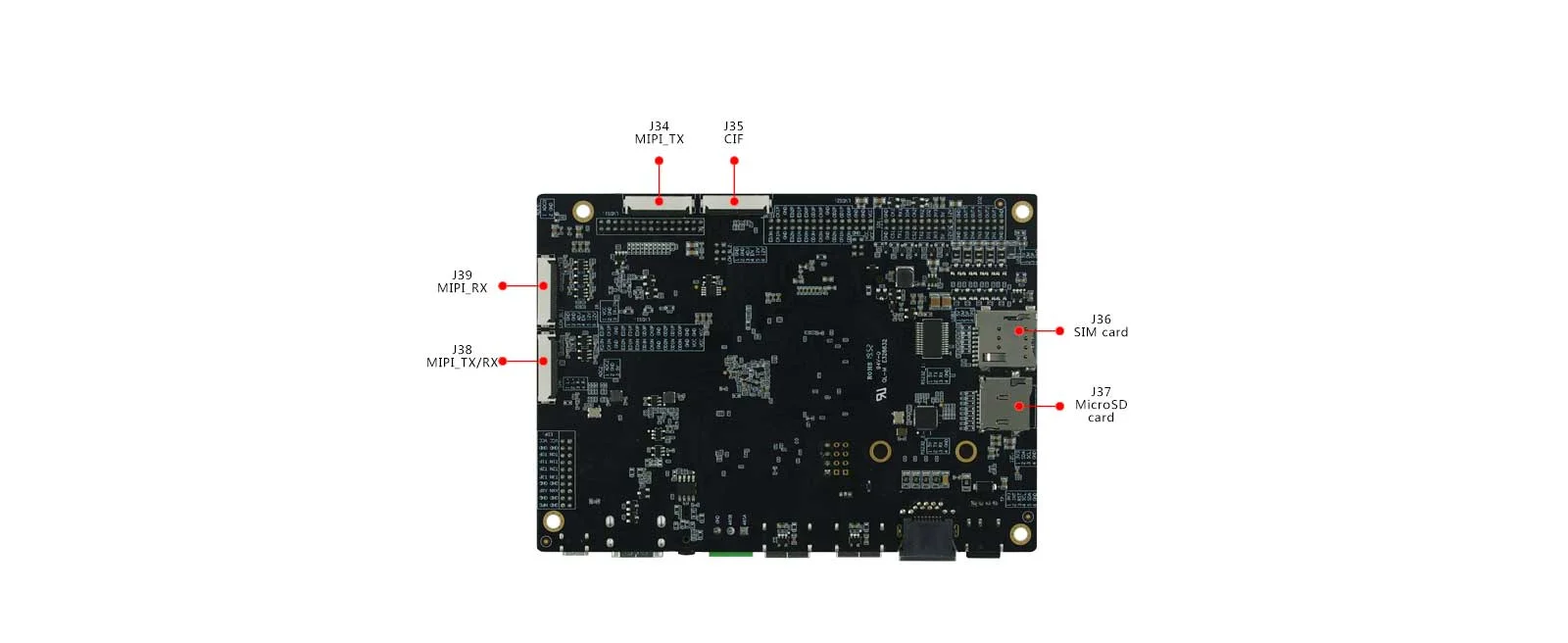

Hardware Interface

Power

DC12V - 2A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)

USB

2*Type-A USB2.0 HOST + 2*4Pin PH2.0 USB2.0 HOST connector

Display

Type-A HDMI 2.0 up to 4K@60HZ

MIPI-DSI up to 1080P@60HZ

eDP1.1 20Pin PH2.0 up to 4Kx2K @ 30fps

2x Duel channel LVDS up to 1080P@60HZ

Audio

φ3.5mm earphone Jack with L/R audio out and Mic in

1x analog microphone

1x HDMI audio out

2x 3W/4Ω speaker out with L/R channel

Camera

2x MIPI-CSI interface with ISP built-in

PCIe

mini PCIe for 2G/3G/4G LTE module

SD card

Compatible with SDIO 3.0 protocol, system boot up supported

SIM card

Micro sim slot for Mini-PCIe 4G LTE module

RJ-45

10/100/1000-Mbps data transfer rates

RTC

2Pin GH1.25 connector, RTC power on and off supported

Serial port

2x RS232 and 1xRS485

Keys

3x keys (power, reset, update)

Poweroutput

12V, 5V, 3.3V

INPUT & OUTPUT

5x INPUT detectwithoptocoupler isolation, 5x 12V voltageoutputwith GPIO control

Others

2x ADC, 2x I2C(CTP supported), IR in, 2x SPI, 4x GPIO
